WARNING
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
RC4341C
Assembly and Operating Instructions for
Outback® Ranger 3 Gas/Charcoal Hybrid
2575 0359
2
Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see ‗Hardware Reference Diagram‘.
CODE PART QTY Ranger 3 Gas/Charcoal Hybrid
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Hood Handle 1
A3 Heat Indicator 1
A4 Warming Rack 1
BODY
B1 Cooking Grill 2
B2 Round Grill 1
B3 Charcoal Basket 1
B4 Flame Tamer 3
B5 Barbecue Body 1
B6 Knob 3
B7 Control Panel 1
B8 Main Burner 3
B9 Drip Tray Handle 1
B10 Drip Tray 1
B11 Drip Tray Left Bracket 1
B12 Drip Tray Right Bracket 1
B13 Side Burner Valve, Hose and Regulator Assembly 1
TROLLEY
C1 Side Burner Shelf 1
C2 Side Burner Base 1
C3 Side Burner Ignitor 1
C4 Side Burner 1
C5 Side Burner Electrode 1
C6 Side Burner Grid 1
C7 Side Burner Knob 1
C8 Side Shelf 1
C9 Hook Rail 1
C10 Tool Hook 3
C11 Bottle Opener 1
C12 Left Front Leg 1
C13 Left Rear Leg 1
C14 Right Front Leg 1
C15 Right Rear Leg 1
C16 Front Screen 1
C17 Trolley Base 1
C18 Axle 1
C19 Wheel 2
C20 Hubcap 2
HARDWARE
D1 M5x15 Bolt 4
D2 M5 Washer 4
D3 M5 Nut 4
D4 M6x95 Bolt 8
D5 Spacer 8
D6 1/4-20UNCx25 Bolt 16
D7 1/4-20UNCx12 Bolt 10
D8 M6x10 Bolt 2
D9 M6x15 Bolt 4
D10 M6 Nut 4
D11 M4 Step Bolt 2
D12 M4x10 Bolt 2
D13 Wing Nut 1
D14 Locknut 2
Pre-Assembled Component
3
Parts Diagrams
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see hardware pack page.
C13
C12
B13
A1
A3
A2
B4
B6
B9
B10
B11 B12
C15
C17
C20
C1
C2
C8
C11
C9
C10
C14
C19
D14
C18
C16
B5
B8
C4
D13
C6
C5
C7
C3
B1
B2
B3
B7
A4
4
Hardware Reference Diagram
Specifications subject to change without prior notice.
D1,D2,D3
D4,D5
D6
D7
D7
D8
D9,D10
D11
D12
M4 STEP BOLT 2PCS
M5X15 BOLT 4PCS M5 NUT 4PCS
M5 WASHER 4PCS
M6X10 BOLT 2PCS
1/4-20UNCX12 BOLT 8PCS
M6X15 BOLT 4PCS M6 NUT 4PCS
M4X10 BOLT 2PCS
1/4-20UNCX12
BOLT 2PCS
1/4-20UNCX25 BOLT 16PCS
M6X95 BOLT 8PCS SPACER 8PCS
5
2
Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
The assembly of this barbecue at least requires 2people.
Remove any internal components or packaging from the barbecue body.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
Attach the Legs (C12,C13,C14,C15) onto Trolley Base (C17) use 1/4-20UNCx12 Bolts (D7x8pcs)
as shown.
Note: Ensure that the legs with the Velcro attached to them are at the front of the barbecue, with
the Velcro facing inwards.
Unscrew the Locknuts (D14x2pcs) from both ends of the Axle (C18). Slide the axle through the
corresponding holes in the left legs. Slide a Wheel (C19) over each end of the axle. Secure the
wheels into place with the locknuts. Place the Hubcaps (C20) ont the outsides of the wheels.
C20 C19
D14 C18
C14
D7
C17
C12
C13
C15
6
4
3
Insert M6x95 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of
the bolts inside the spacers. While holding the barbecue body into position (2 people required),
screw the bolts into the barbecue body as shown.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or
becomes damaged when it is set on the ground.
D5 D4
Attach the Drip Tray Left Bracket (B11) to the barbecue body using M5x15 Bolts (D1x2pcs), M5
Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray Right
Bracket (B12).
NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the
front of the barbecue.
FRONT
REAR
B11D1 D2 D3
7
6
5
Remove the retaining bolts from Drip Tray Handle (B9), and then attach it onto the Drip Tray (B10)
using the retaining bolts.
Insert the drip tray by sliding it underneath the barbecue body.
B9
B10
Attach the Bottle Opener (C11) to the right front leg using 1/4-20UNCx12 Bolts (D7x2pcs).
C11
D7
8
8
7
C9C10 C8
D8
Attach the Tool Hooks (C10) to the Hook Rail (C9) as shown; make sure the direction of
tool hook is facing outwards. Attach the tool hook assembly to the Side Shelf (C8) using
M6x10 Bolts (D8x2pcs).
Attach the side shelf assembly to the Right Front / Rear Legs using 1/4-20UCNx25 Bolts
(D6x8pcs) as shown.
D6
9
10
9
Attach the Side Burner Shelf (C1) to the Left Front / Rear Legs using 1/4-20UNCx25 Bolts
(D6x8pcs) as shown.
D6 C1
Unscrew the retaining nut from Side Burner Ignitor (C3). Insert the ignitor through the Side
Burner Base (C2) and secure with the retaining nut.
Carefully lay the side burner base into the side burner shelf horizontally, and fix it using
M6x15 Bolts (D9x4pcs) and M6 Nuts (D10x4pcs).
C3
C2
Retaining Nut
D9
D10
10
11

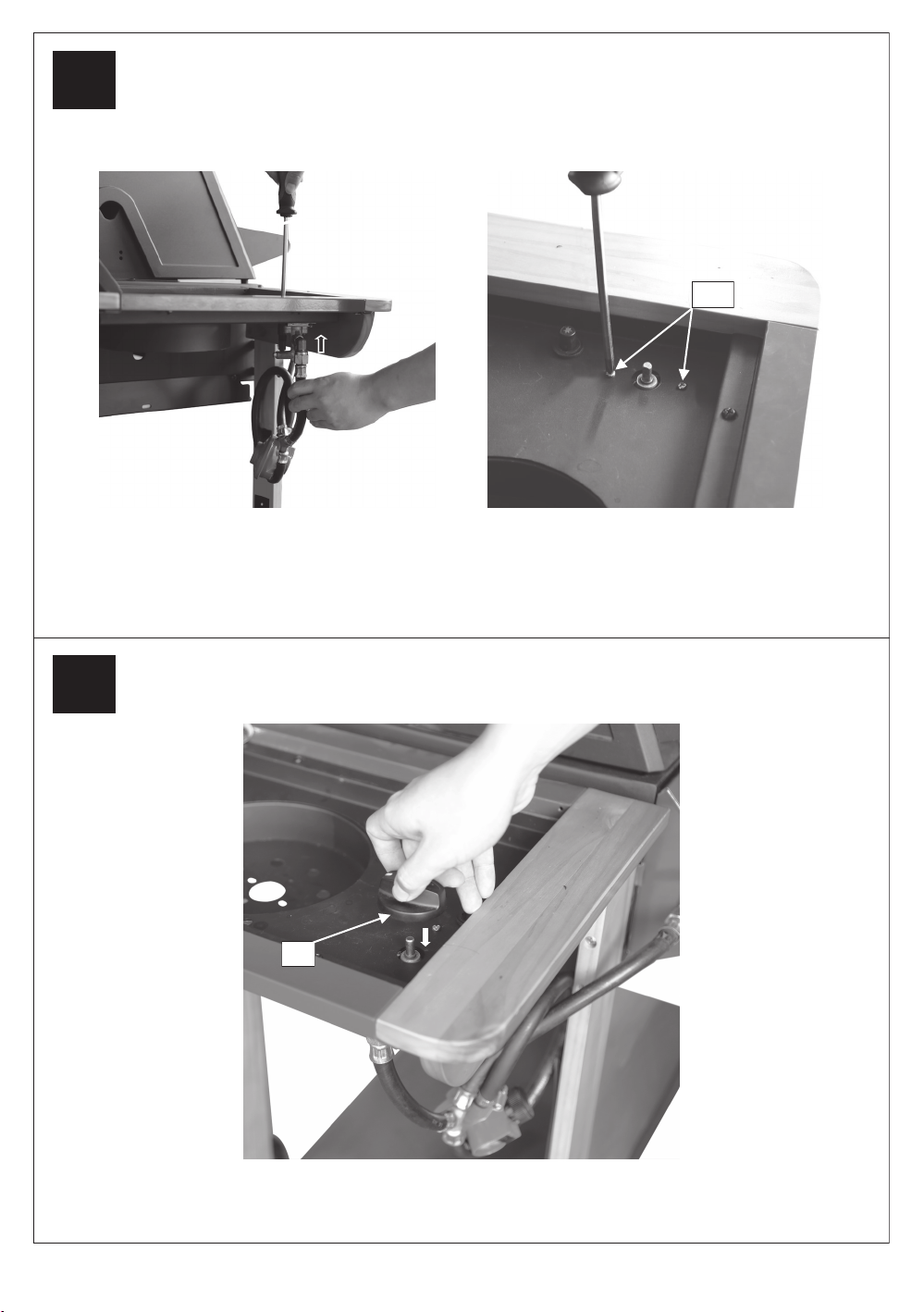

Attach the side burner valve onto the side burner base using M4x10 Bolts (D12x2pcs) as shown.
12
C7
Press the Side Burner Knob (C7) onto side burner valve stem.
D12
