OPTO-EDU A15.1091 Manual de usuario

www.optoedu.com 1/33 sale@cnoec.com

A15.1091

Polarizing Microscope, Semi-APO,

Transmit & Reflect Light

Instruction Manual

This manual is applicable to A15.1091 laboratory biological microscopes. In order to ensure safety,

perform optimally with the instrument, and make you fully familiar with the use of this microscope, we

recommend that you read the manual thoroughly and carefully before operating the microscope.

www.optoedu.com 2/33 sale@cnoec.com
Contents A15.1091
Before Use ................................................................................................................................ 4
1.Name of each part ................................................................................................................. 6
1.Name of each part................................................................................................................... 7
1. Name of each part.................................................................................................................. 8
2.Overview of each institution .................................................................................................. 9
3. Adjustment and operation .................................................................................................. 15
3-1 Turn on the power (Figure 1)........................................................................................ 15
3-2 Adjust light intensity and switch up and down light source (Figure 2) ........................ 15
3-3 Light socket (Figure 3).................................................................................................. 15
3-4 Specimen placement (figure 4）................................................................................... 16
3-5 Adjusting the pitch (figure 5)........................................................................................ 16
3-6 3rd-gear optical circuit switch (Figure 6)...................................................................... 16
3-7 Focusing (Figure 6 -8）................................................................................................ 17
3-8 Focusing handwheel slacking adjustment (Figure 8).................................................... 17
3-9 Focus upper limit (Figure 9) ........................................................................................ 17
3-10 Swing-out condenser adjustment (Figure10 , 11）..................................................... 18
3-11 Use of color filters (figure 12）.................................................................................. 19
3-12 The use of extended function board (Figure 14)......................................................... 19
3-13 ECO function key (Figure 15).................................................................................... 19
3-14 Fuse replacement(Figure 16)....................................................................................... 20
3-15 “ECO"The device(Figure 18)...................................................................................... 20
3-16 The use of Bertrand lens(Figure 19) ........................................................................... 21
3-17 Bertrand lens focusing(Figure 19) .............................................................................. 21
3-18 Use optical path selection(Figure 20).......................................................................... 21
3-19 Centering the field diaphragm (Figure20 , 21)............................................................ 21
3-20 Use aperture diaphragm(Figure 23) ............................................................................ 22
3-21 Use the polarizer and the analyze (Figure 24)............................................................. 23
3-22 Adjusting the objective light axis and stage center coincide(Figure26 , 27）............ 23
4．Install................................................................................................................................. 24
4-1 Installation illustration .................................................................................................. 24

www.optoedu.com 3/33 sale@cnoec.com
4-2 步骤............................................................................................................................... 25
4-2-1 Installation of mechanical carrier bays（Figure 1 , 2）........................................ 25
4-2-2 Install the polarizing platform (figure 3, 4）......................................................... 25
4-2-3Install the polarizing moving ruler (Figure 5)......................................................... 26
4-2-4 Installation converter (Figure 6) ............................................................................ 26
4-2-5Install metallographic device (Figure 7)................................................................. 26
4-2-6 Install Bertrand lens set (Figure 8)......................................................................... 27
4-2-7Install observation head and phot-ography accessories /0.5X C interface (Figure 9)
......................................................................................................................................... 27
4-2-8Installation eyepiece (Figure 10) ............................................................................ 28
4-2-9 Install objective lens (figure 11）.......................................................................... 28
4-2-10 Install swing-out condense (Figure 12）............................................................. 28
4-2-11Replace the camera interface (optional) (Figure 13 and 14）.............................. 29
4-2-12 Install the light box (figure.15）......................................................................... 29
4-2-13 Installation analyzers (Figure 16)........................................................................ 29
5. Technical specifications ...................................................................................................... 30
6．Troubleshooting guide....................................................................................................... 31











www.optoedu.com 4/33 sale@cnoec.com

Know Before Use A15.1091

Ⅰ.Safety signs

The following signs are on the microscope. Find out what these symbols mean and always use the

microscope in the safest way.

Ⅱ.Safety precautions

1. Care should be taken when opening the box, to prevent the lens glass stick to fingerprints, sweat

stains and other impact observation, to prevent the lens and other accessories fall damage.

2. Avoid placing the microscope in areas with direct sunlight, high or high humidity, dust, and

vulnerability to strong vibrations, ensuring that the stage is flat, horizontal and strong enough.

3. When a moving microscope is required, one hand hooks into the slot above the rack and one

hand holds the front bottom of the frame.

4. If a bacterial solution or water is splashed on a load station, objective or observation tube,

immediately pull out the power cord and dry the solution or water to ensure that the microscope is

dry. Otherwise, it is possible to damage the instrument.

5. To avoid blocking natural convection air for cooling, make sure that the left, right, top, and

back of the microscope are at least 10 cm from walls and other objects.

6. Ground the unit to avoid lightning strikes.

7. To ensure safety, make sure that the main switch is in an"O"(off) state and that the power is

switched off while waiting for the bulb and light chamber to cool down completely before

replacing the halogen lamp or fuse. Input voltage check: The input voltage indicated on the back

of the microscope is consistent with the supply voltage, otherwise it will cause serious damage to

the microscope.

8. Use the special wires provided by the Company.

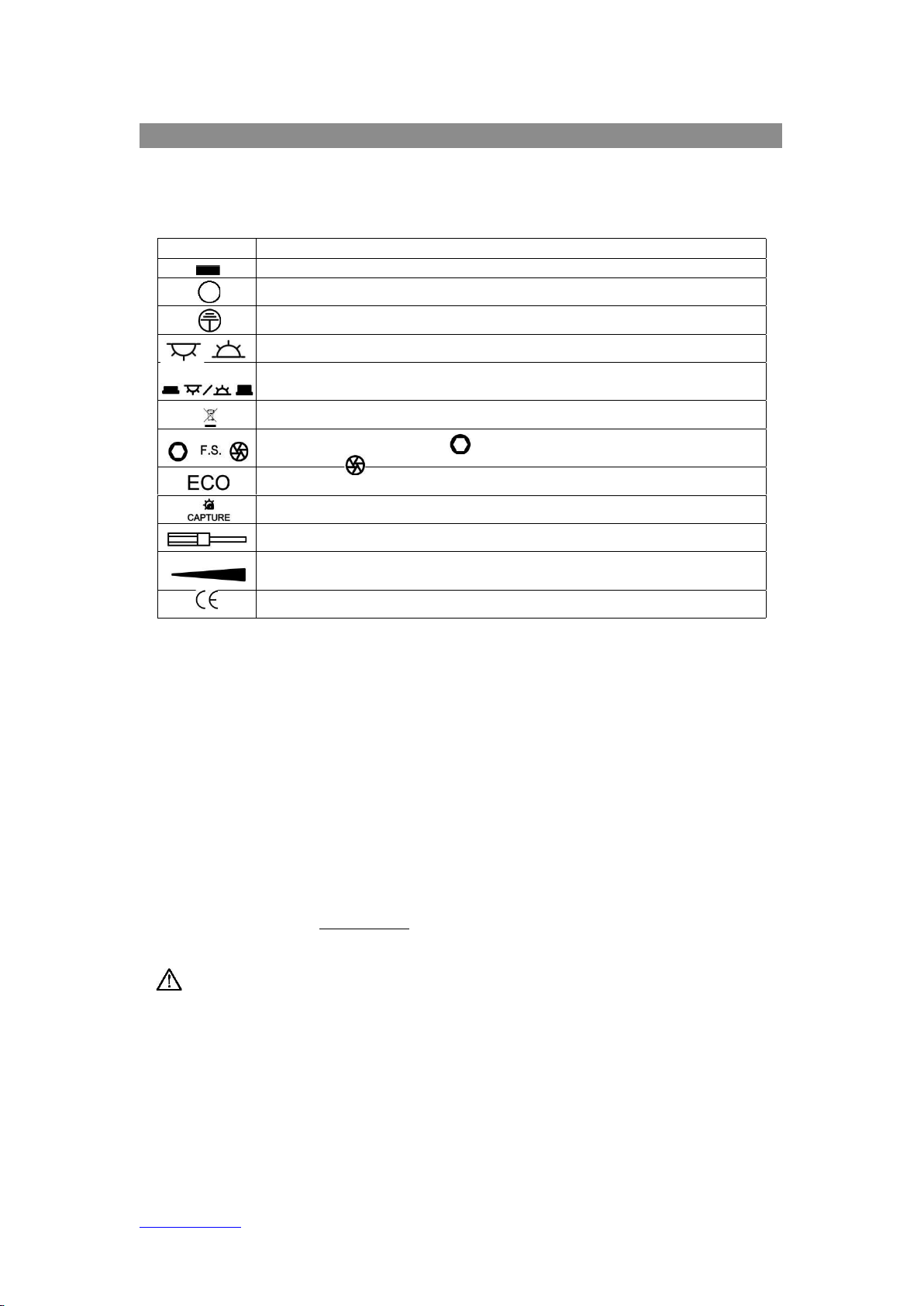

Sign

Significance

Indicates that the main power switch is on.

Indicates that the main power switch is off.

Indicates that ground is here.

Indicates on/down illumination.

Indicates that the upper/ under light source illumination when the button is

pressed/not pressed.

Represents the trash can.

F.S represents diaphragm, represents the opening direction of the

diaphragm, represents the narrowing direction of the diaphragm.

Indicates that the person walks the light off switch.

Represents a photo symbol.

Indicates use a wrench here.

Indicates the light strong small direction, the small head is the light

weakening, the big head is the light to become stronger.

Indicates CE certification.

www.optoedu.com 5/33 sale@cnoec.com

A15.1091

Ⅲ.Maintenance and maintenance

1. All lenses are tuned and do not disassemble themselves.

2. Objective converter and coarse micro-focusing mechanism, the structure is precise, please do

not easily disassemble.

3. The instrument should be kept clean, dust removed every day, clean should pay special

attention not to contaminate optics, objective lenses every other month to ask professionals to

clean.

4. Smudges on the lens, such as fingerprints and grease, can be wiped with a small amount of

ether (70%) and alcohol (30%) mixed solution on the lens paper.

Solvents such as ether and alcohol are highly flammable, do not carry out a variety of

electrical equipment power switch operation, at the same time can not approach the

open fire, please ensure indoor ventilation.

5. Do not use organic solvents to wipe non-optics of the microscope, if cleaning, use a neutral

detergent.

6. When using, if the microscope is wet with liquid, cut off the power supply immediately and

dry it.

7. Never disassemble any part of the microscope, which can affect the function of the

microscope or reduce the performance of the microscope.

8. The instrument should be placed in a cool, dry place, when the microscope is not used, the

use of a dust cover. Be sure to wait for the light chamber to cool down before the cover is on.

9. The environmental requirements for the use of microscopes:

a）Indoor use；

b）Ambient temperature range：10℃~35℃；

c）Maximum relative humidity: 80% when the temperature reaches 31℃,70% When the

temperature is reduced linearly to 34℃,60% the temperature reaches 37℃,5 0%When the

temperature reaches 40℃.

10. Microscope storage and transport environment requirements:

a）Ambient temperature range：-40℃~+70℃

b) Relative humidity range:10% to 100%.

c) Air pressure range:500hpa-1060hp

Warning:

Failure to operate the microscope in the manner specified in this manual may

compromise the safety of the user. In addition, the microscope may be damaged. The

microscope should always be operated in accordance with this instruction.

◎This microscope does not cause radiation, electromagnetic interference, etc. To

the surrounding environment, in accordance with UL certification standards.

This manual practically the following symbols label prominent text:

The indication that the warning stake in this instruction manual will result in

personal injury to the operator and/or damage to the instrument (including objects

near the instrument).

★indicates that failure to follow this instruction will cause damage to the instrument.

S s indicates a comment (to operate and maintain at easy.

www.optoedu.com 6/33 sale@cnoec.com

Eyepiece

1.Name of each part A15.1091

Three-eye head

Burgundy

mirror device.

Converter

Object

ive.

Polarizing

platform.

Spotlight.

Host.

A15.1091

Polarizing

bay.

A15.1091-TRF

Eyepiece

1.Name of each part A15.1091

Three-eye

tilted head

Burgundy

mirror

device.

metallographic

device

phase device

Converter

Objec

tive.

Polarizing

platform.

Spotlight.

Host.

Polarizing

bay.

www.optoedu.com 8/33 sale@cnoec.com

Objective

Polarizing

platform

Eyepiece

1. Name of each part A15.1091

Three-eye

tilted head

Burgundy

mirror device.

metallographic

device

Converter

Host

A15.1091-RF

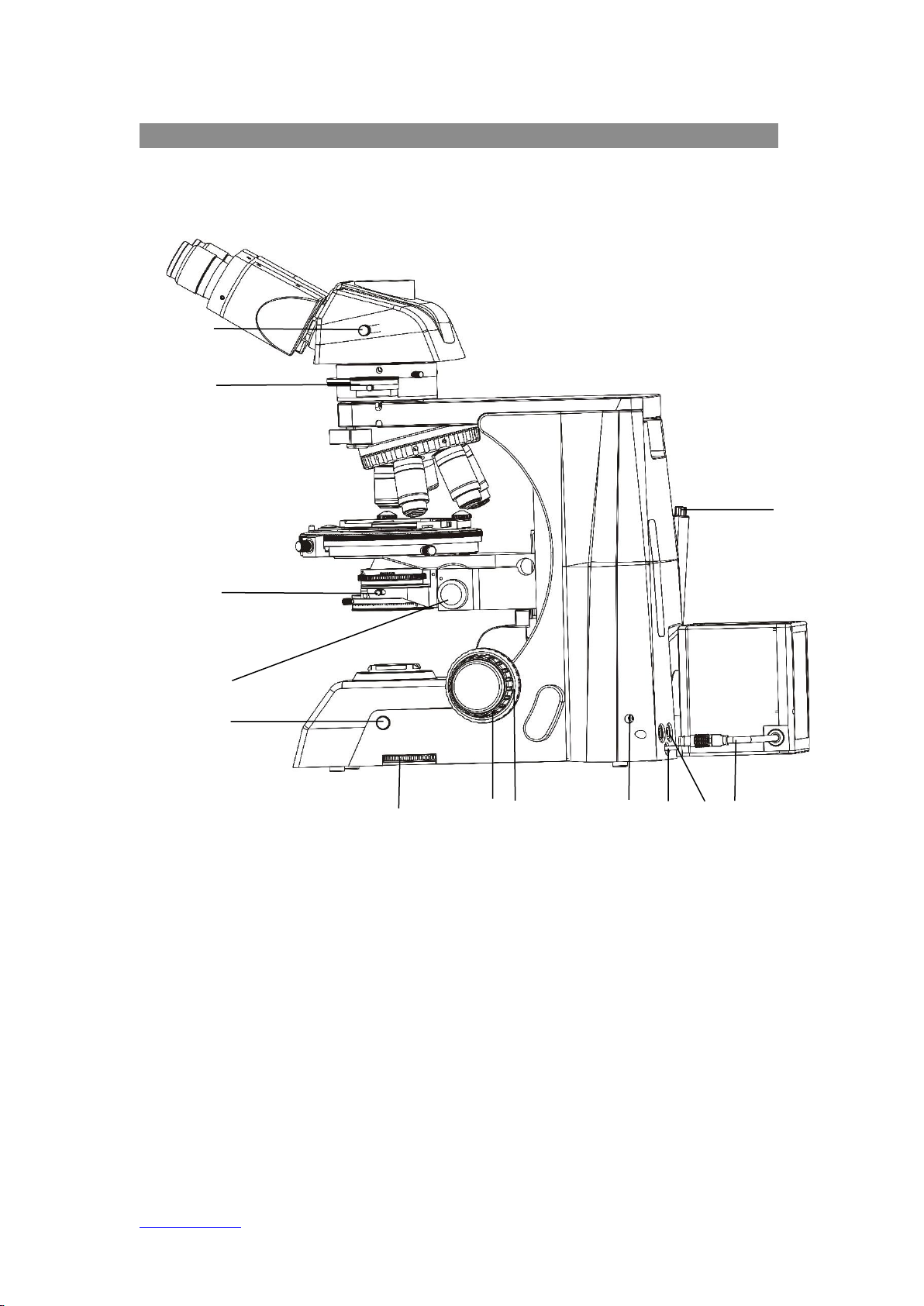

2.Overview of each institution A15.1091

1. Filter switch bar

2. Rough /fine-tuning lift

handwheel

3. Focus the upper bit lock the

handwheel

4. Light up and down the toggle

button

5. Brightness adjustment knob

6. “ECO” Infrared sensing device

7. The height adjustment of the

spotlight handwheel

7. Polarizer

8. Condenser diaphragm

adjusting ring

9. Adjusting screw

10. Platform cursor

11. Extended function plug

fastening screws

12. Expansion function board

13. Burgundy mirror turntable

www.optoedu.com 10/33 sale@cnoec.com

A15.1091

1. Observe the light path switch

2. Analyzer

3. Condenser fastening screw

4. The height of the spotlight adjusts

the handwheel.

5. Taking pictures

6. The field diaphragm light size

adjustment knob.

7. Rough /fine-tuning handwheel.

8. Rough tension adjustment

handwheel

9. Light chamber fastening screws

10. Ground screw

11. Light room socket

12. Light room plug

13. Universal Wrench

Tabla de contenidos

Otros manuales de Microscopio de OPTO-EDU

OPTO-EDU

OPTO-EDU A12.0910 Manual de usuario

OPTO-EDU

OPTO-EDU A41.1950 Manual de usuario

OPTO-EDU

OPTO-EDU A59.4231 Manual de usuario

OPTO-EDU

OPTO-EDU A34.5017 Manual de usuario

OPTO-EDU

OPTO-EDU A22.1201 Manual de usuario

OPTO-EDU

OPTO-EDU A11.1323 Manual de usuario

OPTO-EDU

OPTO-EDU A15.2604 Manual de usuario

OPTO-EDU

OPTO-EDU A14.1065 Manual de usuario

OPTO-EDU

OPTO-EDU A63.7080 Manual de usuario

OPTO-EDU

OPTO-EDU A13.1005-B Manual de usuario

OPTO-EDU

OPTO-EDU A22 3660N Series Manual de usuario

OPTO-EDU

OPTO-EDU A63.7069 Manual de usuario

OPTO-EDU

OPTO-EDU A13.2603 Manual de usuario

OPTO-EDU

OPTO-EDU A14.1063 Manual de usuario

OPTO-EDU

OPTO-EDU A33.1502 Manual de usuario

OPTO-EDU

OPTO-EDU A33.5121 Manual de usuario

OPTO-EDU

OPTO-EDU A12.0911 Manual de usuario

OPTO-EDU

OPTO-EDU A12.1303 Manual de usuario

OPTO-EDU

OPTO-EDU A33.1501 Manual de usuario

OPTO-EDU

OPTO-EDU A33.1511 Manual de usuario

OPTO-EDU

OPTO-EDU A12.1061 Manual de usuario

OPTO-EDU

OPTO-EDU A16.2615-L Manual de usuario

OPTO-EDU

OPTO-EDU A23.1502 Series Manual de usuario

OPTO-EDU

OPTO-EDU EX31 Series Manual de usuario

Manuales populares de Microscopio de otras marcas

Thermo Scientific

Thermo Scientific Nicolet iN10 Guía

National

National DC3-163 Manual de usuario

KERN Optics

KERN Optics OPE-1 Manual de usuario

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manual de usuario

Prior

Prior Lux POL Manual de usuario

Opitec

Opitec Smartscoop 115615 Manual de usuario

KERN

KERN OPO-1 Manual de usuario

Topcon

Topcon SP-1P Manual de usuario

Motic

Motic PA43 Manual de usuario

Leica

Leica DVM5000 Guía del usuario

MshOt

MshOt MZ62 Manual de usuario

KERN Optics

KERN Optics OZR-5 Manual de usuario

VWR

VWR VisiScope 384 Series Manual de usuario

Nikon

Nikon ECLIPSE E200 POL Manual de usuario

Leica

Leica DI C800 Manual

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

Olympus

Olympus SZ61 Manual de usuario
