OPTO-EDU A12.1061 Manual de usuario

To ensure the safety and obtain satisfactory performance, please study this

instruction manual thoroughly before start to use your instrument.

A12.1061

A12.1062

Laboratory Biological Microscope,

A16.1062

LED Fluorescent Microscope

Instruction Manual

CONTENTS

User Notices................................................................................2

1. Components Names................................................................4

2. Assembly .................................................................................5

2.1Assembly Diagram................................................................................................5

2.2Assembly Procedure.............................................................................................6

3. Adjustment And Operation.....................................................9

3.1Adjustment Set Diagram.......................................................................................9

3.2Operation..............................................................................................................13

4. Video Attachment..................................................................18

4.1Installing Trinocular Viewing Head And Video Attachment............................18

4.2Focusing the Specimen......................................................................................18

5. Digital Viewing Head .............................................................19

5.1Digital Viewing Head...........................................................................................19

5.2 Installing..............................................................................................................19

6. Fluorescent Observation ......................................................20

6.1Fluorescent Set....................................................................................................20

6.2Installing...............................................................................................................20

6.3Method of Application.........................................................................................20

7. Phase Contrast Observation ................................................21

7.1Components Name..............................................................................................21

7.2Installation And Use............................................................................................21

8. Dark Field Observation......................................................... 23

8.1Bright and Dark Filed Components...................................................................23

8.2Installation And Use............................................................................................23

9. Simple Polarization Set.........................................................24

9.1Components Name..............................................................................................24

9.2Installation And Use............................................................................................24

10. Technical Specifications.....................................................25

11. Trouble Shooting................................................................. 26

User Notices

Ⅰ、Configuration Instruction

1、A12.1061 is the basic model and uses NIS45 system;

2、A12.1062 is coding model, using NIS60 system, with brightness memory, wear

resistance stage and other configurations.

Ⅱ、Principle and Application

Principle: Using the appropriate adjustment combination of two lens sets, the

specimen is magnified and observed. The inverted real image is obtained through

objective, then the image is further magnified by the eyepiece.

Application: Biological microscope is used by medical and health units, colleges and

universities, research institutes for the observation of microorganism, cell, bacteria,

tissue culture, suspension, sediment, etc.

Ⅲ、Safety Marks

The Following marks are on the microscope. Figure out the meaning of these

symbols and always use the microscope in the safest way.

Ⅳ、Safety Note

1. Open the box carefully to avoid the accessories, like lens, being polluted by

fingerprint or sweat strain, dropping to ground and being damaged.

2. Do keep the microscope out of direct sunlight, high temperature or humidity, dusty

and easy shaking environment. Make sure the stage is flat, horizontal and firm

enough.

3. When moving the microscope, carefully carry it with the handle and the base.

4. If the bacterium solution or the water splash to the stage, objective or viewing tube,

pull out the power cord at once, and wipe up the microscope. Otherwise, the

instrument will be damaged.

5. To keep at least 10cm distance all around between the microscope and other objects

for ventilating and cooling.

6. Make sure the instrument is earthed, to avoid lighting strike.

7. For safety, be sure the main switch is in “O” (off) state and cut off the power supply

before replacing the fuse. Check the input voltage: be sure the input voltage which is

signed in the back of the microscope is consistent with the power supply voltage, or it

Symbol

Meaning

Power on

Power off

Up Lighting/Down Lighting

F.S :Field Stop, :Expanding F.S. :Narrowing F.S.

Direction of light intensity.When turning to the tip, the intensity

decreases from strong to weak

SLEEP

Dormant State

LOCK

Light intensity is locked

will bring a serious damage to the instrument.

8. Always use the power cord provided by manufacturer.

Ⅴ、 Maintenance and Care

1. All the lenses have been adjusted properly, do not dismount them by yourself

please.

2. The nosepiece and coarse and fine focusing parts are so delicate that it is forbidden

to disassemble them carelessly by your-self.

3. Keep the instrument clean, wipe dust every day, and do not pollute the optical

element when wiping away the dust on the instrument. Clean the Objective by

professional staff once a month.

4. The contaminations on the prism, as finger mark and oil, could be gently wiped with

a piece of lens tissue which has been immersed in a small amount of the mixture of

xylene(70%) and alcohol（30%）. Note that the xylene and the alcohol are all burned

easily. When in use, do not operate the power switch of various electrical equipment, and

do not let them near the fire. Please make sure the room is ventilation.

5. Don’t use organic solvent to wipe the non-optical elements, when you need to clean,

use the soft detergent, please.

6. When using, if the microscope is splash by liquid, cut off the power at once, and wipe

up the moisture.

7. Do not disassemble any parts of the microscope. That will affect the function or

decline the performance of the microscope.

8. Place the instrument in a cool, dry position.After using the microscope, remember to

cover it with dust helmet. Do wait for the lamp house cooling completely before cover.

9. Using environment:

a）Use indoor;

b）Working temperature: 0℃~40℃;

c）Maximum relative humidity: it is 80% for temperature of 31℃, the following is the

linear decrease, 70% for 34℃, 60% for 37℃, 50% for 40℃;

d) The highest elevation is 2000m。

10. Storage and transport environment:

a）Range of working temperature: -25℃~+65℃

b）Range of relative humidity: 0%~90%

Warnings：It may harm the safety of the users if not operating in accordance with the

instructions. In addition, it may damage the microscope. Please operate the microscope

strictly according to this instruction. Transmitted light sources (condenser or collector) may

produce harmful optical radiation. Do not look directly at the transmitted light, which may

cause eye damage

◎This microscope will not cause radiation and the electromagnetic interference to the

surrounding environment, totally accordance with the EMC certification standards.

This instruction uses these symbols to mark prominent words:

means it will hurt the operator or damage the equipment (objects around included)

without paying attention to the warnings in this instruction.

★means it will damage the equipment if not following the instruction.

◎means comments （for operating and maintenance)

1. Components Name

A12.1062

Condenser

Eyepiece

Digital

viewing head

Encoded nosepiece

Stage

Main body

Objective

A12.1061

Nosepiece

Condenser

Eyepiece

Stage

Viewing head

Objective

Main body

2. Assembly

2.1 Assembly Diagram

The diagram below shows how to assemble the various components. The numbers

indicate the order of assembly.

When assembling the components, make sure that all parts are free of dust and

dirt, and avoid scratching any parts or touching glass surfaces.

Keeping the hexagon- spanner well, when change the spare parts, you will use

it.

①

②

Objective

Power cord

2.2 Assembly Procedure

2.2.1 Installing the Objective（Fig.1-2）

1. Adjust the coarse focus knob until the

support device of the mechanical stage

reach its low limit position.

2. Screw the lowest magnification objective

into the nosepiece from the left or the

right side, then revolve the nosepiece

clockwise/counterclockwise and mount

other objectives by the sequence of low

to high magnification.

◎Installing objective this way will make the

change of magnification to be easier

during using.

★A12.1062 Model: Turn on the power

supply. The corresponding objective

magnification on the LCD screen will

be highlighted(as shown in figure 3)

when the nosepiece moves to a certain

position. Then install the

corresponding objective at this

location.

★Clean the objective regularly, for lens

is susceptible to dust.

★When operating, use 10×magnification

objective to search and focus

specimen firstly, then replace with

higher magnification objective if

necessary.

★When replacing the objective, slowly

turn the nosepiece until you hear

“clicked”, that means the objective

enter the required position--the light

path center.

Fig.2

Fig.1

Fig.3

10X

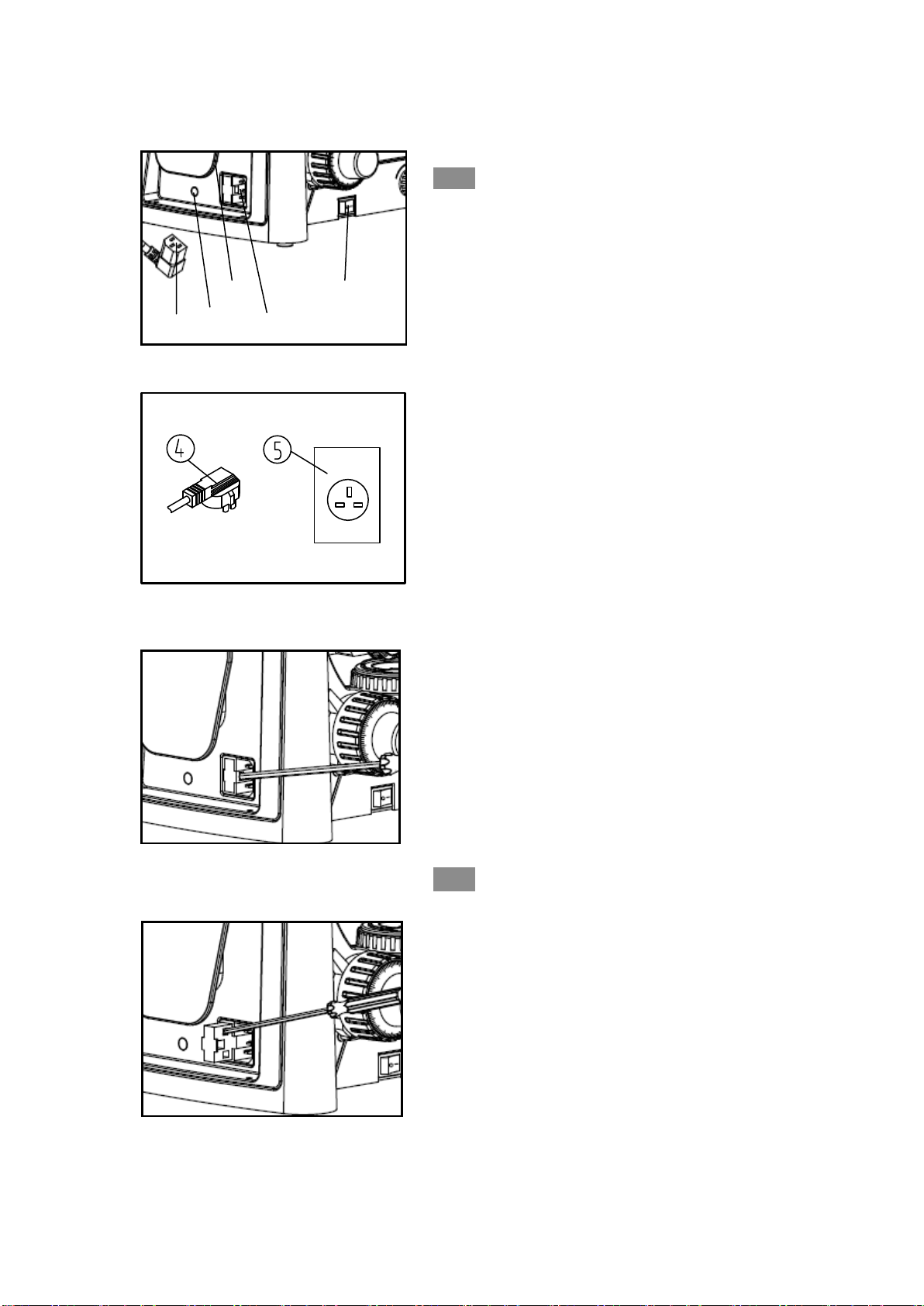

2.2.2 Connecting the power cord

（Fig.4-5）

★The cable and cords are vulnerable when

bent or twisted, never subject the power

cord to excessive force.

1. Set the main switch①to “O” (off) state before

connecting the power cord.

2. Insert the plug②into the power socket ③of

the microscope safely. Make sure the

connection is well.

3. Insert the plug④on the other end of the

power cord into the power supply receptacle

⑤safely. Make sure the connection is well.

★Do use the supplied power cord all the

time. If lost or damaged, select the same

standard cord, please.

★Insert the power adapter into the holeⅡto

charge for charging model.

★Wrap the power cord around the back

cover I when not in use.

★Make sure that used voltage is

consistent with the required input voltage

of instrument. If it is inconsistent, please

contact the supplier.

2.2.3 Replace the fuse（Fig.6-7）

The main switch must be set to the state “O”

(OFF) before replacing the fuse. Open the

drawer of the fuse box by Allen wrench at

first. Then as shown in the figure 7, push the

fuse out gently through square hole under the

fuse drawer withAllen wrench.

★The middle of the fuse is thin glass.

Please be careful when you open the fuse

drawer and push out the fuse.

图4

Fig.4

Fig.5

Fig.6

Fig.7

①

②

③

Ⅱ

2.2.4 Mounting the filters（Fig.8）

Place the required filter into the

appropriate hole of the collector.

2.2.5 LED lamp replacement（Fig.9-11）

◎Generally, LED lamp is very durable, so it

is not easy to damage. If it is unfortunately

damaged, please purchase the LED

(Fig.11) from your vendors.

1. Loosen the screw I of brightness

adjustment knob to take the brightness

adjustment knob down. Loosen six screws

of the bottom plate to open the bottom

plate①;

2. Loosen screw②to take the LED lamp③

down and unplug the connector④from

the breadboard. Mount new LED lamp,

tighten screw②and insert the connector

fully into the breadboard.

★Note: Be careful to take the bottom

plate down slowly in case that the wire

inside the microscope is pulled apart.

Fig.8

Fig.9

Fig.10

Fig.11

④

①

②

③

3. Adjustment And Operation

3.1 Adjustment Set Diagram

A12.1061

Tension Adjustment Collar

Interpupillar Distance

Indicator

Aperture Diaphragm

Main

Switch

Brightness Adjustment

Knob

Left Coarse

Focus Knob

Left Fine Focus Knob

Collector

Phase Contrast Slider

Condenser Focusing Knob

Field Stop

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microscopio de OPTO-EDU

OPTO-EDU

OPTO-EDU A15.1302 Manual de usuario

OPTO-EDU

OPTO-EDU A59.4231 Manual de usuario

OPTO-EDU

OPTO-EDU A10.1018 Manual de usuario

OPTO-EDU

OPTO-EDU A33.1501 Manual de usuario

OPTO-EDU

OPTO-EDU A23.1502 Series Manual de usuario

OPTO-EDU

OPTO-EDU A13.1005-B Manual de usuario

OPTO-EDU

OPTO-EDU A11.1007 Manual de usuario

OPTO-EDU

OPTO-EDU A22.1201 Manual de usuario

OPTO-EDU

OPTO-EDU A34.5017 Manual de usuario

OPTO-EDU

OPTO-EDU A16.2601-L Manual de usuario

OPTO-EDU

OPTO-EDU A11.2601 Manual de usuario

OPTO-EDU

OPTO-EDU A18.1828-LCD Manual de usuario

OPTO-EDU

OPTO-EDU A33.5121 Manual de usuario

OPTO-EDU

OPTO-EDU A11.1141 Series Manual de usuario

OPTO-EDU

OPTO-EDU MDJ A13.2602 Manual de usuario

OPTO-EDU

OPTO-EDU A11.1303 Series Manual de usuario

OPTO-EDU

OPTO-EDU A11.6603 Manual de usuario

OPTO-EDU

OPTO-EDU A12.1095 Manual de usuario

OPTO-EDU

OPTO-EDU A63.7080 Manual de usuario

OPTO-EDU

OPTO-EDU A16.2615-L Manual de usuario

OPTO-EDU

OPTO-EDU A23.3645N Series Manual de usuario

OPTO-EDU

OPTO-EDU A22 3660N Series Manual de usuario

OPTO-EDU

OPTO-EDU A22.1504 Series Manual de usuario

OPTO-EDU

OPTO-EDU A13.2604-B Manual de usuario

Manuales populares de Microscopio de otras marcas

Thermo Scientific

Thermo Scientific Nicolet iN10 Guía

National

National DC3-163 Manual de usuario

KERN Optics

KERN Optics OPE-1 Manual de usuario

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manual de usuario

Prior

Prior Lux POL Manual de usuario

Opitec

Opitec Smartscoop 115615 Manual de usuario

KERN

KERN OPO-1 Manual de usuario

Topcon

Topcon SP-1P Manual de usuario

Motic

Motic PA43 Manual de usuario

Leica

Leica DVM5000 Guía del usuario

MshOt

MshOt MZ62 Manual de usuario

KERN Optics

KERN Optics OZR-5 Manual de usuario

VWR

VWR VisiScope 384 Series Manual de usuario

Nikon

Nikon ECLIPSE E200 POL Manual de usuario

Leica

Leica DI C800 Manual

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

Olympus

Olympus SZ61 Manual de usuario
