Mountup MU4002 Manual de usuario
Single Monitor and Laptop Tray Desk Mount
Instruction Manual
If you have any questions , please contact us.
MU4002
V3.0
75x75
100x100
(8kg/17.6lbs)x2
27"
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
NOTE: Not all hardware included will be used.
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!
PACKAGE CONTENTS
(17.6lbs)x2
(8kg)x2
B (x2)
Swivel Arm
C (x1)
Clamp D (x1)
Pole
G (x3)
Bolt
F (x1)
Base Plate
K(x1)
4mm Allen Key
H(x1)
Support Plate
M(x1)
Laptop Tray
N(x4)
Pad
O(x4)
Screw
P(x4)
Nut
Q(x1)
Strap
L(x1)
6mm Allen Key
J(x2)
Bolt
I(x4)
Wire clip
E(x1)
Wire Clip
A (x2)
VESA Plate
M-E(x4)
D6 Washer
M-A (x4)
M4x12
M-B (x4)
M4x16
M-C (x4)
M6x12
M-D (x4)
M6x16
01
M-F (x4)
Spacer

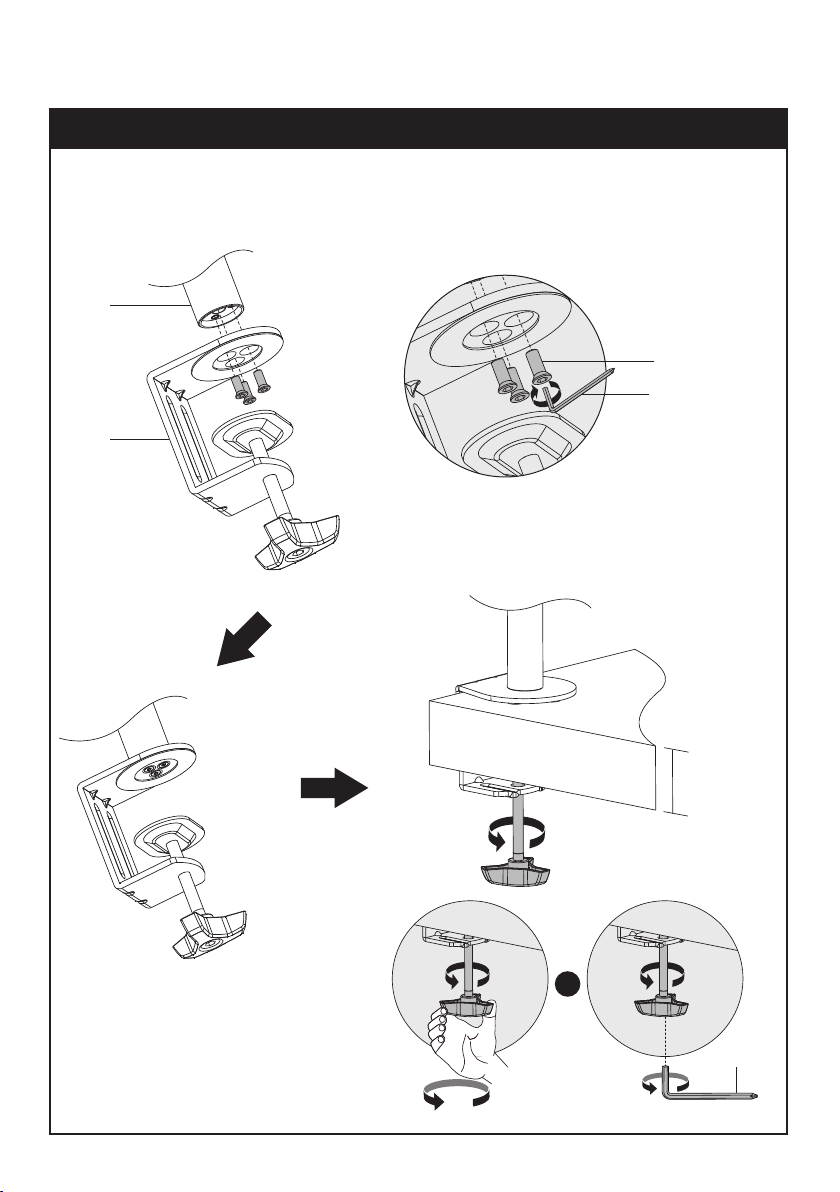

OPTION A: Clamp Installation
Install the Clamp (C) to the Pole (D) using 3pcs Bolt(G). Tighten using 4mm Allen key (K).
Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (L).
ASSEMBLY STEPS
STEP 1: Clamp Installation OR Grommet Base Installation
02
G
K
10-80mm
L
OR
D
C
STEP 1: (Continued)
03
OPTION B: Grommet Base Installation
If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing
the desk mount.
Loosen the screw, separate the clamp (C) into two parts.
Install the Base Plate (F) to the Pole(D）using 1pc of Bolt (G).
Install the pole (D) on the desktop using the support plate (H) and the bolt separated from clamp(C).
Secure stand to desktop by tightening the plastic knob or by using 6mm Allen key (L).
10-80mm
D
F
H
G
L
OR
DESK
DESK
ø 0.39"~3.1"
C
STEP 2 : Arm Installation
04
Install wire clip (E) and two swivel arms (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (L).
Attached the wire clips (I) to the swivel arm (B).
B
B
I
E
D
L
3-1: Attached Monitor
05
CAUTION:To select the correct screws (M-A or M-C)
for your monitor, you can try to screw it on your
monitor by hand. The one can screw inside is the
correct screw for your monitor.
STEP 3 : Attach the VESA Plate to the Monitor or Laptop Tray
A
M-A
M-C
M-E
L
OPTION A: Flat Back Monitor
For flat back monitor, secure VESA plate (A) to monitor
using screws (M-A or M-C) and washers (M-E). Tighten
the screws using 6mm Allen key (L).
A
M-B
M-D
M-E
M-F L
OPTION B: Curved Back Monitor
For monitor with curved or recessed back, align spacers (M-F)
with mounting holes in monitor, and secure VESA plate (A) to
monitor using screws (M-B or M-D) and washers (M-E). Tighten
the screws using 6mm Allen key (L).
3-2: Attach Laptop Tray
STEP 4 : Hang Monitor and Laptop Tray
06
J
N
N
O
M
P
A
Slide the monitor and laptop tray onto the head of swivel arm (B). Install the security bolt (J).
Make sure the security bolt is installed before you rotate the monitor.
Install the VESA plate (A) to the laptop tray (M) using 4pcs screws (O) and 4pcs nuts (P) , tighten by 6mm Allen
key (L) . Apply pads (N) to the laptop tray to avoid laptop scratches.
B
L
NOTE: Attach the pads on the tray
based on the size of the laptop.
STEP 5 : Secure the Laptop on the Laptop tray
07
Q
Untie the strap before
you cover the laptop.
Blank side
Loop&Hook side
STEP 6: Tilt Adjustment
Tighten the bolt with the supplied 6mm Allen key (L) to x the tilt angle.
08
L
L
Note:
1. Loosen the tilting bolt.
2. Adjust monitor to your
desired tilting angle.
3. Retighten the tilting bolt to
Tilts down
Guideline to adjust monitor tilting angle.
STEP 7: Cable Management
09
K
L
E
Manage cables and store Allen keys (K,L) in wire clip (E) for future use.
