Mountup MU2005 Manual de usuario

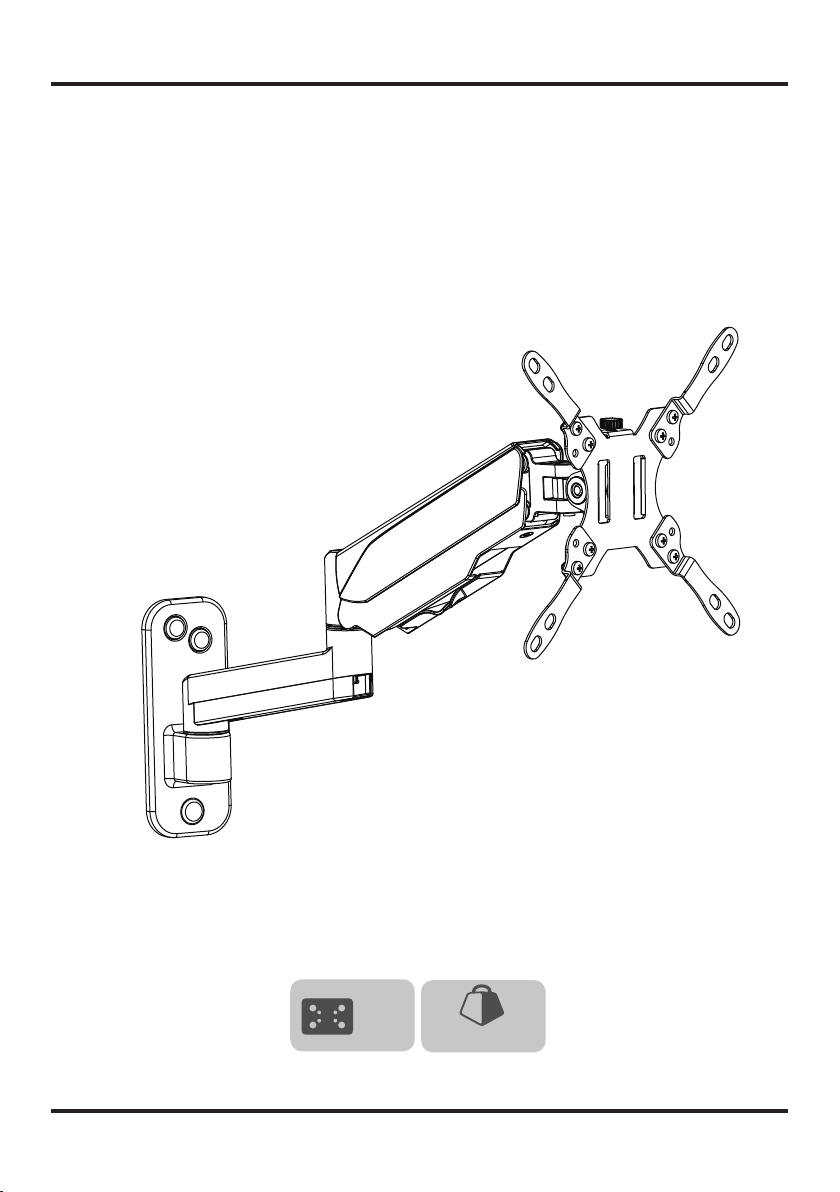

Monitor Wall Mount
Instruction Manual
75x75mm
100x100mm
200x200mm
200x100mm
100x200mm 2~12kg
4.4~26.5lbs
80002-MA02-112WA-US1.0
If you have any questions , please contact our customer service.
WARNING!
PACKAGE CONTENTS
01
PACKAGE CONTENTS
A (x1)
Arm Assembly
D (x3)
Decorative Cover
E(x1)
6mm Allen Key
B (x1)
VESA Plate
C (x1)
Bolt
W-B (x3) W-C (x3)
Washer
W-A (x3)
If you have any confusions or are not quite sure about the installation, please do not hesitate to ask for our help.
Before assembly, please check and make sure all necessary accessories are included and undamaged. Improper
installation, such as use the product for monitors over its load capacity or for any purpose not explicitly specied,
may cause damage or serious injury. We would not be liable for any damage or injury caused by improper
mounting or inappropriate use.
The kit contains small items that could be choking hazards if swallowed. Please keep them OUT OF REACH OF
CHILDREN UNDER 3 YEARS OLD. ADULT SUPERVISION IS REQUIRED.
Lag Bolt M6 x 55mm
M-B (x4)
M4 x 25mm
M-A (x4)
M4 x 12mm
F (x2)
Extend Bars
G (x2)
Extend Bars
H (x8)
Flange Nuts
J (x1)
Wrench
M-C (x4)
Spacer H10mm
NOTE: Not all hardware included will be used.
( )
Installation Tools
Stud
Finder
Awl Wood Drill
ø3/16"(ø4.5mm)
Wood Stud Installation
Hammer
Concrete Installation
Concrete Drill
ø3/8"(ø10mm)
Concrete Anchor Φ 9.6 x 43mm
I (x8)
M4 x 12mm
Level ScrewdriverPencil Drill Socket
Wrench
ASSEMBLY STEPS
STEP 1: Attach Arm Assembly to Wall
02
OPTION A: Wood Stud Installation
ø 4.5mm
(ø 3/16")
55mm
(2.2")
W-C W-A
Locate your studs. Verify and mark
Position the Arm Assembly (A) at your
desired height and line up the holes
withyour stud center line. Level the
Arm Assembly (A) and mark the pilot
hole locations.
Drill pilot holes using a ø3/16 in.
(ø4.5 mm) diameter drill bit.
Install Arm Assembly (A) using lag
bolts (W-A) and washers (W-C).
Tighten the lag bolts with Socket
Wrench until they are
Assembly (A).
WARNING DO NOT install into drywall alone.
Min. 51mm (2")
Min. 102mm (4")
<16mm (5/8")
Caution:
Do not use anchor
in drywall or wood！
A
STEP 1: (Continued)
03
OPTION B: Solid Concrete Wall Installation
Position the Arm Assembly (A) at
yourdesired height , level the Arm
Assembly (A) and mark the pilot hole
locations.
W-C W-A
W-B
Install Arm (A) using lag bolts (W-A),
anchors (W-B) and washers (W-C).
Tighten the lag bolts with Socket
Wrench until they are pulled firmly
against the Arm (A).
Drill pilot holes using a ø3/8".
(ø10 mm) diameter drill bit.
60mm
(2.4")
ø10mm
(ø 3/8")
60mm (2.4 )
A
Min. 8"(203mm)
A
04
STEP 2: Attach Decorative Cover
D
Attach Decorative Covers (D) to Lag Bolts (W-A).
W-A
STEP 3: VESA Configures
05
F
G
G
F
H
100mm
75mm
100mm
75mm
C for VESA hole pattern: 100x200mm
A
for VESA hole pattern:
75x75mm, 100x100mm
Dfor VESA hole pattern: 200x200mm
VESA pattern
(WxH)
75mm x 75mm
100mm x 100mm
200mm x 100mm
100mm x 200mm
200mm x 200mm
Conguration
A
A
B
C
D
200mm
100mm
B
for VESA hole pattern: 200x100mm
100mm
200mm
I
200mm
200mm
F
F
G
H
I
G
J
E
F
F
G
G
H
I
J
E
J
E
06
NOTE: Hand tighten screws toavoid over tightening.
STEP 4 : Attach Monitor
OPTION B: Curved Back Monitor
Attach the VESA plate (B) to back of monitor and secure
it by using a 6mm Allen Key (E) to tighten screws (M-B)
along with spacers (M-C).
Do not tighten the screws excessively or your monitor
might be damaged.
OPTION A: Flat Back Monitor
Attach the VESA plate (B) to back of monitor and secure
it by using a 6mm Allen Key(E) to tighten screws(M-A)
Do not tighten the screws excessively or your monitor
might be damaged.
Monitor Monitor Monitor
Monitor Monitor Monitor
No!
No!
M-A
E
(Short Screws)
B
M-B
M-C
E
(Long Screws)
B
Slide the monitor onto the head of swivel arm, install the security bolt (C). Make sure the security
bolt is installed before you rotate the monitor.
STEP 5: Hang Monitor
spring arm falls down greatly.
07
E
Problem:
If monitor face down
Solution:
1. Loosen the tilting bolt.
2. Hold the bottom of monitor with
one hand and adjust to determine
your desired tilt angle.
3. Retighten the tilting bolt to x
the intended angle.
Important Notice:
The gas spring is pre-set to minimum tension. Once the monitor is hanged on, hold the
monitor with both hands and DO NOT let go suddenly or immediately. Instead, leave the
monitor in a slow & gentle way while observing whether the arms will fall down wildly.
Guideline to adjust monitor tilting angle.
C
STEP 6: Adjust Tension
Note1:
Be sure to keep the arm in horizontal position during adjustment.
CAUTION
Monitor Weight 4.4lbs
(2kg) 6.6lbs
(3kg) 11lbs
(5kg) 17.6lbs
(8kg) 19.8lbs
(9kg) 22lbs
(10kg) 26.4lbs
(12kg)
Circles (AT LEAST)
As for how many circles the screw should be turned, the table below is for reference.
Note2:
E
min 2 6 10 11 12 max
Situation 1: Arm falls down
Solution:
Upper Arm with monitor falls down and fails to stay where intended.
Turn the inside screw counterclockwise(“+”direction) to increase gas spring
tension until the arm can stay as intended.
Situation 2: Arm rises up
Solution:
Upper Arm with monitor rises up and fails to stay where intended.
Turn the inside screw clockwise(“-”direction) to decrease gas spring tension
until the arm can stay as intended.
08
For intended functioning of the mount, you may need to adjust the tension of Upper Arm (A) in accordance
with your monitor weight by 6 mm Allen Key (E).
09
STEP 5: (Continued)
STEP 7: Cable Management
Run cables from monitor through bottom of gas spring arm.
Reattach plastic covers as shown in diagram.
Remove bottom plastic covers from gas spring arm as shown in diagram.
