Mountup MU0004 Manual de usuario
Single Monitor Desk Mount
Instruction Manual
If you have any questions , please contact us.
75x75
100x100
2~8kg
4.4~17.6lbs
32"
MU0004
V8.0
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
NOTE: Not all hardware included will be used.
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!
PACKAGE CONTENTS
17.6lbs
(8kg)
A (x1)
Upper Arm
B (x1)
Lower Arm
F (x1)
Clamp
I (x1)
Grommet Base
J (x1)
Wingnut
L (x1)
Bolt
K (x1)
Carriage Bolt
N (x1)
3mm Allen Key
O (x1)
4mm Allen Key
P (x1)
6mm Allen Key
G(x5)
M6x10
H(x4)
Pad
01
C (x1)
Base
M (x1)
Support Plate
M-C (x4)
D6 Washer
M-A (x4)
M4x12
M-B (x4)
M6x12 M-D (x4)
spacer
E (x1)
Bracket
D (x1)
VESA Plate
ASSEMBLY STEPS
STEP 2: Clamp Installation or Grommet Base Installation
STEP 1: Apply Pads to the Base Bottom
02
OPTION A: Clamp Installation
Mount Bracket (E) to Base Bottom (C) with Bolts (G). Bolts could be tightened by the 4mm Allen Key (O).
Similarly, attach Clamp (F) to Bracket (E) with Bolts (G) and 4mm Allen Key (O).
Adjust the Clamp width to t with desk. Secure stand to desktop by tightening Clamp (F) or by Allen key (P).
G
OO
G
10-60mm
10-90mm
F
E
F
C
EG
O
OR
H
C
Apply pads (H) to the base
bottom to avoid desk scratches.
P
OR
STEP 2: (Continued)
03

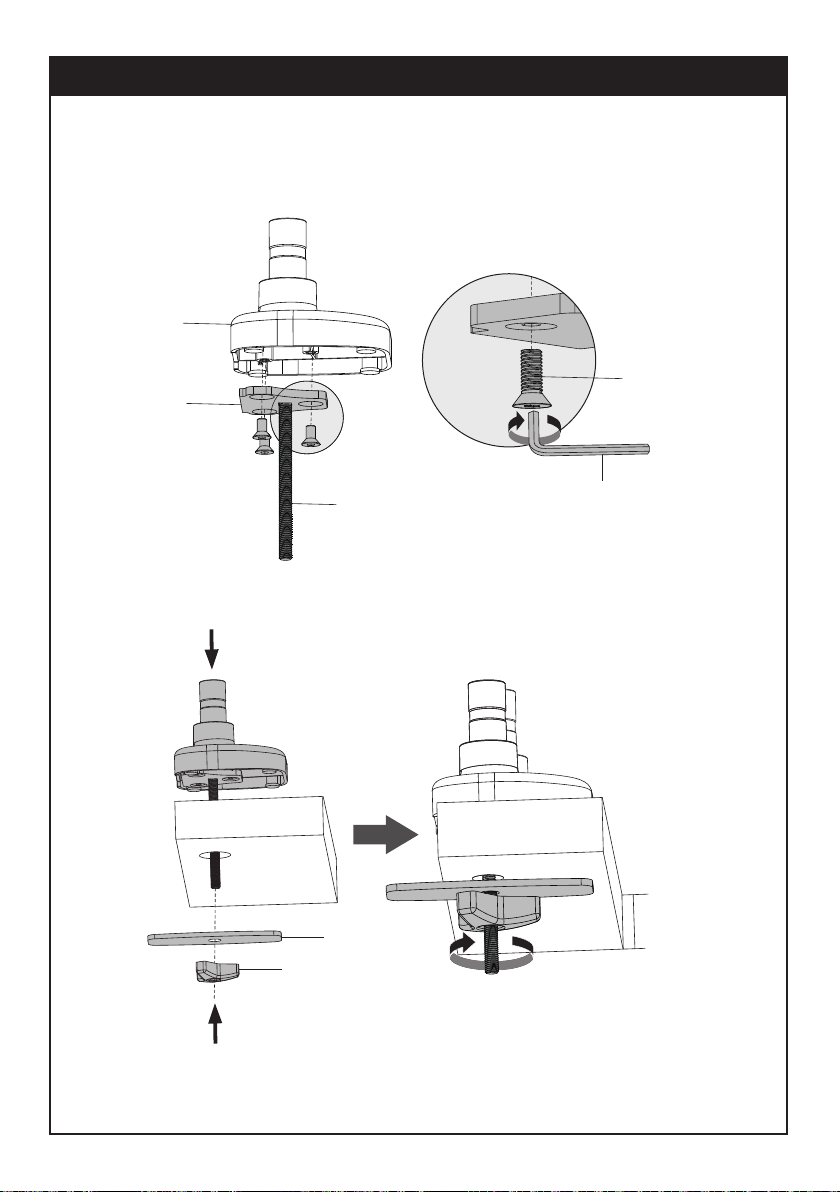

OPTION B: Grommet Base Installation
For grommet hole mounting, place Carriage Bolt (K) through the center of Grommet Base (I).
Mount Grommet Base to Base Bottom (C) with Bolts (G) and tighten by 4mm allen key (O).
Run Carriage Bolt (K) through Grommet Hole on desktop. Attach Support Plate (M) and Wingnut (J).
Last step, tighten Wingnut (J).
O
C
I
G
K
M
J
10-90mm
04
Install the lower arm (B) and the upper arm (A) to the base (C). Secure the arm by tightening the inside screw
using 3mm Allen key (N).
STEP 3: Arm Installation
F
N
N
B
A
C
Note: Please note that the side with
the label“ ” is installed on the
base(C) when installing the lower
arm(B) to the base (C).
DO NOT tighten the
screw excessively or
it might be stripped.
DO NOT tighten the
screw excessively or
it might be stripped.
05
STEP 4: Attach Monitor
D
D
M-A
M-B
M-C
P
M-A
M-B
M-C
M-D
P
OPTION A: Flat Back Monitor
Attach the VESA plate (D) to back of monitor and
secure with screws(M-A)or(M-B) with washers(M-C)
using 6 mm Allen Key (P). Do not tighten the screws
excessively or your monitor might be damaged.
.
CAUTION:To select the correct screws(M-A or M-B)
for your monitor, you can try to screw it on your
monitor by hand. The one can screw inside is the
correct screw for your monitor.
OPTION B: Curved Back Monitor
Attach the VESA plate (D) to back of monitor and secure
with screws (M-A) or (M-B) with washers (M-C)and
spacers(M-D)using 6 mm Allen Key (P). Do not tighten
the screws excessively or your monitor might be damaged.
06
Slide the monitor onto the head of swivel arm, install the security bolt (L). Make sure the security
bolt is installed before you rotate the monitor.
STEP 5: Hang Monitor
Refer to below illustrations to adjust tilting angle of your monitor.
Tilts down
Note:
1. Loosen the tilting bolt.
2. Adjust monitor to your
desired tilting angle.
3. Retighten the tilting bolt to
P
Important Notice:
The gas spring tension is pre-set to the weakest level by default, please hold your monitor
by both hands and do not let go so soon after the VESA plate is attached to the swivel arm.
It's suggested to loose hold of the monitor in a slow & gentle way while observing if the gas
spring arm falls down greatly.
L
07
STEP 6: Adjust Tension
P
Note1:
Be sure to keep the arm in horizontal position during adjustment.
Falls down
After being attached to the arm, the monitor fallsdown
and can not stay at the desired height by itself.
Turn counter-clockwise(“+”direction) to increase gas
spring tension until the monitor canstay at the desired
height by itself.
After being attached to the arm, the monitor rises up and
can notstay at the desired heightby itself.
Turn clockwise(“-”direction) to reduce gas spring tension
until the monitor canstay at the desired height by itself.
Rises up
CAUTION
Monitor Weight 2kg 3kg 4kg 5kg 6kg 7kg 8kg
Circles (AT LEAST)
As for how many circles the screw should be turned, the table below is for reference.
Note2:
For proper functioning of this mount, depending on dierent weight of monitor you might need to adjust
tension in upper arm (A) using 6 mm allen key (P).
1 4 8 11 14 17
min
STEP 5: (Continued)
08
STEP 7: Cable Management
Run cables from monitor through bottom of gas spring arm. Reattach plastic covers as shown in diagram.
Remove bottom plastic covers from gas spring arm as shown in diagram.
Adjust as Desired
09
DESK DESK
Pay attention while clamp install !
360°
360°
360°
+90°
-45°
180°
Adjust monitor position and rotation.
