Mountup MU5004 Manual de usuario
75x75
100x100 32"
MU5004
V2.0
(1~10kg) each arm
(2.2~22lbs) each arm
Premium Height Adjustable Dual Monitor Mount
Instruction Manual
If you have any questions , please contact us.
NOTE: Not all hardware included will be used.
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!

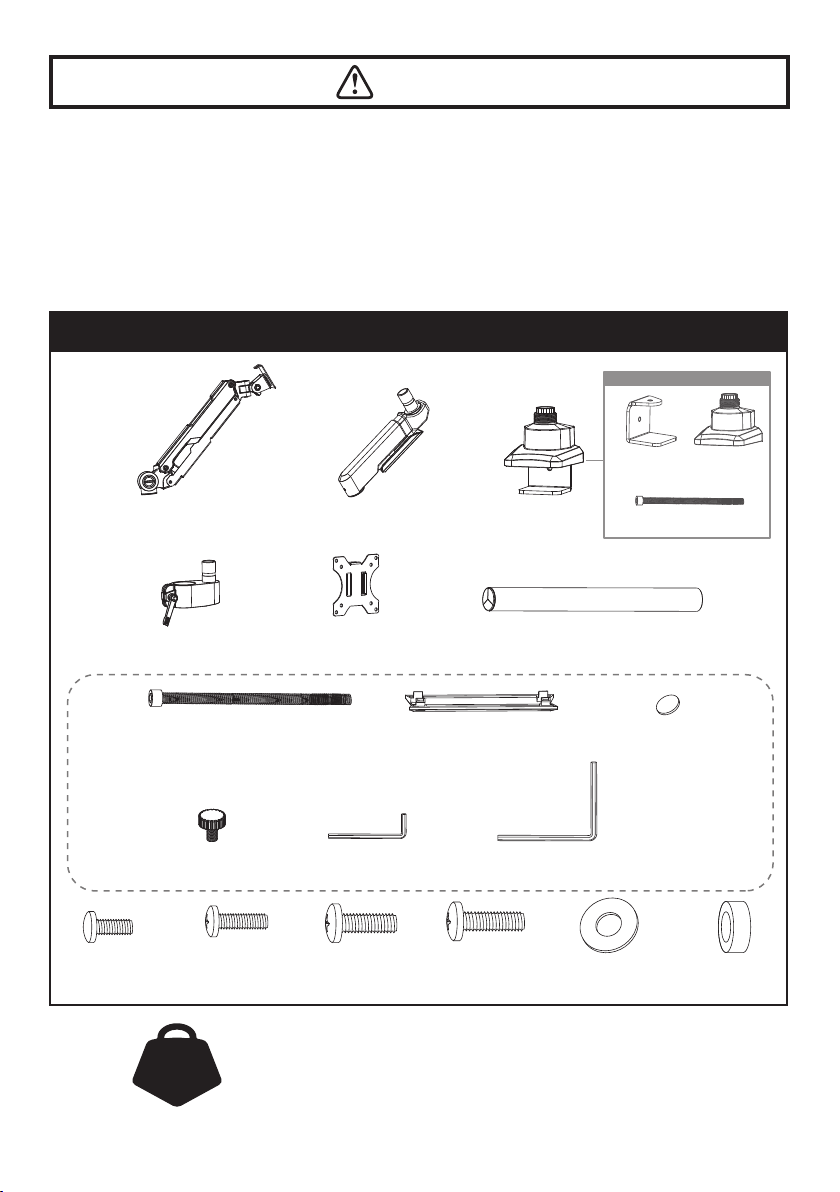

PACKAGE CONTENTS
01
If you do not understand these instructions or have doubts about the safety, assembly or use of this product,
please contact us.
Before assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious
injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed weight
capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS
OLD. ADULT SUPERVISION IS REQUIRED.
(22lbs)
(10kg)
each arm
A (x2)
Upper Arm
B (x2)
Lower Arm
C (x1)
Assembled Base
D (x2)
Arm Base
E (x2)
VESA Plate
F(x1)
Pole
H (x2)
Plastic Cover
K (x1)
2.5mm Allen Key
G(x1)
Long Bolt
I (x4)
Pad
L (x1)
6mm Allen Key
J (x2)
Bolt
M-E (x8)
D6 Washer
M-C (x8)
M6x12 M-F (x8)
M-B (x8)
M4x16
M-D (x8)
M6x16
M-A (x8)
M4x12
included
Bottom Plate
C1
Base
C2
Short Bolt
C3
02

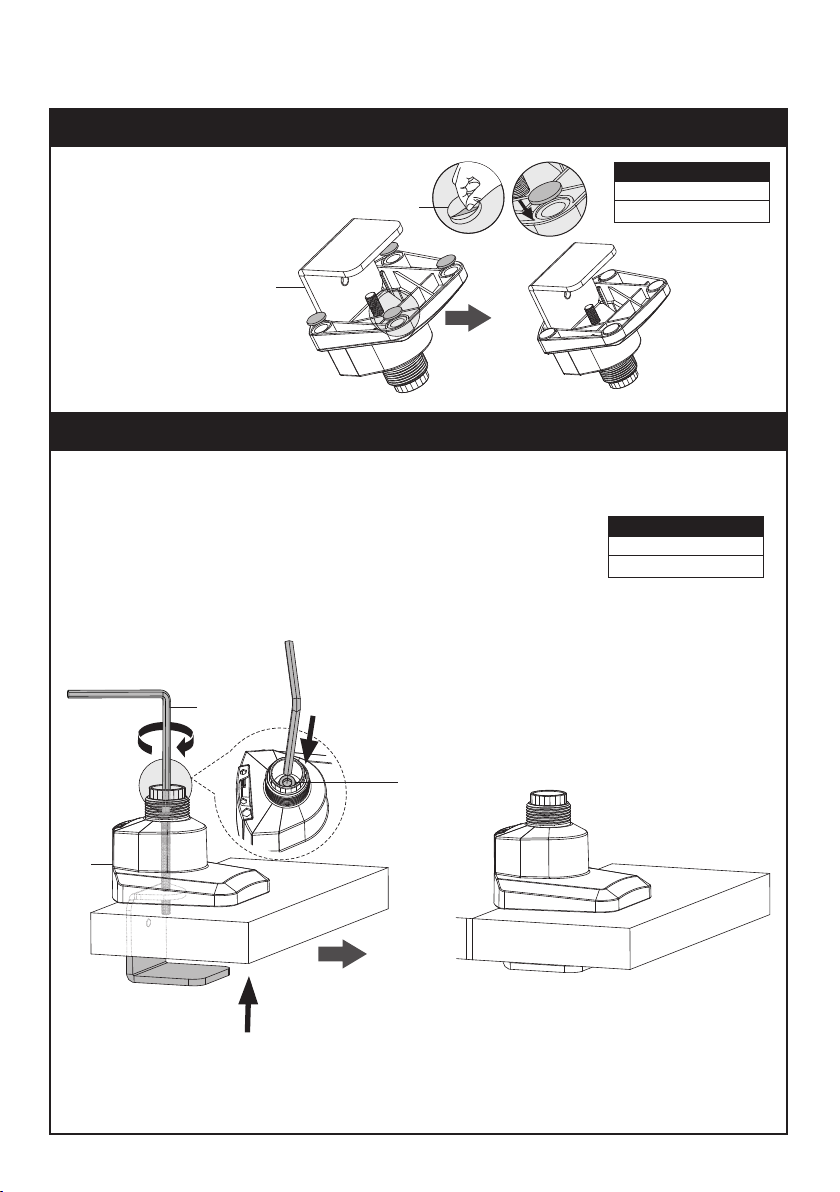

ASSEMBLY STEPS
STEP 2: Clamp Installation OR Grommet Base Installation
STEP 1: Apply Pads to the Bottom of Base
Apply pads (I) to the
Assembled Base (C)
bottom to avoid desk
scratches.
OPTION A: Clamp Installation
Mount the Assembled Base (C) on the desktop by tightening the Short Bolt (C3) with 6mm Allen Key (L) provided.
I
C
Checklist
C (x1) Assembled Base
I (x4) Pad
L
C
C3
10-50mm
(0.39”-1.97”)
Checklist
C (x1) Assembled Base
L (x1) 6mm Allen Key
STEP 2: (Continued)
03
OPTION B: Grommet Base Installation
Remove the Bottom Plate (C1), Short Bolt (C3) and the Base (C2) from Assembled Base (C).
Insert Long Bolt (G) through the Base (C2), grommet hole in desktop and Bottom Plate (C1).
Secure the Assembled Base (C) on the desktop by tightening the Long Bolt (G) with 6mm Allen Key (L).
G
C1
C2
L
L
C1
C
C2
C3
Checklist
C (x1) Assembled Base
G (x1) Long Bolt
L(x1) 6mm Allen Key
C1 Bottom Plate
C2 Base
C3 Short Bolt
10-50mm
(0.39”-1.97”)
DESK
DESK
ø10-60mm
(0.39"~2.4")
04
Turn clockwise to Install the Pole (F) on the Base (C). Tighten the set screw on the Pole (F) for further
reinforcement.
Install the Arm Base (D) on the pole, tightening by turning the handle on the Arm Base (D).
K
C
F
DO NOT tighten the
screw excessively or
it might be stripped.
Checklist
C (x1) Assembled Base
F (x1) Pole
K (x1) 3mm Allen Key
STEP 3: Arm Installation
F
D
Checklist
F (x1) Pole
D (x2) Arm Base
05
DO NOT tighten the
screw excessively or
it might be stripped.

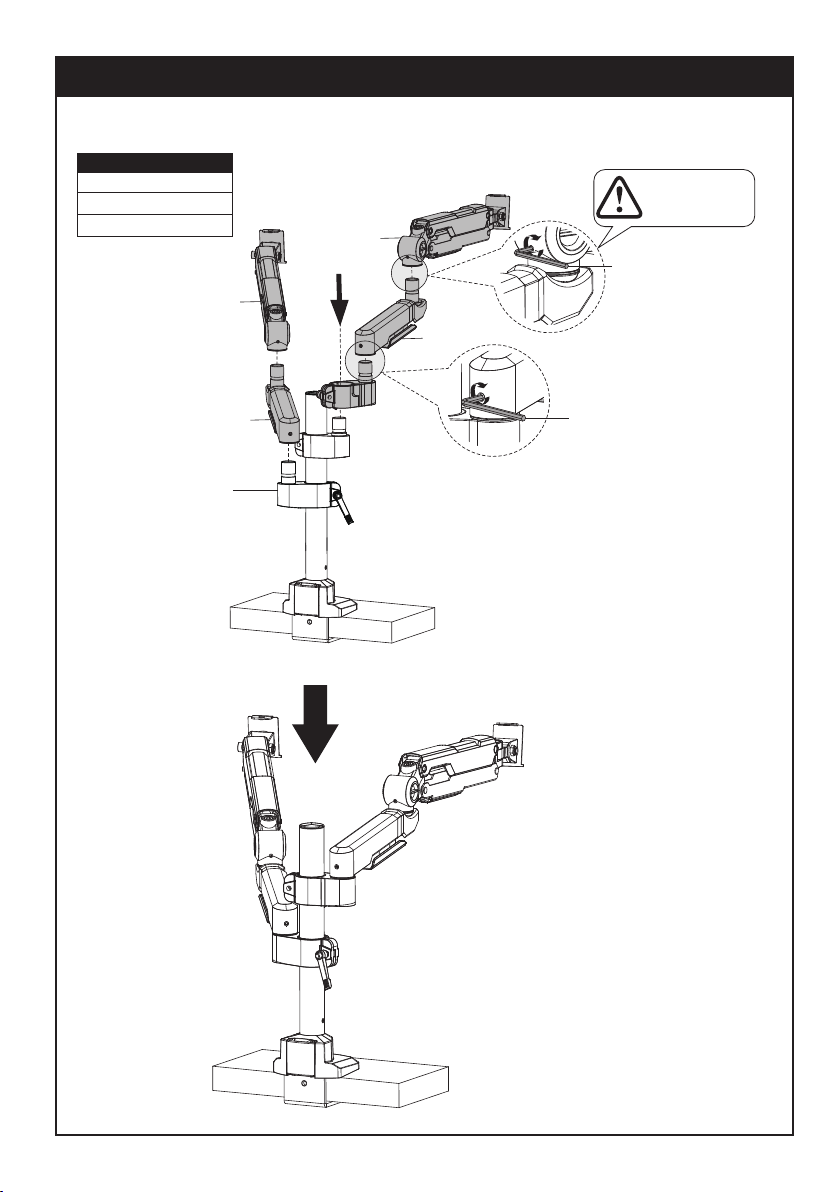

Insert one Lower Arm (B) and one Upper Arm (A) on each side of the Arm Base (D).
Tighten the set screw on the each arm for further reinforcement.
STEP 3: (Continued)
B
B
A
A
A
K
K
Checklist
A (x2) Upper Arm
B (x2) Lower Arm
K (x1) 3mm Allen Key
D
06
STEP 4: Attach Monitor
M-A
M-C
M-E
M-B
M-D
M-E
M-F
OPTION B: Curved Back Monitor
OPTION A: Flat Back Monitor
E
E
Attach the VESA plate (E) to back of monitor and
secure it with screws (M-A) or (M-C) and washers
(M-E) using Screwdriver. Do not tighten the screws
excessively or it might damage your monitor.
Attach the VESA plate (E) to back of monitor and secure
it with screws (M-B) or (M-D) and washers (M-E)and
washers (M-F) using Screwdriver. Do not tighten the
screws excessively or it might damage your monitor.
Checklist
M-A (x8) M4x12
E (x2) VESA Plate
M-C (x8) M6x12
M-E (x8) D6 Washer
E (x2) VESA Plate
Checklist
M-B (x8) M4x16
M-D (x8) M6x16
M-E (x8) D6 Washer
M-F (x8) washers
07

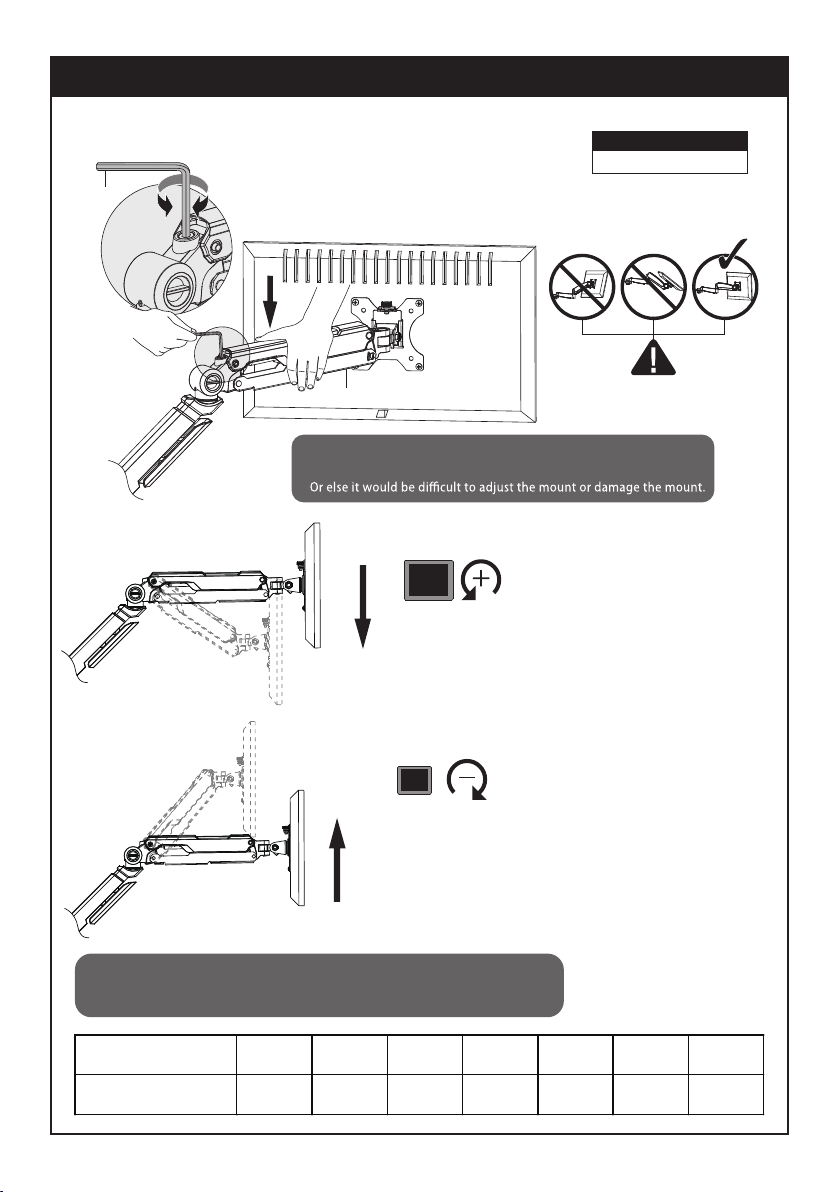

Slide the monitor onto the head of swivel arm, install the security bolt (H). Make sure the security
bolt is installed before you rotate the monitor.
STEP 5: Hang Monitor
Tilts down
Note:
1. Loosen the tilting bolt.
2. Adjust monitor to your
desired tilting angle.
3. Retighten the tilting bolt to
L
spring arm falls down greatly.
J
Checklist
J (x2) security bolt
Important Notice:
The gas spring is pre-set to minimum tension. Once the monitor is hanged on, hold the
monitor with both hands and DO NOT let go suddenly or immediately. Instead, leave the
monitor in a slow & gentle way while observing whether the arms will fall down wildly.
Checklist
L (x1) 6mm Allen Key
Guideline to adjust monitor tilting angle.
08
STEP 6: Adjust Tension
Note1:
Be sure to keep the arm in horizontal position during adjustment.
Falls down
Rises up
CAUTION
For proper functioning of this mount, depending on dierent weight of monitor you might need to adjust
tension in upper arm (A) using 6 mm allen key (L).
L
A
Checklist
L (x1) 6mm Allen Key
Monitor Weight
Circles (AT LEAST)
As for how many circles the screw should be turned, refer to below diagram.
Note2:
min
1kg/2.2lbs 2kg/4.4lbs 3kg/6.6lbs 5kg/11lbs 7kg/15.4lbs 9kg/19.8lbs 10kg/22lbs
3 7 11 15 19 20
If the monitor falls down and fails to stay at the desired
height by itself:
Turn counter-clockwise(“+”direction) to increase gas
spring tension until the monitor canstay at the desired
height by itself.
If the monitor rises up and fails to stay at the desired
height by itself:
Turn clockwise(“-”direction) to reduce gas spring tension
until the monitor canstay at the desired height by itself.
L
K
09
DESK DESK
Pay attention while clamp install !
H
Store Allen key (K,L)
for next time using.
Checklist
K(x1) 3mm Allen Key
L (x1) 6mm Allen Key
H (x2) Plastic Cover

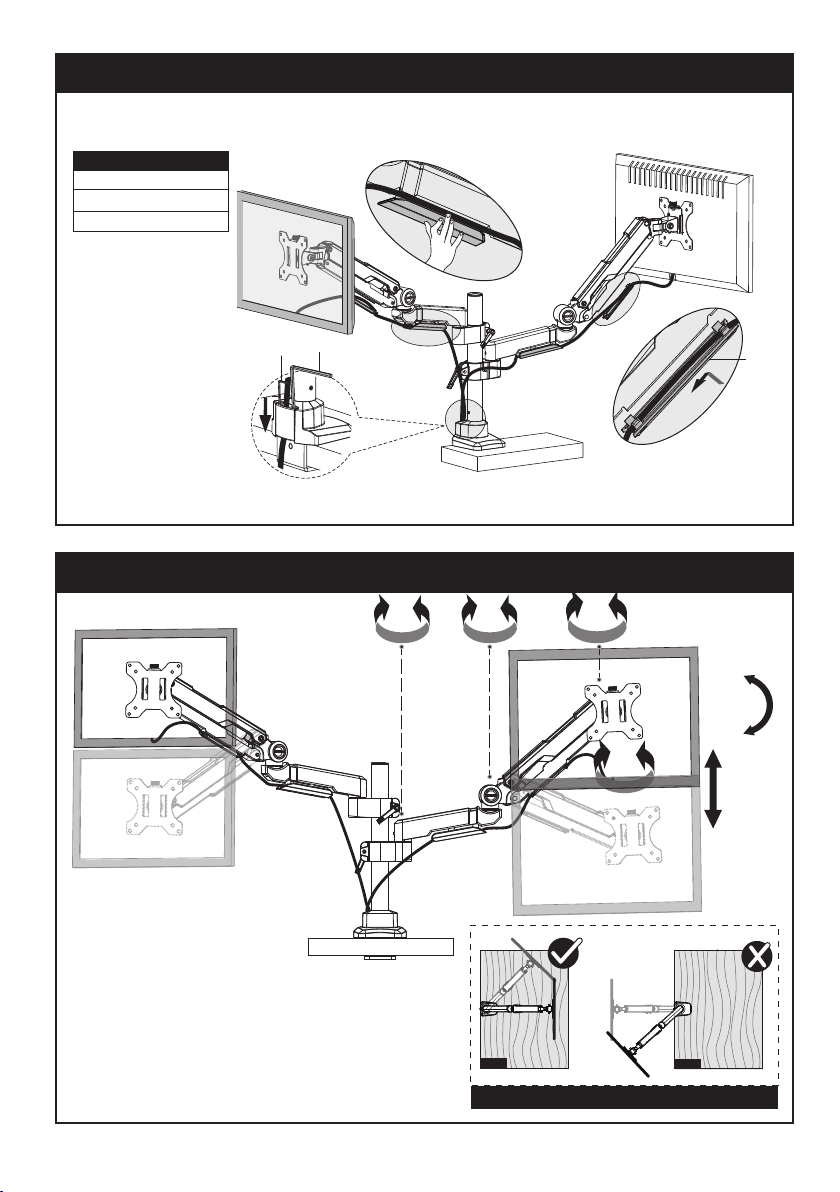

Let the cables get through the base, then press the cables close to the bottom of the arms.
Attach the Plastic Cover to keep it clean and tidy.
Adjust monitor position and rotation.
Note: When tilted, if the monitor sags or does not stay,
please fasten the tilting bolt on the mount until the
monitor can be held at any angle as needed.
Monitor Adjustment
STEP 5: (Continued)
STEP 7: Cable Management
180°
360°
360°
270°
+90°
-45°
