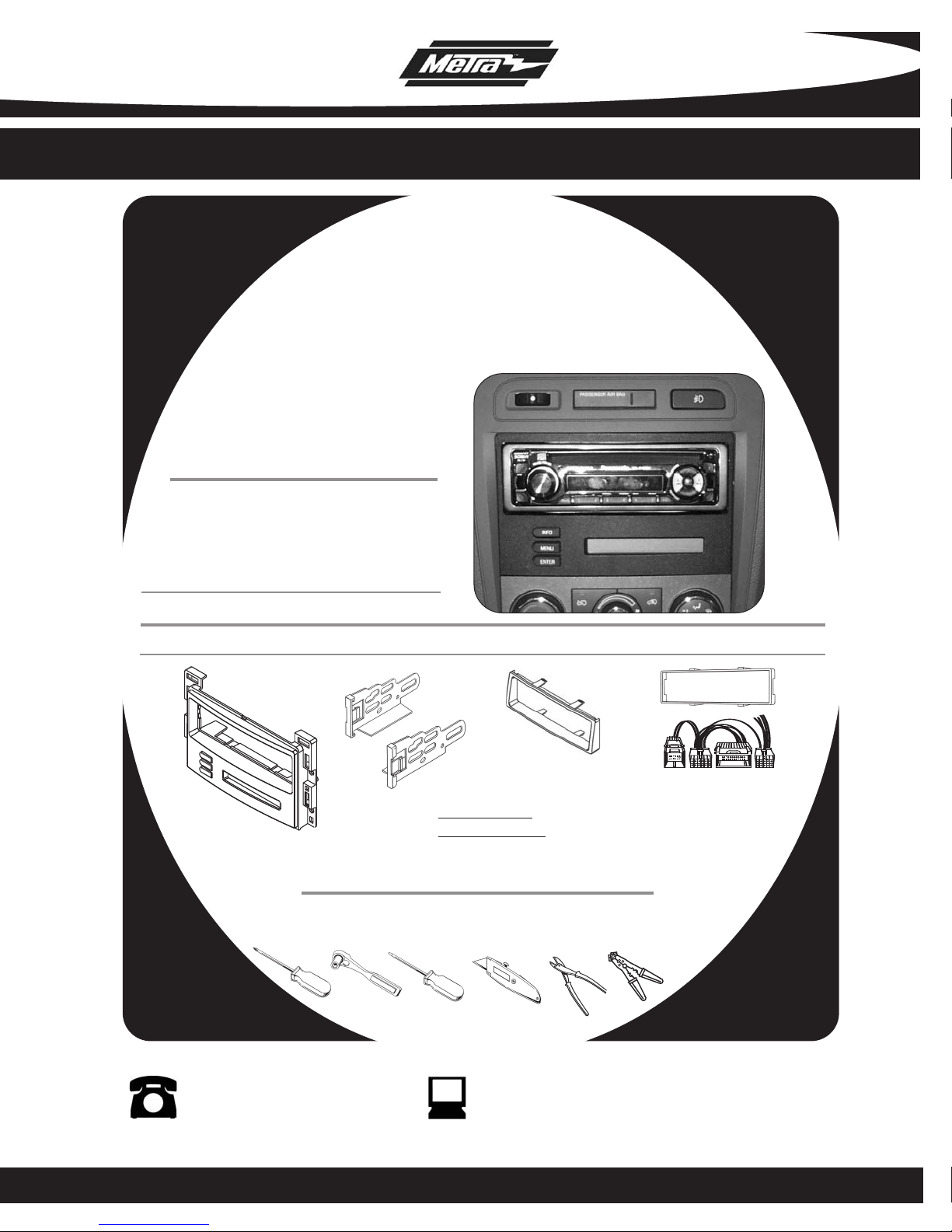

INSTALLATION INSTRUCTIONS FOR PART 99-3303

Phillips Screwdriver • Socket Wrench • Flat Blade Screwdriver • Cutting Tool (Cobalt Only)

1-800-221-0932 www.metraonline.com

KIT FEATURES

APPLICATIONS

Chevrolet Cobalt 2005-2006

Chevrolet Malibu 2004-2007

Chevrolet Malibu Classic 2008

Pontiac G6 2005-2009

•DIN Head Unit Provision with

Driver Information Center (DIC)

•ISO DIN Head Unit Provision with

Driver Information Center (DIC)

A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) DIN Spacer • E) Wire Harness

KIT COMPONENTS

99-3303

Wire Cutters • Wire Strippers

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:Included

Antenne Adapter:

• 40-GM10 - GM antenna adapter 1988-up

TOOLS REQUIRED:

99-3303

•

Dash Disassembly

-Chevrolet Malibu 2004-2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,2

-Chevrolet Malibu Classic 2008. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,2

-Pontiac G6 2005-2009 .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

-ChevroletCobalt 2005-2006 ..............................4

•

Kit Assembly

-DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 5

-ISO Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 6

•

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

•

Operationofthe99-3303 .................................8

TABLE OF CONTENTS

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake

steps towardabetter tomorrow.

99-3303

DASH DISASSEMBLY

CHEVROLET MALIBU 2004-2007

CHEVROLET MALIBU CLASSIC 2008

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unclip and remove wood grain/painted

trim pieces from both sides of steering

wheel. (Figure A)

Unclip and remove side panel from driver’s

side of dash with door open and remove

(2) 7MM screws. (Figure B)

Remove (2) 7MM screws from bottom edge of

panel below steering wheel. Unclip panel and

let hang. It is not necessary to completely

remove panel. (Figure C)

Unclip and remove wood grain/painted

trim pieces from above glove box.

(Figure D)

99-3303

DASH DISASSEMBLY

Unclip and remove side panel from

passenger side of dash with door open

and remove (2) 7 MM screws from behind

panel. (Figure E)

Remove (2) 7 MM screws from bottom of

glove box then open box and squeeze

sides together to open further and remove

the remaining (4) 7MM screws. Unclip the

black vent cover under the glove box then

unclip and remove entire glove box

assembly. (Figure F)

Unclip and remove trim panel surrounding

radio and climate controls. (Figure G)

Remove (4) 7MM screws from the radio

and (2) 7MM screws from climate control

to remove radio. (Figure H)

CHEVROLET MALIBU 2004-2007

CHEVROLET MALIBU CLASSIC 2008

99-3303

DASH DISASSEMBLY

PONTIACG6 2005-2009

Disconnect the negative battery terminal to

prevent an accidental short circuit.

Open glove box and remove (6) screws from

outer edge then unclip and remove box.

(Figure A)

Remove (4) screws from panel below steer-

ing column and unclip and remove panel.

(Figure B)

Unclip and remove center panel surrounding

radio and A/C controls. (Figure C)

Remove (4) screws and extract radio from

sub dash. (Figure D)

99-3303

DASH DISASSEMBLY

CHEVROLET COBALT2005-2006

Disconnect the negative battery terminal to

prevent an accidental short circuit.

Unclip and remove trim panel from above

glove box. (Figure A)

Unclip upper edge of panel below steering

column and let hang. Not necessaryto

remove completely. (Figure B)

Unclip and remove small trim panel to right

of ignition switch. (Figure C)

Unclip and remove trim panel surrounding

radio and climate controls. (Figure D)

Remove (4) 9/32 screws securing radio.

(Figure E)

99-3303

KIT ASSEMBLY

DIN HEAD UNIT PROVISIONS:

Slide the DIN cage into the Radio Housing

and secure by bending the metal locking

tabs down. (Figure A)

Slide the aftermarket head unit into the cage

and secure. (Figure B)

NOTE:

Asnap-in DIN spacer has been

provided for some applications where

depth is an issue. Snap the spacer in the

housing and slide the DIN cage into the

assembly and secure by bending the

metal locking tabs outward. (Figure C)

99-3303

KIT ASSEMBLY

ISO DIN HEAD UNIT PROVISIONS:

Mount the ISO Brackets to the head unit with

the screws supplied with the unit.

(Figure A)

Slide the head unit into the radio opening

until the side clips engage. (Figure B)

Snapthe Trim plate into the Radio Housing.

(Figure B)

Plug the clear 10 way and 12 way connectors into the backof the 99-3303 housing.

FINAL ASSEMBLY

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

99-3303

FINAL ASSEMBLY

Make wiring connections using the EIA color code chart shown below and the instructions included

with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder,

Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-) . . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

Connect the Lt. Blue 24 way connector to the factory24 way harness.

On vehicles equipped with Onstar, connect the Black 12 way connector to the factory

12 way harness.

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble dash in reverse order of disassembly.

All connections should be made without the harness plugged into the 99-3303.

99-3303

FINAL ASSEMBLY

OPERATION OF THE 99-3303

Settings and Adjustments mode

There is a Settings and Adjustments mode available for the individualized adjustment of the

contrast of the display, brightness of the display and backlighting, OnStar volume, and the button

backlighting color.

Entering the Settings and Adjustments mode

To enter the Settings and Adjustments mode, press the INFO and MENU buttons simultaneously.

When the unit settings and adjustments mode is entered, the LCD will display “Func Sel MENU.”

Selecting a Function to Update

When the unit is in the Settings and Adjustment mode, use the MENU button to select a function to

update. The LCD will display the selected function. See Table 1.0

Updating a function

While in the Settings and Adjustment mode, use the INFO and ENTER buttons to adjust the function

selected and displayed on the LCD. See Table 1.0

** When OnStar activated, INFO and ENTER can be used to adjust the OnStar volume

without first entering the settings and adjustments mode.

Exiting the unit settings and adjustments mode

The unit will automatically exit the settings and adjustments mode if no buttons are pressed for

about 10 seconds.

Table 1.0

Function LCD Display Description of Operation

LCD Contrast Contrast INF/ENT INFO increases LCD contrast

ENTER decreases LCD contrast

LCD Brightness Bright INF/ENT INFO increases LCD brightness

ENTER decreases LCD brightness

OnStar Volume OnSt Vol INF/ENT INFO increases OnStar Volume

ENTER decreases OnStar Volume

Button Backlighting Color Button Color ENT ENTER changes the button

backlighting between Amber

and Green
