INSTALLATION INSTRUCTIONS

95-6551

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

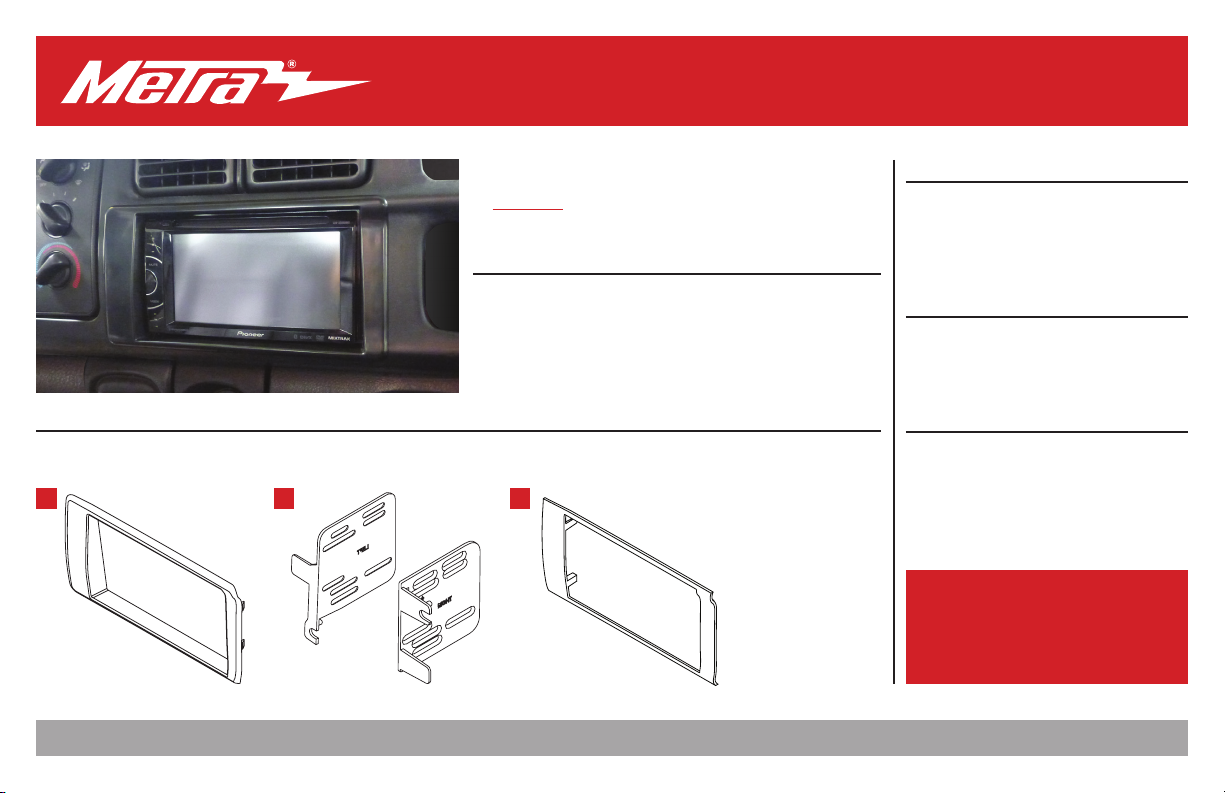

KIT FEATURES

• ISO DDIN radio provision

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Cut template

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 3/8” Socket wrench • Cutting tool • Scribe tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation ....................................................2-3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1817

Antenna Adapter: Not required

A B C

Dodge Ram 1998-2001

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

1.800.221.0932

MetraOnline.com

1. Open the power outlet cover and

remove (1) Phillips screw. (Figure A)

Note: No screw present for year 2000

models.

2. Unclip, unplug and remove the

dashboard trim panel. (Figure A)

3. Remove (2) 3/8” hex-head screws

securing the radio to the dash. Slide the

radio out, then unplug and remove

Continue to Kit Preparation

(Figure B)

(Figure A) (Figure A)

DASH DISASSEMBLY KIT PREPARATION

1. Place the cut template over the

dashboard trim panel. (Figure A)

2. Using a scribe tool, score the area in the

radio section to be cut. (Figure B)

3. Remove the cut template, then cut the

scored area with a cutting tool.

Continued on the next page

Remove shaded area

REV. 1/30/2019 INST95-6551 3

(Figure D)

(Figure C)

KIT PREPARATION (CONT.)

(Figure A)

4. Clip the radio trim panel onto the

dashboard trim panel. (Figure C)

5. Cut the sub-dash to allow room for the

radio assembly. (Figure D)

Continue to Kit Assembly

1. Secure the radio brackets to the radio

using the screws supplied with the

radio. (Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

3. Secure the radio assembly to the dash

using the factory screws.

4. Reassemble the dash in reverse

order of disassembly to complete the

installation.

KIT ASSEMBLY

Remove shaded area

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

95-6551

If you are having difﬁculties with the installation

of this product, contact our Tech Support line

either by phone at 1-800-253-TECH, or email at

techsupport@metra-autosound.com. Before

doing so, look over the instruction booklet a

second time and ensure that the installation was

performed exactly as the instruction booklet

is stated. Have the vehicle apart and ready to

perform troubleshooting steps before contacting

Metra/Axxess Tech Support.
