Metra Electronics 99-8711 Manual de usuario

INSTALLATION INSTRUCTIONS FOR PART 99-8711

99-8711

KIT FEATURES

•DIN Radio Provision with Pocket

•Stacked DIN Units Provision

A) Radio Housing B) Pocket

KIT COMPONENTS

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Torx Screwdriver

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

Mercedes C-Class 2001-2004

Mercedes CLK 2004

Dash Disassembly

-Mercedes C-Class2001-2004......................................1

-MercedesCLK2004..............................................2

Kit Assembly

-DINMountRadioProvision .......................................3

-StackedDINUnitsProvision.......................................4

Final Assembly ..........................................5

TABLE OF CONTENTS

99-8711

*Note:

Refer also to the instructions included with the aftermarket radio.

99-8711 DASH DISASSEMBLY

MERCEDES C-CLASS 2001-2004

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip shifter trim (with gear indica-

tors).

Unclip and remove center console

trim panel.

(Figure A)

Repeat steps 5 and 6 for the other

vent and remove vent assembly.

Unclip the (2) metal clips at the bot-

tom edge of the climate control/radio

trim panel and remove trim panel.

Remove (4) Phillips screws securing

factory radio then unplug and remove

the radio.

Remove the ashtray insert by releas-

ing (2) plastic clips on the bottom lip

of the ashtray assembly.

(Figure B)

Using a small flat screwdriver push

the lower clip (“A”) inward and rotate

the vent upward to expose (1) Torx

head screw. Loosen the Torx screw.

(It is not necessary to remove the

screw.)

(Figure C)

Using a small flat screwdriver push

the upper clip (“B”) inward and rotate

the vent downward to expose (1)

spring clip in the top corner (“C”).

Push down on the spring clip.

(

Figure C)

Continue to kit assembly.

“A”

“B”

“C”

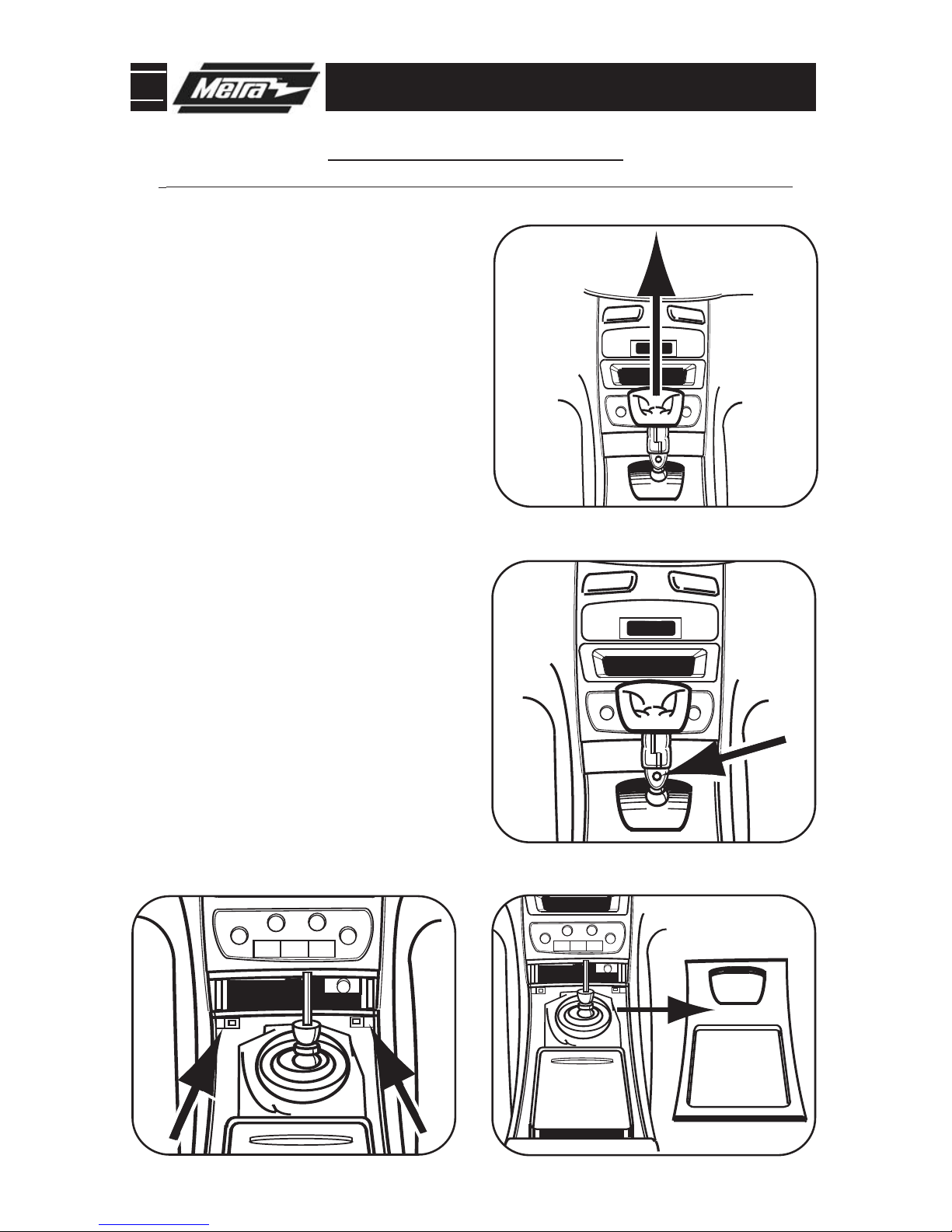

99-8711 DASH DISASSEMBLY

MERCEDES CLK 2004

Loosen shifter boot and pull up over

shifter handle.

(Figure A)

Turn the retainer on the shifter 1/2 turn

to remove shifter handle and boot.

(Figure B)

Unclip and remove the shifter trim

panel.

(Figure C)

Remove the ashtray insert by releasing

(2) plastic clips on the bottom lip of the

ashtray assembly.

(Figure D)

Remove (2) screws from bottom of cli-

mate control/radio trim panel.

Unclip climate control/radio trim panel.

Unplug and remove trim panel.

Remove the (4) screws securing the

radio then unplug and remove the

radio.

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

99-8711 KIT ASSEMBLY

DIN MOUNT RADIO PROVISION

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure B)

Slide the pocket into the radio housing

until it snaps into place.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure A)

99-8711 KIT ASSEMBLY

STACKED DIN UNITS PROVISION

Slide the aftermarket units into the

cages until they snap into place.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Slide the DIN cages into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure A)

99-8711 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc..........Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) .............Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

99-8711 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
