M-system 10DY Manual de usuario

10 DY

P. 1 / 2

EM-0826 Rev.5

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

COMPONENT IDENTIFICATION

nPOWER SWITCH

Power supply can be turned off.

Right: ON, left: OFF

Power Switch*

ZERO

PWR

OFF ON

SPAN

*Only for option /S

INSTALLATION

Use Standard Rack (model: 10BXq).

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the con-

nection diagram label on the unit side.

–

OUTPUT 1

–

OUTPUT 2

CONNECTOR

*1 output type has the output 1 connected to the

card-edge connector in parallel.

OUTPUT 2*

POWER

–2

2-WIRE

TRANSMITTER

–

MONITOR

(1 – 5V DC)

–

BEFORE USE ....

Thank you for choosing M-System. Before use, check the

package you received as below.

If you have any problems or questions with the product,

please contact M-System's Sales Ofﬁce or representatives.

n PACKAGE INCLUDES:

Signal conditioner ....................................................(1)

n MODEL NO.

Conﬁrm that the model number described on the product is

exactly what you ordered.

n INSTRUCTION MANUAL

This manual describes necessary points of caution when you

use this product, installation, connection and basic mainte-

nance procedures.

POINTS OF CAUTION

n POWER INPUT RATINGS

• Power input ratings are specied by the model number

sufﬁx code. Check the power input voltage for the unit on

the speciﬁcation label.

24V DC ±10%, approx. 55mA with voltage output 1

approx. 80mA with current output 1

n GENERAL

• Before you remove the unit or mount it, turn off the power

supply and input signal for safety.

n ENVIRONMENT

• Indoor use

• When heavy dust or metal particles are present in the air,

install the unit inside proper housing and ventilate it.

• Do not install the unit where it is subjected to continuous

vibration. Do not apply physical impact to the unit.

• Environmental temperature must be within -5 to +55°C

(23 to 131°F) with relative humidity within 30 to 90% RH in

order to ensure adequate life span and operation.

n WIRING

• Do not install cables (power supply, input and output) close

to noise sources (relay drive cable, high frequency line, etc.).

• Do not bind these cables together with those in which noises

are present. Do not install them in the same duct.

n AND ....

• The unit is designed to function as soon as power is supplied,

however, a warm up for 10 minutes is required for satisfying

complete performance described in the data sheet.

CURRENT LOOP SUPPLY

(isolated) MODEL 10DY

INSTRUCTION MANUAL

Zero Adj.

Span Adj. Output 1

Body

Specifications

Connection Diagram

Label

(side)

Zero Adj.

Output 2*Span Adj.

Terminal Cover

*Provided only when the second output is selected.

10 DY

P. 2 / 2

EM-0826 Rev.5

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

CHECKING

1) Terminal wiring: Check that all cables are correctly con-

nected according to the connection diagram.

2) Power input voltage: Check voltage supplied to the rack

(model: 10BXq). For the DC power source, be sure that

the ripple level is within 10% p-p.

3) Input: Check that the input signal is within 0 – 100% of

the full-scale.

4) Output: Check that the load resistance meets the described

speciﬁcations.

ADJUSTMENT PROCEDURE

This unit is calibrated at the factory to meet the ordered speci-

ﬁcations, therefore you usually do not need any calibration.

For matching the signal to a receiving instrument or in case

of regular calibration, adjust the output as explained in the

following.

n HOW TO CALIBRATE THE OUTPUT SIGNAL

Use a signal source and measuring instruments of sufﬁcient

accuracy level. Turn the power supply on and warm up for

more than 10 minutes.

1) ZERO: Apply 0% input and adjust output to 0%.

2) SPAN: Apply 100% input and adjust output to 100%.

3) Check ZERO adjustment again with 0% input.

4) When ZERO value is changed, repeat the above procedure

1) – 3).

5) Go through the same procedure for Output 2. Extender

Card (model: 10EC) is required to access the Output 2

Adjustments on top of the unit maintaining electrical

connection at the rear connector.

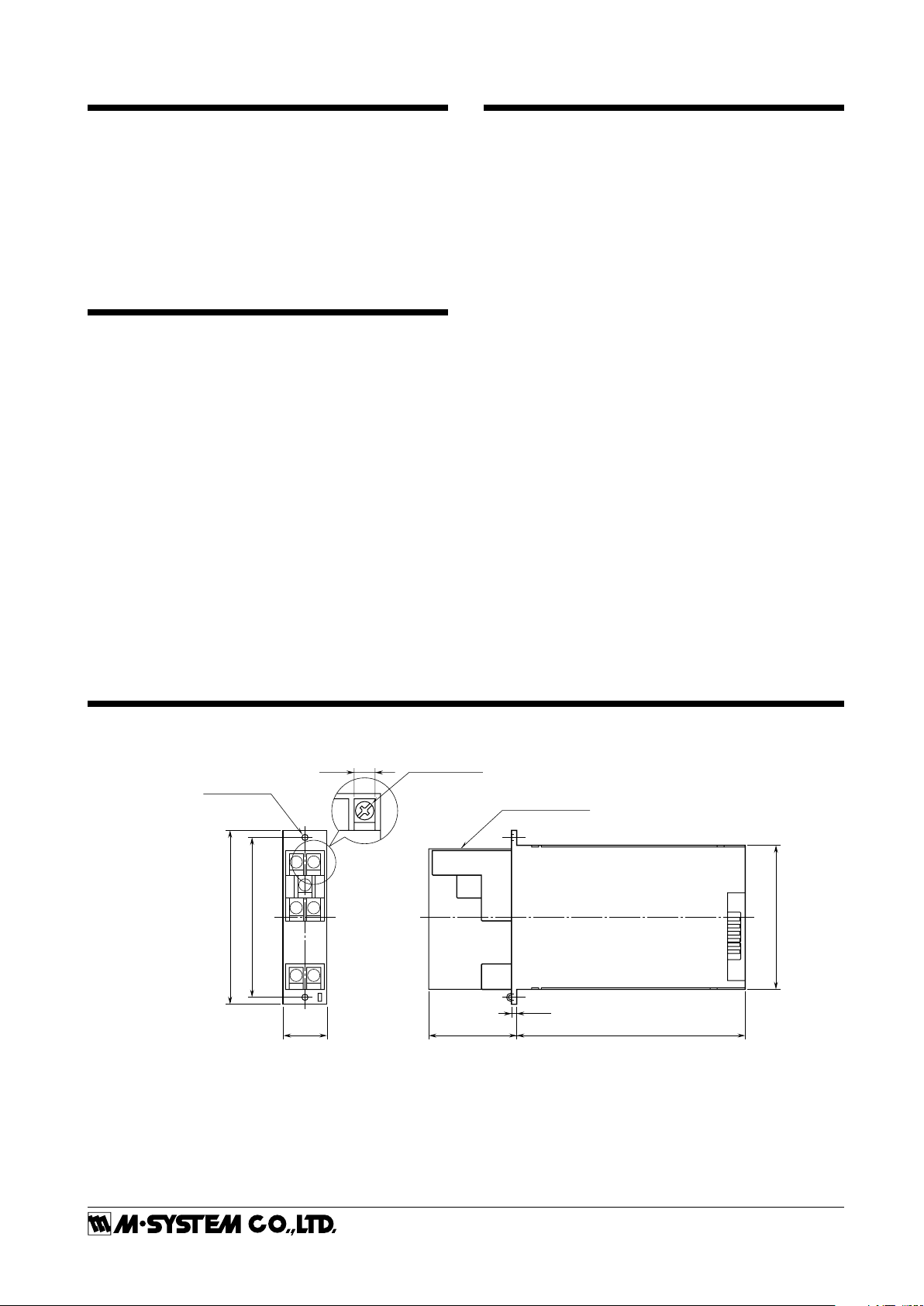

EXTERNAL DIMENSIONS mm (inch)

MAINTENANCE

Regular calibration procedure is explained below:

n CALIBRATION

Warm up the unit for at least 10 minutes. Apply 0%, 25%,

50%, 75% and 100% input signal. Check that the output

signal for the respective input signal remains within accuracy

described in the data sheet. When the output is out of toler-

ance, recalibrate the unit according to the "ADJUSTMENT

PROCEDURE" explained earlier.

130 (5.12)

3 (.12)

51 (2.01)

82 (3.23)

2–4.3 (.17) dia.

MTG HOLE

TERMINAL COVER

7–M3.5 SCREW

8 (.31)

91 (3.58)

99 (3.90 )

25 (.98)
