Logitech TYPE - S Manual de usuario

TYPE - S

Keyboard Case

For Samsung Galaxy Tab E

Étui clavier

Pour Samsung Galaxy Tab E

Setup Guide|Guide d’installation

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

Contents

English. . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . 13

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

3 English

Know your product

www.logitech.com/support/type-s-tab-e

PDF

1.5h

Type + keyboard case

1 2 3 4

Type S

Keyboard Case

for Samsung Galaxy Tab E

Étui clavier

pour Samsung Galaxy Tab E

1. Tablet holder

2. Microphone hole

3. Protective case

4. Hot keys

5. Keyboard

6. Bluetooth® and battery

status light

7. Bluetooth connect button

8. Micro-USB charging port

9. Micro-USB charging cable

10. Product documentation

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

4 English

Setting up the keyboard case

Getting started

1. Open the keyboard case, make sure

the edge of your tablet is aligned with

the tablet holder and push down:

2. Move the keyboard case into the typing

position:

The keyboard turns on automatically.

Establishing connection

with your tablet

The keyboard case links to your tablet

via a Bluetooth connection. The ﬁrst time

you use the keyboard case, you must pair it

with your tablet.

The status light blinks blue to indicate

that the keyboard is discoverable, ready for

pairing with your tablet.

The ﬁrst time you turn on the keyboard

it remains discoverable for 15 minutes.

If the status light turns red, charge

the battery. For more information,

see “Charging the keyboard battery.”

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

5 English

To pair your keyboard case with

your tablet:

1. On your tablet:

• Make sure Bluetooth is on.

Select Settings > Bluetooth > On.

• Select “TYPE - S Tab E” from the

Devices menu.

2. If your tablet requests a PIN,

enter it using the keyboard

(not on your tablet).

When successful connection is made,

the status light turns solid blue for

a short time, and then turns o.

Connecting to another tablet

1. Move the keyboard case into the typing

position.

2. On your tablet, make sure Bluetooth

is on. Select Settings > Bluetooth > On.

3. Press the Bluetooth connect button:

The keyboard is discoverable for

3 minutes.

4. Select “TYPE - S Tab E” from the Devices

menu.

5. If your tablet requests a PIN,

enter it using the keyboard

(not on your tablet).

When successful connection is made,

the status light turns solid blue for

a short time, and then turns o.

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

6 English

Using the keyboard case

Two viewing positions

The keyboard case provides two viewing

positions—one for typing and another

for browsing.

To type, move the keyboard case into the

typing position, aligning it with the built-in

magnet to secure it:

The keyboard turns on automatically

when you move the keyboard case into

the typing positon.

To browse, place the keyboard case in

the browsing position:

The keyboard powers o automatically

when you move the keyboard case out of

the typing position.

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

7 English

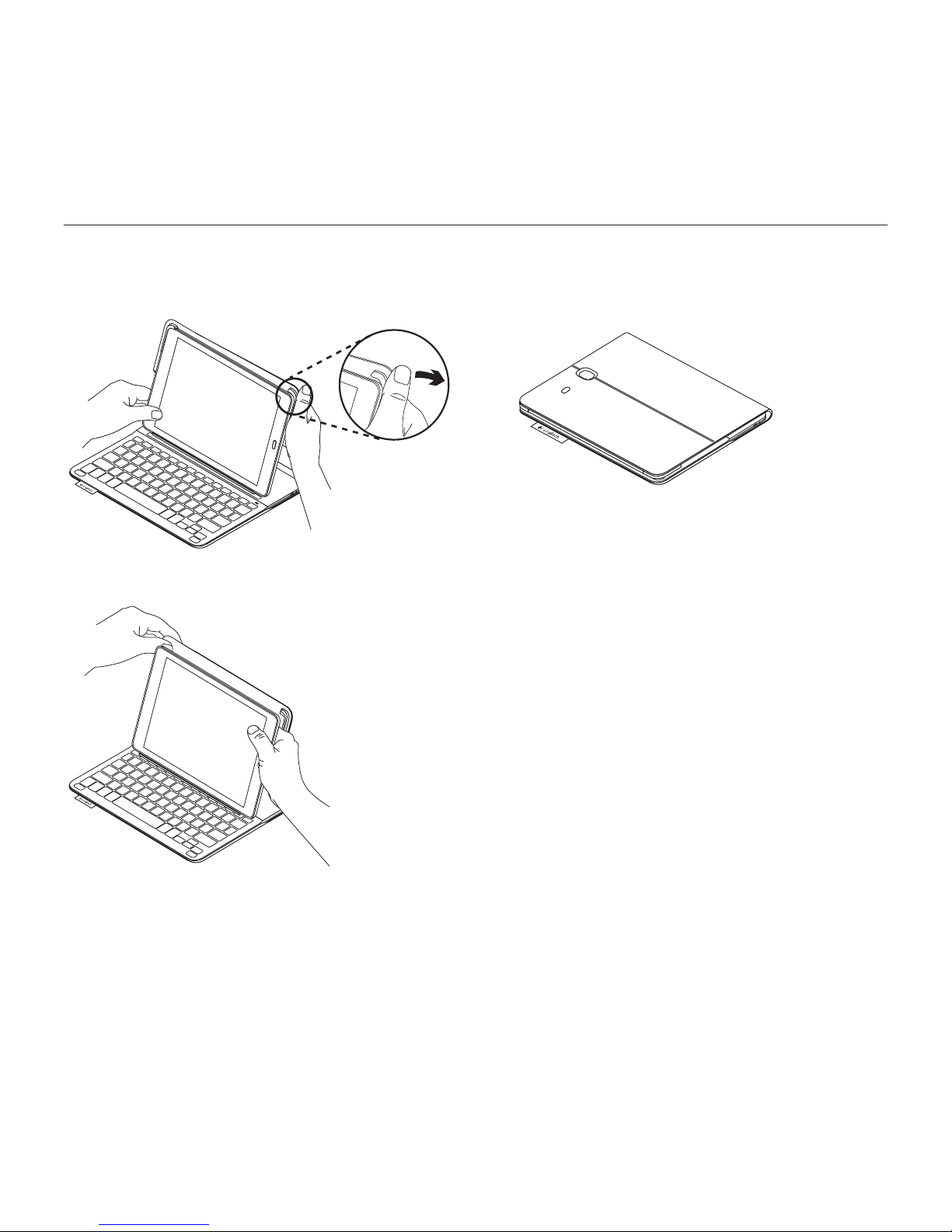

Detaching your tablet

To detach your tablet from the case,

bend back one of the tablet holder corners:

Your tablet is then released:

Storing your tablet for travel

1. Insert your tablet in the tablet holder.

2. Close the keyboard case:

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

8 English

Status light indicators

Your keyboard case’s status light provides

information about the battery power

and Bluetooth connection:

Light Description

Blinking

green

The battery is charging.

Green The battery is fully charged

(100%).

Red Battery power is low

(less than 10%).

Recharge the battery.

Blinking

blue

Fast: The keyboard

is in discovery mode,

ready for pairing.

Slow: The keyboard is trying

to reconnect to your tablet.

Solid blue Bluetooth pairing or

reconnection is successful.

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

9 English

Hot keys

Back

Application switch

Android™ menu

Calendar

Mail

Music

Previous track

Play/Pause

Next track

Mute

Volume down

Volume up

Screenshot

Battery check

Check the keyboard battery status

Android home

Type keywords in the search bar

for contacts, music, notes, events,

mail, web, and more

Function keys

Fn + Back = Esc

Fn + X = Cut

Fn + C = Copy

Fn + V = Paste

Fn + Battery check = Lock screen

Lock or unlock the tablet screen

Fn + Spacebar = Switch language

Switches the keyboard language

Note: To select a function key, press and hold the fn key, and then press the key indicated above.

Logitech TYPE - S - Keyboard Case - For Samsung Galaxy Tab E

10 English

Charging the keyboard battery

If the status light is red the keyboard case

battery needs to be charged.

1. Plug one end of the micro-USB cable

into the charging port, and the other

end into a USB port on your computer.

Alternatively, you can use a USB charger

providing the power output rating

is no more than 5V - 500mA.

The status light blinks green as

the battery charges.

2. Charge the battery until the status light

turns solid green.

Battery information

• A fully charged battery provides about

six months of use when the keyboard

is used about two hours a day.*

• Charge the battery if the status light

turns red brieﬂy after the keyboard

turns on.

• When not in use, close the keyboard case

to conserve battery power.

• The keyboard enters sleep mode

automatically if not used for a while

in the typing position. Press any key

to wake it.

• One minute of charging can provide

2 hours of use; approximately 1.5 hours

of charging can provide a full power.*

* Actual charging and battery life will vary with use, settings, and environmental conditions.
