Logitech G913 Manual de usuario

G913

Wireless RGB Mechanical Gaming Keyboard

无线 RGB 机械游戏键盘

무선 RGB 기계식 게임 키보드

無線 RGB 機械式遊戲鍵盤

CONTENTS

English . . . . . . . . . . . . . . . . 3

简体中文 . . . . . . . . . . . . . . . 15

한국어 . . . . . . . . . . . . . . . .27

繁體中文 . . . . . . . . . . . . . . 39

English 3

LIGHTSPEED CONNECTION

3

www.logitech.com/support/G913

4English

BLUETOOTH®CONNECTION

G913

3 Sec.

CODE

1 2 3

4

English 5

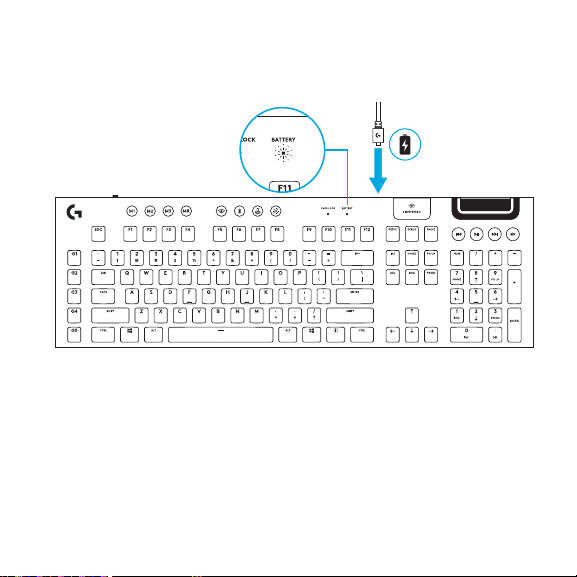

CHARGING

6English

KEYBOARD FEATURES

1

2 3 4 5 6 7

1. G-Keys

2. Mode Switches

3. LIGHTSPEED and Bluetooth

4. Game Mode

5. Brightness

6. Battery Light

7. Media Controls

English 7

In addition to the lighting features available through G HUB software, G913 has onboard lighting

eects. To select these eects, press and hold the Brightness button while pressing the keyboard

number keys to select an eect:

• Brightness + key 1: Colorwave (left to right)

• Brightness + key 2: Colorwave (right to left)

• Brightness + key 3: Colorwave (center out)

• Brightness + key 4: Colorwave (bottom up)

• Brightness + key 5: Color cycle

• Brightness + key 6: Ripple

• Brightness + key 7: Breathing

• Brightness + key 8: User-stored lighting

• Brightness + key 9: User-stored lighting

• Brightness + key 0: Cyan blue

• Brightness + key -: Decreases eect speed

• Brightness + key +: Increased eect speed

User-stored eects are saved to the keyboard by G HUB software.

KEYBOARD FEATURES  LIGHTING FUNCTIONS

8English

• 5 programmable G-keys and three M-keys provide up to 15 unique functions per game.

• Customize the G-keys using Logitech G HUB Software.

• To record a macro:

1. Press the MR key

2. Press a G-key.

3. Type the keys to be recorded.

4. Press the MR key.

—To record a second macro to the same G-key, press M2 and repeat steps 1–4.

—For a third macro, press M3 and repeat steps 1–4.

Download and install Logitech G HUB software from logitechG.com/GHUB

KEYBOARD FEATURES  GKEYS

English 9

GAME MODE BUTTON

KEYBOARD BACK  LIGHTING

ONBOARD MEMORY

This button disables the standard Windows key and Menu key to prevent the Windows Start menu from

activating during a game, which might disrupt play. The game mode LED is lit during game mode.

Three onboard proles can be saved to G913. The proles are downloaded into the G913 through

GHUB software, and are accessed by selecting M1, M2, or M3 when the keyboard is in Onboard mode

(selected from G HUB software, or when G HUB software is o or not installed.

Adjust keyboard brightness by cycling the keyboard brightness button.

10 English

KEYBOARD FEATURES  MEDIA CONTROLS

G913 has media controls, located in the upper right corner of the keyboard.

• Volume roller — controls volume of the active audio on your PC.

• Skip back — goes to the beginning of a track, or to a previous track, depending on

theapplication.

• Play/Pause — starts or stops the audio or video source playback.

• Skip forward — goes to the end of the track or to the next track, depending on

theapplication.

• Mute — stops audio output.
