LaserLiner StarFinder Plus Manual de usuario

StarFinder Plus

Manual_StarFinder_Plus_105x264mm_Rev.1012.indd 01 05.11.12 15:26

1 2

Read the operating instructions and the enclosed brochure „Guarantee and

additional notices“ completely. Follow the instructions they contain. Safely

keep these documents for future reference.

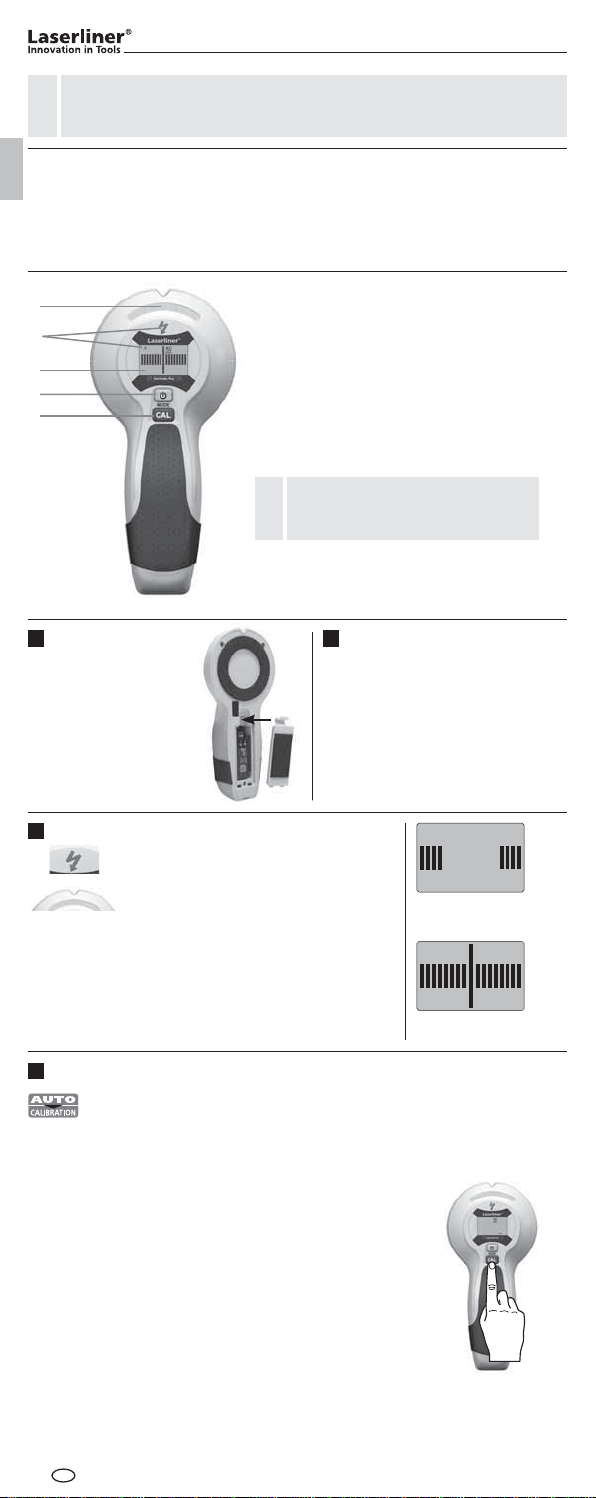

Function / Application

Multiple integrated sensors make StarFinder Plus by Laserliner a highly efficient detecting

device for locating wall beams and joists in drywall structures and finding live lines. The

StarFinder Plus is equipped with an LC display with user guide, ensuring easy and reliable

operation. Acoustic and optical detection signals to locate objects facilitates handling and

ensures a high level of functional reliability.

Maximum display

Live wire warning

LC display

ON / OFF

Switching measuring mode (MODE)

Manual calibration (CAL)

Open the battery compart-

ment on the housing‘s

rear side and insert a 9V

battery. Correct polarity

must be observed.

Insert battery Switch on: Briefly press the

On/Off button (4).

Switch off: Keep the On/Off

button (4) pressed for 2 seconds.

AutoShutOff: The device will

automatically switch itself off

about 30 seconds after the last

measurement.

Operation

Auto-Calibration

The automatic calibration is performed in AC-SCAN measure-

ment immediately when the device is switched on and when the

measuring mode is switched. During calibration, the display shows

„CAL“. Do not move the device during this process. Once „CAL

OK“ appears on the display, tracing can be started.

Calibration

Manual calibration

Pressing the CAL button (5) manually calibrates the device. This

allows measurements to be restarted and objects to be isolated

more precisely.

Maximum sensitivity is achieved when the device is held in the air

while calibrating. This can be useful for AC-SCAN measurements.

Always switch off the power supply

when working in STUD-SCAN mode

in the vicinity of electric conductors.

Red = Live wire warning

AC-SCAN mode

Green = live wire is nearby

Red = live wire found

STUD-SCAN mode

Green/Red: object is nearby

Green: object found

Symbols

line, object is nearby

line, object found

Manual_StarFinder_Plus_105x264mm_Rev.1012.indd 06 05.11.12 15:27

StarFinder Plus

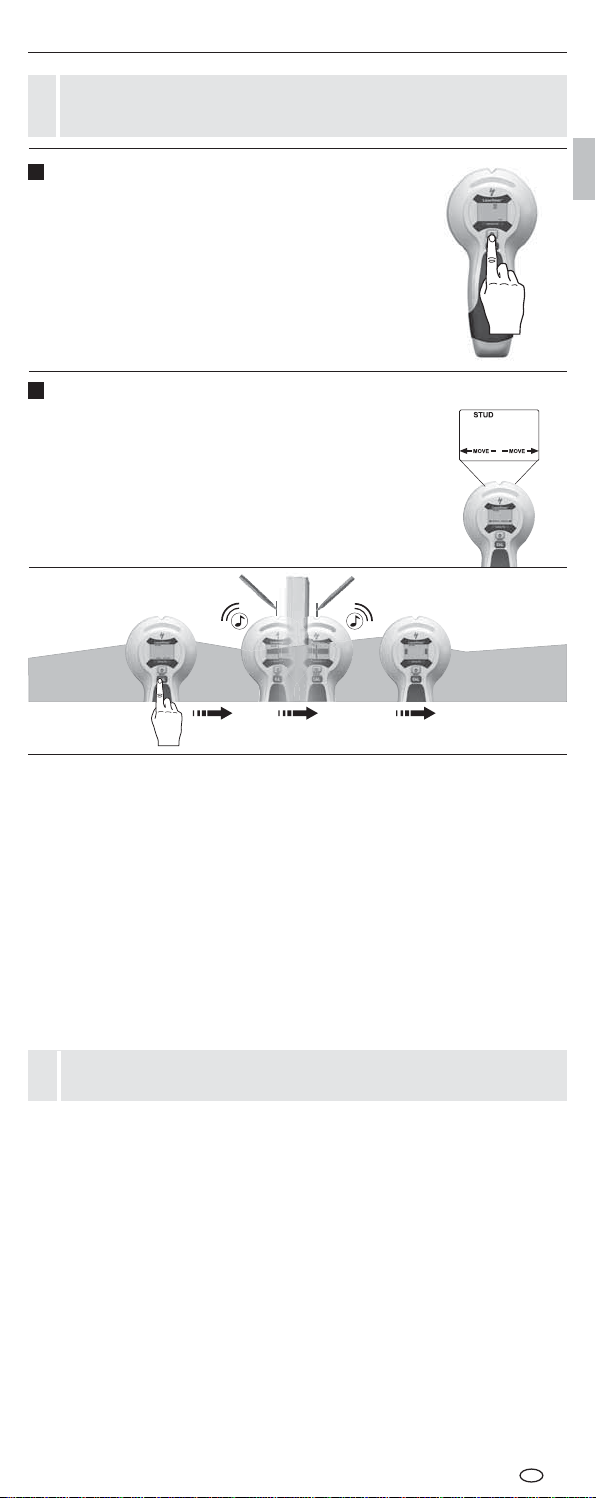

Briefly press the Mode button (4).

AC-SCAN (Locating live lines directly under non-metallic cladding)

STUD-SCAN (Detecting wooden wall beams and joists as well as

metal in drywall structures under non-metallic cladding)

Select measurement mode

The device and the wall must maintain contact during calibration in STUD-SCAN

mode and throughout the entire measurement process. A hand should remain at

the device the entire time as well.

Detecting wooden wall beams and joists as well as metal in drywall

structures, e.g. under gypsum fibreboard, wood panels or other

non-metallic cladding.

– Select STUD-SCAN (button 4)

– ON WALL: Place the tool against the wall

– PRESS CAL: Press the calibration button (5)

and wait until calibration is completed: CAL OK

– MOVE: Move the tool slowly across the surface.

Measuring in STUD-SCAN mode

If electric wires or metal or plastic pipes are located near or in contact with a

plaster fibreboard panel, they may be identified by the StarFinder Plus as studs.

Special things to note with various materials

It may not be possible to detect wooden studs or joists through the following materials:

– Ceramic floor tiles

– Fitted carpeting with padded backing

– Wallpaper with metal fibres or metal foil

– Freshly painted, damp walls. These must have dried for at least one week.

Tip 1: The position between the two markings is the mid-point of the stud.

Tip 2: The position where you start is important: First place the tool in a position where

you know there is no stud. Otherwise, the message “ERROR” will appear in the display.

To remedy: Move the tool to another position a few centimetres away and start

measuring again.

Tip 3: To avoid interference while scanning, keep your free hand and other objects at

least 15 cm away from the StarFinder Plus.

Tip 4: The StarFinder Plus will only find the outside edge of double studs and headers

which may be fitted around doors, windows and corners.

Tip 5: Ensure that you have really detected a stud. To do so, check on both sides whether

other studs are present at equal distances, usually at 30, 40 or 60 cm. Also check that it is

a stud by scanning at several places directly above and below the position of the first find.

Tip 6: Textured ceilings: The ceiling must be covered with cardboard to protect it. In this

case, use the DeepScan function.

Note: If an object is deep inside a wall, the device may not indicate it clearly.

Manual

calibration

Manual_StarFinder_Plus_105x264mm_Rev.1012.indd 07 05.11.12 15:27

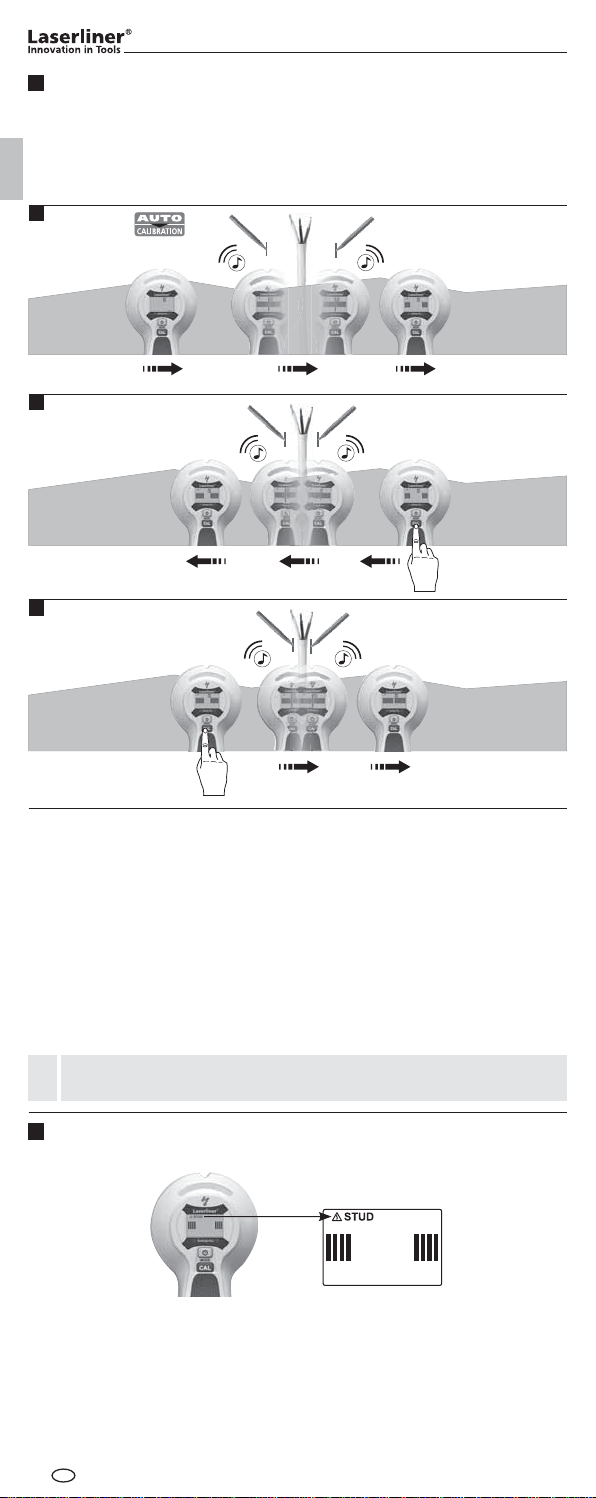

Tip 1: Manual calibration should be performed near the place found last as shown in

Image B/C. Repeat this step as needed.

Tip 2: Because of static charges, electric fields may be detected at the side of the actual

position of the wire. To carry away these charges, lay your free hand on the wall.

Tip 3: Move the tool slowly as friction can generate interfering electric charges.

Tip 4: If you suspect that wires must be present but cannot find any, this may be because

they are shielded in conduits. Use STUD-SCAN in order to localise conduits.

Tip 5: Metal in walls (e.g. metal studs) transmit electrical fields and may therefore cause

interference. In this case, switch to STUD-SCAN in order to find the wire.

Tip 6: The position where you start is important: To achieve maximum sensitivity, start by

placing the device in a position which is known not to be near live wires.

Note: If an object is deep inside a wall, the device may not indicate it clearly.

Continuous current monitoring in unshielded wires as soon as an electrical field

is detected.

STUD-SCAN: Current monitoring

Manual

calibration

Isolate an object to be

measured by passing

over it several times.

Manual

calibration

Wires which are at a depth of more than 4 cm may not be detected.

For localising live wires directly beneath the plaster or behind wooden panels and other

non-metallic panelling. It is not possible to detect live wires in dry walls with metal studs.

– Select AC-SCAN (button 4).

– As soon as the display switches from CAL to CAL OK, you can move the device.

– MOVE: Move the tool slowly across the surface.

Measuring in AC-SCAN mode

Manual_StarFinder_Plus_105x264mm_Rev.1012.indd 08 05.11.12 15:27

StarFinder Plus

The device features backlighting.

Backlight

EU directives and disposal

This device complies with all necessary standards for the free

movement of goods within the EU.

This product is an electric device and must be collected separately

for disposal according to the European Directive on waste electrical

and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info

Subject to technical alterations. 10.2012

Technical data

Detection range AC 110 - 230V, 50 - 60 Hz

Operating temperature 0°C ... 40°C (32°F ... 104°F)

Storage temperature -20°C ... 70°C (-4°F ... 158°F)

Power supply 1 x 9V alkaline battery (type 6LR 61)

Dimensions (W x H x D) 85 mm x 180 mm x 38 mm

Weight (incl. battery) 163 g

Measuring depth

Wood / metal beam location (STUD-SCAN) Up to 4 cm depth

Targeted location of live supply lines

(AC-SCAN) Up to 4 cm depth

Manual_StarFinder_Plus_105x264mm_Rev.1012.indd 09 05.11.12 15:27
