SuperCross-Green 3

lock

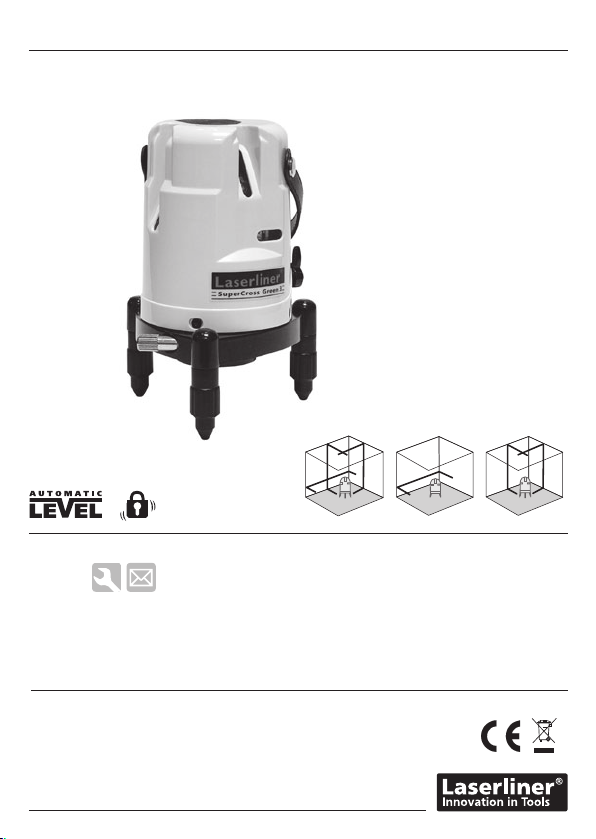

Latest-generation green crossline laser – visible even in the

most unfavourable light conditions.

Crossline laser, 532-542 nm, with automatic alignment through magneti-

cally damped pendulum system, 1,5° self-levelling range. Green lasers are

many times more visible than customary red lasers. This allows applications

over longer distances and working in very bright ambient light conditions.

Through the rotatable housing, the lasers can be precisely positioned.

Precision: ± 2 mm/10 m. With additional 650 nm plumb laser line.

General safety instructions

Caution: Prior to using the laser, you must read the safety instructions for laser class 3R

thoroughly. Warning signs must not be removed from the laser measuring device! Do

not look directly into the beam. Lasers must be kept

out of reach of children. Never intentionally aim the

device at people. This is a quality laser measuring

device and is 100% factory adjusted within the

stated tolerance. For reasons of product liability, we

must also draw your attention to the following: Regularly check the calibration before

use, after transport and after extended periods of storage. We also wish to point out

that absolute calibration is only possible in a specialist workshop. Calibration by yourself

is only approximate and the accuracy of the calibration will depend on the care with

which you proceed.

Laser radiation!

Avoid direct exposure to the

eyes. Laser class 3R

< 5 mW ∙530 - 670 nm

EN60825-1:2007-10

Note: This product is a precision instrument that must be handled and

treated with care. Avoid shocks and impact. Always keep and carry in the

case! Switch all lasers off and secure the pendulum. For cleaning, use a soft

cloth and glass cleaner.

Warranty:

The warranty period is 2 years from the date of purchase. The warranty

covers all material or manufacturing defects occurring during this time. The

following are excluded from warranty: Damage due to improper use (e.g.

operation with wrong type of current/voltage, connection to unsuitable

power source, fall onto hard surface, etc.) or improper storage, normal wear

and tear, and defects which only insignificantly impair the value or suitability

for use. Any tampering by unauthorised persons will render this warranty

void. In the event that you need to claim warranty, please take the complete

device together with all information and the invoice to one of our dealers or

send it in to Umarex-Laserliner.

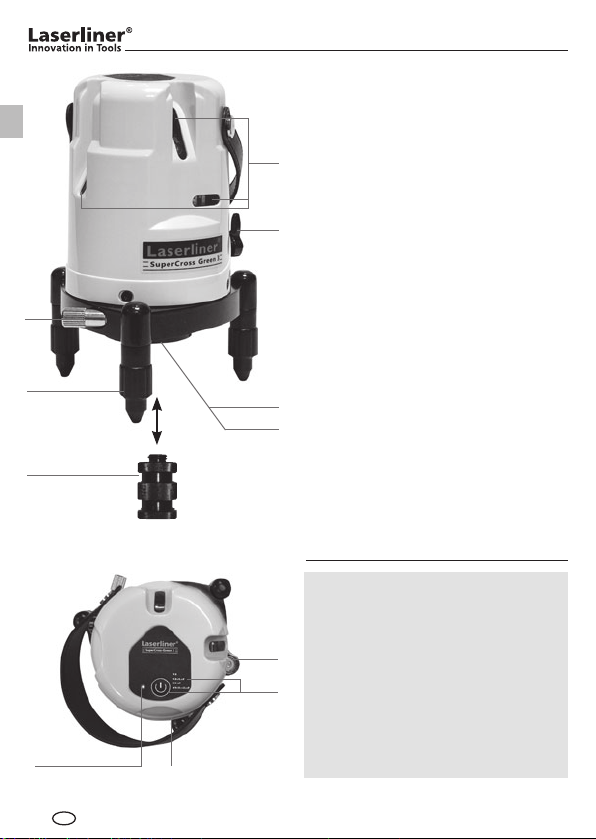

SuperCross-Green 3

Windows for line lasers

ON / OFF switch Transport

securing device

Knob for precision adjustment

Adjustable feet

5/8” thread (underside)

Window for plumb laser (underside)

Tripod adapter

Round vial for rough adjustment

Laser line selection button

Battery compartment

Battery charge low when LED

lights up (Low Bat. display).

The laser lines appear weaker

or flicker.

Note:

It may come to a generation

of heat if all lasers are on for a

longer period. In this case the

unit will switch off automatically

to protect itself. After cooling

down it can be switched on

again.

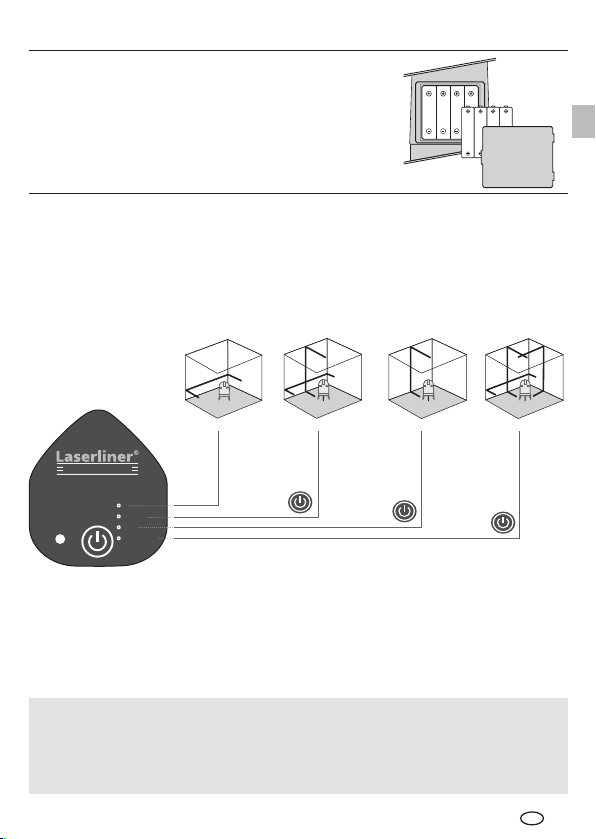

Inserting the batteries

Open the battery compartment (10) and insert the

batteries in accordance with the installation sym-

bols, ensuring the correct polarity. Close the cover.

Battery charge low: replace batteries when LED (11)

lights up.

Switching on

Turn the ON/OFF switch (2) to the left, thereby releasing the transport

securing device. The unit is ready for use when the selector key lights up

and a horizontal laser line appears. Further laser lines can be switched on

or off by pressing selector key repeatedly.

H

H+V1+P

V1+P

H+V1+V2+P

SuperCross-Green 3

1 x 2 x 3 x

Aligning

For approximate adjustment of the lasers, the top part can be turned on the

base. Precise positioning can then be done with the precision adjustment

knob (3). The adjustable feet (4) allow the device to be positioned on sloping

surfaces.

Note:

If the device is too far off the horizontal (more than 1,5°), the lasers will

switch off. Align the device using the adjustable feet (4) or place on a more

level surface. The round vial (8) is provided as an aid to alignment.

SuperCross-Green 3

Technical data

Self-levelling range 1,5°

Precision + 2 mm / 10 m

Laser wavelength line lasers 532 - 542 nm

Laser wavelength plumb laser 650 nm

Laser class line lasers 3R / < 5 mW

Laser class plumb laser 2 / < 1 mW

Power supply / operating time 4 x 1,5V AA / ca. 2,5 h

Weight 1,2 kg

Operating temperature 0°C ... + 40°C

Storage temperature -10°C ... + 70°C

Order number 054.000A

Subject to technical alterations 12 /2009

Note:

Regularly check the calibration before use, after transport and after

extended periods of storage.

Information on precision:

Precision 2 mm / 10 m: Adjust the device using the adjusting screws

(6) in such a way that the bubble of the circular level (8) is exactly in

the middle.

Precision 3 mm / 10 m: Adjust so that the bubble of the circular level

is within the ring.

Preparing the calibration check:

It is possible for you to check the calibration of the laser. To do this, position

the device midway between 2 walls, which must be at least 5 metres apart.

Switch the device on (Laser cross ON). The best calibration results are achie-

ved if the device is mounted on a tripod. 1. Mark point A1 on the wall.

2. Turn the device

through 180° and

mark point A2.

You now have a

horizontal reference

between points A1

and A2.

Checking the vertical line: Position the device about 5 m from a wall. Fix a

plumb bob with a line of 2.5 m length on the wall, making sure that the bob

can swing freely. Switch on the device and align the vertical laser to the plumb

line. The precision is within the specified tolerance if the deviation between the

laser line and the plumb line is not greater than ± 1.5 mm.

Checking the horizontal line:

Position the device about 5 m from a wall and

switch on the cross laser. Mark point B on the wall.

Turn the laser cross approx. 2.5 m to the right and

mark point C. Check whether the horizontal line

from point C is level with point B to within ± 2 mm. Repeat the process by

turning the laser to the left.

Performing the calibration check:

3. Position the device as near as possible to the wall at the height of

point A1.

4. Turn the device

through 180° and

mark point A3. The

difference between

points A2 and A3 is

the tolerance.

Note: If points A2 and A3 are more than 2 mm / 10 m, the device is in

need of calibration. Contact your authorised dealer or else the UMAREX-

LASERLINER Service Department.

2,5 m

< 2 mm = OK

A2 A2

< 2 mm / 10 m = OK

SuperCross-Green 3

8.054.96.01.1 / Rev.0310

SERVICE

Umarex GmbH & Co KG

– Laserliner –

Möhnestraße 149, 59755 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: +49 2932 638-333

[email protected]

Umarex GmbH & Co KG

Donnerfeld 2

59757 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: -333

www.laserliner.com
