LaserLiner MultiBeam-Laser 5 Manual de usuario

MultiBeam-Laser

ENGLISH 7

Ideal for aligning on all surfaces

Automatic 5-spot 635 nm laser with magnetically

damped pendulum system. All 5 lasers are set at right

angles to each other. This makes practically all alignment

tasks possible. Additionally, the housing can be turned to

enable horizontal levelling, while the two perpendicular

lasers allow markings to be easily transferred from the

floor to the ceiling. Precision 2 mm/ 10 m, self-levelling

range 4° - 6°, optical signal when tolerance is exceeded.

With the magnetic base, the device can be used every-

where - on building and photo tripods, on inside walls,

steel structures, etc.

Includes: Magnetic base, Laser enhancement glasses,

tightning belt, allen wrench, carrying case and batteries.

General safety instructions

Caution: Do not look directly

into the beam. Lasers must be

kept out of reach of children.

Never intentionally aim the device at people. This is a

quality laser measuring device and is 100% factory

adjusted within the stated tolerance. For reasons of

product liability, we must also draw your attention to

the following: Regularly check the calibration before

use, after transport and after extended periods of

storage.

Warranty

The warranty period is 2 years from the date of

purchase. The warranty covers all material or

manufacturing defects occurring during this time. The

following is excluded from warranty: Damage due to

improper use (e.g. operation with wrong type of

current/voltage, connection to unsuitable power source,

fall onto hard surface, etc.) or improper storage, normal

wear and tear, and defects which only insignificantly

impair the value or suitability for use. Any tampering by

unauthorised persons will render this warranty void. In

the event that you need to claim warranty, please take

the complete device together with all information and

the invoice to one of our dealers or send it in to

Umarex-Laserliner.

LASER LIGHT

DO NOT LOOK INTO

THE BEAM!

CLASS 2 LASER

EN 60825-1:2001

MultiBeam-Laser

Note:

This product is a precision instrument that must be

handled and treated with care. Avoid shocks and

impact. Always keep and carry in the case! Switch all

lasers off and secure the pendulum. For cleaning, use a

soft cloth and glass cleaner.

ENGLISH8

MultiBeam-Laser

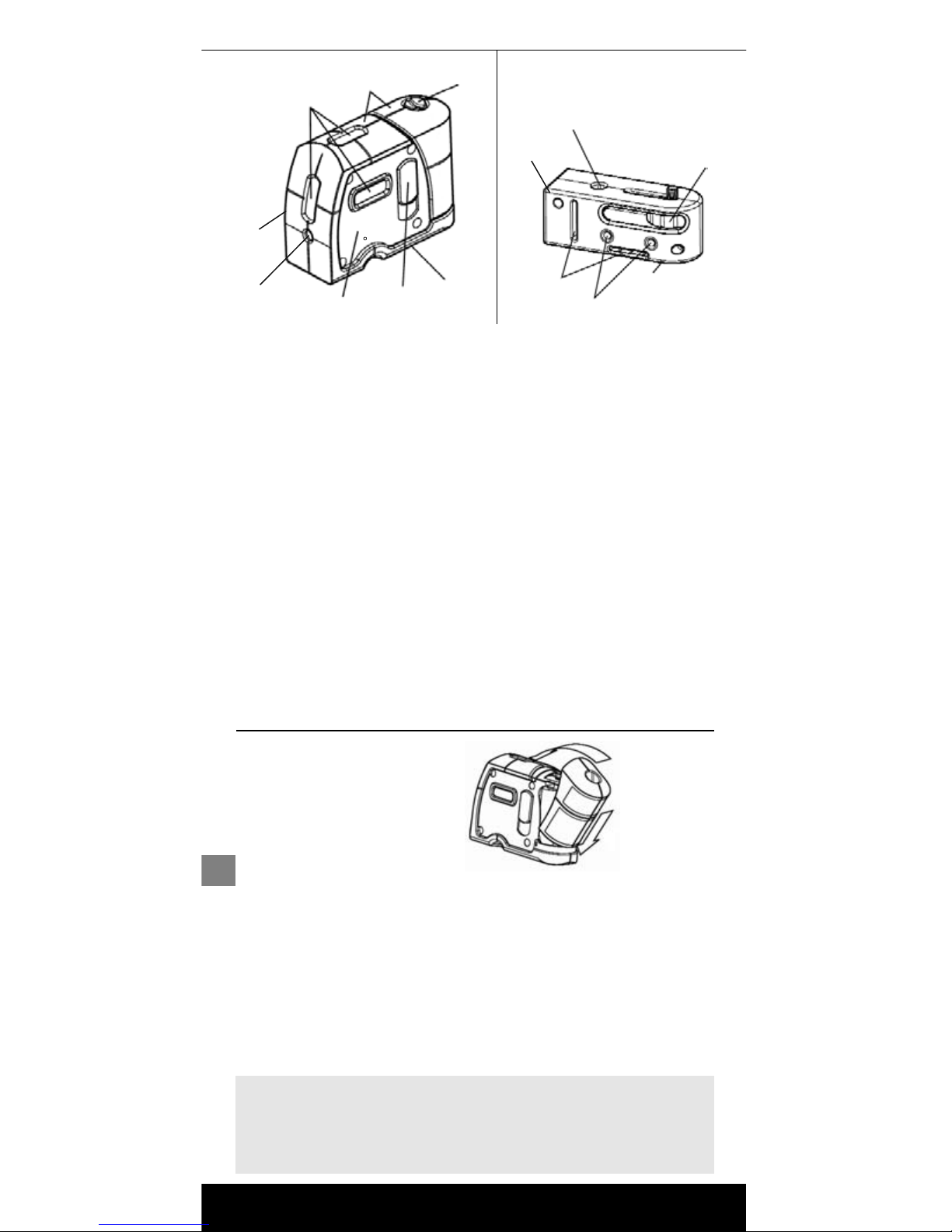

8Side beam calibration

port (Y-axix)

9Magnets

10 5/8” nut for

connection to

constrution tripod

(mount from bottom).

11 Connecting screw

MultiBeam 5

12 Screw mounting holes

(accepts standard

drywall screws)

13 Slot for tightning belt

1Laser emitting window

2Rubber grip housing

3Battery compartment-

cover

41/4” nut for connection

to camera tripod

5ON / OFF-Switch

Pendulum lock

6Self-leveling pendulum

(inside)

7Front beam calibration

port (X-axis)

Battery replacement

Make sure the batteries

are correctly poled!

Switch on

Assemble with connecting screw (11) MultiBeam-Laser 5

and magnetic base. Switch the unit on (5). The laserdots

will be projected.

Applications (examples see P. 2)

AAligning

BHorizontal levelling

CPlumb line

DHeight projection

Note:

If the device is positioned too much out of level (more

than 4° or 6°), the laser will blink. Position the device on

a more level surface.

Magnetic base

ENGLISH 9

MultiBeam-Laser

Note:

Regularly check the calibration before use, after

transport and after extended periods of storage.

Technical Data

Automatic levelling side-side

range forward-backward

+4°

+6°

Accuracy +2 mm / 10 m

Operating range

(depending on room illumination) ca. 100 m

Power supply 3 x 1,5V AA /

ca. 24 h

Laser wavelength 635 nm

Laser Class 2

<1 mW

Weight 0,4 kg

Operating temperature -10°C bis

+50°C

Storage temperature -20°C bis

+ 70°C

Order number 060.020A

Subject to technical changes without

notice 04/2005

Case dimensions – laserbeams

X-axis

Y-axis

Z-axis

Measures in mm

ENGLISH10

MultiBeam-Laser

180°

<2 mm / 10 m = OK

Preparing the calibration check

It is possible for you to check the calibration of the laser.

To do this, position the device midway between 2 walls,

which must be at least 5 metre apart. Switch the device

on. The best calibration results are achieved if the device

is mounted on a tripod.

1Mark point A1 on the wall.

2Turn the device 180° and mark point A2. You now

have a horizontal reference between points

A1 and A2.

Note: An absolute calibration is only possible in a

specialist workshop. Calibration by yourself is only

approximate and the accuracy of the calibration will

depend on the care with which you proceed. Please

contact your authorised dealer or else the

UMAREXLASERLINER Service Department.

Performing the calibration check

3Position the device as near as possible to the wall at

the height of point A1. Adjust the device in the X

axis.

4Turn the device through 180° and mark point A3.

The difference between points A2 and A3 is the tole-

rance for the X axis (P. 9).

5If points A2 and A3 are more than 2 mm / 10 m apart

the device is in need of calibration. Remove cover for

laser calibration and adjust laser to point A2 using

enclosed allen wrench.

6To check the Y axis, repeat steps from 3 to 5.

Calibrating the X- and Y-axis automatically also

calibrates Z-axis.
