Kogan KAMN24FXSA Manual de usuario
24 FULL HD 165Hz FREESYNC
GAMING MONITOR
(1920 x 1080)
KAMN24FXSA
•Read all instructions before using the appliance and retain for reference.
•Unplug the monitor before cleaning it.
•Use a clean, slightly dampened cloth to wipe the main monitor body.
•To clean the screen, turn it off, unplug it and wait for it to cool completely before
wiping it with a dry micro-fibre cloth.
•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
•This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
•Do not insert any object or spray any liquid into the vents.
•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,
as well as in rooms lacking adequate ventilation.
•Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
•Unplug the monitor if it is not going to be used for an extended period.
•Do not place heavy objects on the monitor, its power cord or any connected cable.
•Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia Interface and
the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
SAFETY & WARNINGS
Monitor
Stand connector
Stand base
Stand base screw
(M4 x 14mm) (x1)
VESA screws (x4)
DisplayPort cable
Power cable
User guide
COMPONENTS
Monitor Controls
1
Menu
Press to display the OSD menu or enter sub-menus.
2
Down
Press to move down in the menu.
3
Up
Press to move up in the menu.
4
Exit
Press to exit the menu.
5
Standby
Press to turn the monitor on/off.
OVERVIEW
Monitor Ports
6
Audio out (3.5mm)
7
DisplayPort (1.2)
8
HDMI 1 (2.0)
9
HDMI 2 (1.4)
10
Power port
1. Carefully remove the monitor, stand connector and stand base from the box. Read
through the full assembly instructions to ensure you have everything before
discarding the box.
2. Attach the stand base to the stand connector using the M6 screw provided.
STAND ASSEMBLY
WARNING: The panel of the monitor is fragile. Keep the foam underneath
the monitor screen while assembling the stand.

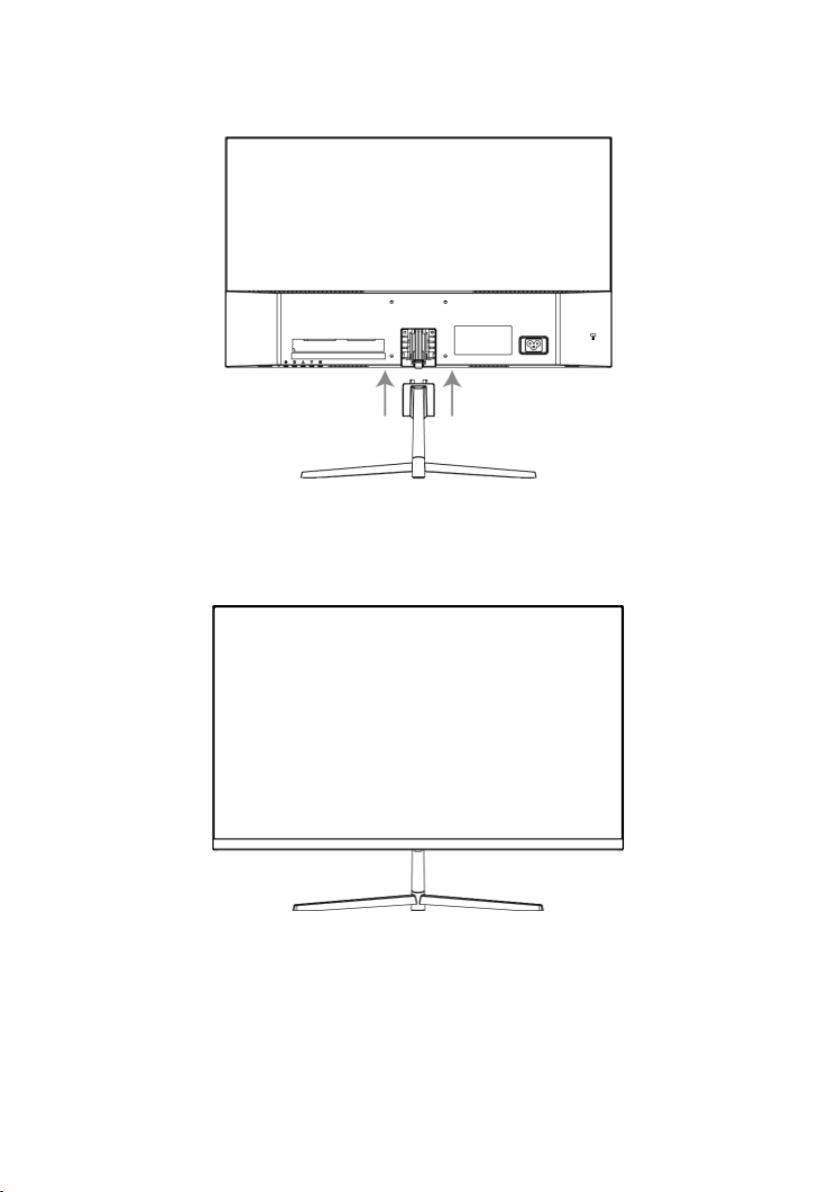

3. Insert the connection block into the back cabinet and push down until firmly
connected.
4. Lift monitor up straight and remove the bottom foam. Stand the monitor up on the
installed base.
1. Open the box and remove the monitor with protection form attached, and gently
place it on a desktop or table. Remove the extra parts and the foam covering the
back of the monitor. Press the release button to remove the stand plate. If the
monitor was already attached to the stand, remove the stand.
2. Assemble the mount as per the instructions provided with the mount.
VESA MOUNT
Note: VESA mount or mounting accessories are not included.
Stand base
Monitor
Stand connector
Stand plate
Button
Mount (not included)
VESA mounting pattern 75 x 75mm, screw size M4
Power cable
Connect the included power cable to the monitor power port and then connect the other
end to an electrical outlet.
Earphones (Audio Out)
Earphones, headphones or other audio devices can be connected to the 3.5mm output on
the monitor. The monitor may need to be set as the PC’s default sound output device.
CONNECTIVITY
Power Cable
Earphones
(Not included)
