Operation and

Service Manual

Keysight 16197A Bottom Electrode SMD

Test Fixture

Notices

2011-2017

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent from

Keysight Technologies, Inc. as

governed by United States and

international copyright laws.

Trademark Acknowledgments

Manual Part Number

16197-90020

Edition

Edition 5 July 2017

Printed in Malaysia

Published by:

Keysight Technologies International

Japan G.K,

1-3-3 Higashikawasaki-cho

Chuo-ku

Kobe-shi, Hyogo, Japan

Warranty

THE MATERIAL CONTAINED IN THIS

DOCUMENT IS PROVIDED “AS IS,”

AND IS SUBJECT TO BEING

CHANGED, WITHOUT NOTICE, IN

FUTURE EDITIONS. FURTHER, TO

THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, KEYSIGHT

DISCLAIMS ALL WARRANTIES,

EITHER EXPRESS OR IMPLIED WITH

REGARD TO THIS MANUAL AND

ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT

LIMITED TO THE IMPLIED

WARRANTIES OF

MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE.

KEYSIGHT SHALL NOT BE LIABLE

FOR ERRORS OR FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE

FURNISHING, USE, OR

PERFORMANCE OF THIS

DOCUMENT OR ANY INFORMATION

CONTAINED HEREIN. SHOULD

KEYSIGHT AND THE USER HAVE A

SEPARATE WRITTEN AGREEMENT

WITH WARRANTY TERMS

COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH

THESE TERMS, THE WARRANTY

TERMS IN THE SEPARATE

AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance

with the terms of such license.

Declaration of Conformity

Declarations of Conformity for this

product and for other Keysight

products may be downloaded from

the Web. Go to

http://www.keysight.com/go/confor

mity. You can then search by product

number to find the latest Declaration

of Conformity.

U.S. Government Rights

The Software is “commercial

computer software,” as defined by

Federal Acquisition Regulation

(“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and

Department of Defense FAR

Supplement (“DFARS”) 227.7202, the

U.S. government acquires

commercial computer software

under the same terms by which the

software is customarily provided to

the public. Accordingly, Keysight

provides the Software to U.S.

government customers under its

standard commercial license, which

is embodied in its End User License

Agreement (EULA), a copy of which

can be found at

http://www.keysight.com/find/sweulaThe

license set forth in the EULA

represents the exclusive authority by

which the U.S. government may use,

modify, distribute, or disclose the

Software. The EULA and the license

set forth therein, does not require or

permit, among other things, that

Keysight: (1) Furnish technical

information related to commercial

computer software or commercial

computer software documentation

that is not customarily provided to

the public; or (2) Relinquish to, or

otherwise provide, the government

rights in excess of these rights

customarily provided to the public to

use, modify, reproduce, release,

perform, display, or disclose

commercial computer software or

commercial computer software

documentation. No additional

government requirements beyond

those set forth in the EULA shall

apply, except to the extent that those

terms, rights, or licenses are

explicitly required from all providers

of commercial computer software

pursuant to the FAR and the DFARS

and are set forth specifically in

writing elsewhere in the EULA.

Keysight shall be under no obligation

to update, revise or otherwise modify

the Software. With respect to any

technical data as defined by FAR

2.101, pursuant to FAR 12.211 and

27.404.2 and DFARS 227.7102, the

U.S. government acquires no greater

than Limited Rights as defined in FAR

27.401 or DFAR 227.7103-5 (c), as

applicable in any technical data.

Safety Notices

A CAUTION notice denotes a hazard. It

calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or adhered

to, could result in damage to the

product or loss of important data. Do

not proceed beyond a CAUTION

notice until the indicated conditions

are fully understood and met.

A WARNING notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or adhered

to, could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

Contents

Keysight 16197A Operation and Service Manual 3

Table of Contents

1. Installation Guide

Inspection before Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly and Storage of 16197A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Assembly of 16197A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the Magnifying Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Changing the Positions of the Guide Holder Fixing Screws . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Method for Changing the Positions of the Guide Holder Fixing Screws . . . . . . . . . . . . . . . . . 12

Connecting the Test Fixture with a Measuring Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2. Product Description

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Mechanism for Connecting a DUT (Device Under Test) . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Names & Functions of Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Names & Functions of Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3. Operation

Measurement Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Setting the Electrical Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the Orientation of the Device Guide and Electrode Plate . . . . . . . . . . . . . . . . . . . . 25

Selecting the device guide frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the Orientation of or Replacing the Device Guide and Electrode Plate. . . . . . 28

Working with Device Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Reference Data for Preparing a Device Guide Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Example of Preparing the Device Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Example of Preparing a Simple Device Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Performing Fixture Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Measuring the SHORT Compensation Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connecting and Measuring the DUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4. User Maintenance

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Necessity of User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Areas Requiring Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Cleaning Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Deterioration Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Example Settings of User Limit Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

4 Keysight 16197A Operation and Service Manual

Contents

Check Sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Example Entry in Check Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Electrode Deterioration Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Assembly Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

5. Specifications and Supplemental Performance Characteristics

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Supplemental Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Additional Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

D Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Rs (ESR) Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Residual Inductance of the Shorting Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

6. Service

Replaceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Pressure Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Electrode Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Other Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Changing the Orientation of or Replacing the Contact Assembly . . . . . . . . . . . . . . . . . . . . . .67

Procedure for Changing the Orientation of or Replacing the Contact Assembly . . . . . . .67

Operation Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Open Impedance Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Short Impedance Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Short-impedance Measurement Repeatability Check . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Keysight 16197A Bottom Electrode SMD Test Fixture

Operation and Service Manual

1 Installation Guide

This chapter describes the necessary operations to perform before using the

delivered Bottom Electrode SMD Test Fixture16197A.

Inspection before Unpacking

Upon receiving the product package, inspect the packing box before

unpacking to make sure it is not damaged. If the packing box or packing

materials have been damaged, keep the box and materials until it has been

confirmed that all necessary components have been delivered and that

product operation is normal both mechanically and electrically.

Check the package contents against Table 1-1. If any component is missing, or

mechanically damaged or defective, please contact Keysight Technologies

local sales office. If the packing box has been damaged or the packing

materials have been severely deformed, please contact the freight company as

well as our sales office. Until the freight company carries out its inspection,

store the packing box and materials as they are, with all product components

left inside.

Before using this product for the first time after delivery, carry out

“Deterioration Check” on page 47, which is necessary to ensure accurate

measurement. For details, see “Acquiring Reference Values” on page 48 of

the “Deterioration Check” section.

6 Keysight16197A Operation and Service Manual

Installation Guide

Inspection before Unpacking

Figure 1-1 Package Contents of 16197A

Keysight16197A Operation and Service Manual 7

Installation Guide

Inspection before Unpacking

Table 1-1 Package Contents of 16197A

No Name Keysight part

number

Qty

1 Bottom-electrode SMD test fixture 16197A - 1

2Device guide 116197-25005 2

3 Blank device guide 16197-25006 3

4Electrode plate216197-00603 1

5 EIA/EIAJ -size, Shorting bar set

Shorting bar 1.0 x 0.5 x 0.5316191-29005 1

Shorting bar 1.6 x 0.8 x 0.8316191-29006 1

Shorting bar 2.0 x 1.2 x 0.8316191-29007 1

Shorting bar 3.2 x 1.6 x 0.8316191-29008 1

6 Tweezers 8710-2081 1

7 Allen wrench 8710-0909 1

8 Magnifying glass 16193-60002 1

9 Cleaning rod 5182-7586 1

10 Carrying case 16197-60060 1

11 Operation and service manual (this manual) 16197-90020 1

Option 001

12 Shorting bar 0.6 x 0.3 x 0.3 16197-29001 4

13 Device guide 16197-25007 1

14 Electrode plate 16197-00604 1

1. One is Delivered attached to the test fixture

2. Delivered attached to the test fixture

3. Shorting bars are delivered together in one case.

8 Keysight16197A Operation and Service Manual

Installation Guide

Assembly and Storage of 16197A

The 16197A is delivered in a carrying case, disassembled into a pressure unit

and an electrode unit. Assemble the fixture before use. Disassemble the fixture

when storing it in the carrying case.

Assembly of 16197A

Before using the 16197A, install the pressure unit onto the electrode unit as

shown in Figure 1-2.

Figure 1-2 Installing the Pressure Unit

Installing the Magnifying Glass

If the magnifying glass is used, install it on the edge of the electrode unit as

shown in Figure 1-3.

Keysight16197A Operation and Service Manual 9

Installation Guide

Storage

Figure 1-3 Installing the Magnifying Glass

Storage

Before storing the 16197A, remove the pressure unit from the electrode unit

(Figure 1-4) and loosen the pressure adjusting nut on the pressure unit (Figure

1-5). Also remove the magnifying glass, if installed.

Figure 1-4 Removing the Pressure Unit

10 Keysight16197A Operation and Service Manual

Installation Guide

Storage

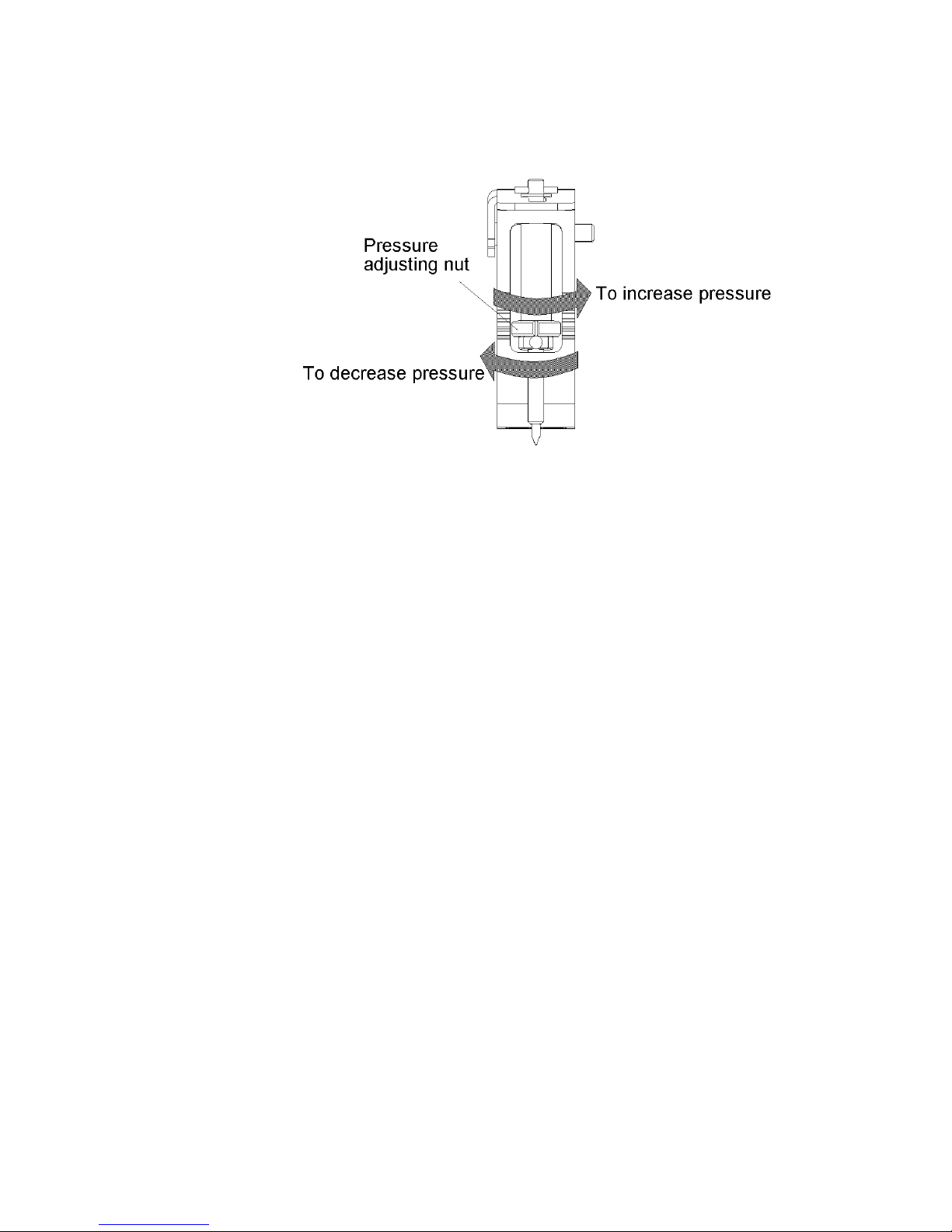

Figure 1-5 Pressure Adjusting Nut

Tabla de contenidos

Otros manuales de Instrumento de medición de Keysight Technologies

Keysight Technologies

Keysight Technologies U1732C Manual de usuario

Keysight Technologies

Keysight Technologies FieldFox B Series Manual de usuario

Keysight Technologies

Keysight Technologies UXA N9040B Manual de instalación y operación

Keysight Technologies

Keysight Technologies N5221/2A Series Manual de usuario

Keysight Technologies

Keysight Technologies FieldFox N9913A Manual de usuario

Keysight Technologies

Keysight Technologies P Series Instrucciones de funcionamiento

Keysight Technologies

Keysight Technologies B2900B Series Manual de usuario

Keysight Technologies

Keysight Technologies N2893A Manual de usuario

Keysight Technologies

Keysight Technologies 34420A Manual de usuario

Keysight Technologies

Keysight Technologies X Series Manual de usuario

Keysight Technologies

Keysight Technologies PNA Series Manual de usuario

Keysight Technologies

Keysight Technologies Option 503 Manual de usuario

Keysight Technologies

Keysight Technologies N8262A P Series Manual de usuario

Keysight Technologies

Keysight Technologies 16034G Manual de usuario

Keysight Technologies

Keysight Technologies E5061B Manual de usuario

Keysight Technologies

Keysight Technologies U8903B Manual de usuario

Keysight Technologies

Keysight Technologies N9000A Manual de instalación y operación

Keysight Technologies

Keysight Technologies N5290/1A PNA Series Manual de usuario

Keysight Technologies

Keysight Technologies N9020A Manual de instalación y operación

Keysight Technologies

Keysight Technologies S9106AC-2IF Guía del usuario

Keysight Technologies

Keysight Technologies N524 A Series Manual de instalación y operación

Keysight Technologies

Keysight Technologies U3810A Manual de usuario

Keysight Technologies

Keysight Technologies N5241B Manual de instalación y operación

Keysight Technologies

Keysight Technologies N9029AV01-V19 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
