Operating instructions

Height measuring rod

KERN MBC-A01

Version 1.4

2019-10

MBC-A01-BA-e-1914

MBC-A01-BA-e-1914 2

KERN MBC-A01

Version 1.4 2019-10

Operating instructions for body height

meter

Contents

1Technical data................................................................................................ 3

2Declaration of conformity ............................................................................. 3

3Scope of delivery........................................................................................... 4

4Explanation of the graphic symbols ............................................................ 5

5Basic Information (General).......................................................................... 6

6Basic Safety Precautions.............................................................................. 7

7Unpacking/installing...................................................................................... 8

8Assembly........................................................................................................ 9

9Body height measurement.......................................................................... 10

10 Cleaning, Maintenance, Disposal ............................................................... 11

3 MBC-A01-BA-e-1914

1 Technical data

KERN

MBC-A01

Measuring range

10 –80 cm

Readability

1 mm

Tolerance

5 mm

Dimensions (W x H x D)

88.5 x 17 x 12

Temperature range

+10°C … +40°C

Net weight

approx. 800 g

Admitted as medical product as per

Guideline 93/42/EWG ( CE 0297 )

Category I with measuring

function

The height meter is only suitable for use with baby weighing

scale KERN MBC-M.

2 Declaration of conformity

To view the current EC/EU Declaration of Conformity go to:

www.kern-sohn.com/ce

MBC-A01-BA-e-1914 4

3 Scope of delivery

1Measuring rod

2Head stop

3Foot stop

4Screws (4 x)

5 MBC-A01-BA-e-1914

4 Explanation of the graphic symbols

SN WF 12xxx

Designation of the serial number of every device,

applied at the device and on the packaging.

Number here as example

2019-10

Identification of the manufacturing date of the medical

product.

Year and month here as example

„Attention observe accompanying document“, or

„Follow operating instructions“

Kern & Sohn GmbH

D –72336 Balingen

Ziegelei 1

Manufacturer’s marking of

medical product including address

10°C / 40°C

Temperature limitation in the application

indicating the lower and the upper limit

(Allowable ambient temperature)

Temperature indication as example

MBC-A01-BA-e-1914 6

5 Basic Information (General)

This height measuring rod according to guideline 93/42/EWG is

provided for determination the body height in medical practice

and for medical survey, examination and treatment.

Defined

purpose

Indication:

Determining the body height in the medical practice area.

For a baby resting on his/her back, attach the measuring rod in

such a way on head and feet that you can read the body

height on the scale.

Contraindication:

No contraindication known.

Proper use

This height measuring rod is designed for measuring the height of

a baby resting on his/her back, in medical treatment rooms. This

height measuring rod is suitable to detect, prevent and survey

diseases.

Ensure that the height measuring rod may only come into contact

only with uninjured skin.

Improper Use

The structure of the height measuring rod may not be modified.

This may result in incorrect measuring results, safety-related

defects as well as destruction.

The height measuring rod may only be used according to the

described conditions. Other areas of use must be released by

KERN in writing.

Warranty

Warranty claims shall be voided in case

Our conditions in the operation manual are ignored

The appliance is used outside the described uses

The appliance is modified or opened

Mechanical damage or damage by media, liquids, natural

wear and tear.

Non correct implantation or assembly.

Test device

control

For height measuring rods, we recommend a metrological

examination of the accuracy of the measuring rod, however,

this is not mandatory as the determination of human body

height involves rather large, intrinsic inaccuracies.

7 MBC-A01-BA-e-1914

6 Basic Safety Precautions

Carefully read this operation manual before setup

and commissioning, even if you are already

familiar with KERN balances.

Staff training

The medical staff must apply and follow the operating instructions

for proper use and care of the product.

Avoiding

contaminatio

In order to avoid crossed contamination (fungal disease,…) the

parts coming into contact with the patient must be cleared

regularly.

Recommendation:

After every application which could have a potential

contamination as consequence (e.g. direct contact with the skin).

Safety

Instructions

Observe operating instructions.

Please use no other than the supplied fixtures for mounting.

Ensure during installation that the height measuring rod has

been assembled correctly.

When shifting the measuring rod, ensure that the baby does not

come to any harm.

Reliable values of body height measurements are only achieved

if the heel, back and head are aligned in a straight line.

Do not attach the height measuring rod to any other but the baby

weighing scale KERN MBC-M.

During installation make sure that the screws are fitted firmly.

Do not leave a baby unattended.

When shifting the measuring rod make sure that neither the

hands nor the feet of the baby are resting on the measuring rod.

Clean and disinfect the measuring rod at regular intervals.

To achieve correct height measuring, we recommend that you

involve a second person.

MBC-A01-BA-e-1914 8

7 Unpacking/installing

Testing upon

acceptance

Please check packaging as well as the device on receipt for

possibly visible external damages.

Packaging/

Return

Keep all parts of the original packaging for a possibly required

return.

Only use original packaging for returning.

9 MBC-A01-BA-e-1914

8 Assembly

How to assemble the height meter:

Attach the head stop (1) to

the left side of the

measuring rod and shift it

to the zero mark (2) of the

scale.

Attach the foot stop (3) to

the right side of the

measuring rod and shift it

to the left as far as you

wish.

Hold the foot stop in the

area of the measuring rod

when shifting it (4)

How to attach the height meter to the weighing scale:

Attach the height meter to the bottom end of the weighing scale with the help of the

supplied screws.

When screwing down the height meter make sure that you do

not apply too much pressure on the weighing pan as that may

damage the weighing cell.

MBC-A01-BA-e-1914 10

9 Body height measurement

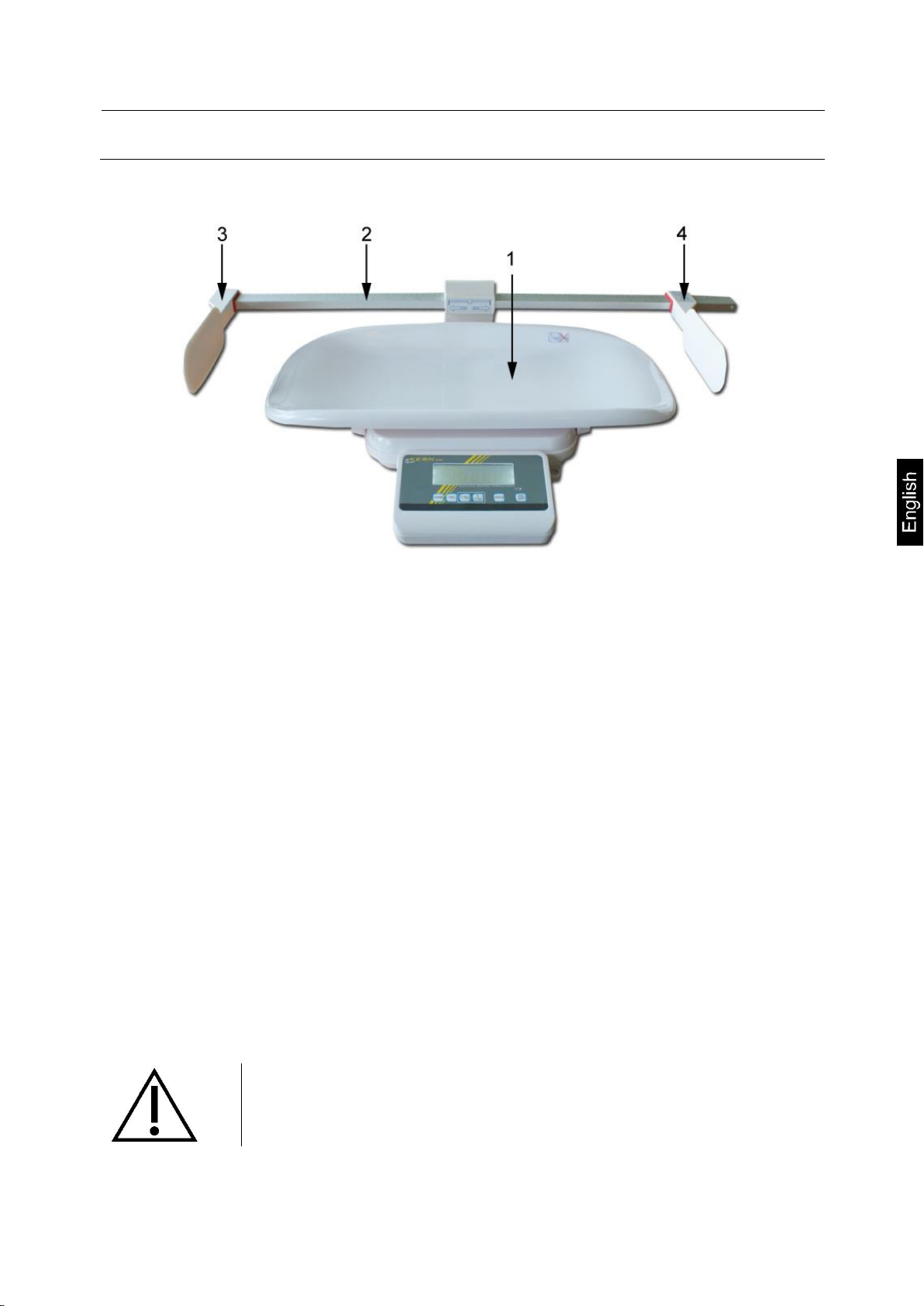

Ensure that the head stop (3) is placed exactly on the zero mark (2) of the measuring

meter.

Put the baby in the centre of the weighing pan.

Move the height measuring rod (2) carefully to the right until the head stop (3)

gently touches the baby’s head

To achieve correct measurement we recommend that you involve a second

person.

Do not leave a baby unattended.

When shifting the measuring rod, make sure that no harm is done to the baby

and that its hands and feet do not rest on the measuring rod.

Press the baby’s knees gently onto the weighing pan.

Move the foot stop (4) carefully towards the bottom of the baby’s feet and keep

the baby immobile.

On the scale read the baby’s size.

A correctly exercised height measurement will achieve an

accuracy of ±5 mm.
