Jbc WS-A Manual de usuario

INSTRUCTION MANUAL

High-Temperature

Wire Stripper

Ref. WS-A

INSTRUCTION MANUAL

www.jbctools.com

1. Packing List ....................................................................................................................... 3

2. Safety ................................................................................................................................ 4

3. Features & Connections ................................................................................................. 5

4. Changing Cartridges ....................................................................................................... 6

5. Cartridge Range ............................................................................................................... 6

6. Adjustable Strip Gauge ................................................................................................... 7

7. Operation ........................................................................................................................... 8-10

8. Control Process ................................................................................................................ 11

9. Maintenance ...................................................................................................................... 12

10. Notes ................................................................................................................................ 13

10. Specifications .................................................................................................................. 14-15

Index

Page

Ref. WS-A

INSTRUCTION MANUAL

www.jbctools.com

Manual ............. 1 unit

Ref. 0022824

Packing List

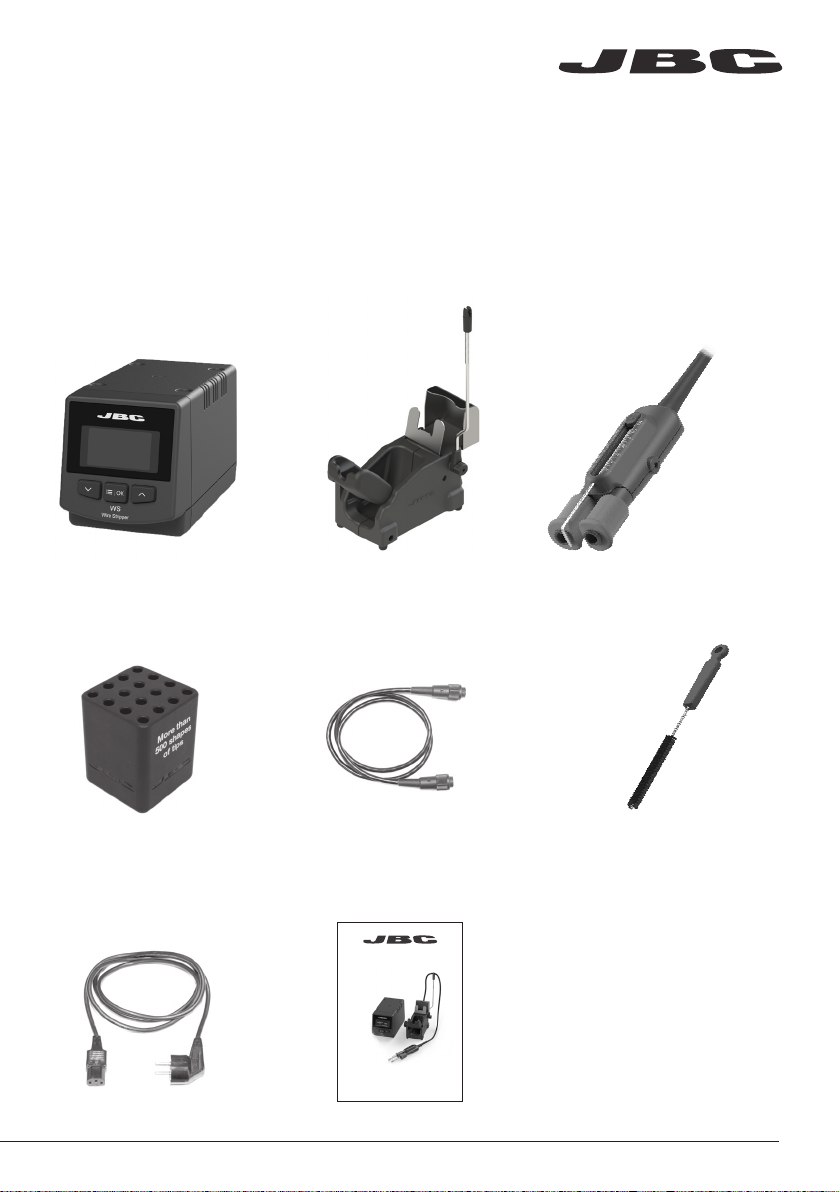

The following items are included:

WS Control Unit ...............1 unit

Ref. WS-1A (120V)

WS-2A (230V)

Stand ..................................1 unit

Ref. WS-SA

High Temperature

Stripper Tweezers.........1 unit

Ref. WS440-A

High-Temperature

Wire Stripper

Ref. WS-A

Metal Brush.......................1 unit

Ref. 0022793

Power Cord ......................1 unit

Ref. 0009417 (100V/120V)

0009401 (230V)

Stand cable ................... 1 unit

R ef. 0 01128 3

Cartridge Holder .............1 unit

Ref. SCH-A

INSTRUCTION MANUAL

www.jbctools.com

Safety

Warning

- Do not touch the blade or the metal parts arround.

- Do not allow the blade be close to flammable materials.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- This appliance can be used by children over the age of eight and also persons with reduced physi-

cal, sensory or mental capabilities or lack of experience provided that they have been given adequa-

te supervision or instruction concerning use of the appliance and understand the hazards involved.

- Maintenance must not be carried out by children unless supervised.

- Place the tool on the stand when is not in use.

- Turn off the power when not in use, changing parts or storing.

Caution

- Do not use the Wire Stripper for other applications than wire stripping.

- Do not modify or customize the Wire Stripper.

- Do not hit the blade against workbench to eliminate stripped insulation debris, This behavior

would damage the blade.

- Remove power from the tool by holding the plug, not the wires.

- Be careful with the fumes produced when stripping. We recomend to use our fume extractor.

Features & Connections

Power Socket

WS Control Unit

Stand

Ref. WS-SA

Stand cable

Ref. 0 0 1128 3

Equipotential connector

USB Connector

Main switch

Fuse

High-Temperature Wire

Strippers Tweezers

Ref. WS440-A

W440 Cartridges

(Required but not

supplied)

www.jbctools.com

AWG

WARNING: It is esential to tighten this screw

for the tool to function.

Cartridge electric

connection screw

Alignment

Important: It is esential to insert the cartridge

till the end for a good connection.

Take the mark as reference and check that

both tips of the tweezer match.

For special blade cartridges contact us on [email protected]

Changing Blande Cartridges

Cartridge Range

W440 blade cartridges, due to its design, has a proper centering to ensure a good

functionality. Before tightening the screw, ﬁx the cartridges in working position.

Blade Cartridges alignment

W440-023 W440-025

The WS440-A works with W440 blade cartridges. Find the model that best suits your soldering needs

on www.jbctools.com.

Flat Blade (no holes)

Ref. W440-021

(mm)

(0.405)

(0.255)

(0.321)

(0.202)

(0.127)

(0.511)

(mm)

(0.812)

(0.511)

(0.644)

(0.405)

(0.321)

(1.020)

Adjustable Strip Gauge

Adjust the strip gauge according to your stripping requirements.

Strip Gauge Knob Strip Gauge

www.jbctools.com

Operation

The WS incorporates predeterminated power levels and it also feature a customized working

mode. It allows you to work on wire insulations made of thermoplastics and thermostable

materials such as teﬂon*, kapton*, silicone, rubber, etc.

Programs included:

Insulation Material Symbol Power Level

Polyvinyl Chloride PVC 6%

Polyethylene PE 7%

Nylon PA 10%

Kynar ² PVDF 16%

Tefzel ¹ ETFE 17%

Teflon ¹

FEP 16%

PFA 21%

PTFE 40%

Ethylene Propylene

Rubber EPM/EPR 44%

Silicone Rubber SI 51%

Kapton ¹ PI 90%

ThermoplasticsThermostable

¹ Registred Trade Marks of DuPont

² Registred Trade Marks of Arkema

Selected temp.

560

Power 75%

Kapton

90%

Power 59%

Custom 68%

1. Select Material Mode

How to Operate

After switching on the power, firstly you

have to select the working mode. Press the

screen buttons UP and DOWN to chose

between all the materials.

If you want to work on a customized

mode, press OK and then use the UP and

DOWN buttons to set up your own power

configuration.

2. Custom Mode

Down

Button

www.jbctools.com

Power 75%

Kapton

90%

Power 35%

Kapton

Sleep

90%

Power 0%

Kapton

Hibernation

90%

Once you choose any Operation Mode, you are able to begin the working process.

· Set Sleep delay

(from 0 to 9 min or no Sleep)

· Change Hibernation delay

(from 0 to 60 min or no

hibernation)

1. Work 2. Sleep 3. Hibernation

When the tweezer is lifted

from the stand the tip will heat

up to the selected material

configuration.

When the tweezeer is in the

stand, the power falls after a

specified time.

After longer periods of

inactivity, the power is cut off

and the tool cools down to

room temperature.

· Select material power level
