Jbc DSS Manual de usuario

DSS / DRS

Stand for Desoldering Iron

INSTRUCTION MANUAL

Box includes one stand according to purchased reference.

This manual corresponds to the following references:

DS-SF (for DS360)

DR-SF (for DR560)

Packing List

Stand for

DR560 Desoldering Iron ..................... 1 unit

Stand for

DS360 Micro Desoldering Iron ............ 1unit

Cable Holder ................. 1 unit

Ref. 0024028 (already assembled)

Stand Cable 1m ............ 1 unit

Ref. 0024227

Manual ............................. 1 unit

Ref. 0027183

Sponge for Modular

Tool Stands ................... 1 unit

Ref. S7034

Brass Wool .................... 1 unit

Ref. CL6210

Connecting Clip Set .... 1 unit

Ref. 0011356 (includes 2 pieces)

The following items are included in each stand:

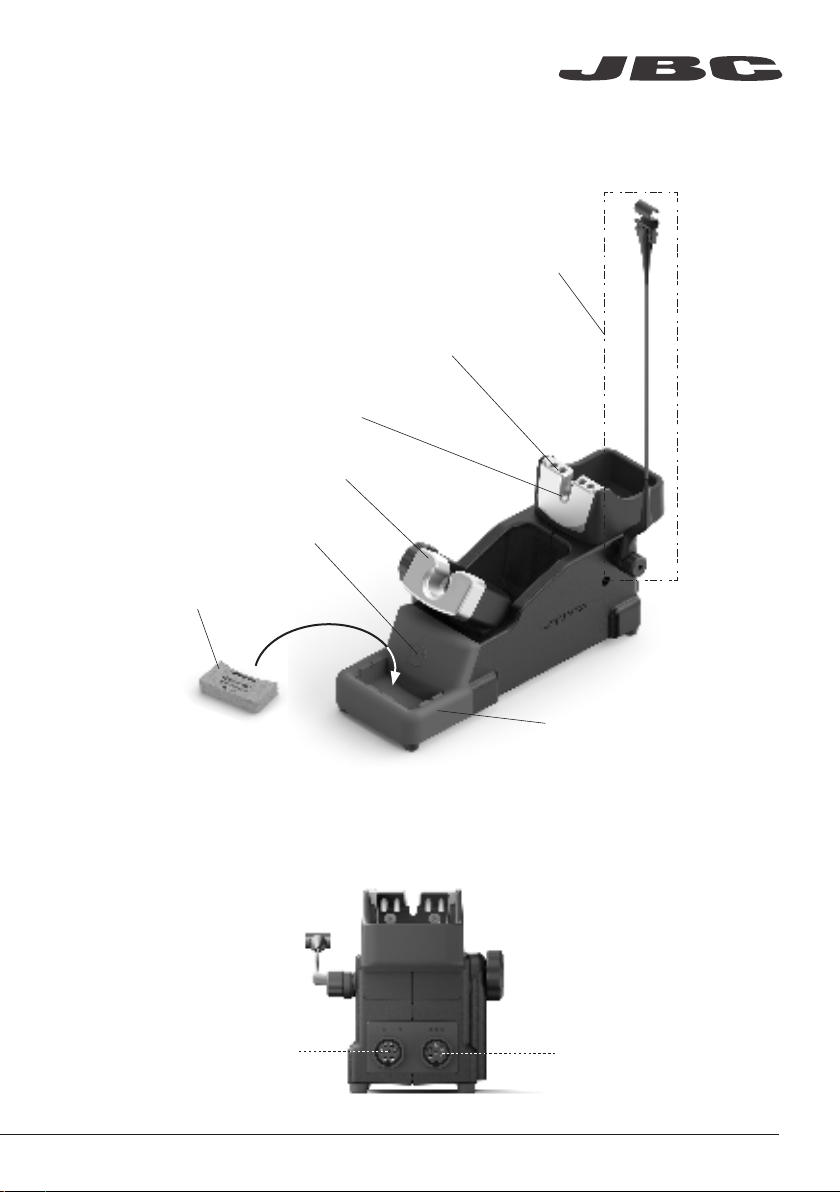

Features and Connections

To Tool

To Control Unit

Wiper for

Modular Tool Stand

Ref. CL7899

Adjustable

Cable Collector

Ref. CC1001

Quick Tip Changer

Tip Storage

Ajustable Tool Holder

Brass Wool

(inside)

Sponge

www.jbctools.com

Assembly

Cable Collector and Adjustable Tool Holder

Adjust the tool holder angle to

suit the work position.

The cable collector is flexible.

It accompanies and adapts

to the movements during the

soldering process.Insert the cable into the clip

and then insert into the cable

collector. Do not leave the

cable longer than necessary

to reach the work area freely.

The wiper offers different ways to

clean the cartridge tips. If desired

use the included sponge.

Brass Wool

Ref. CL6210

Very effective cleaning method. Leaves a small layer of solder on

the tip preventing oxidation between cleaning and rewetting.

If the tip is very dirty, JBC recommends first the cleaning with the

wiper to remove excess solder.

Tap gently to remove excess

solder.

Use the slots to remove the

remaining particles.

Wiper

Tapping Wiping Sponge

The softest cleaning method.

Keep the sponge damp with

distilled water when working to

avoid tip wear.

The integrated wiper offers different ways to clean the cartridge tips.

Tip Cleaner

Select the option to suit your needs and improve the thermal transfer of the tip.

www.jbctools.com

DS360

Ref. DS-SF

Place the Soldering Iron with the assembled tip

in the extractor groove, pull the tool towards and

remove the tip.

Put on the new tip and press slightly to ensure

its correct postion.

Unused tips can be stored in the extractor

openings.

The Spanner is used to unscrew and replace

the tips. When not in use it can be stored inside

the extractor.

Unused tips can be stored in the extractor

openings.

Tip Extractor

Spanner

Tip Storage

Ref. DR-SF

Wiper and Brass Wool Replacement

Lift the wiper at its front edge.

The wiper and brass wool can easily be removed for cleaning or replacement when they are worn.

Remove the wiper by pulling

it out.

Replace the brass wool with a

new one when it is worn out.

Place the wiper back o replace

them if desired.

Accessories

Suction Extension Tube Kit

Ref. A1287

Length: 1.5m

Stand extension cable

Ref. A1286

Length: 1.5m

Stand cable

www.jbctools.com

Clean periodically

Maintenance

Before carrying out maintenance or storage,

always unplug the stand from the station and

the tool.

- Use a damp cloth to clean the stand.

Alcohol can be used only when cleaning

the metal parts.

- Check periodically that the metal parts of

the tool/stand are clean so that the station

can check the tool’s status.

- Periodically check all cables and tube

connections.

- Replace any defective or damaged parts.

Use original JBC spare parts only.

- Repairs should only be performed by a

JBC authorized technical service.

Safety

- Do not use the stand for any other purpose than soldering or rework.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- The tool should be placed in the stand when not in use in order to activate the sleep mode.

The soldering tip, the metal part of the tool and the stand may still be hot even when the station

is turned off. Handle with care, including when adjusting the stand position.

- Avoid the contact of flux with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced

physical, sensory or mental capabilities or lack of experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

www.jbctools.com

Notes
