Auto-Feed Iron

Ref. AL250-B

INSTRUCTION MANUAL

www.jbctools.com

2

Packing List

The following items should be included:

Auto-feed Iron ........................................................................................................................................... 1 unit

Ref. AL250-B

Includes: C250403 Cartridge

Guide set - Ref. 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in)

Allen Key 2,5mm ....................................... 1 unit

Ref. 0780493

Manual ......................................................... 1 unit

Ref. 0012317

Auto-Feed Iron

Ref. AL250-B

Guide set - Ref. 0002401

C250403

www.jbctools.com

3

Features

The AL250-B Auto-feed Iron is compatible only with Auto-feed Soldering station.

Stand

R e f . A L- S D

Power

Socket

Equipotential

connection

Pedal connection

(optional)

Auto-feed Iron

Ref. AL250-B

Fuse

Main switch

www.jbctools.com

4

1. Loosen the cartridge screw to release it. Place the new cartridge in the Auto-feed iron.

Mark

Guide tube

Ref . 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in)

Changing cartridge

For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:

2. Align the tip of the cartridge with the solder Guide tube.

Important: It is essential to insert the cartridge till the end for a good connection. Use the mark as

reference. Tighten the cartridge screw.

3. You must leave a gap of 8-10 mm (0.31 - 0.40 in) between the tip and the end of the Guide tube.

4. Loosen the guide screw. Adjust the Guide tube and tighten the screw.

8-10 mm

(0.31 - 0.40 in)

1

2

4

3

ø 0,4

ø 0,6

1,8x0,8

ø 0,8

4,8x1,5

1,2x0,7

3,2x1,5

ø 2,2

2,2 x 1

1,2x0,7

2,2x1

4,8x1,5

ø 2,2

ø 3,8

2,2x1

ø 1,7



5

C250-420 C250-401

C250-405

C250-402

C250-406

C250-403

C250-412C250-404 C250-418

C250-409 C250-410

C250-413C250-407 C250-408 C250-411 C250-414 C250-415

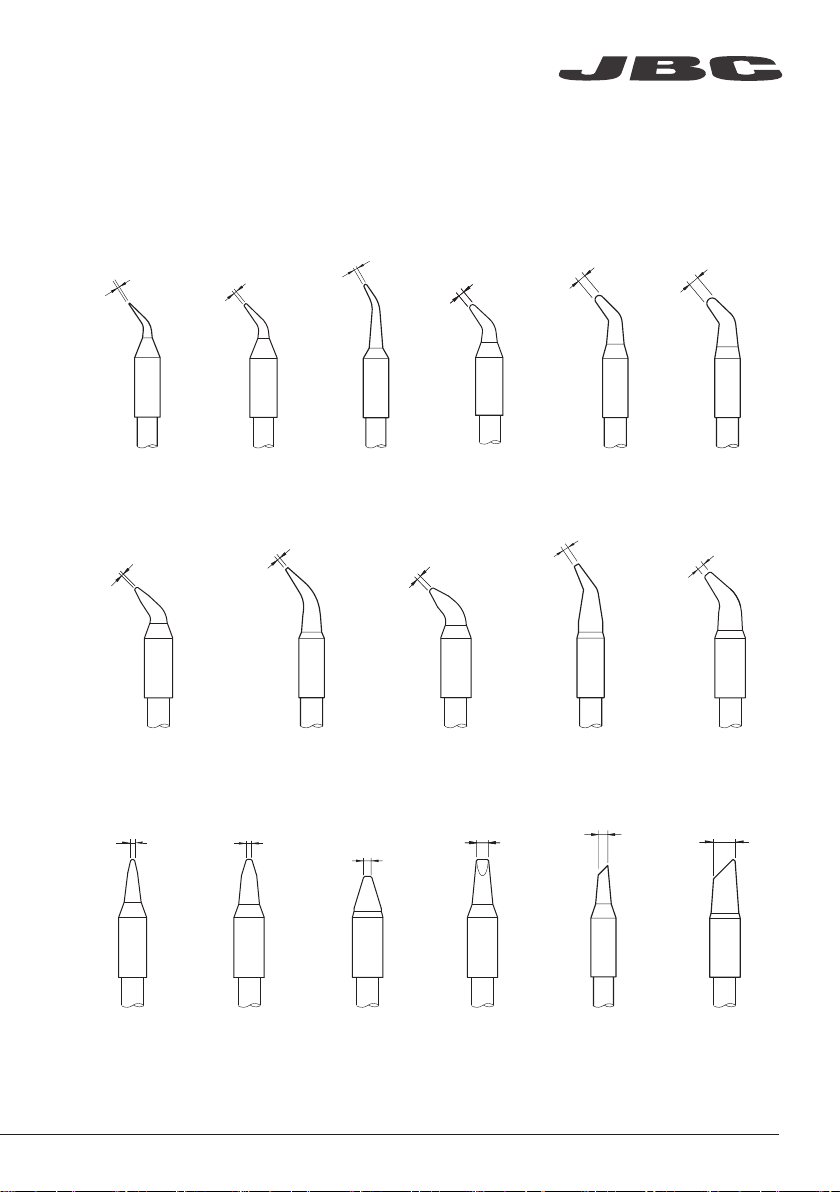

The AL250-B Auto-feed Iron works with C250 cartridge range. Find the model that best suits your

soldering needs in www.jbctools.com

Compatible Cartridges

Note: All the cartridges shown are actual size.

www.jbctools.com

6

Accessories

Fume Extractor

Ref. F4468 - 2 m (78.74 ft) lenght.

The fume extractor for AL250 is an easy & safe solution to suck the fume generated at the solder joint.

Support

Ref. AL-IA

Optional Guide set

Ref. 0002399 Ø 0,4 - 0,5 mm (0.015 - 0.02 in)

0002402 Ø 0,6 - 0,8 mm (0.023 - 0.03 in)

0002843 Ø 1,1 - 1,5 mm (0.043 - 0.06 in)

0013915 Ø 1,6 - 1,8 mm (0.062 - 0.07 in)

7

Before carrying out maintenance, always allow the equipment to cool.

- Before carrying out maintenance, always unplug the stand and the tool.

- Check periodically that the metal parts of the tool and the stand are clean to ensure detection of

the tool when it is in the stand. Use a damp cloth or alcohol.

- Periodically check all cables and tubes connections.

- Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only

be performed by a JBC authorized technical service.

Maintenance

www.jbctools.com

This product should not be thrown in the garbage.

In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life

must be collected and returned to an authorized recycling facility.

Manual in other languages available on our website

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

Register your warranty within 30 days of purchase

in www.jbctools.com/productregistration

0012317-0318

Specifications

- Weight: 148 gr (0.32 lb)

- Dimensions: 35 x 21 x 182 mm (1.42 x 0.83 x 7.16 in)

- Diameter of solder wire: Ø 0,4 - 1,8 mm (0.02 - 0.07 in)

Complies with CE standards.

ESD protected.
