jbc JTSE-QA Manual de usuario
Hot Air Station
without Extractor desk
Ref. JTSE-QA
INSTRUCTION MANUAL
www.jbctools.com
2
Manual ...............................1 unit
Ref. 0018814
Power cable ....................1 unit
Ref. 0009417 (100V / 120V)
0009401 (230V)
Hot Air Station
without Extractor desk
Ref. JTSE-QA
Heater hose set .............1 unit
Ref. JT-T1A (100V / 120V)
JT-T2A (230V)
Stand ................................1 unit
Ref. JT-SE
JTSE Control Unit .........1 unit
Ref. JTSE-1A (100V / 120V)
JTSE-2A (230V)
Thermocouple type K ..................................1 unit
Ref. PH218
Packing List
The following items are included:
Nozzles ............................................................. 1 unit
Ref. JN2015
JN2012
JN2020
INSTRUCTION MANUAL
Kapton Tape ................. 1 unit
Ref. PH217
2
www.jbctools.com
3
Hot Air button
(On / Off)
Power Socket
Fuse
USB connector
Robot RS232 connector
P-005 Pedal connector
Equipotential connector
Auxiliar connector
Heating element
Suction Tube
For tripods and extractors
Heater Hose set
Ref. JT-T1A (100V/120V)
JT-T2A (230V)
Stand
Ref. JT-SE
Thermocouple type K
Activates the suction pump
USB-A connector
Features
www.jbctools.com
3
4
17:14
20ºC
Power
45% 120ºC Selected
TC
Temp.
4m 38s
400ºC 80%
400ºC Selected
Protection
Hot Air Temp. Air Flow Selec.
Menu Options
Station
Information
Current
air
temp.
Air
temp.
selected
Instant power
supplied to
heater
Status
indicator
Selected
Air flow
Selected
External Tc
temp.
JTSE / TESE Work Screen
Status bar
The JTSE/TESE offers an intuitive user interface which provides quick access to station parameters.
Default PIN: 0105
Current
External
TC temp.
Station Tools Counters
ResetLanguage
Set the station
parameters
Set the tool
parameters
Display the hours
worked in each cycle
It is possible to
choose the language
from a list.
Allows you to carry
out an overall station
reset restoring all the
parameters to their
default values.
4
Point
2/5
Temp
250
ºC
Flow
60
%
Time
2m 30s
3m 18s
Hot Air Temp
240
ºC ºC %
Ext. TC Temp
20
Air Flow
80
3m 18s
· Add point
· Delete point
· Load profile
· Save profile
· Exit
Current
air temp.
Data for
these points
Profile name
Current
air flow
Current
External
TC temp.
In this mode you can set up or edit as many as 25 profiles of temperature and air flow.
Edit Mode
Menu
Options
Profiles
Advanced functionalities
To work with profiles it is essential to use the RWB / RWS / RWT rework arms. The
Rework Arms supports the Hot Air Heater maintaining the distance and position to
the component.
5
www.jbctools.com
5
450
400
350
300
250
150
100
50
200
Power Temp
17:14
JBC Net
USB flash drive is connected.
Station is controlled by a PC.
Station is controlled by a robot.
System notifications
Station software update.
Press INFO to start the process.
Warning.
Press INFO for failure description.
Error.
Press INFO for failure description,
the type of error and how to proceed.
The following icons will be displayed on the screen’s status bar.
By pressing Graphics in the main MENU, temperature and power figures in real time
are displayed. This helps you decide which tip to use to obtain the best quality solder
joints.
Graphics
Temperature
Power (%) External
temp.
Ext. temp
Export graphics
Insert a USB flash drive into the USB-A
connector to save your soldering process
in csv format.
The first system to optimize traceability in soldering
- Get greater quality and control in your production
- Manage your whole soldering process remotely in real time
Station update
Download the JBC Update File from
www.jbctools.com/software.html
Insert the USB flash drive with the file down-
loadedto the station.
Files
Update
66
7
Adjustable Stand
Operation Modes
Press Press
1. From the Tool Settings Menu, select the mode to activate the tool depending on the task.
2. The tool stops blowing when pressing the start/stop button.
If the stand is connected to the station and for safety it will also stop when returned to the stand.
Tool button Pedal*
Adjust the tool holder angle to suit your work position.
Press the start/stop button to blow hot air. Press the Pedal to blow hot air and release to
stop.
*The P-005 Pedal is not supplied with this
station. See our website.
www.jbctools.com
7
8
We recommend using the protector + tripod We recommend using the manual extractors
Protectors & Extractors
1 2 3 4
For small components (fig. 1 and 2). For large components (fig. 3 and 4).
Position the extractor with the
appropriate suction cup and
press the suction button.
Heat the component. The component lifts off
automatically when the
solder melts.
Operation
3. Extracting1. Placing 2. Heating
8
9
Using the Thermocouple type K
You can choose from two work modes:
Regulation: the station regulates the air
temperature automatically to maintain the
External Thermocouple (TC) temperature.
IPC* does not recommend exceeding ramp-up rates over 3-4ºC / sec. (5-7ºF / sec) so as to reduce
the risk of thermal stress on the PCB.
* IPC was founded in the U.S. in 1957 as the Institute for Printed Circuits.
Fix the TC with Kapton Tape (Ref. PH217) as near as possible to the component being worked on.
If Kapton tape is not ESD you must use an ionizer.
Protection: the station cuts the air supply off
when the External Thermocouple (TC)
temperature is reached.
Connect a TC type K (PH218) to the station and use it as a protection or regulation sensor.
You can define its use mode by means of the “Ext TC mode” option in the “Tool” menu.
www.jbctools.com
9
10

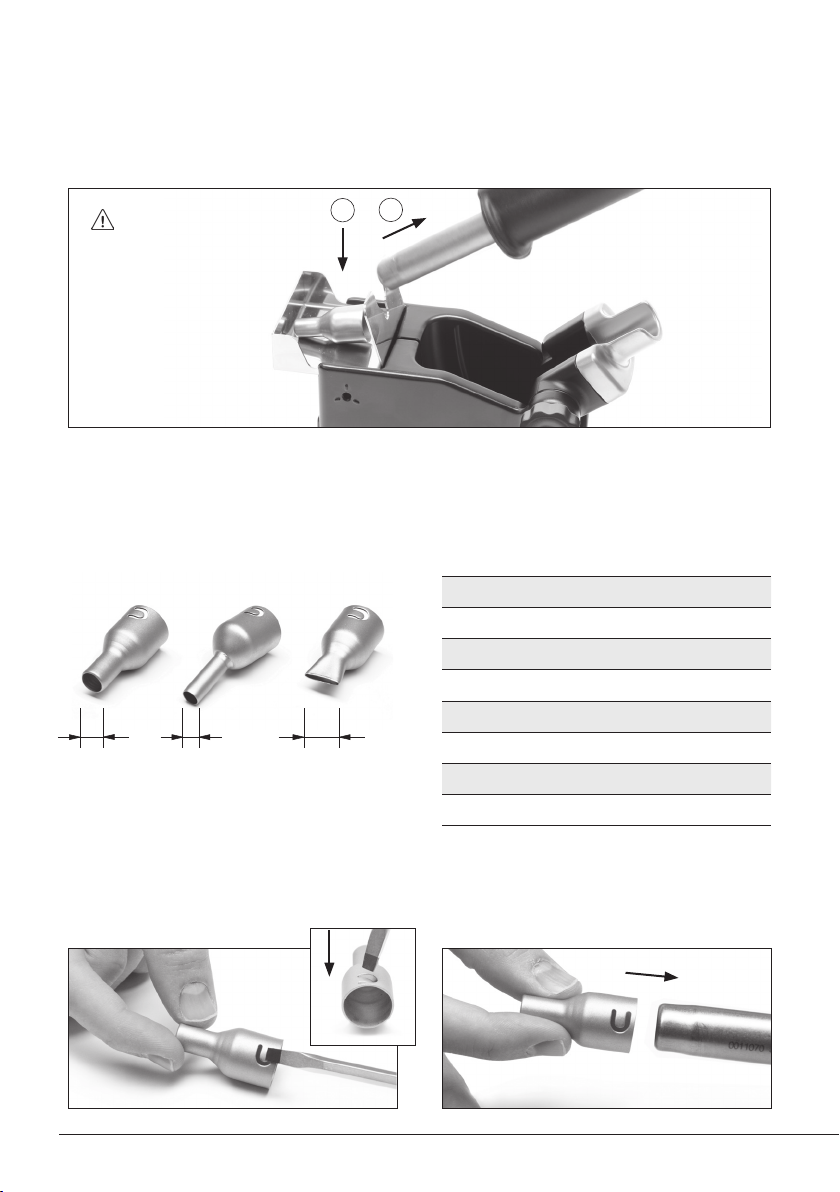

In case of a loosely fitting nozzle:
*Ref. Shape Ø Size
(mm)
Ø
Size (in)
*JN2020 Straight Ø 8 Ø 0.31
*JN8417 Straight Ø 10 Ø 0.4
*JN2015 Bent Ø 4 Ø 0.16
*JN2012 Bent Ø 6 Ø 0.24
*JN6633 Bent Ø 8 Ø 0.31
*JN7637 Flat 10 x 2 0.4 x 0.08
*JN7638 Flat 20 x 2 0.8 x 0.08
*JN7639 Flat 30 x 2 1.18 x 0.08
Straight Bent Flat
Ø Ø A x B
1. Push the nozzle tab inwards with a screw-
driver or flat-nosed pliers.
2. Insert the nozzle into the JT-TA again.
Turn the tool
off and handle with
care. The heating
element and the
nozzle are still hot.
Quick Nozzle Changer
Changing nozzles quickly and safely.
Compatible Nozzles
The JT-TA works with JT nozzles. Find the model that best suits your soldering needs in www.jbctools.com
2
1
* Not included
10
