Jbc TESE-A Manual de usuario

Precision Hot Air Station

Ref. TESE-A

www.jbctools.com

Manual ...............1 unit

Ref. 0019043

* Not supplied with TE-Q stations

Power cable ......1 unit

Ref. 0009417

(100V / 120V)

0009401 (230V)

Precision Hot Air Station

Ref. TESE-A

Heater hose set .............1 unit

Ref. TE-TB (100V / 120V / 230 V)

Stand ................................1 unit

Ref. TE-SD

TESE Control Unit ........1 unit

Ref. TESE-1A (100V / 120V)

TESE-2A (230V)

Extractor desk .............................................1 unit

Ref. 0008752*

Thermocouple type K ..................................1 unit

Ref. PH218

Suction Tube*

Ref. 0932330

Suction Cups*

R e f. 0 9 3 0110

Ø 10 - 0934050 (x3)

Ø 4.7 - 0934070 (x1)

Extractors*

Ref. E2184

E2064

E2052

Protectors*

Ref. P2220

P2230

P2235

P4000

P4010

Tripods*

Ref. T2050

T2250

Nozzles

Ref. TN9080

TN9208

TN9209

Packing List

The following items should be included:

TE Accessory set

Ref. 0010300

www.jbctools.com

Features

Hot Air button

(On / Off)

Power Socket

Fuse

USB connector

Robot RS232

connector

P-005 Pedal connector

Equipotential

connector

Auxiliar

connector

Heating element

Suction Tube

For tripods and extractors

Heater Hose set

Ref. TE-TB

Stand

Ref. TE-SD

Thermocouple type K

Activates the suction pump

USB-A connector

www.jbctools.com

Adjustable Stand

Operation Modes

1. From the Tool Settings Menu, select the mode to activate the tool depending on the task.

2. The tool stops blowing when pressing the start/stop button.

If the stand is connected to the station and for safety it will also stop when returned to the stand.

Tool button Autostart Pedal*

Adjust the tool holder angle to suit your work position.

Press the start/stop button to

blow hot air.

The tool automatically starts

blowing hot air when lifted

from the stand.

Press the Pedal to blow hot

air and release to stop.

*The P-005 Pedal is not

supplied with this station.

See our website.

Press PressDo not press

Turn the tool off

and handle with

care. The heating

element and the

nozzle are still hot.

Quick Nozzle Changer

Changing nozzles quickly and safely.

Compatible Nozzles

The TE-TB Heater works with TN nozzles.

Find the model that best suits your soldering needs in www.jbctools.com

*Ref. Shape Ø Size

(mm)

Ø Size

(in)

*TN9209 Straight 30.12

*TN9208 Straight 40.16

*TN9080 Straight 50.20

TN9787 Bent 30.12

*Ref. Shape Ø Size

(mm)

Ø Size

(in)

TN9785 Bent 40.16

TN9782 Bent 50.20

TN8851 Bent 45º 3 0.12

TN8905 Bent 45º 4 0.16

TN9561 Bent 45º 5 0.20

Straight Bent Bent 45º

Ø Ø Ø

* Included in TE Accessory set (Ref. 0010300)

www.jbctools.com

We recommend using the protector + tripod We recommend using the manual extractors

Protectors & Extractors

1 2 3 4

For small components (fig. 1 and 2). For large components (fig. 3 and 4).

Position the extractor with the

appropriate suction cup and

press the suction button.

Heat the component. The component lifts off

automatically when the

solder melts.

Operation

3. Extracting1. Placing 2. Heating

Using the Thermocouple type K

You can choose from two work modes:

Regulation: the station regulates the air

temperature automatically to maintain the

External Thermocouple (TC) temperature.

IPC* does not recommend exceeding ramp-up rates over 3-4ºC / sec. (5-7ºF / sec) so as to reduce

the risk of thermal stress on the PCB.

* IPC was founded in the U.S. in 1957 as the Institute for Printed Circuits.

Fix the TC with Kapton Tape (Ref. PH217) as near as possible to the component being worked on.

If Kapton tape is not ESD you must use an ionizer.

Protection: the station cuts the air supply off

when the External Thermocouple (TC)

temperature is reached.

Connect a TC type K (PH218) to the station and use it as a protection or regulation sensor.

You can define its use mode by means of the “Ext TC mode” option in the “Tool” menu.

www.jbctools.com

17:14

20ºC

Power

45% 120ºC Selected

Temp.

4m 38s

400ºC 80%

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

Process Control

The TESE offers an intuitive user interface which provides quick access to station parameters.

Original PIN: 0105

USB flash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot.

Station software update.

Press INFO to start the process.

Warning.

Press INFO for failure description.

Error. Press INFO for failure description,

the type of error and how to proceed.

System notifications (Status Bar)

Menu Options

Station

Information

Current

air

temp.

Air

temp.

selected

Instant power

supplied to

heater

Status

indicator

Selected

Air flow

Selected

External Tc

temp.

Status bar

Current

External

TC temp.

Station Tools Profiles

ResetGraphicsFiles

Press INFO for each parameter description.

Point

2/5

Temp

250 ºC

Flow

60%

Time

2m 30s

3m 18s

Hot Air Temp

240 ºC ºC %

Ext. TC Temp

Air Flow

3m 18s

· Add point

· Delete point

· Load profile

· Save profile

· Exit

Current

air temp.

Data for

these points

Profile name

Current

air flow

Current

External

TC temp.

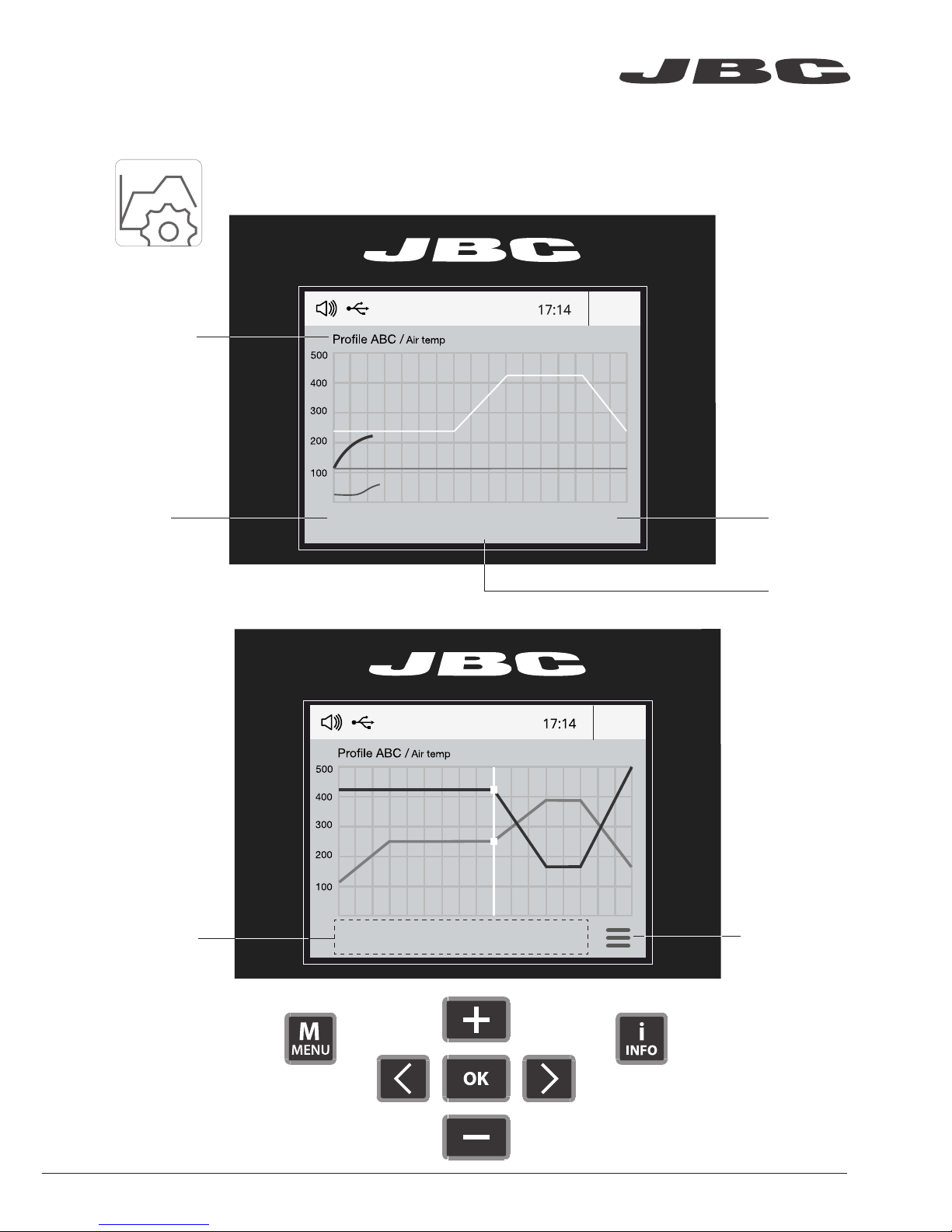

Profiles

In this mode you can set up or edit as many as 25 profiles of temperature and air flow.

Edit Mode

Options

Profiles

www.jbctools.com

450

400

350

300

250

150

100

200

Power Temp

17:14

By pressing Graphics in the main MENU, temperature and power ﬁgures in real

time are displayed. This helps you decide which tip to use to obtain the best quality

solder joints.

Process analysis

Files

Export graphics

Insert a USB flash drive into the USB-A

connector to save your soldering

process in csv format.

Export / Import profiles

Insert a USB flash drive into

the USB-A connector to

export / import profiles.

Graphics

Files

Temperature

Power (%) External

temp.

Ext. temp
