Jbc AP250 Manual de usuario

AP250

Manual-Feed Soldering Iron

INSTRUCTION MANUAL

www.jbctools.com

Manual-Feed Soldering Iron ................. 1 unit

Feeder Nozzle Ø1 mm (Ref. 0019212), Cartridge

C250403 and Solder Reel (Ref. SN5450) already

assembled

Manual ............................ 1 unit

Ref. 0028350

Ø1.5 mm Feeder Nozzle ......................... 1 unit

R ef. 0 019 211

Reel .................................. 1 unit

Ref. 0002801

Hexagon

Screw Driver .................. 1 unit

Ref. 0023792

Packing List

The following items are included:

This manual corresponds to the following references:

AP250-A

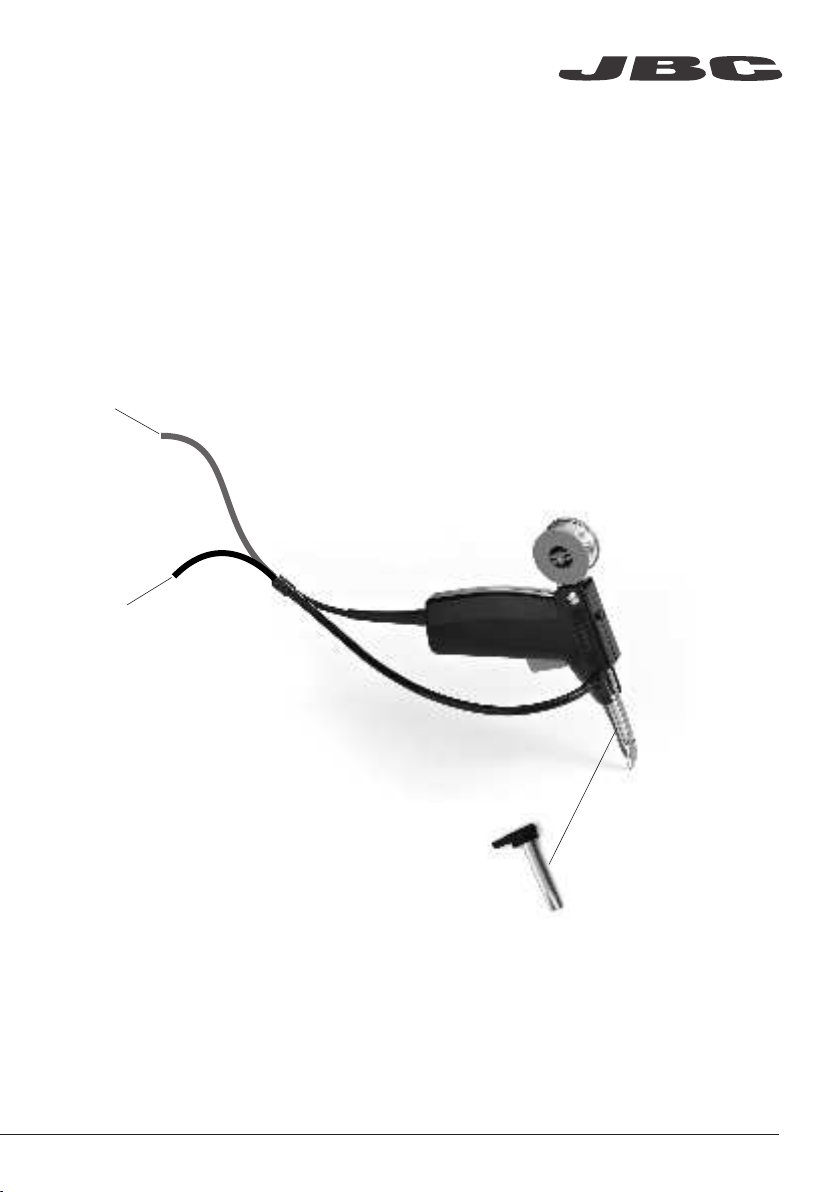

Features and Connections

APS*

Stand for

AP250 Manual-Feed

Soldering Iron

Control Unit*

AP250 works with DIU, DDU, DMU Control Units by using APS Stand or optional with CDA

Manual-Feed Soldering Station.

* not included, sold separately.

AP250

Manual-Feed Soldering Iron

optional

to CDA

or APS

CDA*

www.jbctools.com

Align the tip of the cartridge with the feeder

nozzle. Use JBCs PLR195 catridges

extractor pliers for a correct tip alignment.

Changing Cartridges

For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:

Loosen the screw and remove the cartridge.

Use JBCs PLR195 catridges extractor pliers

to remove it if still hot.

1. Removing

Alignment

Important: Tighten the screw again. This is

necessary for the tool to function.

3. Aligning

2. Inserting

4. Fixing

Mark

Important: Insert the cartridge as far as

the mark for a correct connection.

AP250

Pull out the remaining solder wire from inside

the feeder nozzle. Use a pliers if necessary.

Insert the solder wire while pushing the trigger

repeatedly until the solder wire appears at the

nozzle.

Note: Use solder wire ø0.8 - 1.0 mm with

Nozzle Ref. 0019212 and ø1.1 - 1.5 mm with

R ef. 0 019 211

Solder Wire Replacement

Remove the empty reel as shown and fit the

new one in the same direction.

1. Removing Remaining Solder Wire

2. Replacing Solder Reel

3. Inserting New Solder Wire

www.jbctools.com

Open and take out the back

side screw to remove the reel

and to take out the solder wire

from the nozzle.

1. Remove the Reel 2. Remove the Cover

Then remove the two front side screws and lift the cover off.

AP250

Changing the Feeder Nozzle

Feeder Nozzle

Make sure the tool is unplugged.

3. Remove the Nozzle

The 3 Components

Take out the feeder nozzle and

replace it with the new one

while holding the following 3

components inplace.

Reassemble the handpiece

and tighten the 3 screws.

Note: Do not disassemble

these 3 components and it is

imperative to hold them in its

place.

AP250

Regulating the Feeder Nozzle

Depending on the component are soldered or the cartridge being used, the length of the feeder

nozzle can be either shorten or lengthen (max 10 mm / 0.394 in).

Loosen the screw to chan-

ge the length of the feeder

nozzle.

Adjust the feeder nozzle

length to the required length

(max 10 mm / 0.394 in) and

tighten the screw.

max.

10 mm

Feeder Nozzle

www.jbctools.com

For production line work, BES Solder Reel

Stand is the ideal solution for easy solder wire

supply. Suitable for Solder Reels up to 2.5 kg

/ 5.512 lb.

Wrap the solder wire twice around the empty

reel as shown.

Solder Reel Stand*

Accessories

BES

Solder Reel Stand

Ref. BE-SA

AP250

Manual-Feed

Soldering Iron

Ref. AP250-A

AP250 Solder Feed works with C250 cartridges. Find the model that best suits your soldering needs in

www.jbctools.com

Compatible Cartridges*

Conical Bent Chisel Chisel Bent Bevel

* not included, sold separately.

wrap solder

wire twice

The fume extractor is an easy & safe solution extract the fume generated at the solder joint while

soldering.

Note: Suction pump and filter required.

Fume Extractor*

Fume Extractor

Ref. F1204

Accessories

Soldering

Station

Suction Pump

and Filter

* not included, sold separately.

www.jbctools.com

Notes
