jbc DS360 Manual de usuario
DS360
MICRO DESOLDERING IRON
www.jbctools.com

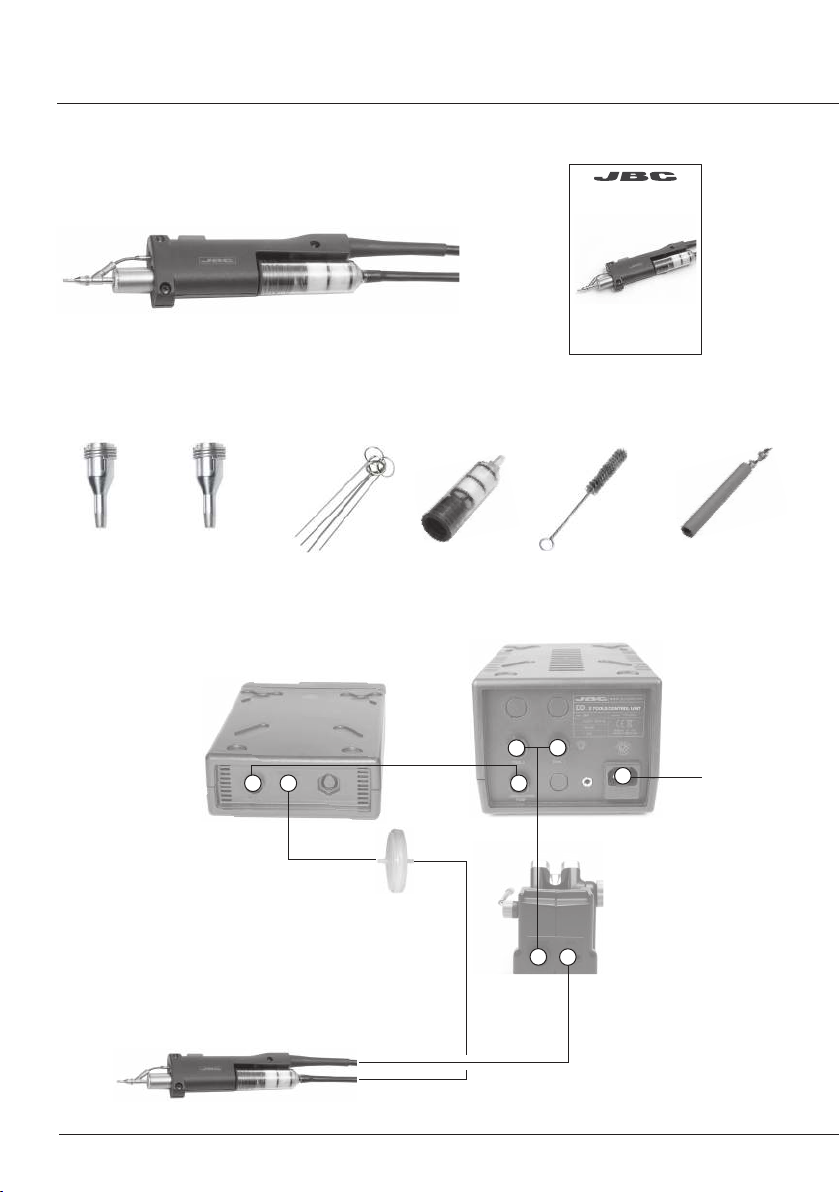

INSTALLATION
2
DS360-A / MICRO DESOLDERING IRON
CONTROL UNIT
DS-SD
DESOLDERING
STAND
DS360-A
MICRO DESOLDERING IRON
DESOLDERING PUMP
C360002 x 5
MANUAL
C360004 x 5 0008473 x 2
FILTER
0008297
CLEANING BRUSH
0008467 x 2
SOLDER COLLECTOR
0008466
CLEANING RODS
Connectable control units:
DI, DD, DM and RM
Connectable singles line:
CS and CV
Power cord
socket
DS360-A
MICRODESOLDERING IRON
DS360
MICRO DESOLDERING IRON
www.jbc tools .co m
$¡
%¡
TIP SELECTION
3
C360-003
ØA: 1.4
ØB: 1
Ømax.pin: 0.8
C360-002
ØA: 1.2
ØB: 0.8
Ømax.pin: 0.6
C360-004
ØA: 1.4
ØB: 1
Ømax.pin: 0.8
Filter
Fixing screw
Heating element DSV-DS 1. To perform this
operation, must remove
the filter.
2. Undo the screw
indicated in the picture
and place the new
heating element.
To remove the tip, use a
pair of flat-nosed pliers,
twist the tip and pull.
IMPORTANT:
This must be done only
when the tool is hot.
Ø Innerside nozzle
Ø Pin
C360-001
ØA: 1
ØB: 0.8
Ømax.pin: 0.4
C360-007
ØA: 1.9
ØB: 1.4
Ømax.pin: 1.2
C360-006
ØA: 3
ØB: 1.5
Ømax.pin: 1.3
Ø Innerside nozzle > Ø Pin
CHANGING THE HEATING ELEMENT / DSV-DS
CHANGING THE TIP
TIP RANGE
Tip’s fasten area.
Do not hold it on the spring clamp
WARRANTY
JBC’s 2 years warranty guarantees this equipment against all manu-
facturing defects, covering the replacement of defective parts and
all necessary labour.
Warranty does not cover product wear due to use or mis-use.
In order for the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased enclosing this
fully filled in, sheet.
www.jbctools.com
SERIAL Nº
STAMP OF DEALER
DATE OF PURCHASE
0008864-0513
TECHNICAL SPECIFICATIONS
- Total weight: 176 gr. aprox
- ESD Safe
This product should not be
thrown in the garbage.
