jbc SF280-A Manual de usuario
Solder Feed Handle
Ref. SF280-A
INSTRUCTION MANUAL
www.jbctools.com

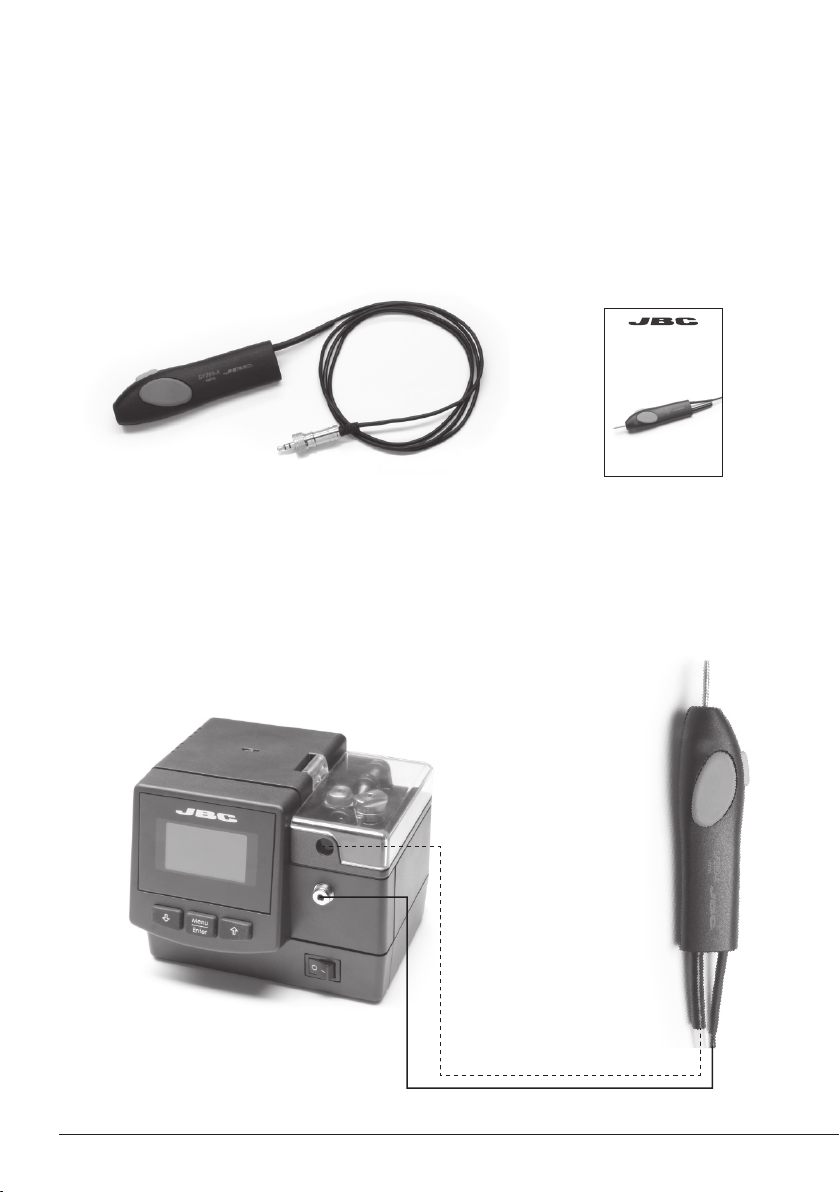

Packing List
The following items should be included:
SF Control Unit
Solder Feed Handle ................................................................ 1 unit
Ref. SF280-A
Manual............................. 1 unit
Ref. 0019089
Connection
Solder Feed Handle
REF. SF280-A
Solder
Feed Handle
Ref. SF280-A
INSTRUCTION MANUAL
2
www.jbctools.com
2. You can easily adjust the length of the tube by opening the guide clamp.
Replacing the guide tube
1. Open the guide clamp, take off the guide tube and insert the new one.
For this operation, disconnect the tool from the control unit.
Accesories
Solder Feed Handle Stand
Ref. SF-SD
It prevents the SF280-A Solder Feed Handle
from rolling away while working.
Guide Set
Ref. GSF05 - wire Ø 0,5 mm
Ref. GSF08 - wire Ø 0,8 mm
Ref. GSF10 - wire Ø 1 mm
Ref. GSF15 - wire Ø 1,5 mm
Ref. GSF08V - wire Ø 0,8 mm
Ref. GSF10V - wire Ø 1 mm
Ref. GSF15V - wire Ø 1,5 mm
without
V-Cut
with
V-Cut
www.jbctools.com
3
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
0019089-0517
Specifications
- Weight: 60 gr (0.01 lb)
- Solder wire diameter with V-Cut: Ø 0,08 - 1 - 1,5 mm (0.003 - 0.04 - 0.06 in)
- Solder wire diameter without V-Cut: Ø 0,05 - 0,08 - 1 - 1,5 mm (0.002 - 0.003 - 0.04 - 0.06 in)
Complies with CE standards
ESD protected
www.jbctools.comwww.jbctools.com
