jbc AP130 Manual de usuario
AP130
SOLDER FEED IRON
www.jbctools.com
2
AP130 / SOLDER FEED IRON
AP130-A
SOLDER FEED IRON

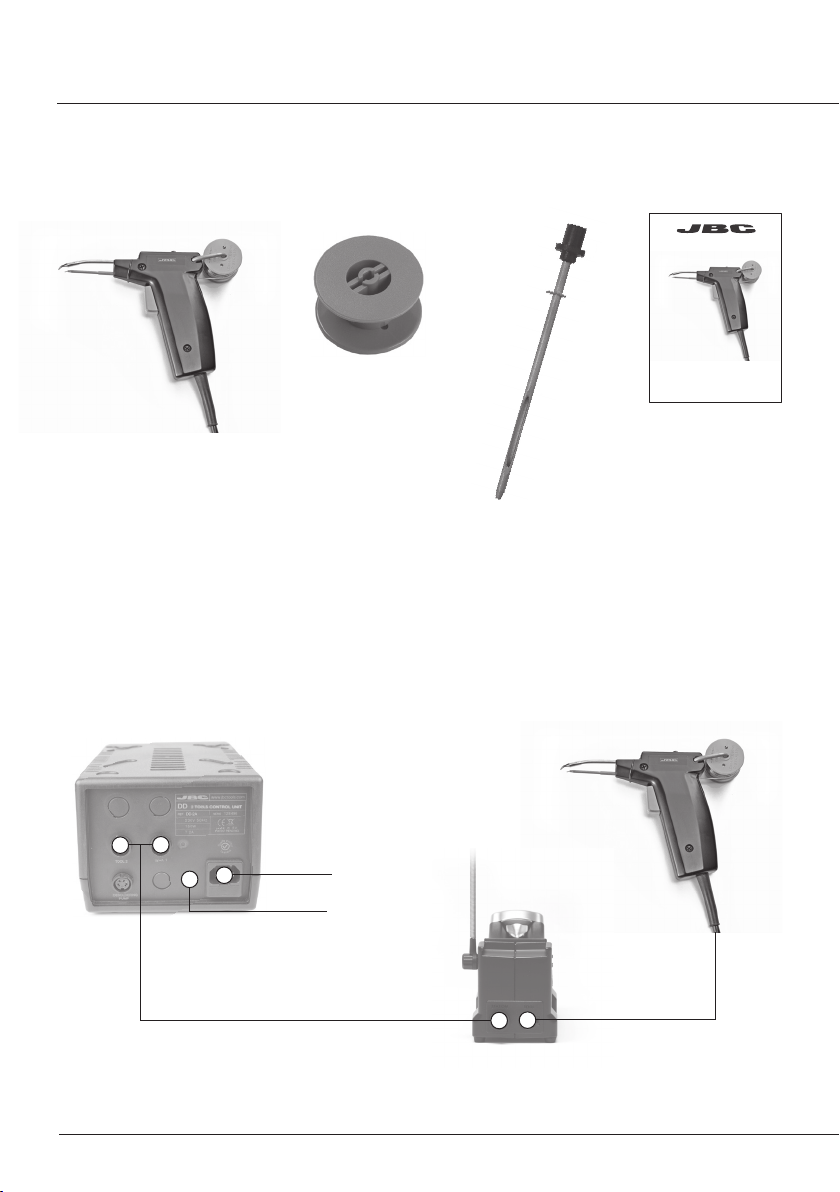

INSTALLATION
AP130-A
SOLDER FEED IRON
MANUAL0002801
Reel
0006559
Feeding Tube
DD-2B /DD-1B/DD-9B
CONTROL UNIT
AP-SC
SOLDER FEED STAND
Power cord
switch
Equipotential
connection
AP130
SOLDER FEED IRON
ww w.j bc too ls.co m
3
CHANGING THE CARTRIDGE
- Loosen the cartridge screw (1) to release the
cartridge.
- Place the new cartridge in the solder feed handle.
Important: It is essential to insert the cartridge till
the end for a good connection.
Use the mark as reference (2).
- Align the tip of the cartridge with the solder guide
tube (3). Tighten the cartridge screw (1).
Warning: It is esential to tighten the cartridge screw for the tool to function.
3
1 2
Guide tube screw
Cartridge screw
Alignment
4
REPLACING THE REEL
Before fitting a new reel, pull out the solder remaining inside the solder direction tube.
Always use 0.8 to 1.0 mm diameter solder wire.
Insert the solder into its hole checking that the wire becomes straight. Pull the trigger intermittently until the solder feed
system works by itself.
1
2
3
Press
5
BE-SA
Solder reel stand
For production-line purposes we recommend
using our BE-SA holder which allows for solder
reels of sizes up to 2.5 Kg to be used.
Simply wrap a couple of turns of the solder wire
around an empty reel as shown.
SOLDER REEL HOLDER
6
ACCESSORIES
F1204
FUME EXTRACTOR
Suction pump
and filter
7
All the cartridges shown are actual size.
Consult our wide range of cartridges with more than 250 references in www.jbctools.com.
For special cartridges contact with our distributor.
C130 CARTRIDGE RANGE
ø 0,6
ø 3
ø 0,8
2,2x1
ø 4
ø 1,7
3,2x1,5
4,8x1,5
ø 1
1,2x0,7
1,8x0,8
ø 2,2
C130-401
C130-405
C130-416C130-402 C130-403
C130-406
C130-417
C130-409
C130-418 C130-419
C130-404
C130-410
WARRANTY
JBC’s 2 years warranty guarantees this equipment against all manu-
facturing defects, covering the replacement of defective parts and
all necessary labour.
Warranty does not cover product wear due to use or mis-use.
In order for the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased enclosing this
fully filled in, sheet.
www.jbctools.com
SERIAL Nº
STAMP OF DEALER
DATE OF PURCHASE
0008861-0912
This product should not be
thrown in the garbage.
