Jbc WS140 Manual de usuario

WS140

High-Temperature

Wire Stipper

INSTRUCTION MANUAL

Page

Index

1. Packing List ....................................................................................................................... 3

2. Features & Connections .................................................................................................. 4

3. Changing Cartridges ........................................................................................................ 5

4. Cartridge Range .............................................................................................................. 6

5. Adjustable Strip Gauge .................................................................................................. 8

6. Stripping a Wire ............................................................................................................... 8

7. Safety ................................................................................................................................. 9

8. Specifications .................................................................................................................. 12

Manual ............................................... 1 unit

Ref. 0025147

High-Temperature Wire Stripper ............................................... 1 unit

Metal Brush................................................1 unit

Ref. 0022793

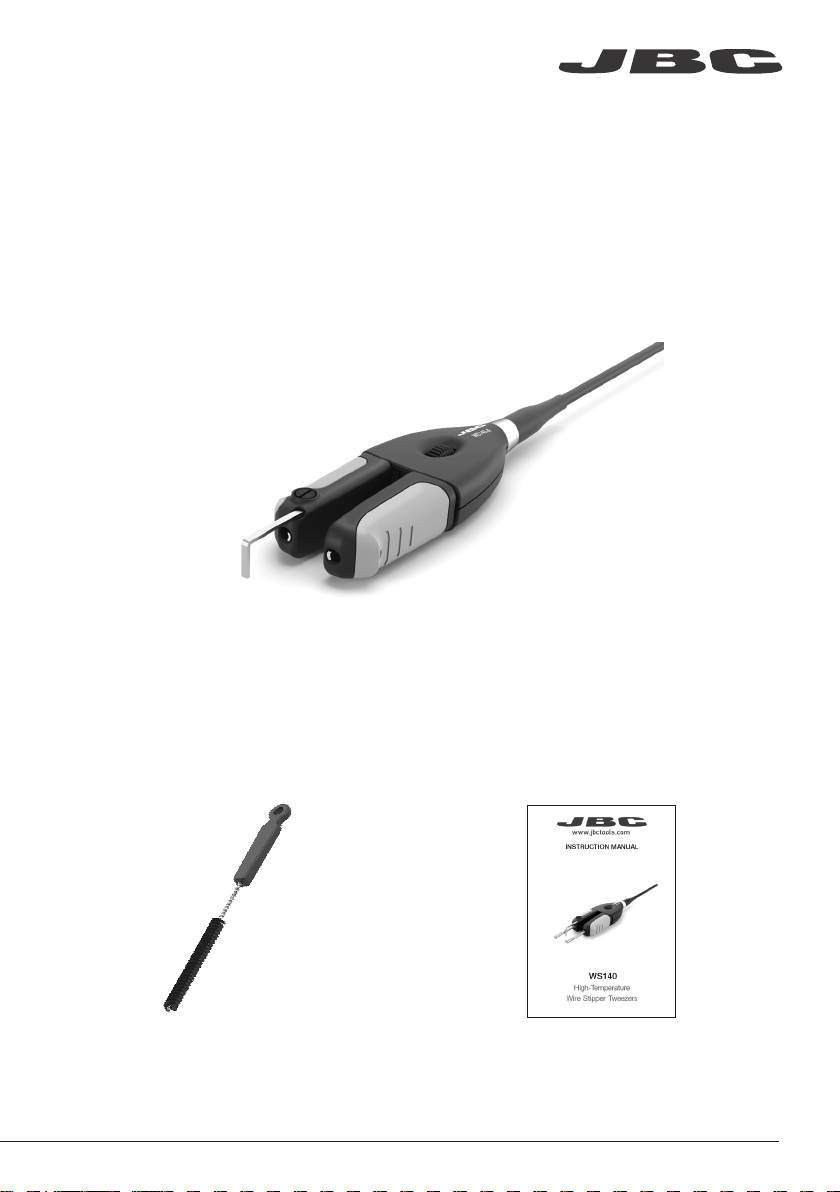

Packing List

The following items are included:

This manual corresponds to the following reference:

WS140-A

www.jbctools.com

Features and Connections

Power Socket

WSU Control Unit

(not included)

Stand

Ref. WS-SB

(not included)

Stand Cable

Ref. 0 01128 3

(not included)

Equipotential Connector

USB Connector

Main Switch

Fuse

High-Temperature

Wire Stripper

Ref. WS140-A

W140 Cartridges

(not included)

WS140

Reference Ring

Important: It is esential to insert the cartridge till the end for a good connection. Insert the cartridge

until the reference ring touch against the Wire Stripper. Take the ring as reference and check that

both tips match.

Blade Cartridges

Alignment

Changing Cartridges

2. Inserting and Positioning1. Removing

Loosen the screws and remove the cartridges. Insert the new cartridges. Before tightening the

screw, align the tip edges and ﬁx the cartridges

in working position.

Important: It is essential to tighten the screws

for the tool to function.

3. Fixing

Cartridge Electric

Connection Screw

www.jbctools.com

WS140

Accessories

To open or ﬁx the Wire Stripper srews use the JBC Flat Screw Driver Ref. 0023074.

To manipulate the cartridges use the JBC Cartridge Extractor Pliers Ref. PLR195. More nformation at

[email protected]

Align cartridges with JBC pliers.Remove cartriges with JBC pliers.

Removing Inserting and Positioning

Flat Screw Driver

Cartridge Extractor

WS140

9 mm

0.354 in

3 mm

0.118 in

W14003F

Cartridge

Ref.

Flat Tip

3 / 0.118

Tip

mm / in

AWG

Solid

W14018G

Cartridge

Ref.

1,02 / 0,0402

Tip Hole ø

mm / in

AWG

Stranded

20 (7x28)

20 (19x32)

20 (42x36)

W14020G 0,81 / 0,0319 22 (19x34)

W14022G 0,64 / 0,0252 24 (7x32)

24 (19x36)

9 mm

0.354 in

3 mm

0.118 in

9 mm

0.354 in

W14024G 0,51 / 0,0201 26 (19x38)

26 (19x38)

W14026G 0,40 / 0,0157

27 (7x35)

28 (19x40)

W14028G 0,32 / 0,0126 30 (19x42)

30 (7x38)

W14036G

W14030G

W14032G

W14034G

0,20 / 0,0079

0,25 / 0,0098

0,13 / 0,0051

0,16 / 0,0063

36 (7x44)

34 (7x42)

32 (19x44)

W14037G

0,11 / 0,0043

AWG

Solid

Cartridge

Ref.

Tip Hole ø

mm / in

AWG

Stranded

3 mm

0.118 in

Cartridge Range

The WS140-A works with W140 blade cartridges. Find the model that best suits your soldering needs

on www.jbctools.com.

W14040G

0,08 / 0,0031

W14038G

0,10 / 0,0039

www.jbctools.com

WS140

AWG

Solid

W14016G

Cartridge

Ref.

W14014G

1,29 / 0,0508

Tip Hole ø

mm / in

1,63 / 0,0642

AWG

Stranded

16 (7x24)

18 (19x30)

W14005F

Cartridge

Ref.

Flat Tip

5 / 0.197

Tip

mm / in

10.5 mm

0.413 in

5 mm

0.197 in

10.5 mm

0.413 in

5 mm

0.197 in

If an application require a special tip design, contact JBC on [email protected] for special

blade cartridges.

WS140

Adjustable Strip Gauge

Adjust the strip gauge according to your stripping requirements and tighten the screw.

Strip Gauge

Stripping a Wire

1. Adjust Arm Position 2. Align Wire

Place the wire touching the strip gauge.The wheel allows to adjuste the Wire Stripper

arm position accordig to the wire diameter.

Move the wheel backward for a wider and

forward for a narrower position.

4. Remove Wire

Pull the Wire Stripper toward to stripp off

the wire end.

3. Close Cartridges

Choose cartridges according to the wire

diameter. Pinch the wire with the blades. The

pinched area will be melted by heat.

www.jbctools.com

Safety

Warning

- Do not touch the blade or the metal parts arround.

- Do not allow the blade be close to flammable materials.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- This appliance can be used by children over the age of eight and also persons with reduced physi-

cal, sensory or mental capabilities or lack of experience provided that they have been given adequa-

te supervision or instruction concerning use of the appliance and understand the hazards involved.

- Maintenance must not be carried out by children unless supervised.

- Place the tool on the stand when is not in use.

- Turn off the power when not in use, changing parts or storing.

Caution

- Do not use the Wire Stripper for other applications than wire stripping.

- Do not modify or customize the Wire Stripper.

- Do not hit the blade against workbench to eliminate stripped insulation debris, This behavior

would damage the blade.

- Remove power from the tool by holding the plug, not the wires.

- Be careful with the fumes produced when stripping. We recomend to use a fume extractor.
