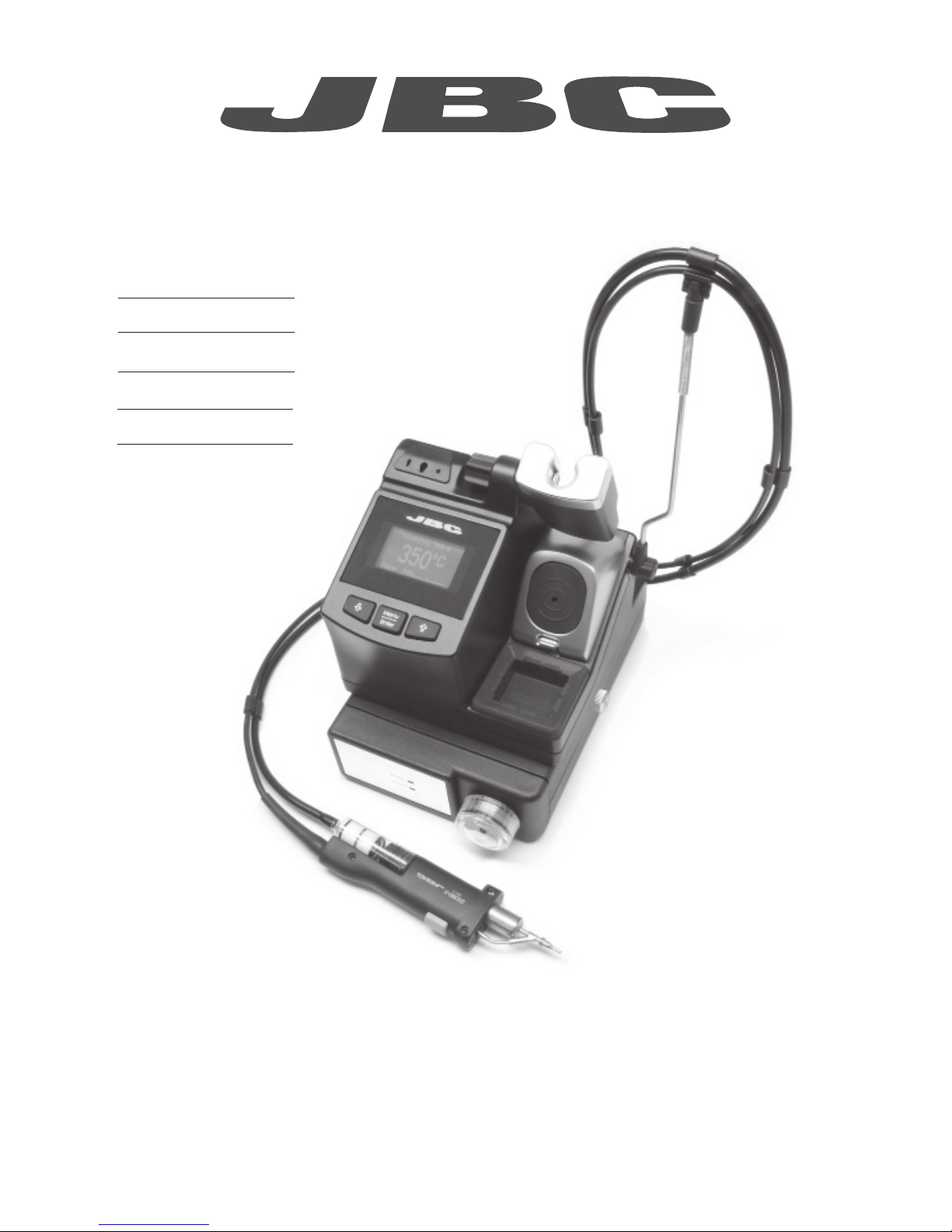

Jbc CV-E Manual de usuario

www.jbctools.com

Ref. CV-E

English 2

Page

Compact Desoldering Station

with Pneumatic Pump

INSTRUCTION MANUAL

Deutsch 38

Español 20

中文 54

Packing List

The following items should be included:

Power Cord ................ 1 unit

Ref. 0009417 (100V/120V)

0009401 (230V)

Brass Wool ..................1 unit

Ref. CL6210

Sponge ....................... 1 unit

Ref. S0354

Micro Desoldering Iron ........................ 1 unit

Ref. DS360-A

CSV Control Unit .................................... 1 unit

Ref. CSV-1E (120V)

CSV-2E (230V)

CSV-9E (100V)

www.jbctools.com

Manual ......................... 1 unit

Ref. 0016887

www.jbctools.com

Compact Desoldering Station

with Pneumatic Pump

Ref. CV-E

Pneumatic Desoldering

Module ........................... 1 unit

Ref. MV-A

Tips

(5 units)

Ref. C360002

Tips

(5 units)

Ref. C360004

Cleaning Rods

Ref. 0008466

Filter

(2 units)

Ref. 0008473

Cleaning brush

Ref. 0008297

Solder Collector

(2 units)

Ref. 0008467

DS360-A Accessories

Ref. 0010259

50 Filter Box .... 1 unit

Ref. 0005966

Suction Filter ................ 1 unit

Ref. 0821830

Module Cable

connector ...................... 1 unit

Ref. 0010207

10 Cotton

Filters ................ 1 unit

Ref. 0781046

Escape Filter .. 1u.

Ref. 0008446

* A compressed air outlet is necessary at the operator´s bench.

Module Cable

Ref. 0010207

Air pressure range

supply (4 - 6 bar)*

Features

Power Socket

Main switch

Equipotential

connection

Fuse

USB-B

Micro

Desoldering Iron

Ref. DS360-A

Suction Filter

Ref. 0821830

Cable collector

Brass wool tip cleaner

with antisplash

membrane

Process

Screen

Adjustable Stand:

Intelligent Heat

Management

www.jbctools.com

Adjustable stand Cable collector (Ref. CC3702)

Adjust the tool stand to suit

your work position.

Place the cable on the collector so that the working area is free

of cable.

Tip Cleaner

Brass Wool

Ref. CL6210

Very effective

cleaning method.

Leaves a small layer

of solder on the tip

preventing oxidation

between cleaning

and rewetting.

Select the option to suit your needs and improve the thermal transfer of the tip.

Splashguard

Ref. 0017576

When using the brass wool, it prevents

splashing of solder particles

Antisplash Membrane

Ref. 0017574

Prevents splashing and keeps the work area

clean.

Wiper

A temperature resistant receptacle

for removing excess solder by gently

tapping or wiping.

If the tip is very dirty,

JBC recommends first

cleaning it with the wiper

to remove excess solder.

Removing the splashguard:

1. Unlock the splashguard. 2. Lift off.

Lock

More cleaning options (not supplied):

Inox Wool

Ref. CL6205

Provides a superior

cleaning of the tip.

Metal Brush

Ref. CL6220

When used carefully, it

provides a more thorough

cleaning.

Sponge

Ref. S0354

The least harmful cleaning

method. Keep the sponge

damp with distilled water to

avoid tip wear.

Tapping:

Tap gently to remove excess

solder.

Wiping:

Use the slots to remove

remaining particles.

Wiper

www.jbctools.com

C360-003

ØA: 1.4

ØB: 1

Ømax.pin: 0.8

C360-002

ØA: 1.2

ØB: 0.8

Ømax.pin: 0.6

C360-004

ØA: 1.4

ØB: 1

Ømax.pin: 0.8

Important:

Change tips only when the tool is hot.

Ø Inner nozzle

Ø Pin

C360-001

ØA: 1

ØB: 0.8

Ømax.pin: 0.4

C360-007

ØA: 1.9

ØB: 1.4

Ømax.pin: 1.2

C360-006

ØA: 3

ØB: 1.5

Ømax.pin: 1.3

Do not hold the tip in a spring clamp.

Changing the Tip

1. Remove the tip by using a ﬂat-nosed pliers. Twist the tip and pull.

2. Insert the new tip and follow the same steps conversely.

Compatible tips

The CS and CV desoldering stations work with C360 tip range. Find the model that best suits your

desoldering needs on www.jbctools.com

Tip selection

Remember to select the biggest tip possible for your application: Ø Inner nozzle > Ø Pin.

Spare filters

Ref. 0005966

Cotton filters

Ref. 0781046

Suction filter

Ref. 0821830

Important:

Do not open the

Suction filter with

a sharp point to

avoid damaging it.

O Ring

Ref. 0007717

Filter cover

Ref. 0004710

Changing the Heating Element

Filter

Fixing screw

Heating element

Ref. DSV-DS

1. Pull off the ﬁlter and the solder collector.

2. Remove the ﬁxing screw and then the heating element.

3. Insert the new heating element following the same steps conversely.

Solder Collector

Changing the Pump Filters

Escape Filter

Ref. 0008446

www.jbctools.com

USB Connector

Download the latest software from our website to update your soldering station.

JBC Updater

www.jbctools.com/software.html

Update the station software via USB connection:

Cable USB AB

JBC

Manager

JBC

Updater

JBC Manager

www.jbctools.com/manager.html

Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can

export data to another PC.

Create graphs of the

soldering process in real

time showing power and

temperature data.

Manager Settings

Change settings for a

group of JBC stations at

the same time.

any JBC

station

USB

Hub

Cable

USB AB

Sleep temp 260

Sleep

Tool in the stand, no heat

Hibernation

Power 5%

350

Selected temp

350

350 350

Operation

The JBC Exclusive Heating System

This revolutionary technology is able to recover tip temperature extremely quickly.

This allows the user to work at a lower temperature.

As a result, tip life increases by 5.

· Change temperature

(from 180 to 450ºC)

· Select temperature levels

· Fix one temperature

· Change Sleep temperature

· Set Sleep delay

(from 0 to 9 min or no Sleep)

· Change Hibernation delay

(from 0 to 35 min)

Long period

in the stand

1. Work

When the tool is lifted from the

stand the tip will heat up to the

selected temperature.

2. Sleep

When the tool is in the stand,

the temperature falls to the

preset sleep temperature.

3. Hibernation

After longer periods of

inactivity, the power is cut off

and the tool cools down to

room temperature.
