Intermec PM4I Manual de usuario

EasyCoder® Printer RFID

PM4i, PX4i, PX6i

User’s

Guide

ii EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide

Intermec Technologies Corporation

Worldwide Headquarters

6001 36th Ave.W.

Everett, WA 98203

U.S.A.

www.intermec.com

The information contained herein is provided solely for the purpose of allowing

customers to operate and service Intermec-manufactured equipment and is not to be

released, reproduced, or used for any other purpose without written permission of

Intermec Technologies Corporation.

Information and specifications contained in this document are subject to change

without prior notice and do not represent a commitment on the part of Intermec

Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook,

CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, INCA

(under license), i-gistics, Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN,

Picolink, Ready-to-Work, RoutePower, Sabre, ScanPlus, ShopScan, Smart Mobile

Computing, SmartSystems, TE 2000, Trakker Antares, and Vista Powered are either

trademarks or registered trademarks of Intermec Technologies Corporation.

There are U.S. and foreign patents as well as U.S. and foreign patents pending.

Contents

EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide iii

Contents

What Is the RFID Kit? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Firmware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 7

Media Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Sending RFID Commands . . . . . . . . . . . . . . . . . . . . . . . 7

Using RFID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Printing on RFID Media . . . . . . . . . . . . . . . . . . . . . . . . . 7

Printing a Test Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Configuring RFID Parameters . . . . . . . . . . . . . . . . . . . 9

Using the Printer’s Console. . . . . . . . . . . . . . . . . 9

Using the Printer’s Home Page. . . . . . . . . . . . . 10

Using Fingerprint Commands . . . . . . . . . . . . . 10

Using IPL Commands. . . . . . . . . . . . . . . . . . . . . 11

RFID Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Contents

iv EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide

EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide 5

What Is the RFID Kit?

The RFID kit is an option for the EasyCoder® PM4i, PX4i, or

PX6i printer. With this option, your printer can read and write to

RFID tags.

The internal RFID radio module operates on the UHF band at

869 MHz or 915 MHz depending on your region.

The RFID interface board occupies one of the slots for optional

interfaces in the back of the printer and features an extra RS-232

serial interface:

•For printers running Fingerprint, the RS-232 connector is

referred to as “uart2:”, “uart3:” or “uart4:” depending on

which slot is used and what other optional devices are

installed.

•For printers running IPL, the RS-232 connector is not

functional.

Note: The RFID kit is available as a factory- or field-installed

option. The field-installed kit must be installed by an Intermec

authorized service technician. For help, contact your local

Intermec representative.

If you open the electronics cover, you will void the warranty

and may cause damage to the internal components. Opening

the electronics cover exposes the user to shock hazards,

which may result in injury or death.

The RFID Kit (Gen 2, 869 MHz) uses an

EPCglobal Gen 2-certified IM4 Module (86X

MHz RFID frequency band).

The RFID Kit (Gen 2, 915 MHz) uses an

EPCglobal Gen 2-certified IM4 Module (915

MHz RFID frequency band).

6 EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide

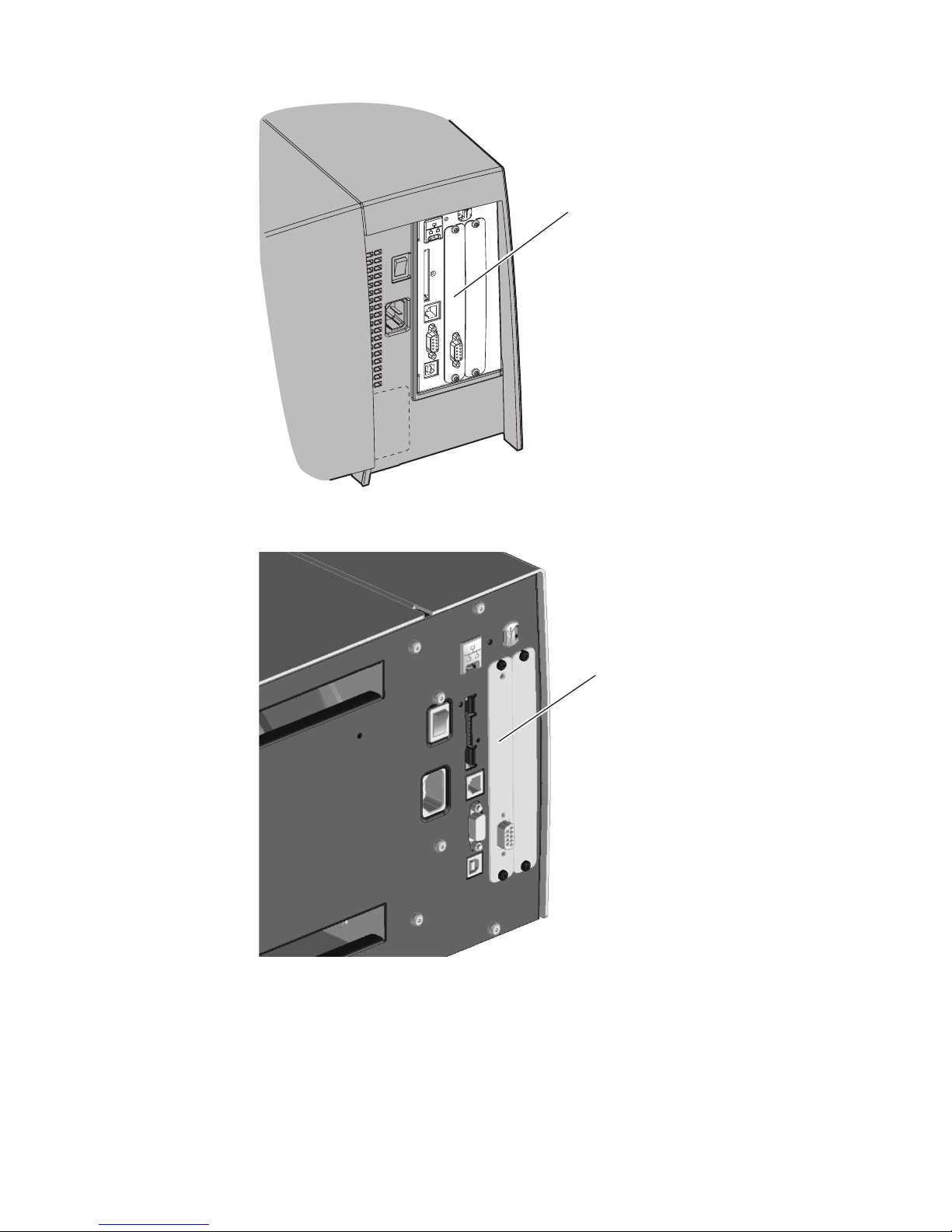

RFID Interface Board Installed in a PM4i

RFID Interface Board Installed in a PX4i or PX6i

RFID interface board

EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide 7

Firmware Requirements

Your printer must be running one of these firmware options:

•For IM4 v7.16, you need Fingerprint or IPL version x.72.0 or

later.

•For IM4 v8.11, you need Fingerprint or IPL version x.76.0 or

later.

The ISO15961/15962 standard (used in airline bagtag

applications) is only supported by Fingerprint. The ability to

read the TAGID string from the display is only supported by IPL.

You can download the latest version of firmware from the

Intermec web site at www.intermec.com.

Media Requirements

Intermec strongly recommends using Intermec RFID media

only. For help, contact your Intermec representative.

Sending RFID Commands

Use one of these methods to send RFID commands

•Write a Fingerprint or IPL application to send RFID

commands.

•Send single Fingerprint or IPL commands remotely from

your PC.

•Use a third-party label design tool and connectivity software,

such as LabelShop or XMLLabel.

Using RFID

This section describes how to use RFID on PM4i, PX4i, and PX6i

printers. Unless otherwise noted, all information applies to each

printer running Fingerprint or IPL.

Printing on RFID Media

Media containing RFID tags is slightly thicker where the RFID

tag is located. The slight thickness of this part of the label may

affect print quality. For thermal transfer labels, Intermec

recommends using a high-quality ink ribbon, such as TMX 2304

or TMX 1500.

8 EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide

To achieve the best possible print quality, follow these guidelines:

•After you load RFID media, restart the printer or run a

TESTFEED to let the printer identify the RFID media type.

•If necessary, modify the TAGADJUST variable to make sure

that the RFID labels are properly aligned with the antenna.

For help, see “RFID,TAGADJUST” on page 12.

•If necessary, avoid printing on the thickest part of the label.

•For printers running Fingerprint:

•If you are using thermal transfer labels, start with the

ribbon constant set to 80 and the ribbon factor set to 25.

You may need to adjust these values depending on the

type of media you choose.

•To write to Gen 2 RFID tags using the TAGFIELD

command, set the start and length parameters to even

numbers.

•For printers running IPL:

•Start with the sensitivity set to 565. You may need to

adjust this value depending on the type of media you

choose.

•To write to Gen 2 RFID tags, set the start and length

parameters of the RFID tag field setup command (a) to

even numbers.

Printing a Test Label

When you print a test label, the printer prints the tag type name

on the next available label on the media roll. You can print a test

label from:

•the printer’s console.

•the printer’s home page.

To print a test label from the printer’s console

1On your printer console, press Setup.

2For Fingerprint printers, navigate to Print Defs > Testprint

> RFID Test Label, and press Enter.

For IPL printers, navigate to Test/Service > Testprint >

Config > RFIDlabel.

EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide 9

To print a test label from the printer’s home page

1Make sure you have an EasyLAN Ethernet card installed in

your printer.

2Find your printer’s IP address:

aOn your printer console, press Setup.

bNavigate to Network > IP Address.

3On your PC, run your web browser application.

4In the address field, enter your printer’s IP address. The

printer’s home page appears.

5From the main menu, select Configuration.

6Select Printer > Web shell.

7From the drop-down menu, select RFID Test label. Your

printer prints a test label.

Configuring RFID Parameters

Configure the RFID parameters to meet your needs. You can

configure the RFID parameters:

•from the printer’s console.

•from the printer’s home page.

•using Fingerprint or IPL commands.

•using SmartSystems Foundation. For more information, go

to www.intermec.com/SmartSystems.

•using Wavelink Avalanche. For more information, go to

www.intermec.com/products/avalanche/index.aspx.

Using the Printer’s Console

1On your printer console, select Setup > RFID.

2Use the setup tree to navigate to the parameter you want to

configure.

Fingerprint RFID Setup Tree

SETUP:

RFID

RFID:

MODE

RFID:

VOIDTEXT

RFID:

RETRIES

VOIDTEXT:

[VOID]:

RETRIES:

[1]:

TAGADJUST:

[0]:

Read-Only

MODE:

DISABLE

RFID:

FIELDSTRENGTH

These menus are only displayed when an RFID module is installed.

MODE:

ENABLE

RFID:

TAGADJUST

FIELDSTRENGTH:

[72]:

10 EasyCoder Printer (PM4i, PX4i, and PX6i ) RFID User’s Guide

IPL RFID Setup Tree

3Configure the RFID parameters. For more information, see

“RFID Parameters” on page 11.

Using the Printer’s Home Page

1Make sure you have an EasyLAN Ethernet card installed in

your printer.

2Find your printer’s IP address:

aOn your printer console, press Setup.

bNavigate to Network > IP Address.

Or,

•On your printer console, press the or button.

3On your PC, run your web browser application.

4In the address field, enter your printer’s IP address. The

printer’s home page appears.

5From the main menu, select Configuration.

6Select Printer > RFID.

7Configure the RFID parameters. For more information, see

“RFID Parameters” on page 11.

Using Fingerprint Commands

You can use Fingerprint commands to configure the RFID

parameters. For example, the following code sets TAGADJUST to

50 dots, RETRIES to 3 labels. and VOIDTEXT to “Bad label”.

SETUP “RFID,TAGADJUST,50”

SETUP “RFID,RETRIES,3”

SETUP “RFID,VOIDTEXT,Bad label”

For more details about RFID parameters, see “RFID

Parameters” on page 11.

SETUP:

RFID

RFID:

MODE

RFID:

RETRIES

RFID:

TAGADJUST

RETRIES:

[1]:

TAGADJUST:

[0]:

TAG:

Read-Only

MODE:

DISABLE

These menus are only displayed when an RFID module is installed.

MODE:

ENABLE

RFID:

TAGREAD

RFID:

VOIDTEXT

VOIDTEXT:

[VOID]:

Read-Only

RFID:

FIELDSTRENGTH

FIELDSTRENGTH:

[72]:

Otros manuales para PM4I

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de impresora de Intermec

Intermec

Intermec EasyCoder PD4 Manual de usuario

Intermec

Intermec PM4I Manual de usuario

Intermec

Intermec EasyCoder F2 Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Intermec

Intermec EasyCoder 3400e Manual de usuario

Intermec

Intermec PB42 Manual

Intermec

Intermec 825-192-001 Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Intermec

Intermec 3240 Manual de usuario

Intermec

Intermec EasyCoder 101 Manual

Intermec

Intermec EasyCoder 501 SA Manual de usuario

Intermec

Intermec PM4I Manual de usuario

Intermec

Intermec EasyCoder 501 SA Manual de usuario

Intermec

Intermec EasyCoder PF4i Manual de usuario

Intermec

Intermec 3240 Manual de usuario

Intermec

Intermec PB2 Series Manual

Intermec

Intermec PB50 Manual de usuario

Intermec

Intermec EasyCoder PF8 Manual de usuario

Intermec

Intermec PM4I Manual de usuario

Intermec

Intermec PW50 Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Intermec

Intermec PB41 Manual de usuario

Intermec

Intermec EasyCoder PF2i Manual de usuario

Manuales populares de Accesorios de impresora de otras marcas

Star Micronics

Star Micronics TSP800 Series Manual de usuario

REA

REA JET HR pro 2K Manual de usuario

HP Laserjet,Color Laserjet 4si Manual de usuario

oliser

oliser MS 45 Manual de usuario

Roland

Roland DU2-64 Instrucciones y recetas

Xerox

Xerox EFI EXP6000 Manual de usuario

Canon

Canon Finisher-T1 Manual de usuario

Sharp

Sharp FO-1MK Manual de usuario

Labelmate

Labelmate PM-300 Manual de usuario

Epson

Epson T6248 Manual de funcionamiento

Epson

Epson OT-BZ20 Manual de usuario

Canon

Canon TonerRobot EP-27 Manual de usuario

Ricoh

Ricoh LCIT RT5100 Guía de inicio rápido

GBC

GBC 16 Series Manual de usuario

Canon

Canon INNER 2-WAY TRAY-E1 Manual de operación y mantenimiento

Develop

Develop SD-509 Manual de usuario

Kyocera

Kyocera KM-6230 Manual

Triumph Adler

Triumph Adler DF-710 Manual
