Mini-Dome Camera Installation Manual 1

Mini-Dome Camera Installation Manual

Content

Introduction 1

Location and Preparation 1

Installation 1

Troubleshooting 4

FCC Compliance 4

Contact information 4

Mounting bracket template 5

Introduction

The MobileView™ Mini-Dome Camera Installation

Manual includes instructions for installation inside a

transit vehicle. Read through these instructions before

installation.

To use this document, you must have the following

minimum qualifications:

A basic knowledge of CCTV systems and

components; and

A basic knowledge of electrical wiring and low-

voltage electrical hookups.

Location and Preparation

The mini-dome camera is designed for interior use only.

Choose a protected location inside the vehicle that will

deliver the desired image.

Before beginning, confirm you have the following parts

required for installation:

MobileView™ Mini-Dome Camera

Three (3) machine screws with red nylon washers

Three (3) flat-head sheet-metal screws with black

nylon washers (optional)

Hex wrench

MobileView™ Part Numbers:

MVC-7100-29-BL Mini-dome, 600TVL, 2.9mm lens, black, No IR

MVC-7100-29-BLI Mini-dome, 600 TVL, 2.9mm lens, black, with IR

MVC-7100-29-W Mini-dome, 600TVL, 2.9mm lens, white, No IR

MVC-7100-29-WI Mini-dome, 600TVL, 2.9mm lens, white, with IR

MVC-7100-36-BL Mini-dome, 600 TVL, 3.6mm lens, black, No IR

MVC-7100-36-BLI Mini-dome, 600 TVL, 3.6mm lens, black, with IR

MVC-7100-36-W Mini-dome, 600TVL, 3.6mm lens, white, No IR

MVC-7100-36-WI Mini-dome, 600TVL, 3.6mm lens, white, with IR

MVC-7100-60-BL Mini-dome, 600TVL, 6.0mm lens, black, No IR

MVC-7100-60-BLI Mini-dome, 600 TVL, 6.0mm lens, black, with IR

MVC-7100-60-W Mini-dome, 600TVL, 6.0mm lens, white, No IR

MVC-7100-60-WI Mini-dome, 600TVL, 6.0mm lens, white, with IR

MVC-7200-29-BL Mini-dome, 520 TVL, 2.9mm lens, black, with WDR

MVC-7200-29-W Mini-dome, 520 TVL, 2.9mm lens, white, with WDR

MVC-7200-36-BL Mini-dome, 520 TVL, 3.6mm lens, black, with WDR

MVC-7200-36-W Mini-dome, 520 TVL, 3.6mm lens, white, with WDR

MVC-7200-60-BL Mini-dome, 520 TVL, 6.0mm lens, black, with WDR

MVC-7200-60-W Mini-dome, 520 TVL, 6.0mm lens, white, with WDR

Installation

Mounting the Camera

1. Using the provided hex wrench, loosen the set

screw on the side of the camera just enough to

unscrew the lens cover. See Figure 1.

Figure 1 Loosen set screw

2 Mini-Dome Camera Installation Manual

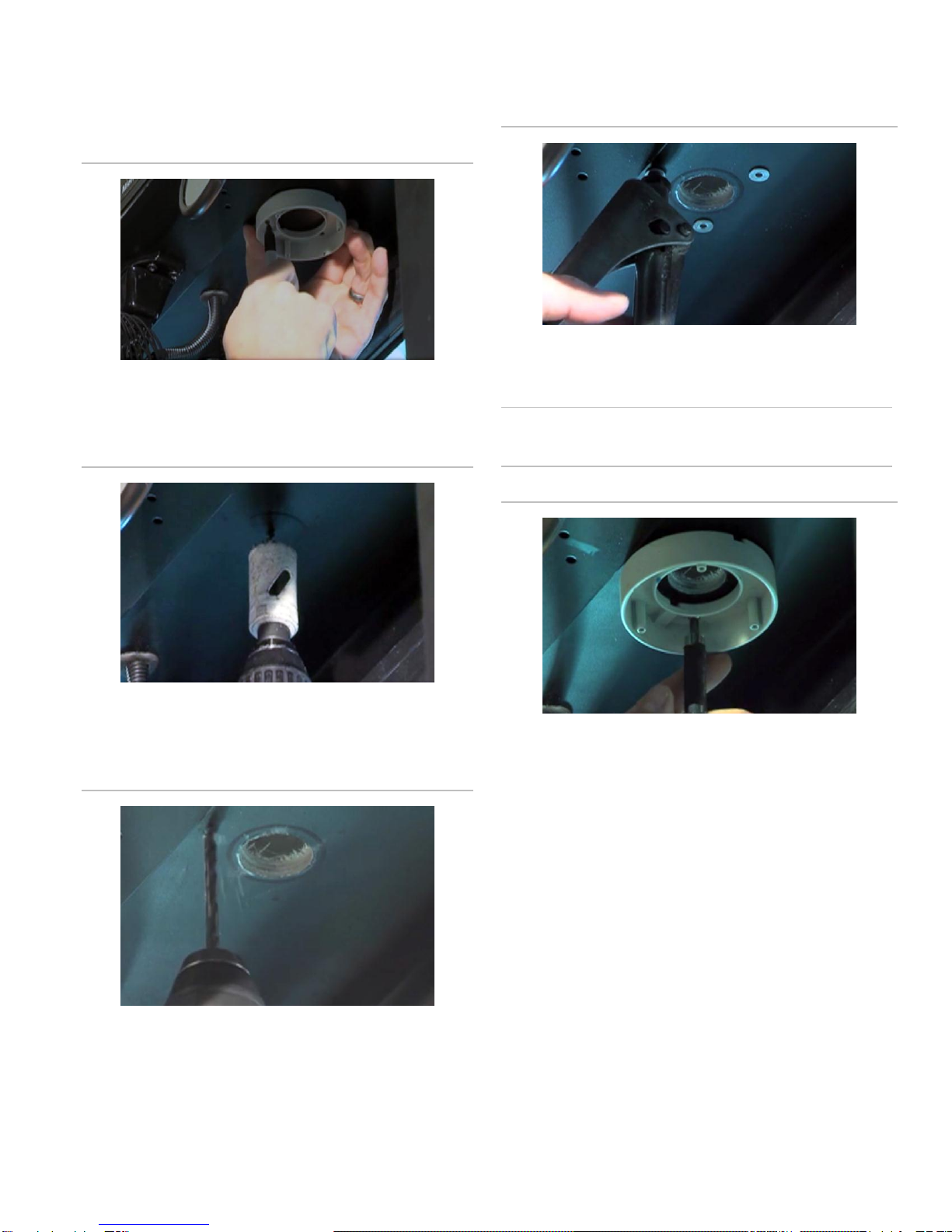

2. Using the camera mounting base as a guide, mark

the center of the mounting base and the position of

the three mounting screws on the mounting surface

as shown in Figure 2.

Figure 2 Mark the mounting holes and center

3. Cut the center hole for the video/power cable

connectors (typically 9/16” or more) as shown in

Figure 3.

Figure 3 Cut the cable hole

4. Drill the three mounting holes as shown in Figure 4

using a bit sized according to the mounting

hardware you will use.

Figure 4 Drill the mounting holes

5. Use a deburring tool to eliminate sharp edges from

the center hole to prevent video cable damage.

6. If using rivnuts, install stainless steel rivnuts as

shown in Figure 5.

Figure 5 Install stainless steel rivnuts

7. If using the flat head sheet metal screws or other

hardware, install hardware to secure camera base to

surface.

NOTE: Application of blue Loctite is recommended on

the camera base mounting screws to prevent

loosening.

Figure 6 Install the camera base

8. Remove the protective covering from the camera,

and remove the dome from the camera plate by

unscrewing counter-clockwise.

9. Feed the camera cable harness through the center

hole, and pull gently until the camera is against the

base.

The cable will be accessed from inside the vehicle

through an appropriate access panel for later

connection to the DVR. When the camera pigtail

BNC is connected to the video cable, wrap the BNC

connector with electrical tape.

10. Use the three machine screws with red nylon

washers to attach the camera to the base. Hand

tighten the screws until snug.

Mini-Dome Camera Installation Manual 3

Figure 7 Remove the cover

Adjusting the lens

Once the camera is mounted, it is adjustable in three

dimensions. The camera module is a ball in a cup.

The ball will rotate in any direction in the cup for view

adjustment: up, down, left, right, clockwise, counter-

clockwise, etc. However, large adjustments can create

internal wire tension. Therefore, we recommend

positioning the camera as close as possible to the

correct orientation during installation so that you do not

need to make adjustments that rotate the ball more than

45 degrees clockwise or counter-clockwise.

1. Connect appropriate power and a video monitor to

the camera, or connect the camera to the DVR, to

view the image and adjust the angle of view and

focus of the lens to ensure the desired image.

2. Two screws, one on each side of the camera,

secure the camera lens cup and also lock the

camera lens ball in place after adjustment. Loosen

these two screws slightly (do not remove the

screws) and rotate the camera as necessary for

final view alignment. Tighten the screws when

finished with the adjustment.

Figure 8 Loosen the two screws just enough to adjust the view

Installing the cover

1. Install the camera cover by tightening in a clockwise

direction.

Figure 9 Replace the cover and tighten the set screw

2. Tighten the set screw in the side of the camera

(shown in Figure 1) to secure the cover in place.

4 Mini-Dome Camera Installation Manual

Troubleshooting

There is no image or it is intermittent.

Check video cable connections. The BNC connector

may be shorted or the wires pinched.

Ensure that the BNC connector inside the connection

box is wrapped with electrical tape to prevent metal-

to-metal contact with the camera housing.

Ensure that the pigtail wires coming from the camera

are not pinched.

Image is upside down or misaligned on the

monitor.

The camera is not properly aligned. Adjust the

camera for the correct view.

FCC Compliance

This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the

installation instructions, may cause harmful

interference to radio communications.

You are cautioned that any changes or modifications

not expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

Contact information

North America:

855-MOBVIEW (662-8439)

MobileViewTS@fs.utc.com

Latin America:

561-998-6114

latam@interlogix.com

Web site:

www.interlogix.com/mobileview

2013005 March 2013

www.interlogix.com/mobileview

Mounting bracket template

Use the mounting bracket template to mark the positions of the mounting and cable entry holes on the mounting

surface.
