iWSN-110X Series Quick Start

v1.0, February 2022

Packing List

In addition to this guide, the package includes the following items:

iWSN-110X Series

Module

Split-core CT

Screw Driver (1C016)

Module Name

Split-core CT

Module Name

Split-core CT

iWSN-110X-PCT-ME

Without CT

iWSN-110X-240-ME

8m, Φ24mm (200A), 1 pcs

iWSN-110X-160-ME

8m, Φ16mm (100A), 1 pcs

iWSN-110X-360-ME

8m, Φ36mm (400A), 1 pcs

Technical Support

service@icpdas.com

www.icpdas.com

Resources

How to search for drivers, manuals and spec

information on ICP DAS website.

For Mobile Web

For Desktop Web

iWSN-110X

Warning

ICP DAS assumes no liability for any damage resulting from the use of this

product. ICP DAS reserves the right to change this manual at any time without

notice. The information furnished by ICP DAS is believed to be accurate and

reliable. However, no responsibility is assumed by ICP DAS for its use, not for any

infringements of patents or other rights of third parties resulting from its use.

Limitation of Warranty

This warranty does not apply to defects resulting from unauthorized

modification, misuse, or use for reason other than electrical power monitoring.

Product Warranty & Customer Support

ICP DAS warrants all products free from defects in material and workmanship for

a period of one year from the date of shipping. During the warranty period, we

will, at our position, either repair or replace any product that proves to be

defective. To report any defect, please contact us. Please have the model, serial

number and a detailed problem description available when you call. When

returning any merchandise to ICP DAS, a return SN. Is required.

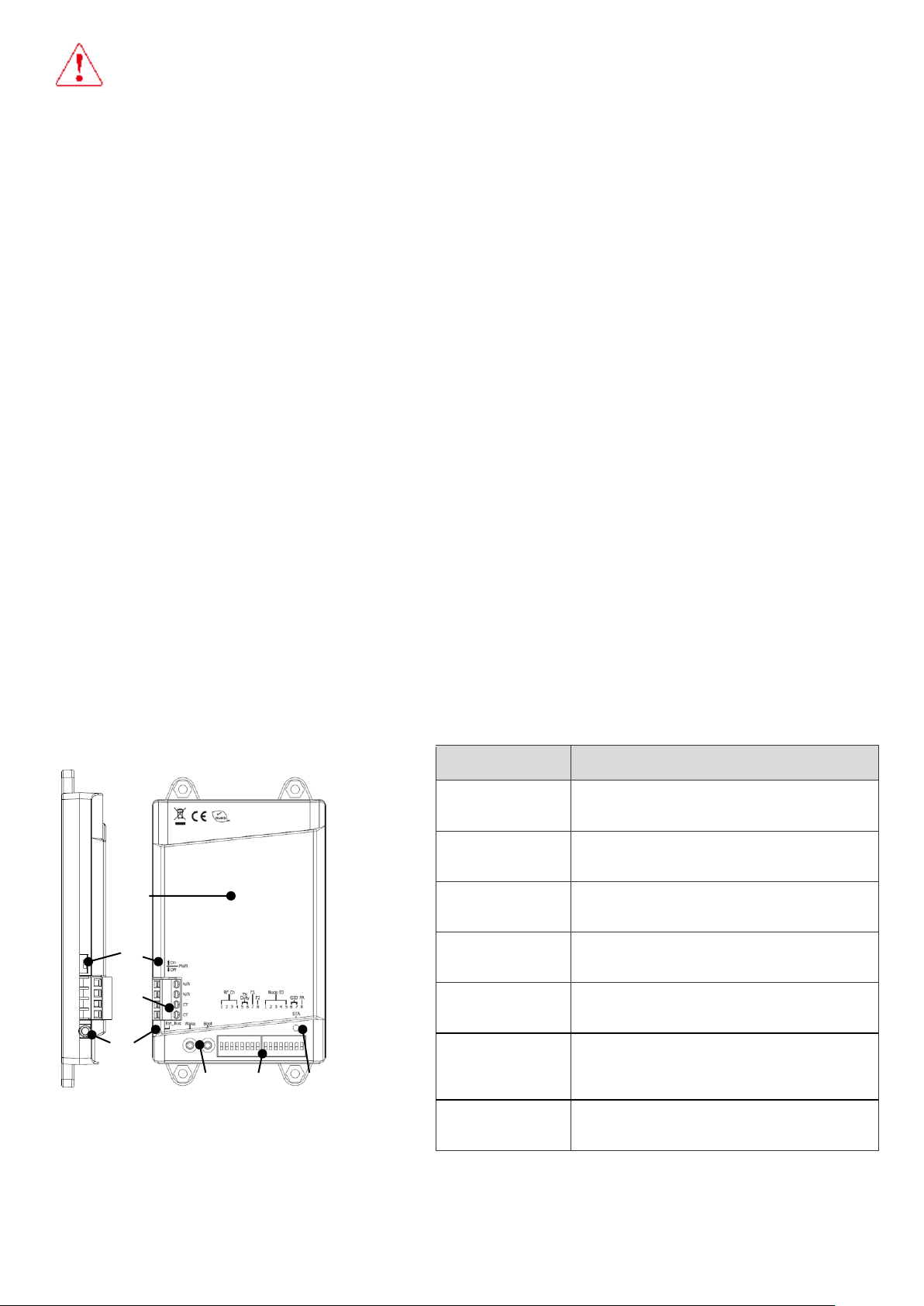

Appearance

Number

Instructions

Build in PCB antenna

DIP switch of power

CT connection terminal

Extension port

Boot and wake button

DIP switch of parameter

setting

LED indicator

○

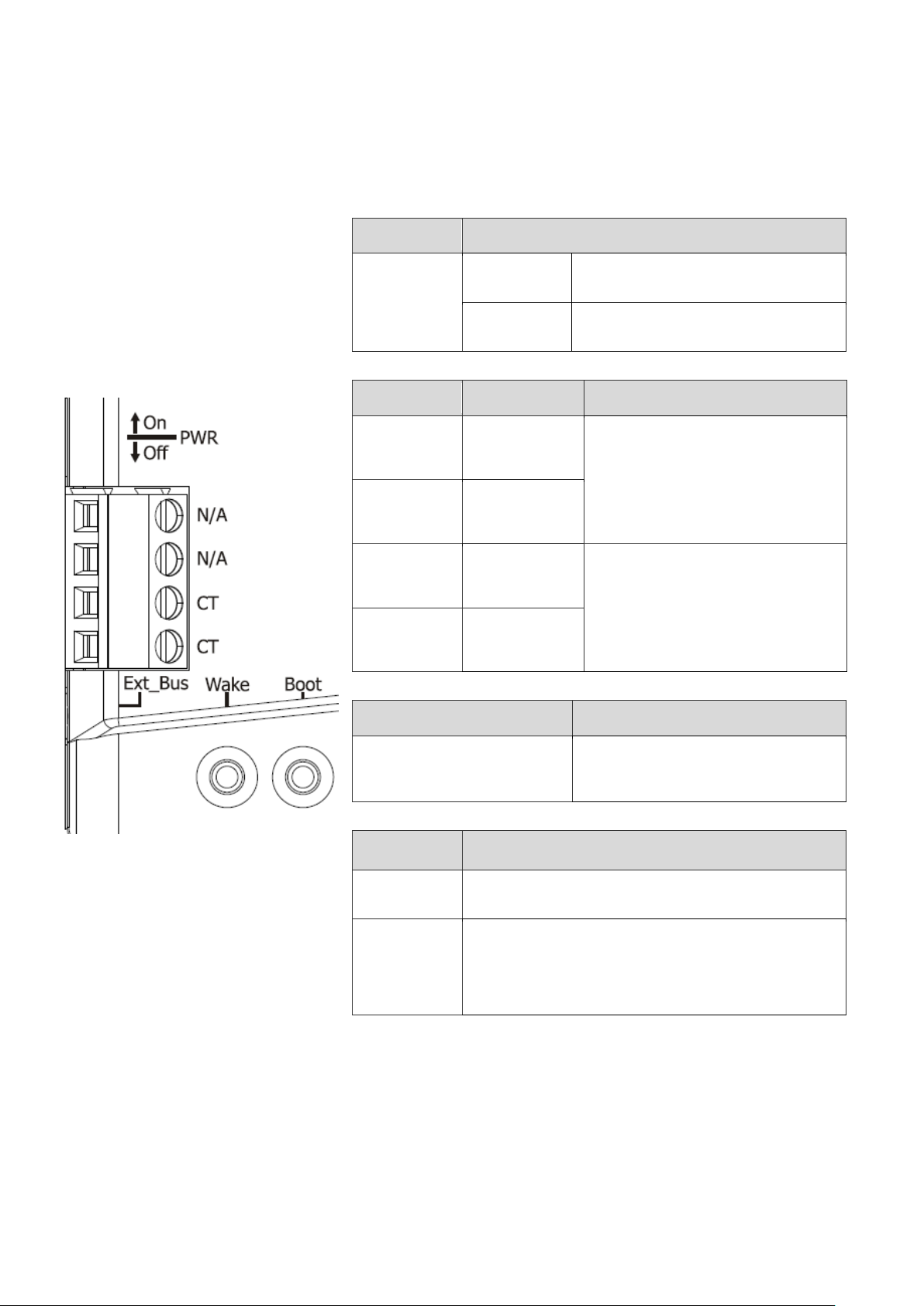

Wire and Buttons

Switch

Instructions

PWR

Power on

OFF

Power off

Name

Instructions

N/A

Reserved, empty or shorted

N/A

Split-core CT pin, no

directionality, support

measuring and charging

function

Extension bus

Instructions

Ext_Bus

Empty or connect

extension module

Button

Instructions

Wake

Manual wake up

Boot

After pressing for 1~3 seconds, the

LED light will be on for 1 second and

then off. This mean boot complete.

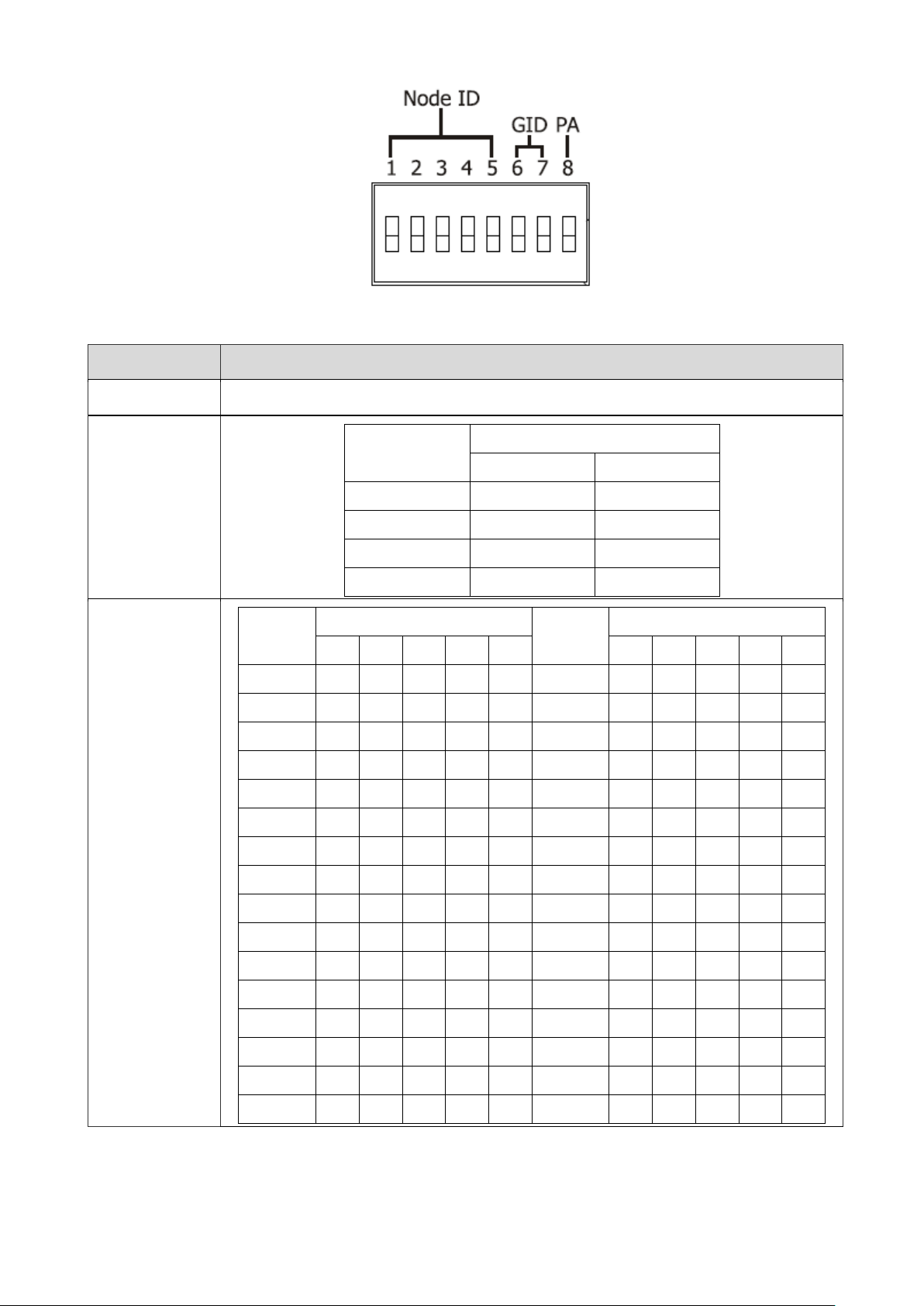

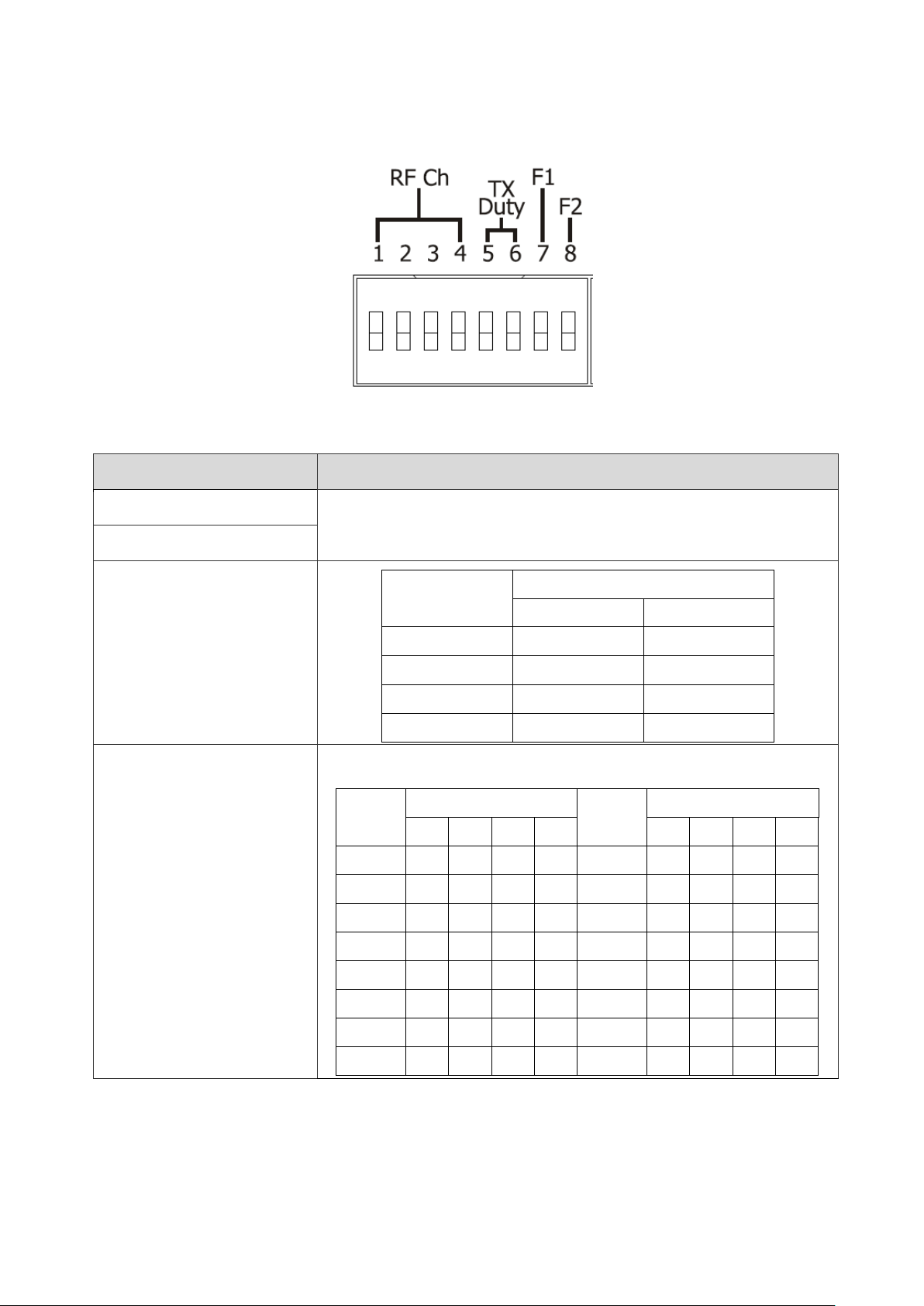

Communication parameter

Name

Instructions

Reserved

TX Duty

( RF transmit duty )

■： ON

□： OFF

Period

1 sec

□

10 sec

■

□

30 sec

□

■

60 sec

■

RF Ch

( RF Channel)

■： ON

□： OFF

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

Name

Instructions

Factory Only

GID

(Group ID)

■： ON

□： OFF

Group

□

■

□

■

Node ID

■： ON

□： OFF

Node

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

□

■

LED indicator

The module provides one LED indicator. The table below will show the LED status.

Indicators

Status

Instructions

STA

500ms

Blink

continuous

Illegal Node ID, please set the Node ID

to 1~31, and then power on.

Blink once

Low battery power.

1. Please confirm whether the CT is

lock into the “CT” pin of the module

and bucked to the wire for charging.

2. If have any questions, please

contact technology support.

Blink twice

Component status is abnormal.

1. Please confirm whether the audio

line of “Ext_Bus” is fully inserted

and the module is power off. And

power on after press “Wake” and

“Boot” buttons for 5 seconds.

2. If have any questions, please

contact technology support.

Blink three

times

Unable to confirm sensor type.

1. Please confirm whether the audio

line of “Ext_Bus” is fully inserted

and the module is power off. And

power on after press “Wake” and

“Boot” buttons for 5 seconds.

2. If have any questions, please

contact technology support.

Boot Steps

A. Please confirm the CT is locked into the module, and “Ext_Bus” is

connected an extension module by audio line. (If there is no extension

module, the “Ext_Bus” don’t be connected.)

B. Adjusting DIP switch and set the parameter of communication, and

switch “PWR” to OFF. And then switch “PWR” to ON after press

“Wake” and “Boot” buttons for 5 seconds.

C. When power on, if “STA” will light on for 1 second and off, this mean

boot complete. If “STA” do not be lighted, please press “Boot” for 1~3

seconds, and confirm “STA” will light on for 1 second and off. Finally,

press “Wake” once, confirm “STA” blink once to complete the boot.

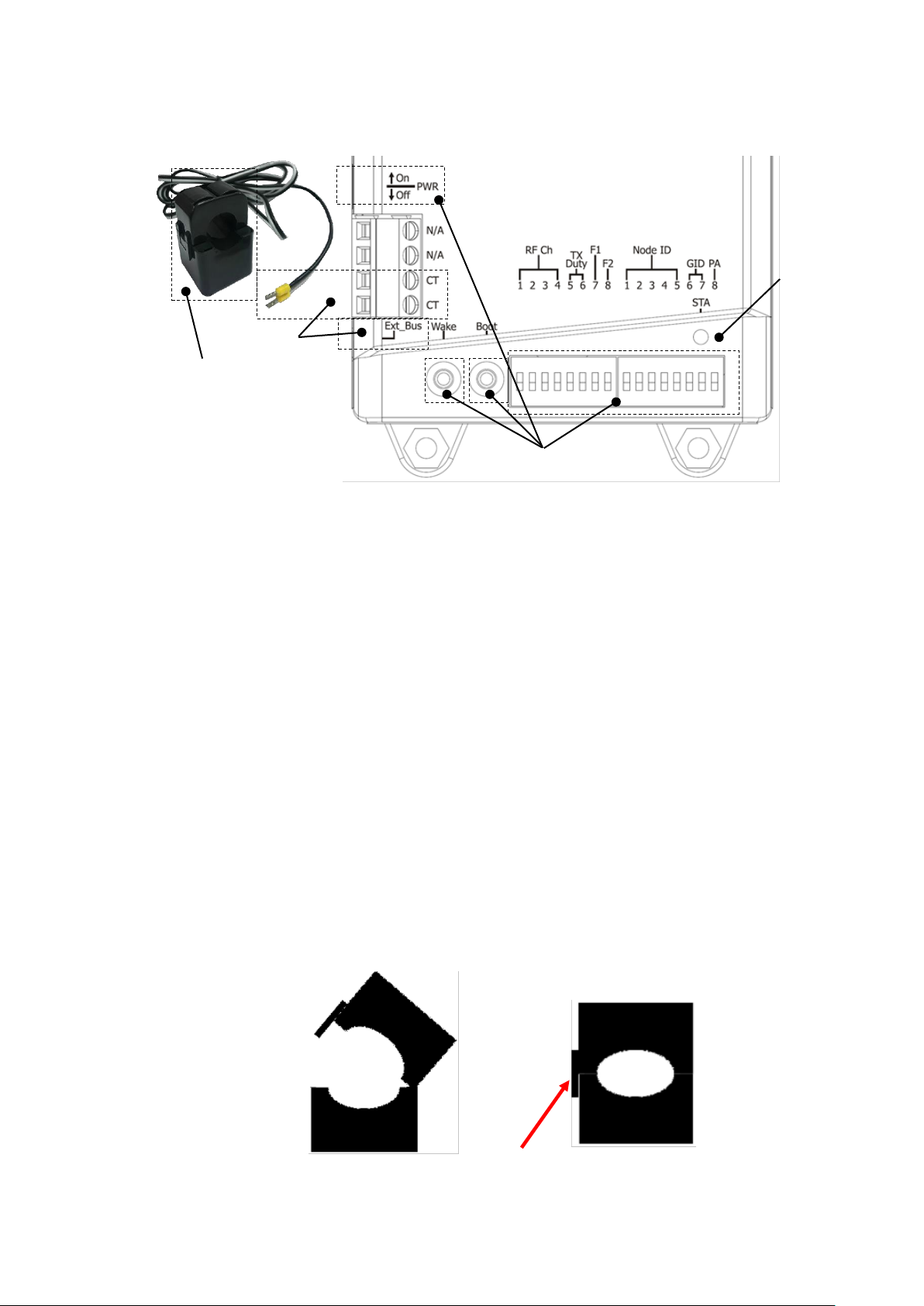

D. Connect the CT to the cable to be measured. The buckle has no

directionality, but after the buckle, you must confirm that the opening

is completely closed.

○

Before the CT

be buckled

After the CT

be buckled

Confirm the opening is

completely closed

Note：

1. If you need to remove the terminal lines, always detach the CT before

removing the CT terminal lines. Otherwise the CT may develop

open-circuit secondary voltages which may be hazardous to personnel or

damaging to the CT or equipment connected in the secondary circuit.

2. The external CT’s are fragile, please handle with care.

3. The current input of the iWSN-110X series only supports the

factory-attached CT.

4. To install CT’s correctly, please ensure the CT lines sequences is right

before clip the CT’s onto the power cable of the monitoring equipment.

5. Please select the appropriate size CT for different size monitoring

equipment cables: power line diameter <Φ24 using 200A CT, Φ36 using

400A CT.

6. The maximum current value cannot exceed the CT rating.
