ICP DAS USA DS-700 Series Manual de usuario

SUPPORT

Models supported include

DS-712 and DS-715

WARRANTY

All products manufactured by ICP DAS are warranted

against defective materials for a period of one year from

the date of delivery to the original purchaser.

WARNING

ICP DAS assumes no liability for damages consequent to

the use of this product. ICP DAS reserves the right to

change this manual at any time without notice. The

information furnished by ICP DAS is believed to be

accurate and reliable. However, no responsibility is

assumed by ICP DAS for its use, nor for any infringements

of patents or other rights of third parties resulting from its

use.

TRADEMARKS

Names are used for identification purposes only and may

be registered trademarks of their respective companies.

If you have any questions, please feel free to contact us.

We will respond within 2 working days.

Email: service@icpdas.com ; [email protected]

Version: 1.0/ Updated: Aug. 2018

DS-700 Series

Firmware Update via 7188XW.exe

ICP DAS CO., LTD.

Website: http://www.icpdas.com

Ch. 2. Firmware Update Procedure

Ch. 3. Additional Information

Ch. 1. Setting up the DS-700

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 1

1.Setting up the DS-700

Before updating the firmware, please ensure that the DS-700 module is connected with your host

computer. Refer to the following steps for the details.

Step 1: Switch off the Power to the DS-700 module.

Step 2: Connect the DS-700 module to your host computer.

DS-712: Connect the COM1 connector on DS-712 to COM Port on host PC using the

CA-0910N cable, as illustrated in the Figure 1-1 below. Note: CA-0910N is a 3-wire

Null-Modem cable (optional).

DS-715: Remove the screw and top shell first, and then connect the JP2 connector to COM

Port on host PC using the CA-0904 (optional) and CA-0915 (optional) cables, as illustrated in

the Figure 1-2 below.

Step 3: Short the INIT* and GND pins of the DS-700 module in “Init”to initiate the update.

Step 4: Switch on the Power to the DS-700 module.

Vs+

GND

CA-0910N Cable

Short INIT* and

GND pins

Figure 1-1: DS-712 Wiring

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 2

Figure 1-2: DS-715 Wiring

GND

CA-0915 Cable

Remove the screw

Remove the stop shell

Connect the JP2 connector (RS-232) to COM Port on Host PC

Short INIT* and

GND pins

Vs+

GND

CA-0904 Cable

JP2

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 3

2.Firmware Update Procedure

NOTE: DS-700 using the same MiniOS7 and firmware with the PDS-700, and also provides virtual COM features.

The DS-700 is non-programmable serial-to-Ethernet devices server while the PDS-700 is programmable.

Step 1: Download the Firmware File of DS-700 module and then decompress it to a temp folder,

for example DS700fw.

Download the PDS-700 Firmware File.

The DS-700 firmware and autoexec.bat files are compressed in Zip format. You can decompress the zip file by

7-Zip, WinZip, WinRAR... utilities.

Step 2: Modify COM Port number in 7188xw.ini file, depend on your PC COM Port that connect

to DS-700.

For Example (first parameter of the line 1 in the 7188xw.ini)

COM1 ==> C1 B115200 P0 D8 S1

COM2 ==> C2 B115200 P0 D8 S1

C: COM Port (e.g. C7) Modify this item.

B: Baud Rate (e.g. B115200)

P: Parity (e.g. P0)

D: Data Bits (e.g. D8)

S: Stop Bits (e.ge. S1)

Select the “Save” item from the “File”

menu to save the new configuration.

Double Click

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 4

Step 3: Double click the DS-7xx.bat for starting update. The DS-7xx.bat file is depending on

model name of your DS-700 module. Refer to note1 (Page 8) for more details. (e.g.

DS-712.bat.)

Step 4: You are now ready to update the firmware. The DS-7xx.bat file will auto run

the 7188XW.exe utility program and shows the progress of the update.

Step 5: The 7188XW.exe utility program will then upload the firmware and

autoexec.bat files into DS-700 module automatically. If the update cannot proceed,

please refer to note2 (Page 8).

Starting update

Double Click

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 5

Step 6: The MiniOS7 update completed when disply [End file xxx] message. Then click

the “X”icon on the right-top corner of the windows to close it.

Step 7: Disconnect the INIT* and GND pins of DS-700

module.

Step 8: Switch off the Power to the DS-700 module and

then switch it back on again to rebbot the module to

“Normal”operation.

Open INIT* and

GND pins

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 6

Step 9: Connect both the DS-700 module and your computer to the same sub network

or the same Ethernet Switch.

Step 10: Install the VxComm Utility on

your Host PC, and then run the Utility

to search for any DS-700 module

connected to the nework.

Download the VxComm Utility.

Step 11: Configure the correct network settings for the required DS-700 module.

Please refer to “Chapter 3-Configuring Network Settings”in the DS-700 Quick Start Guide. If the IP address

settings do not work correctly, please refer to note3 (Page 8).

Download the Quick Start Guide.

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 7

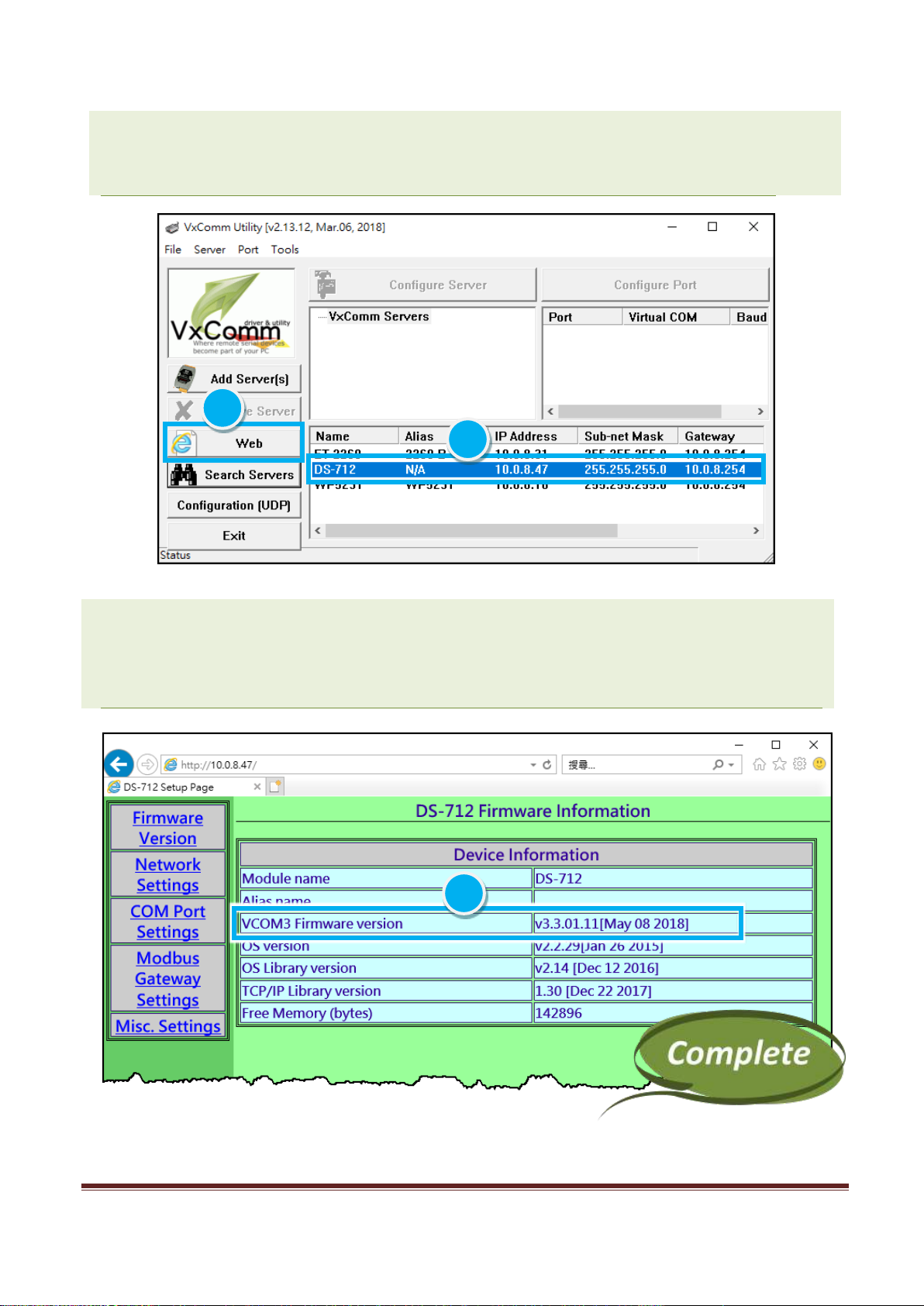

Step 12: Click the name of the DS-700 module.

Step 13: Click the “Web”button.

Step 14: Log in to the web configuration pages for the DS-700.

Step 15: Verify that the firmware version and date details are correct.

Firmware Update via 7188XW.exe (Ver. 1.0/Aug. 2018) Page: 8

3. Additional Information

Notes:

Note 1: The DS-7xx.bat file is depending on model name of your DS-700. If wrong DS-7xx.bat file

that may cause your DS-700 does not work correctly and you need to update it with a correct

firmware again. ………………………………………………………………………………………………..………………. back

Note 2: Make sure the 7188XW.exe and autoexec.bat program files exist on the same folder. If not,

update firmware can’t be successful. …….…………………………………………………………….……………. back

Note 3: If the IP address settings do not work correctly (e.g. there is no response to a ping

command), please contact your network administrator to obtain a valid IP address for the DS-700

module. ……………………………………………………………………………………………………………………………. back

Note 4: 7-Zip—Free Archiving (Compress and Decompress) Utility

7-Zip is a free archiving utility, you can get it from the following web:

http://www.7-zip.org/
