ICP DAS USA I-7014D Manual de usuario

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

I-7014D

Analog Input/Transmitter Input/Current Input

Data Acquisition Module

Quick Start Guide

Product Website:

http://www.icpdas-usa.com/i_7014d.html

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

I-7014D is intelligently designed to provide signal conditioning system

monitoring, alarm signal output, and safe value settings. I-7014D is a cost-

effective solution for a wide range of valuable industrial control signals and

systems. The DCON utility can help users to configure and test I-7014D

Analog/Transmitter input modules. Plenty of library functions and demo

programs are provided to let users develop programs easily under

Windows, Linux and DOS operating systems. Users may mount the

modules on a DIN rail, panel or wall. Modules have a screw-terminal block

to connect to the signals. I-7014D comes with FREE EZ Data Logger

Software.

2. Terminal Assignment

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3. Block/ Wiring Diagram

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Default Settings

Default setting for I-7012/12D/12F/12FD/14D/17/17F :

z Address : 01

z Analog Input Type : Type 08, -10 to +10 V

z Baudrate : 9600 bps

z 60Hz filter rejection, Checksum disable, engineer unit format

z I-7017/17F set as 6 differential and 2 single-ended mode

z I-7012F and I-7017F set as Fast Mode

5. Configuration

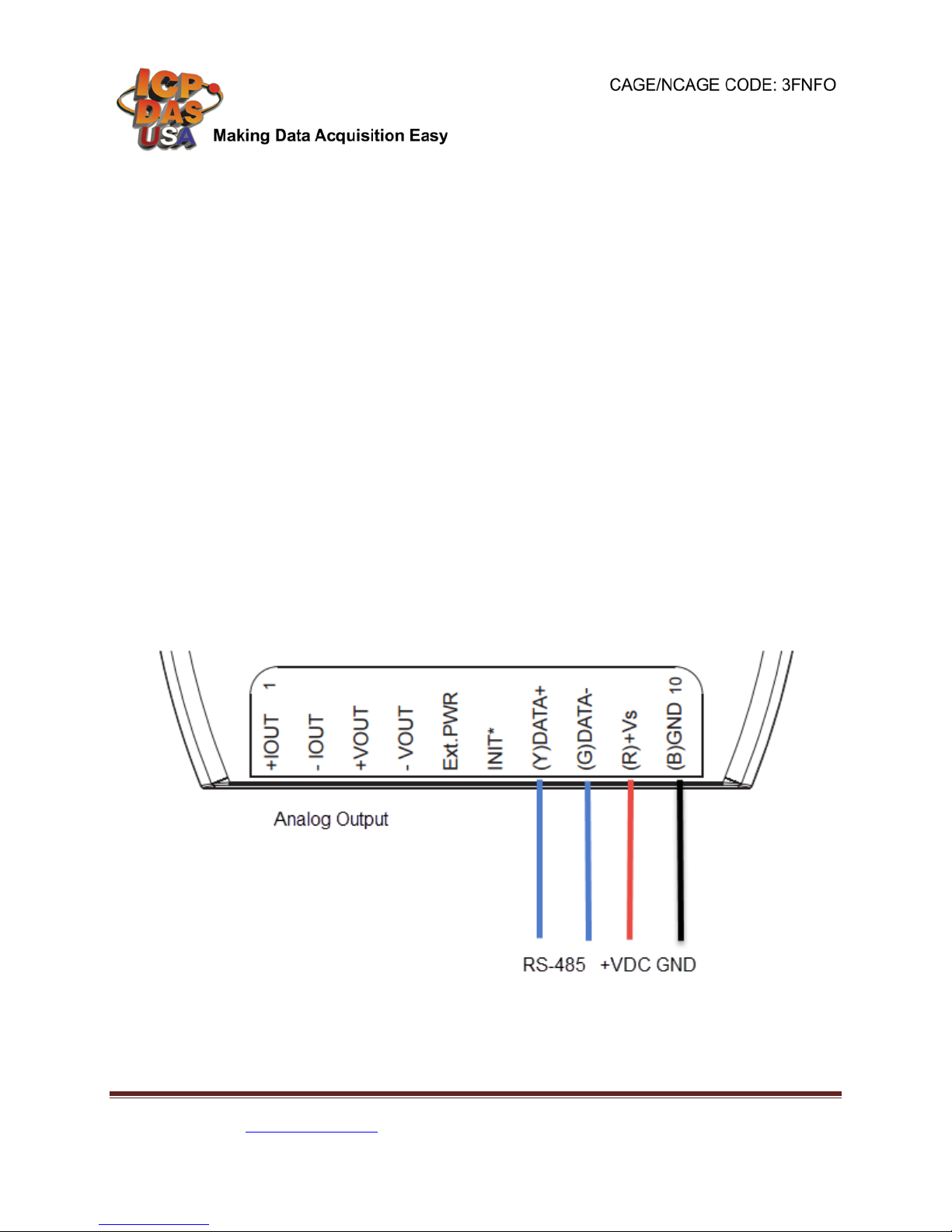

To install the module, follow the steps below:

1. Connect the analog output.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals. If

the host is only equipped with an RS-232 interface, then an RS-232 to RS-485

converter will be required.

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to

search module. The default settings for the module can be found in Section 3. Click OK

after selecting the COM port setting.

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

6. Configuration I/O module setting on PC

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

7. For I-7000 modules, DCON utility pro terminal can send command to the module.

See user manual Sections 2 for details command.

Configure the module: sending the %AANNTTCCFF command. See user manual

Section 2 for details.

Read data from the input channels: send either the #AA or #AAN command to the

module.

I-7014D AI DAQ Module - QuickStart (Jan/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.
