Honeywell NOTIFIER FTM-1 Manual de usuario

NO-460-017 1 I56-3533-000

FTM-1 Firephone Control Module

INSTALLATION AND MAINTENANCE INSTRUCTIONS

BEFORE INSTALLING

This information is included as a quick reference installation guide. Refer to

the control panel installation manual for detailed system information. If the

modules will be installed in an existing operational system, inform the opera-

tor and local authority that the system will be temporarily out of service. Dis-

connect power to the control panel before installing the modules.

NOTICE: This manual should be left with the owner/user of this equipment.

GENERAL DESCRIPTION

Firephone Control Modules are intended for use in intelligent, two-wire

systems, where the individual address of each module is selected using the

built-in rotary switches. This module is used to connect a remote firefighter

telephone to a centralized telephone console. A ringing sound is provided

at each off-hook handset until it is connected to the console. Wiring to indi-

vidual telephone jacks and handsets is supervised, and status is reported to

the panel as NORMAL, TROUBLE, or TELEPHONE. This module has two pairs

of output termination points available for fault-tolerant wiring, and includes a

panel-controlled LED indicator.

COMPATIBILITY REQUIREMENTS

To ensure proper operation, this module shall be connected to compatible

Notifier system control panels only (list available from Notifier).

MOUNTING

This module mounts directly to 4″square electrical boxes (see Figure 2A).

The box must have a minimum depth of 21/8″. Flush mounted electrical boxes

(SMB500) are available.

WIRING

NOTE: All wiring must conform to applicable local codes, ordinances and

regulations.

1. Install module wiring in accordance with the job drawings and appropri-

ate wiring diagrams (Figures 3-4).

2. Set the address on the module per job drawings.

3. Secure module to electrical box (supplied by installer), as shown in

Figure 2.

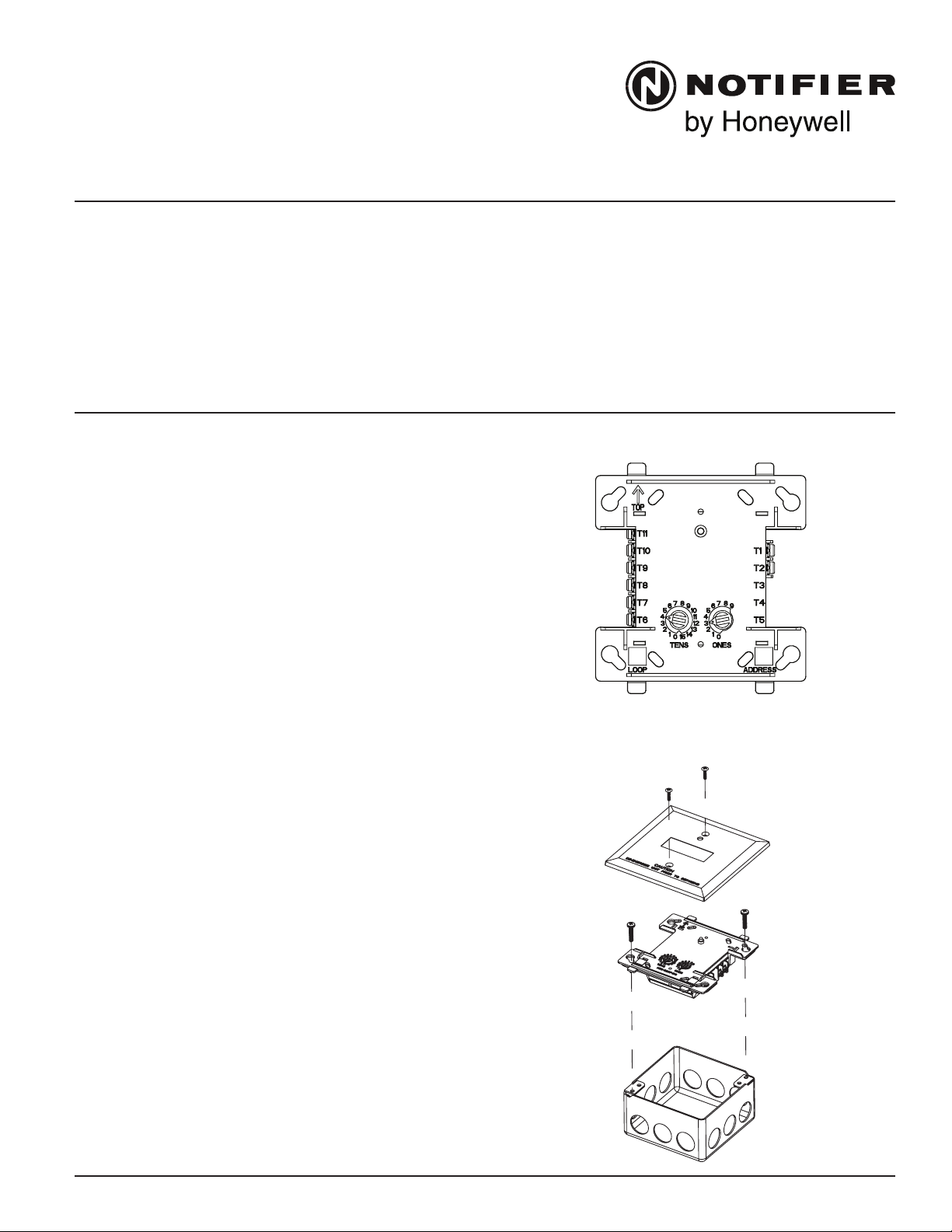

Figure 1. Controls and Indicators:

Figure 2. Module mounting:

C1059-00

SPECIFICATIONS

Normal Operating Voltage: 15 to 32 VDC

Maximum Current Draw: 7.5 mA (LED on)

Average Operating Current: 2.4mA (LED flashing)

SLC Wiring Resistance: 40 Ohms

Supervisory Wiring Resistance: 50 Ohms

Handset Offhook Resistance: 400 to 1500 Ohms

External Supply Voltage Regulated 24VDC

(between Terminals T10 and T11)

Temperature Range: 32˚F to 120˚F (0˚C to 49˚C)

Humidity: 10% to 93% Noncondensing

Dimensions: 4.5”H × 4.275”W × 1.4”D (Mounts to a 4”square by 21/8”deep box.)

Accessories: SMB500 Electrical Box; CB500 Barrier

C1070-02

I56-3533-000

12 Clintonville Road

Northford, CT 06472-1653

Phone: 203.484.7161

FROM PANEL OR

(+)

(-)

TO NEXT

(+)

(-)

DEVICE

(+)

(-)

(+)

3.9K EOL

RESISTOR

MODULE POLARITIES ARE

SHOWN IN ALARM

32 VDC MAX.

IS RECOMMENDED

BRANCH CIRCUITS

BREAK ALL WIRE TO ENSURE

SUPERVISION OF CONNECTIONS.

DO NOT LOOP WIRE AROUND TERMINALS.

(-)

(+)

TWISTED PAIR

SIGNAL LINE CIRCUIT (SLC)

PREVIOUS DEVICE

(-)

(+)

TELEPHONE CONSOLE

24 VOLTS DC POWER LIMITED

Relay Contact Rating:

24 VDC, 3 Amperes Maximum

TELEPHONE CONSOLE MUST

PROVIDE ITS OWN

WIRING SUPERVISION

ALL WIRING SHOWN IS SUPERVISED

AND POWER LIMITED

CONNECT MODULES TO LISTED COMPATIBLE

NOTIFIER CONTROL PANELS ONLY

FROM PANEL OR

(+)

(-)

TO NEXT

(+)

(-)

DEVICE

(+)

(-)

(+)

3.9K EOL

RESISTOR

MODULE POLARITIES ARE

SHOWN IN ALARM

CONNECT MODULES TO LISTED COMPATIBLE

32 VDC MAX.

IS RECOMMENDED

BRANCH CIRCUITS

BREAK ALL WIRE TO ENSURE

SUPERVISION OF CONNECTIONS.

DO NOT LOOP WIRE AROUND TERMINALS.

ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED

TWISTED PAIR

NOTIFIER CONTROL PANELS ONLY

SIGNAL LINE CIRCUIT (SLC)

PREVIOUS DEVICE

(-)

(+)

(-)

(+)

TELEPHONE CONSOLE

24 VOLTS DC POWER LIMITED

Relay Contact Rating:

24 VDC, 3 Amperes Maximum

TELEPHONE CONSOLE MUST

PROVIDE ITS OWN

WIRING SUPERVISION

NO-460-017 2 I56-3533-000

WARNING

All relay switch contacts are shipped in the standby state (open) state, but may have transferred to the activated (closed) state during shipping. To ensure that

the switch contacts are in their correct state, modules must be made to communicate with the panel before connecting circuits controlled by the module.

Figure 3. Typical circuit conﬁguration, NFPA Style Y:

Figure 4. Typical fault tolerant circuit conﬁguration, NFPA Style Z:

C1076-04

C1077-03
