H3C LSWM18CQ interface card
user manual-6PW106
▌Introduction
Overview
The LSWM18CQ interface card provides eight QSFP28 ports.

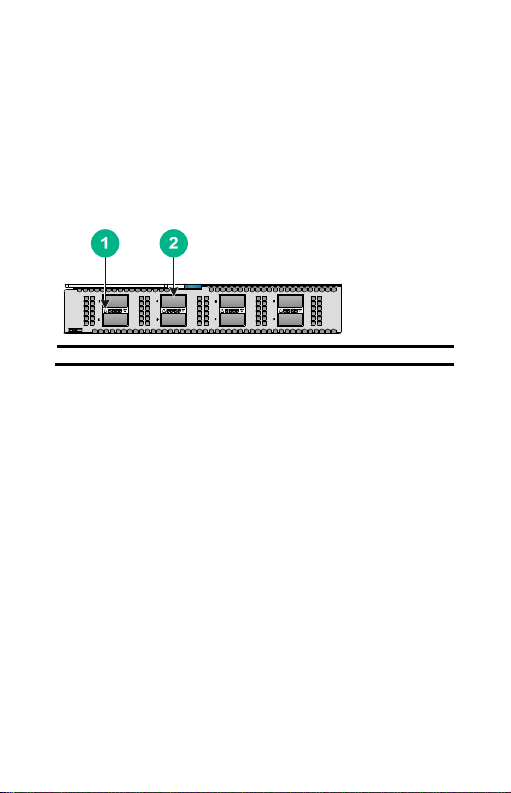

Figure 1 Front panel
(1) QSFP28 port LED (2) QSFP28 port
QSFP28 ports
You can install the following transceiver modules and cables in the
QSFP28 ports on the card:
•QSFP28 transceiver modules described in Table 1 andTable 2
•QSFP28 cables in Table 3
•QSFP28 to SFP28 cables in Table 4
•QSFP+ transceiver modules in Table 5 andTable 6
•QSFP+ cables in Table 7
•QSFP+ to SFP+ cables in Table 8
2
Table 1 QSFP28 transceiver modules available for the QSFP28
ports (1)
QSFP28 transceiver
module
Central
wavelength (nm) Connector
QSFP-100G-ER4L-WDM1300
Four lanes:
•1294.53 to
1296.59
•1299.02 to
1301.09
•1303.54 to
1305.63
•1308.09 to
1310.19
LC
QSFP-100G-SR4-MM850 850
MPO (PC
polished,
12-fiber)
QSFP-100G-PSM4-SM1310 1295 to 1325
MPO (APC
polished,
12-fiber)
QSFP-100G-LR4-WDM1300
Four lanes:
•1295
•1300
•1304
•1309
LC
QSFP-100G-LR4L-WDM1300
Four lanes:
•1264.5 to
1277.5
•1284.5 to
1297.5
•1304.5 to
1317.5
•1324.5 to
1337.5
LC
3
QSFP28 transceiver
module
Central
wavelength (nm) Connector
QSFP-100G-SWDM4-MM850
Four lanes:
•850
•880
•910
•940
LC
Table 2 QSFP28 transceiver modules available for the QSFP28
ports (2)
QSFP+
transceiver
module
Cable/fiber
diameter
(µm)
Modal
bandwidth
(MHz × km)
Max
transmission
distance
QSFP-100G-ER
4L-WDM1300
Single-mode,
9/125 N/A 40 km (24.85
miles)
QSFP-100G-SR
4-MM850
Multi-mode,
50/125
2000 70 m (229.66 ft)
4700 100 m (328.08 ft)
QSFP-100G-PS
M4-SM1310
Single-mode,
9/125 N/A 500 m (1640.42
ft)
QSFP-100G-LR
4-WDM1300
Single-mode,
9/125 N/A 10 km (6.21
miles)
QSFP-100G-LR
4L-WDM1300
Single-mode,
9/125 N/A 2 km (1.24 miles)
QSFP-100G-S
WDM4-MM850
Multi-mode,
50/125
2000 75 m (246.06 ft)
4700 100 m (328.08 ft)
4
Table 3 QSFP28 cables available for the QSFP28 ports
Cable model Cable length Data rate
QSFP28 copper cable
QSFP-100G-D-CAB-1M 1 m (3.28 ft)
100 Gbps
QSFP-100G-D-CAB-3M 3 m (9.84 ft)
QSFP-100G-D-CAB-5M 5 m (16.40 ft)
QSFP28 fiber cable
QSFP-100G-D-AOC-7M 7 m (22.97 ft)
100 Gbps
QSFP-100G-D-AOC-10M 10 m (32.81 ft)
QSFP-100G-D-AOC-20M 20 m (65.62 ft)
Table 4 QSFP28 to SFP28 cables available for the QSFP28 ports
QSFP28 to SFP28 cable Cable length Data rate
QSFP-100G-4SFP-25G-CAB-1M 1 m (3.28 ft)
100 Gbps
QSFP-100G-4SFP-25G-CAB-3M 3 m (9.84 ft)
Table 5 QSFP+ transceiver modules available for the QSFP28
ports (1)
QSFP+ transceiver module Central
wavelength (nm) Connector
QSFP-40G-SR4-MM850 850
MPO (PC
polished,
12-fiber)
QSFP-40G-CSR4-MM850 850
MPO (PC
polished,
12-fiber)
QSFP-40G-LR4-PSM1310 1310
MPO (APC
polished,
12-fiber)
5
QSFP+ transceiver module Central
wavelength (nm) Connector
QSFP-40G-BIDI-SR-MM850 850 LC
QSFP-40G-LR4-WDM1300
Four lanes:
•1271
•1291
•1311
•1331
LC
QSFP-40G-LR4L-WDM1300
Four lanes:
•1271
•1291
•1311
•1331
LC
Table 6 QSFP+ transceiver modules available for the QSFP28
ports (2)
QSFP+
transceiver
module
Cable/fiber
diameter
(µm)
Modal
bandwidth
(MHz × km)
Max transmission
distance
QSFP-40G-SR
4-MM850
Multi-mode,
50/125
2000 100 m (328.08 ft)
4700 150 m (492.12 ft)
QSFP-40G-CS
R4-MM850
Multi-mode,
50/125
2000 300 m (984.25 ft)
4700 400 m (1312.33 ft)
QSFP-40G-LR
4-PSM1310
Single-mode,
9/125 N/A 10 km (6.21 miles)
QSFP-40G-BID
I-SR-MM850
Multi-mode,
50/125
2000 100 m (328.08 ft)
4700 150 m (492.12 ft)
QSFP-40G-LR
4-WDM1300
Single-mode,
9/125 N/A 10 km (6.21 miles)
6
QSFP+
transceiver
module
Cable/fiber
diameter
(µm)
Modal
bandwidth
(MHz × km)
Max transmission
distance
QSFP-40G-LR
4L-WDM1300
Single-mode,
9/125 N/A 2 km (1.24 miles)
Table 7 QSFP+ cables available for the QSFP28 ports
QSFP+ cable Cable length Data rate
QSFP+ copper cable
LSWM1QSTK0 1 m (3.28 ft)
40 Gbps
LSWM1QSTK1 3 m (9.84 ft)
LSWM1QSTK2 5 m (16.40 ft)
QSFP+ fiber cable
QSFP-40G-D-AOC-7M 7 m (22.97 ft)
40 Gbps
QSFP-40G-D-AOC-10M 10 m (32.81 ft)
QSFP-40G-D-AOC-20M 20 m (65.62 ft)
Table 8 QSFP+ to SFP+ cables available for the QSFP28 ports
QSFP+ to SFP+ cable Cable length Data rate
LSWM1QSTK3 1 m (3.28 ft)
40 Gbps
LSWM1QSTK4 3 m (9.84 ft)
LSWM1QSTK5 5 m (16.40 ft)
7
NOTE:
•As a best practice, use H3C transceiver modules and cables
for the interface card.
•The transceiver module and cable types supported by an
interface card vary by device model. For more information, see
the installation guide or contact H3C Support or marketing staff.
For more information about H3C transceiver modules and cables, see
H3C Transceiver Modules User Guide at www.h3c.com.
LEDs
Table 9 describes QSFP28 port LEDs on the front panel.
Table 9 QSFP28 port LED description
LED status Description
Steady green
A transceiver module is installed in the port. The
port is operating at 100 Gbps, and a link is present
on the port.
Flashing green The port is sending or receiving data at 100 Gbps.
Steady yellow
A transceiver module is installed in the port. The
port is operating at 10/25/40 Gbps, and a link is
present on the port.
Flashing
yellow (3 Hz)
The port is sending or receiving data at 10/25/40
Gbps.
Off No transceiver module is installed in the port, or no
link is present on the port.
NOTE:
For an LSWM18CQ interface card installed on a service module o
f
an S12500X-AF switch, its port LEDs are in green when the ports
are operating correctly and they do not indicate the port speed.
8
▌Installing and removing the card
CAUTION:
•Before you install or remove the card, wear an ESD wrist strap
and make sure the strap makes good skin contact and is
reliably grounded.
•To avoid device damage, do not use excessive force when you
install or remove the card.
•The LSWM18CQ interface card is hot swappable. However, do
not install or remove it during the startup of the switch.
Installing the card
1. Remove the filler panel (if any) from the target slot.
Keep the removed filler panel secure for future use.
2. Unpack the interface card.
Figure 2 LSWM18CQ interface card
(1) Ejector lever (2) Latch
3. Press the latch on the card to release the ejector lever.
4. As shown by callout 1 in Figure 3, insert the card slowly into the
slot along the guide rails.
5. Rotate inward the ejector lever as shown by callout 2 in Figure 3
until the latch locks the ejector lever in place.
9
Figure 3 Installing an LSWM18CQ interface card
Removing the card
1. Prepare an anti-static bag.
2. Remove the cables from the card.
3. Press the latch to release the ejector lever
4. Rotate outward the ejector lever as shown by callout 1 in Figure 4.
5. Pull out the interface card slowly out of the interface card slot, as
shown by callout 2 in Figure 4.
6. Place the removed interface card in the anti-static bag.
7. If you are not to install a new card, install a filler panel in the slot to
prevent dust and ensure good ventilation in the device.
Figure 4 Removing an LSWM18CQ interface card
10
Installing and removing QSFP28/QSFP+ transceiver
modules and cables
For information about installing and removing QSFP28 transceiver
modules, QSFP28 cables, QSFP28 to SFP28 cables, QSFP+
transceiver modules, QSFP+ cables, and QSFP+ to SFP+ cables, see
H3C Transceiver Modules and Network Cables Installation Guide at
www.h3c.com.
Verifying the installation
After the installation is complete, determine whether the interface card
is operating correctly.
If the card fails to operate correctly, perform the following steps:
1. Reinstall the card following the installation procedures described
in this document.
2. If the problem persists, contact H3C Support.
▌Technical support
New H3C Technologies Co., Ltd. provides customers with
comprehensive technical support and service. If you purchase the
products from the sales agent of New H3C Technologies Co., Ltd.,
please contact our sales agent or technical personnel.
Website: http://www.h3c.com
BOM: 3101A0KH
