H3C PSR360-56A Manual de usuario
1
H3C PSR360-56A Power Module
User Manual-6PW103
BOM: 3101A0GN
Power module overview
PSR360-56A is an AC-input and DC-output power module. It provides
a maximum output of 360 W and delivers the following features:
Table 1 Features
Feature Description
Protection Protection against over-current input, under-voltage
input, over-voltage output, output current limiting,
output short circuit, and over-temperature.
Redundancy When you install two power modules on a device,
the two power modules support 1+1 redundancy
and load sharing.
Hot
swapping You can install or remove a power module when
the switch is operating.
Technical specifications
Table 2 Technical specifications
Item Specifications
Rated input voltage 100 VAC to 240 VAC @ 50 Hz or 60 Hz
Maximum input voltage 90 VAC to 264 VAC @ 47 Hz to 63 Hz
2
Item Specifications
Maximum input current 6 A
Output voltage –56 V
Output current 6.45 A
Maximum output
power 360 W
Dimensions (H × W ×
D) 40.1 × 82.6 × 259.5 mm (1.58 × 3.25 ×
10.22 in)
Operating temperature –10°C to +55°C (14°F to 131°F)
Relative humidity 5% to 95%
Appearance
Figure 1 Appearance
3
(1) Input status LED (AC OK) (2) AC-input power receptacle
(3) Latch (4) Handle
(5) Output status LED (DC OK)
LEDs
The power module has two status LEDs on its front panel.
Table 3 LED description
LED Status Description
Input status
LED (AC
OK)
Steady green The power input is normal.
Off No power input or the power
input is abnormal.
Output
status LED
(DC OK)
Steady green The power output is normal.
Steady red The power output is abnormal.
Off No power output.
Installing and removing the power
module
Safety precautions
To avoid possible bodily injury and power module and device damage,
follow these safety precautions:
•When you install and remove the power module, always wear
an ESD wrist strap and make sure it makes good skin contact
and is reliably grounded.
4
•Before you install the power module, make sure the voltage of
the power source is as required by the power module, and the
output voltage of the power module is as required by the device.
•Do not touch any cables or terminals of the power module.
•Do not place the power module in a wet area, and prevent liquid
from flowing into the power module.
•To avoid power module damage, do not open the power module.
When the internal circuits or components of the power module
fail, contact H3C Support.
Tools
Prepare an ESD wrist strap and a flat-blade screwdriver yourself.
Installing and removing the power module
Installing the power module
To avoid bodily injury or device damage, follow the procedure
in Figure 2 to install the power module.

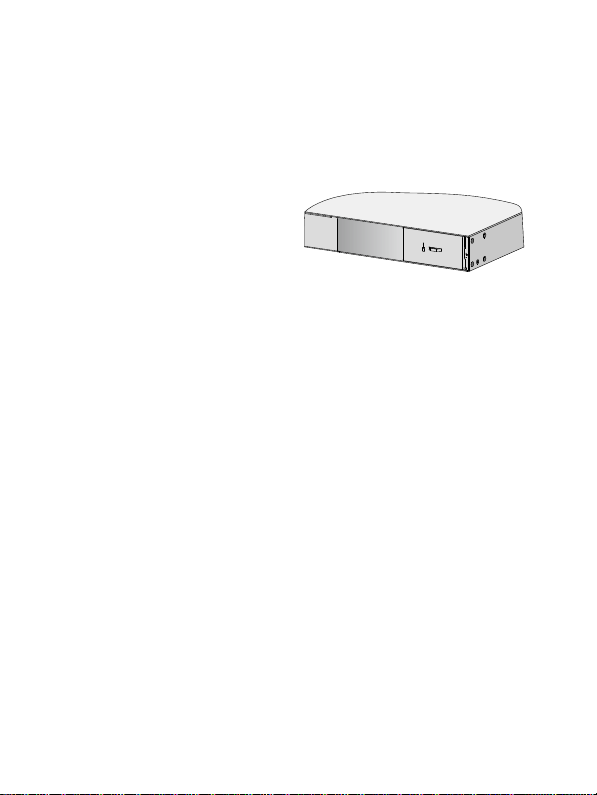

Figure 2 Installation procedure
To install the power module:
1. Put on the ESD wrist strap and make sure the strap makes good
skin contact and is reliably grounded.
2.
5
{Put your finger into the hole in the filler panel and pull the
filler panel out along the guide rails.
{Insert a flat-blade screwdriver through the handle on the filler
panel and pull the filler panel out along the guide rails.
Figure 3 Removing a filler panel
4. Insert the power module into the slot, as shown in Figure 4:
a. Correctly orient the power module with the characters
upward.
b. Holding the power module handle with one hand and
supporting the power module bottom with the other, slide the
power module along the guide rails into the slot. When the
power module is completely inserted into the slot, you can
hear that the latch of the power module clicks into the slot.
If the power module is not aligned with the slot, pull out the
power module, adjust its direction, and insert it again.
7
Figure 5 Securing the AC power cord
3. Connect the other end of the AC power cord to the AC power
source, and turn on the circuit breaker.
4. Examine the AC OK LED on the power module. If the LED is
steady green, the power cord is connected correctly. If the LED
is off, examine the installation, troubleshoot the problems, and
try again until the LED is steady green.
Removing the power module
To avoid bodily injury or device damage, follow the procedure
in Figure 6 to remove the power module.
Figure 6 Removing procedure
To remove the power module:
1. Turn off the circuit breaker at the power input end.
2. Put on the ESD wrist strap and make sure the strap makes good
skin contact and is reliably grounded.
3. Loosen the cable tie and remove the power cord.
8
4. As shown in Figure 7, press the latch towards the handle, and
pull the power module part way out of the slot along the guide
rails.
5. Holding the power module handle with one hand and supporting
the power module bottom with the other, pull the power module
slowly out of the slot along the guide rails.
6. Put the removed power module on an antistatic mat or into its
package.
7. If you are not to insert a power module into the empty slot, insert
the filler panel into the slot to prevent dust from entering the
chassis.
Figure 7 Removing the power module
Copyright © 2013-2017 New H3C Technologies Co., Ltd.
