H3C LSWM116FC Manual de usuario

H3C LSWM116FC

Interface Module

User Manual

New H3C Technologies Co., Ltd.

http://www.h3c.com

Document version: 6PW103-20211220

and its licensors

No part of this manual may be reproduced or transmitted in any form

or by any means without prior written consent of New H3C

Technologies Co., Ltd.

Trademarks

Except for the trademarks of New H3C Technologies Co., Ltd., any

trademarks that may be mentioned in this document are the property

of their respective owners.

Notice

The information in this document is subject to change without notice.

All contents in this document, including statements, information, and

recommendations, are believed to be accurate, but they are

presented without warranty of any kind, express or implied. H3C shall

not be liable for technical or editorial errors or omissions contained

herein.

Environmental protection

This product has been designed to comply with the environmental

protection requirements. The storage, use, and disposal of this

product must meet the applicable national laws and regulations.

Documentation feedback

You can e-mail your comments about product documentation to

[email protected]om.

We appreciate your comments

Contents

About the LSWM116FC interface module··········1

Important information································································1

Front panel ···············································································1

Ports··································································2

LEDs··································································3

Important information································································3

SFP28 port LEDs······································································3

Installing and removing an interface module······4

Installing an interface module ···················································4

Removing an interface module··················································5

Installing and removing transceiver modules and cables··········· 6

Verifying the installation····························································7

About the LSWM116FC interface

module

Important information

The LSWM116FC interface module is applicable to multiple H3C

switch models. For the interface module compatibility with switches,

contact H3C Support or marketing staff.

The restrictions and guidelines for using the LSWM116FC interface

module vary by device model. For more information, see the

installation guide or hardware reference for the device.

Front panel

The LSWM116FC interface module provides 16 SFP28 ports and

supports fibre channel (FC) transceiver modules of various data

rates.

Figure 1 Front panel

(1) SFP28 port LED

(2) SFP28 port

Ports

IMPORTANT:

As a best practice,

use H3C transceiver modules and cables

for the interface module.

The ports on the interface module can be used as Ethernet interfaces

or FC interfaces. You can use the port-type command in Layer 2

Ethernet interface view to change the interface type between

Ethernet and FC. For more information about configuring the

interface type, see the FC and FCoE configuration guide for the

device.

A port on the interface module supports 8G/16G/32G FC transceiver

modules when configured as an FC interface. For the 8G/16G/32G

FC transceiver modules available for the ports, see the installation

guide or hardware reference for the device, or contact H3C Support

or marketing staff. The data rate changing method for FC interfaces

varies by device model. For more information, see the FC and FCoE

configuration guide for the device.

The transceiver modules and cables available for a port on the

interface module depend on the device model when the port is

configured as an Ethernet interface. For example, if the interface

module is installed on an S6800 switch, an Ethernet interface on the

module supports only 10G SFP+ transceiver modules and cables

and 1G SFP transceiver modules. For the most-recent list of

available transceiver modules and cables, see the installation guide

or hardware reference for the device, or contact H3C Support or

marketing staff.

For more information about H3C transceiver modules and cables,

see H3C Transceiver Modules User Guide at www.h3c.com.

LEDs

Important information

The indications of the LEDs on the LSWM116FC interface module

vary by device model. For more information, see the installation

guide or hardware reference for the device.

SFP28 port LEDs

Table 1 describes SFP28 port LEDs.

Table 1 SFP28 port LED description

LED status Description

Steady green A link is present on the port and the port is

operating at the maximum speed.

Flashing green The port is sending or receiving data at the

maximum speed.

Steady yellow A link is present on the port and the port is

operating at a speed lower than the maximum

speed.

Flashing yellow The port is sending or receiving data at a

speed lower than the maximum speed.

Off No link is present on the port.

Installing and removing an interface

module

CAUTION:

•

Before you install or remove an interface module, wear an

ESD wrist strap and make sure the strap makes good skin

contact and is reliably grounded.

•

To avoid device damage, do not use excessive force when

you install or remove an interface module.

Installing an interface module

Before you install an interface module, remove the filler panel (if any)

from the target slot. Keep the removed filler panel secure for future use.

To install an interface module:

1. Unpack the interface module.

Figure 2 LSWM116FC interface module

(1) Ejector lever

(2) Latch

2. Press the latch on the interface module to release the ejector

lever.

3. As shown by callout 1 in Figure 3, insert the interface module

slowly into the slot along the guide rails.

4. Rotate inward the ejector lever as shown by callout 2 in Figure 3

until the latch locks the ejector lever in place.

Figure 3 Installing an LSWM116FC interface module

Removing an interface module

CAUTION:

•

Before you remove an interface module, remove the cable

from it to avoid cable damage.

•

After removing an interface module, if no new interface

module is to be installed, install the filler panel as soon as

possible to prevent dust and ensure good ventilation in the

device.

To remove an interface module:

1. Prepare an anti-static bag.

2. Press the latch to release the ejector lever

3. Rotate outward the ejector lever as shown by callout 1 in Figure

4. Pull out the interface module slowly out of the interface module

slot, as shown by callout 2 in Figure 4.

5. Place the removed interface module into an anti-static bag.

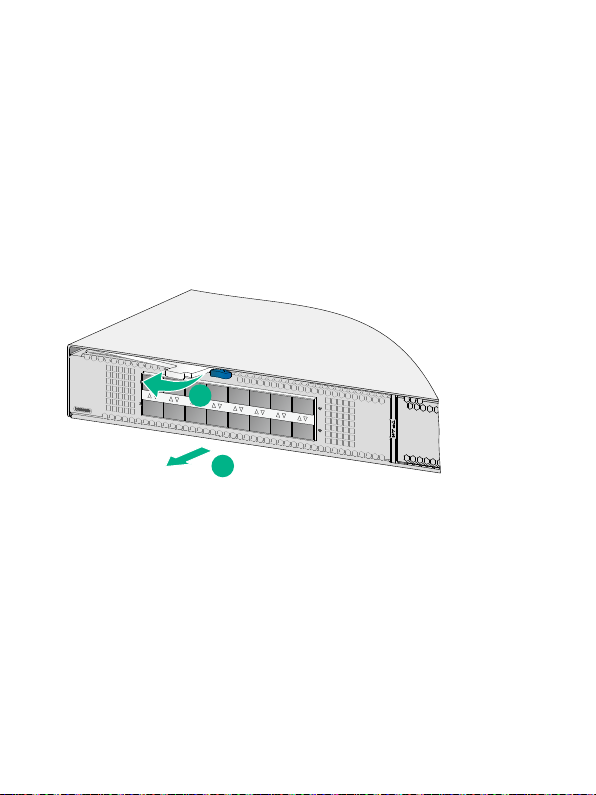

Figure 4 Removing an LSWM116FC interface module

Installing and removing transceiver modules

and cables

For information about installing and removing transceiver modules

and cables, see H3C Transceiver Modules and Network Cables

Installation Guide at www.h3c.com.

Verifying the installation

After the installation is complete, identify whether the interface

module is operating correctly.

If the interface module fails to operate correctly, perform the following

steps:

1. Reinstall it following the installation procedures described in this

document.

2. If the issue persists, contact H3C Support.
