Gofanco HDwireless10x1 Manual de usuario

10x1 Wireless HDMI Extender

Kit 1080p - 20m

User's Guide

G4-0057A

P/N: HDwireless10x1

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

download.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance

to avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the HDMI cables in/out when

the device is in use to avoid cable damage.

Make sure they are plugged into the correct

ports

• Use the included DC5V power adapters

only. Make sure the specification matches

if using 3rd-party DC power adapters

Introduction

The 10x1 Wireless HDMI Extender Kit 1080p -

20mextendshighdefinition1080pHDMIsignals

from a source device to a display device up to 20

meters.

Note: Wireless transmission distance will

vary due to the environment conditions.

Thick walls, brick, glass or electronic

interference will shorten the wireless

transmission distance or cause signal loss.

Features

• Short distance wireless extension ideal for

meeting/conference room applications.

Supports up to 66 feet (20m) in 1080p with

auto quality adjustment

• Supportsupto10Transmitters to1Receiver.

Users can switch source devices to transmit

by hitting the switch button on the

appropriate Transmitter

• AdditionalTransmitters (part # HDwireless

10x1-TX) are sold separately

PackageContents

Transmitter (TX)

Receiver (RX) Power Adapter User's Guide

HDMI (M) to

HDMI (F) Cable

Micro USB Cable

Installation Requirements

1. HDMI source device (computer, DVD

player, etc)

2. HDMI display device (SDTV/Monitor,

HDTV/Monitor, projector, etc.)

Product Layout

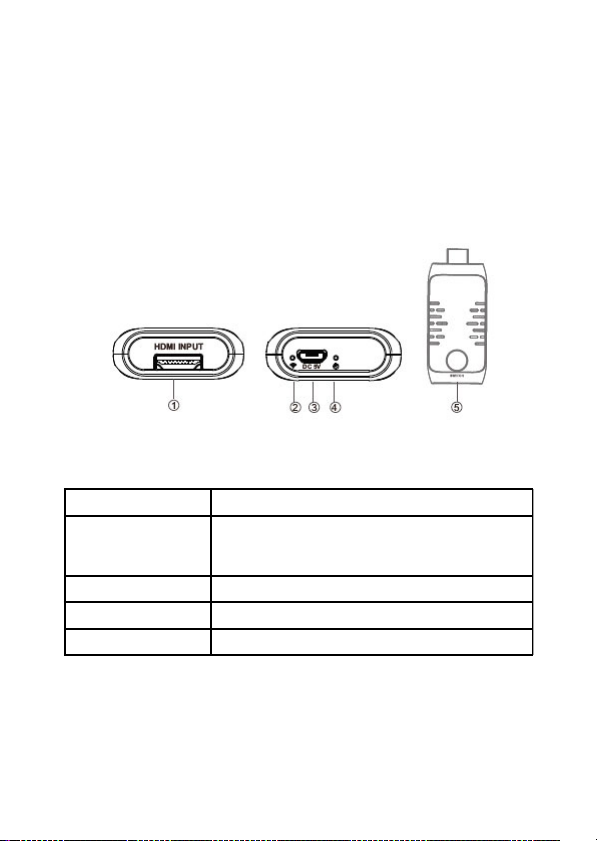

Figure 1: Transmitter (TX)

1. HDMI Input Connects to the HDMI source device

2. Connection LED

Lights up when HDMI source is detected

Blinks slowly when wireless signal is linked

Blinks fast when wireless signal is transmitting

3. Power Jack Connect the Micro USB cable here (optional)

4. Power LED Lights up when Transmitter is powered on

5. Switch Button Selects the transmitter as the source signal

Figure 2: Receiver (RX)

Hardware Installation

1. Power off all devices including your HDMI

source and HDMI display.

2. Connect your HDMI source device to the

Transmitter's HDMI Input with an HDMI

cable (HDMI cable not included).

3. Connect your HDMI display to the

Receiver's HDMI Output with an HDMI

cable (HDMI cable not included).

1. Power Adapter Jack Connects to the included power adapter

2. Connection LED On when powered on

Blinks when wireless connection is linked

3. Data Transmission LED On when transmitting data, otherwise it's off

4. HDMI Output Connects to the HDMI display device

5. Antenna Transmits wireless signals

4. Optional: Connect the included Micro USB

cable between the Transmitter's Power Jack

and USB power port or USB charger. This

connection is needed only if the extender is

not working properly.

5. Plug the included power adapter into the

Receiver's power jack, then plug the power

adapter into a reliable power source.

6. Power on the HDMI source and HDMI

display device.

7. The Wireless HDMI extender is ready for

use.

Application

One to One Connection

Transmitter

Receiver

HDMI

Cable

Display

HDMI Source

(Computer, DVD, etc.)

Power Adapter

One to Many Connection

Supports up to 10 Transmitters to 1 Receiver.

AdditionalTransmitters (part #HDwireless10x1-

TX) sold separately.

HDMI

Cable

Receiver

Transmitter

Power Adapter

HDMI Source

(Computer, DVD, etc.)

HDMI Source

(Computer, DVD, etc.)

FAQ & Solutions

Q: The Transmitter and Receiver can't connect

to each other:

A: 1) Please check if the Connection LED on

Transmitter and Receiver are blinking.

2) Power cycle the transmitter and receiver.

3) Make sure the HDMI cable is firmly

connected to the display.

4) Change the position of the transmitter

and receiver and make sure they are within

the required signal range.

Q: The Transmitter's Connection LED is on

but no image on the display:

A: 1) Reconnect the HDMI cable to the display.

2) Connect the HDMI source directly to the

display to see if there is a signal.

Q: The display is not clear or stable:

A: 1) Change the position of the transmitter

and receiver and make sure they are within

the required signal range.

2) Reconnect the HDMI cable.

3) Power cycle the transmitter and receiver.

4) Remove other wireless signals and move

any obstacles that are blocking the signal.

Specifications

Item Specification

HDMI Compliance HDMI 1.3

HDCP Compliance HDCP 1.2

Wireless Transmission 5.0 GHz

Wireless Latency <200ms

Resolution 480P@60Hz, 576p@50Hz,

720p@50/60Hz, 1080p@50/60Hz

Transmission Distance Up to 66ft (20 meters)

Housing Material Plastic

Power Adapter (RX only) Output: DC5V/2A

Power Consumption TX: <2W / RX: <5W

Operating Temperature 32° - 122° F (0° - 50° C)

Storage Temperature 14° - 158° F (-10° 0 70° C)

Humidity 0% - 90% (non-condensing)

Product Dimension TX: 3.49" (L) x 1.53" (W) x 0.60" (H)

RX: 5.44" (L) x 3.37" (W) x 0.76" (H)

Weight TX: 0.04 lbs / RX: 0.26 lbs
