Gefen CAT5-5000HD Manual de usuario
CAT5 • 5000HD
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
CAT5•5000HD is a trademark of Gefen Inc.
Macintosh is a trademark of Apple Computer Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
How It Works
CAT5•5000HDS Back Panel Layout
CAT5•5000HDS Back Panel Function Descriptions
CAT5•5000HDR Back Panel Layout
CAT5•5000HDR Back Panel Functions Descriptions
Link Cable Wiring Diagrams
CAT5•5000HD - Wiring Diagram
Service Switch Usage Guide
Frequently Asked Questions
Terminology
System Specifications
Warranty
1
2
3
4
5
6
7
8
9
10
11
12
13
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE CAT5•5000HD SYSTEM
* The CAT5•5000HD units are housed in a metal box for better RF shielding.
* In order to extend the full 50 meters you need a high quality CAT5e cable.
* CAT6 cable is suitable for high resolutions at 50 meters.
* If using a ADC-DVI Adapter, the "5V to cable" jumper by the input connector on the
sender unit needs to be enabled.
OPERATION NOTES
INTRODUCTION
Thank you for purchasing the new ex•tend•it CAT5•5000HD series by Gefen, Inc.
The ex•tend•it CAT5•5000HD by Gefen allows users the benefits of extending dual DVI
displays and USB beyond the desktop. In a growing number of applications, broadcast
stations and production facilities need to locate a computer remotely from the keyboard,
mouse, and video monitor. A CPU may need to be shared between several users, for ex-
ample, or moved to another room because of annoying fan noise.
The CAT5•5000HD series can be used to extend computers with noisy fans, printers, hard
drives, scanners, cameras, keyboards, mouse, and any other USB. With the potential to
cover the distance of 150 feet, industry standard Category 5 (CAT-5) cables are used for
the extension of all the devices.
1
2
CONTENTS
The CAT5•5000HD system consists of:
--- (1) CAT5•5000HDS sender unit
--- (1) CAT5•5000HDR receiver unit
--- (2) 5 VDC power supplies
--- (2) DVI to HDMI cable M-M (6FT)
--- (1) USB cable (06FT)
--- (1) User Manual
HOW IT WORKS
The CAT5•5000HD sender unit sits next to your computer. The cables supplied with the
CAT5•5000HDconnectsyourDVI source(s)and USBto thesend unit.TheCAT5•5000HD
receiver unit sits next to your DVI displays - up to 150 feet away. The displays and USB
plug into the back of the CAT5•5000HD receiver unit. Four CAT-5 cables connect the
CAT5•5000HD-S and the CAT5•5000HD-R units to each other.
HOW IT WORKS

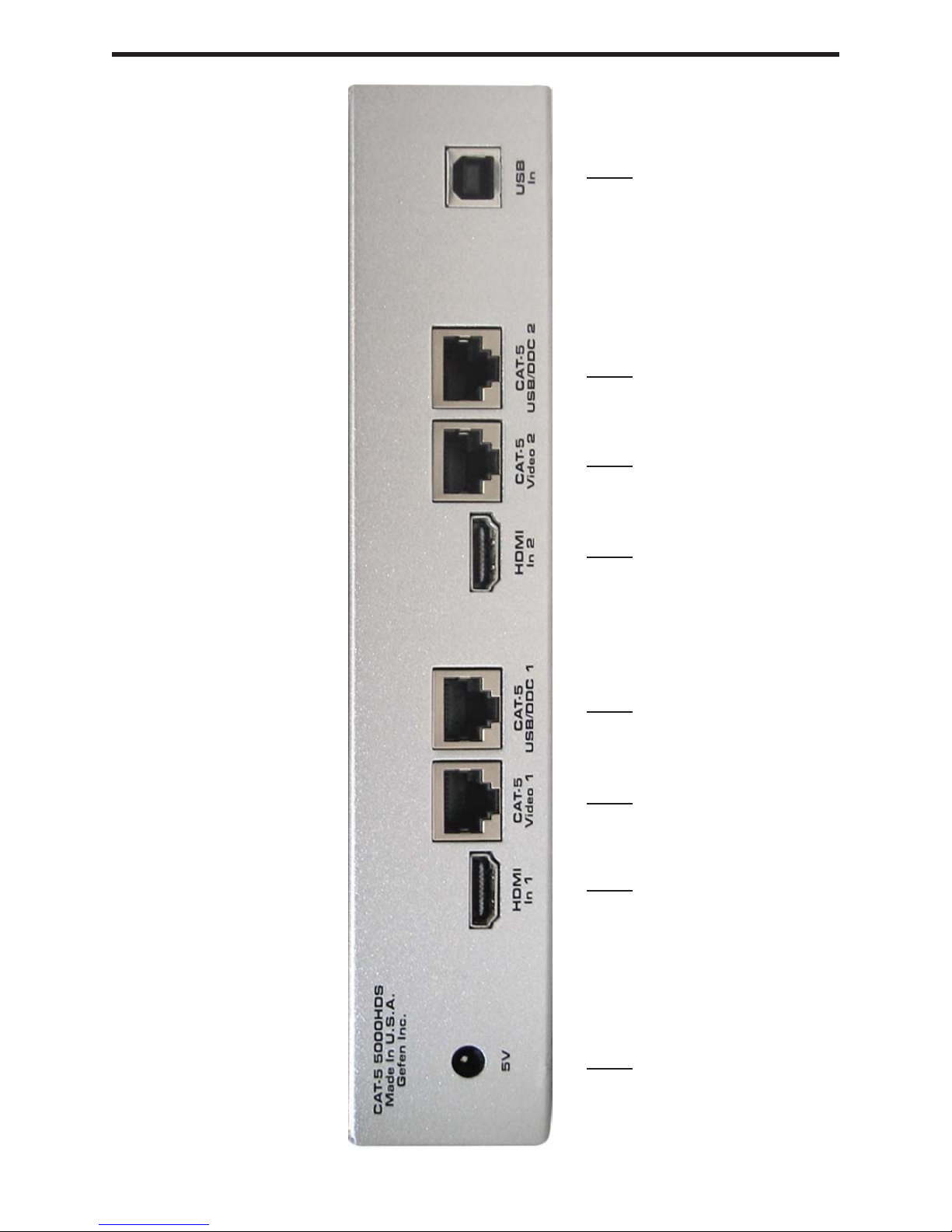

CAT5•5000HDS BACK PANEL LAYOUT
3
1234567 8
CAT5•5000HDS BACK PANEL FUNCTIONS
POWER - 5 VDC external power supply
HDMI IN 1 - HDMI Input connects to your computer with the supplied DVI to HDMI cable
CAT5 Video 1 - RJ-45 input extends HDMI input 1 with CAT-5 cable
CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable
HDMI IN 2 - HDMI Input connects to your computer with the supplied DVI to HDMI cable
CAT5 Video 2 - RJ-45 input extends HDMI input 2 with CAT-5 cable
CAT5 USB/DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5 cable
USB IN - USB Input from computer
4
1
2
3
4
5
6
7
8
CAT5•5000HDR BACK PANEL LAYOUT
5
12 3 4 5 6 7 8
CAT5•5000HDR BACK PANEL FUNCTIONS
6
POWER - 5 VDC external power supply
CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable
CAT5 Video 1 - RJ-45 input extends video input 1 with CAT-5 cable
DVI OUT 1 - DVI output connects to the monitor 1 for local video
CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable
CAT5 Video 2 - RJ-45 input extends video input 2 with CAT-5 cable
DVI OUT 2 - DVI output connects to the monitor 2 for local video
USB OUT - USB Output to devices
1
2
3
4
5
6
7
8
