Gefen Ex-tend-it CAT5-1500 Manual de usuario

www.gefen.com

CAT5•1500

EXT-CAT5-1500

USER MANUAL

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

CAT5•1500 is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

Rev X1

TABLE OF CONTENTS

Introduction

Box Contents

How it works

Operation Notes

CAT5•1500 Front Panel Layouts

CAT5•1500S Send Unit Back Panel

CAT5•1500S Back Panel Function Descriptions

CAT5•1500R Back Panel Layout

CAT5•1500R Back Panel Functions

CAT5 Cable Length Setup

Link Cable - Wiring Diagram

CAT5•1500 Wiring Diagram

System Speciﬁcations

Warranty

Thank you for purchasing the new ex•tend•it CAT5•1500 series.

The ex•tend•it CAT5•1500 allows users the beneﬁts of extending VGA, USB, and audio

signals beyond the desktop. In a growing number of applications, broadcast stations and

production facilities there is a need to control a computer remotely. The keyboard, mouse,

andvideomonitorare relocatedto theremote side.ACPUmay needto beshared between

several users or moved to another room because of annoying fan noise.

The CAT5•1500 can be used to extend computers with printers, hard drives, scanners,

cameras, keyboards, mouse, and any other USB-type devices. The CAT5•1500 has the

potential to extend the distance of 330 feet over industry standard Category 5 (CAT-5)

cable. One can connect multiple CAT5•1500 units to the same computer, allowing access

to the same computer from different locations up to 330 feet apart.

INTRODUCTION

The CAT5•1500 system consists of:

(1) CAT5•1500S sender unit

(1) CAT5•1500R receiver unit

(2) 5 VDC power supply

(1) Video cable (6 FT)

(1) USB cable (6 FT)

(1) Audio cable (6 FT)

(1) User Manual

BOX CONTENTS

Initsmostbasicapplication, theCAT5•1500Ssender unitresidesnext tothecomputer.With

the supplied VGA, USB, and audio cables, they connect the computer to the CAT5•1500S

sender unit.

The CAT5•1500R receiver unit and USB peripherals are placed next to the moni-

tor. The monitor and USB devices are connected to the CAT5•1500R in the

same way they are connected to the back of the computer (PC or Macintosh).

Industry standard Category 5 (CAT-5) cables are used to link CAT5•1500S sender and

CAT5•1500R receiver units together. The VGAsignals are extended by one CAT-5 cable.

While USB and audio signals are extended with a second CAT5-cable.

HOW IT WORKS

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE CAT5•1500 SYSTEM

* Industry standard Category-5 (CAT-5) cables are used to link the CAT5•1500 sender

and receiver boxes together.

* When two monitors are used in the local and remote locations, the video monitors must

be a multi-resolution type. This pertains to monitors placed remotely, and those divided

between local and remote locations. The video monitors will not initialize correctly at start-

up if they are different types.

* The CAT5•1500 units are housed in a metal box for better RF shielding.

OPERATION NOTES

Front Panel Function Descriptions

POWER ON INDICATOR - Indicates that the unit is plugged in and powered on

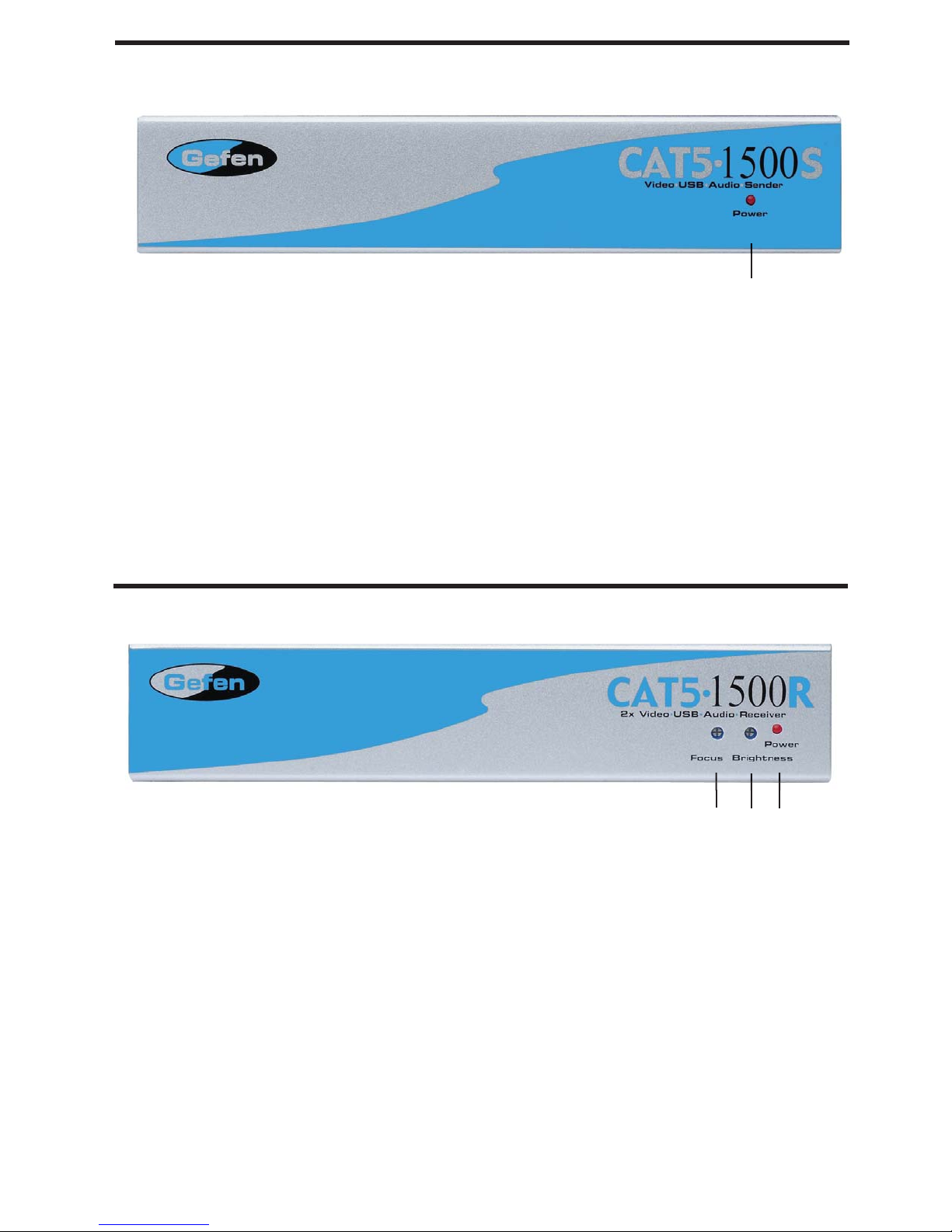

CAT5•1500S FRONT PANEL LAYOUT

CAT5•1500R FRONT PANEL LAYOUT

Front Panel Function Descriptions

Focus - Fine focus adjustment for video

BRIGHTNESS - Adjusts the video brightness

POWER ON INDICATOR - The red LED indicates that the unit is powered on

123456

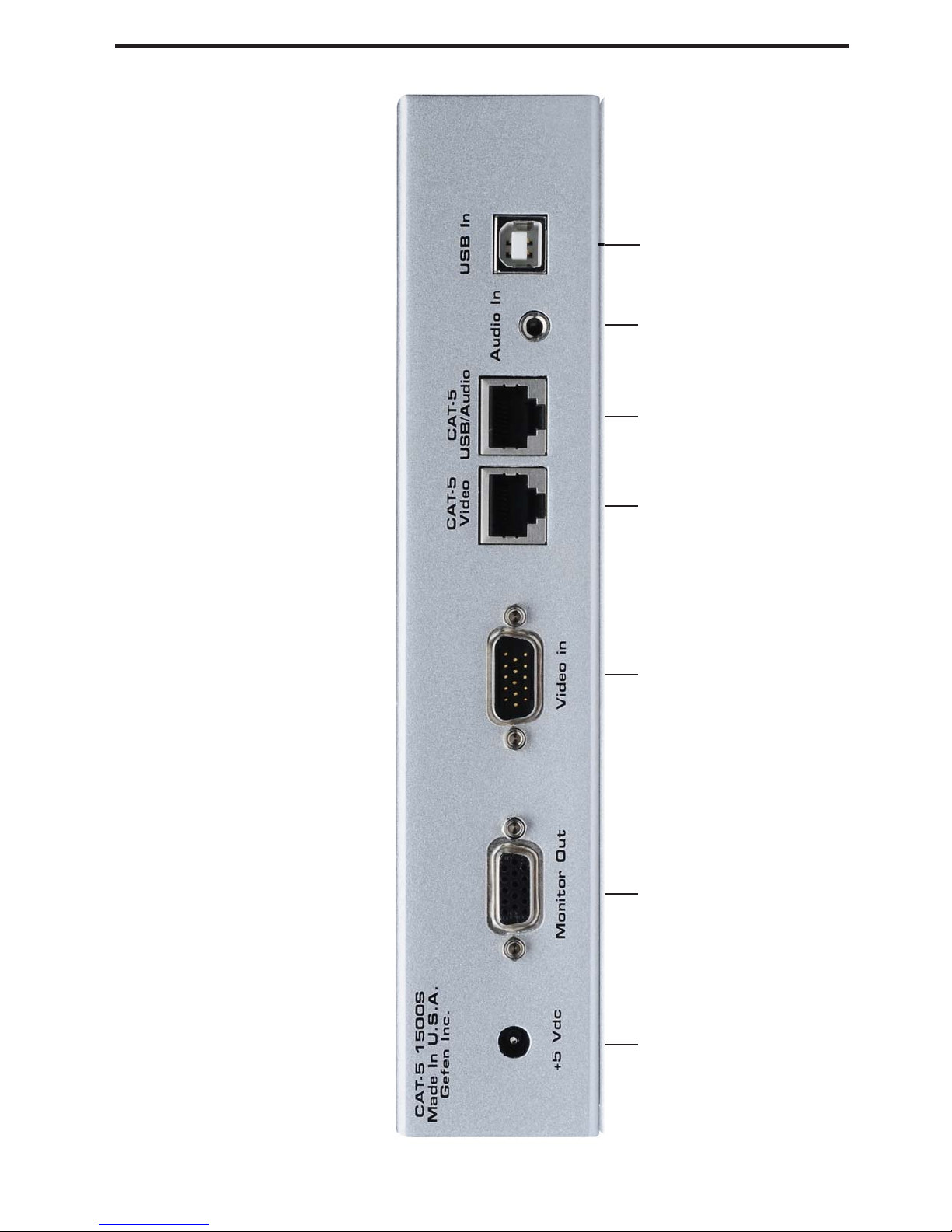

CAT5•1500S SEND UNIT BACK PANEL

POWER - 5 VDC external power supply

MONITOR OUT - HD15 output connects to the monitor for local video

VIDEO IN - HD15 input from computer

CAT-5 VIDEO - RJ-45 input extends VGA signals with CAT-5 cable

CAT-5 USB/AUD - RJ-45 input extends USB, and audio signals with CAT-5 cable

AUDIO - Audio mini Jack input from computer

USB IN - USB Input from computer

CAT5•1500S BACK PANEL FUNCTIONS
