Gefen PS2-100 Manual de usuario

PS/2 Extender

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

PS/2 Extender is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the PS/2 Extender

Speciﬁcations

Warranty

Congratulations on your purchase of the Gefen PS/2 extender. Your complete satisfac-

tion is very important to us.

Gefen’s line of KVM (Keyboard Video & Mouse), ADC, DVI, USB, switches, extenders,

converters and splitters is designed to make computer use more comfortable, more

productive and less expensive. KVM switches allow access to multiple computers from

a single keyboard, while the extenders give the user control over a computer up to 330

feet away from the work area. Gefen products offer solutions for noise, space and se-

curity concerns, data center control, information distribution, conference room presenta-

tion, and school and corporate training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of free support from a team of outstanding engineers.

The Gefen PS/2 extender allows PS/2 keyboard and mouse ports to be extended up to

1000 feet using CAT-5 cables. The PS/2 extender send unit is connected directly to the

computer with the supplied PS/2 cable. A CAT-5 cable is used to connect the PS/2

extender send unit to the PS/2 extender receive unit. The PS/2 extender keeps your

desk clutter-free, allowing the relocation of your computer to a safe and secure area,

while allowing you to work in a quieter environment

INTRODUCTION

FEATURES

Features

• Extends PC computers with PS/2 Keyboard and Mouse

• Extends Projectors with PS/2 Mouse

• 1000 feet (300 meters) extension using one CAT-5 cable

Includes:

(1) PS/2 Extender S Sender Unit

(1) PS/2 Extender R Receiver Unit

(2) 6 foot PS/2 cables (M-M)

(1) 5V external power supply

(1) User's Manual

PANEL DESCRIPTIONS

CONNECTING AND OPERATING THE PS/2 EXTENDER

How to Connect the PS/2 Extender

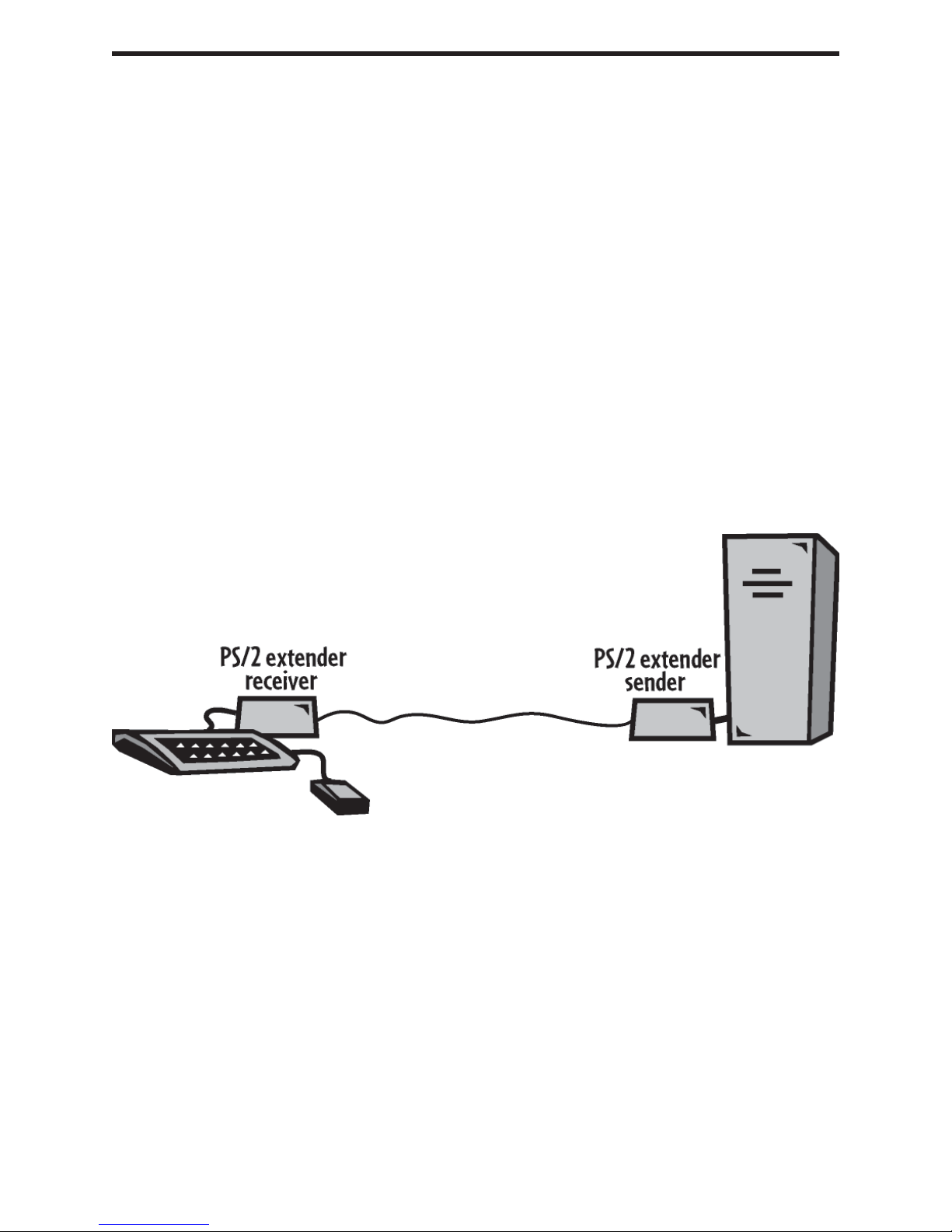

1- Connect the supplied PS/2 cables from the computers PS/2 port into the PS/2

extender send unit.

2- Connect the CAT5 cable from the send unit to the receive unit.

3- Connect your keyboard and mouse in the PS/2 extender receiver unit.

4- Plug the 5 volt power supply into the PS/2 extender send unit. *

5- Restart your computer only after you’ve made all the connections.

* NOTE: The power supply is optional and is not required except when the +5V

level coming from the computer is below 4.0VDC tolerance.

SPECIFICATIONS

PS/2 Connector .................................................................................................. MiniDin 8

Link Connector ......................................................................................... RJ-45 Shielded

Power Consumption .................................................................................. 5 Watts (max.)

Power Supply .......................................................................................................... 5VDC

Dimensions ..................................................................................... 1.4”W x 1”H x 3.75”D

Shipping Weight ....................................................................................................... 3 Lbs

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two

(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace

the equipment, provided that the equipment has not been subjected to mechanical,

electrical, or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the of repair. Such repairs are warranted for

ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose,

all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

The information in this manual has been carefully checked and is believed to be

accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may

be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,

special, incidental, or consequential damages resulting from any defect or omission

in this manual, even if advised of the possibility of such damages. The technical

information contained herein regarding PS/2 Extender features and speciﬁcations is

subject to change without notice.

WARRANTY
