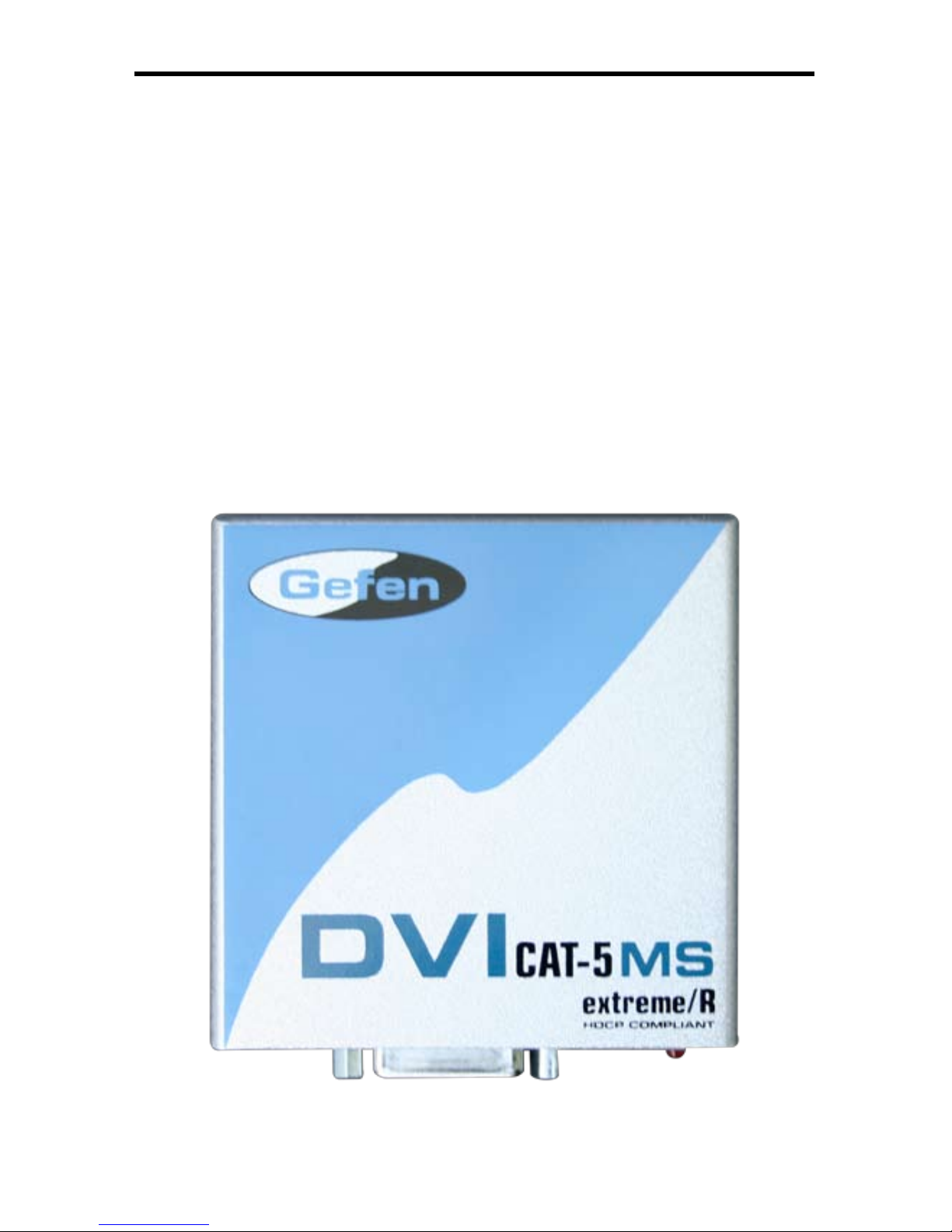

DVI CAT-5
MS EXTREME
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The DVI CAT-5 MS Extreme is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
DVI CAT-5 Extreme Sender Front Panel Descriptions
DVI CAT-5 MSR Extreme Receiver Front Panel Descriptions
How To Connect The DVI CAT-5 MSR Extreme
Dip Switch Usage Guide
CAT5 Link Cable - Wiring Diagram
Mounting Plate Installation
Troubleshooting
Terminology
Specications
Warranty
1
2
3
4
5
6
7
8
9
10
11
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE DVI CAT-5 MS EXTREME EXTENDER
• The DVI CAT-5 MS Extreme units are housed in a metal box for better RF
shielding.
• Your CAT-5 cable should not exceed 300 feet.
• If you do not need DDC or HDCP data you can use a single CAT-5 cable for
the video only. The DDC will not be connected. (For further information, see our
Terminology section on page 9.) If HDCP is required, both CAT-5 cables must be
used between the sender and receiver units.
• If the source requires EDID present, you can use the Gefen DVI Detective to
provide EDID information to your source but will not transmit HDCP.
• Shielded CAT6 with metal RJ-45 connectors is recommended to protect from
random ashes caused by EMI.
• Power supply for the receiver should not be connected unless you are using one
CAT5 or going over a distance of 200ft.
• Extensions over 130ft. require you to manually EQ your signal (see page 4).
• Extensions under 130ft. use Auto EQ (which is on by default) (see page 4).
• The extender is factory set to Auto EQ which will work for distances under 130 ft.
OPERATION NOTES
INTRODUCTION
The DVI CAT-5 MS Extreme sender unit sits next to your computer, DVD player or any
set-top box with a DVI output. The cable supplied with the DVI CAT-5 MS Extreme
connects your DVI source to the sender unit. The DVI CAT-5 MSR Extreme receiver unit
sits next to your DVI display - up to 300 feet away. The display plugs into the back of the
DVI CAT-5 MSR Extreme receiver unit. Two CAT-5 cables connect the DVI CAT-5
Extreme-S and the DVI CAT-5 MSR Extreme-R units to each other.
CONTENTS
The DVI CAT-5 MSR Extreme system consists of:
(1) DVI CAT-5 Extreme-S
(1) DVI CAT-5 MSR Extreme
(1) 6 ft DVI to DVI Cable M-M
(2) DVI CAT5 Wall mounts
(2) 5V DC power supply
(1) User's Manual
1
2
DVI CAT-5 EXTREME SENDER FRONT PANEL DESCRIPTIONS
DVI Input connects to
DVI source
Connects to 5 volt
power supply
CAT-5 carries
TMDS signals
CAT-5 carries
DDC/HDCP signals
Power Indicator
DVI CAT-5 MSR EXTREME RECEIVER FRONT PANEL DESCRIPTIONS
Connects to DVI display
CAT-5 carries
TMDS signals
CAT-5 carries
DDC/HDCP signals
Connects to 5 volt
power supply
Power Indicator
EQ trim pod
3
4
Connect your display to the DVI CAT-5 MSR Extreme receiver unit.
Connect your source to the DVI CAT-5 Extreme sender unit
Connect your CAT-5 cables between the sender and the receiver
Plug the 5V power supply into the DVI CAT-5 MSR Extreme sender and
receiver unit
You should now have picture. If you do not see a picture, try unplugging and
re-plugging the DVI input on the DVI sender unit. Make sure your CAT-5 cables
are not crossed. Recycle the power on the unit.
* If any problems arise take a look at the troubleshooting page (see page 8).
HOW TO CONNECT THE DVI CAT-5 MS EXTREME
1
2
3
4
5
HOW TO USE THE EQ TRIM POT
The EQ trim pot is used extensions over 130 ft. By default, the DVI Extreme comes
set to "Auto EQ" (with dip switch 1 OFF). Underneath the receiver is a bank of dip
switches, hidden by a blank sticker, and if you ip dip switch 1 ON you can turn off
the "Auto EQ" so that you can manually EQ your signal by using the EQ trim pot on
the receiver. If you ip dip switch number 1 back to the OFF position you can set
the DVI Extreme back to "Auto EQ". Auto EQ works best when the sender is set to
"NO BOOST" (see page 5). Auto EQ also works best up to 130 ft reliably. If you are
using the DVI CAT5 Extreme beyond any distance of 130 ft., then It is best if you
manually EQ your signal.
USING THE TRIMPOT
Have both of your CAT5 or CATs6 cables connected.
Start by having the source connected and playing with your display on.
Set the sender to medium boost.
Start with the trimpot all the way counter clockwise and slowly turn the trim pot
clockwise.
1
2
3
4
If you do not get a picture still or have noise, set the sender to high boost and try to
re-EQ your signal.
SERVICE SWITCH USAGE GUIDE
The sender unit of the Gefen CAT5 MS Extreme contain a set of service switches
(also called dip switches) located underneath the unit. Peeling back the silver
sticker on the bottom of the unit will reveal the service switch bay. These service
switches are used to boost the signal to best match the conditions in your setup.
(*Note: Adjustments should be done with sources and display on. Switches 3 and 4
are not used.)
Sender Dip Switch Settings
Setting Switch 1 Switch 2
No Boost OFF ON
Normal Boost (Default) OFF OFF
Strong Boost ON OFF
Receiver Dip Switch Settings
Setting Switch 1 Switch 2
Manual EQ ON OFF
Auto EQ OFF OFF
Adjustment Guidelines:
1) Strong boost should not be used on stranded cables. Strong boosting will
cause pixels or no picture on these cables.
2) Using the wrong settings will not damage the units; it will either produce no
image or a noisy image.
3) To eliminate the possibility of cross talk and interference, cables must be
terminated with 568B scheduling. (See page 6 for details)
4) No Boost should be set when using Auto EQ.
5
6
CAT5 LINK CABLE - WIRING DIAGRAM
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
1818
