Gefen DVI-CAT5-4X Manual de usuario

www.gefen.com

DVI CAT5 4X

Extender

EXT-DVI-CAT5-4X

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

DVI CAT5 4X Extender is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

ASKING FOR ASSISTANCE

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Descriptions

5 Receiver Panel Descriptions

6 Connecting And Operating The DVI CAT5 4X Extender

7 Manual Equalization Procedure

8 Dip Switch Location Diagram

9 Network Cable Wiring Diagram

10 Rack Mount Installation

11 Mounting Plate Installation

12 Speciﬁcations

13 Warranty

Congratulations on your purchase of the DVI CAT5 4X Extender. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen DVI CAT5 4X Extender

The DVI CAT5 4X Extender is the perfect solution for anyone who needs to send

multiple (up to four) DVI video sources to multiple (up to four) DVI displays in

remote locations at the same time.

The DVI CAT5 4X Extender has 4 DVI video inputs. The DVI sources are sent to

up to four DVI CAT5 MS receivers via industry standard CAT-5, CAT-5e or CAT-6

cables. Distances of up to 300 feet for 1080i video, and 150 feet for 1080p video

are possible. Signal auto-equalization is set by default and will provide optimal

image reproduction for cable runs of 130 feet or less. Manual equalization is

available for cable runs at greater distances.

How It Works

Connect your DVI video sources to the DVI CAT5 4X Extender’s inputs using the

supplied DVI cables. Run two CAT-5, CAT-5e or CAT-6 network cables from the

DVI CAT5 4X Extender to each of the DVI CAT5 MS Receivers. Lastly, connect

up to four DVI displays to the DVI CAT5 MS receivers at the remote locations.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE DVI CAT5 4X EXTENDER

The• DVI CAT5 4X Extender and DVI CAT5 MSR units are housed in a metal

box for better RF shielding.

The maximum cable extension is 300 feet (91 meters) for video resolutions• of 1080i and below.

The maximum cable extension is 150 feet (45 meters) for video resolutions• of 1080p.

The DDC cable (for each pair or extensions) does not need to be run if the• source does not require HDCP or DDC. In this scenario, a single CAT-5,

CAT5e or CAT-6 cable for the video can be run. If DDC is still required while

HDCP is not, the use of an EDID storage device (part# EXT-DVI-EDIDN,

EXT-DVI-EDIDP) can be used to transmit DDC information back to the

source with this single cable solution.

If EMI is present anywhere near the RJ-45 video cable runs, it may• be necessary to use shielded RJ-45 cable. This is to prevent possible

interference from degrading the video signal. Using shielded cable, however,

will reduce the maximum distance that the RJ-45 cable can be run.

Power supply for the receiver should not be connected unless you are using• the single CAT-5, CAT-5e or CAT-6 cable solution listed above.

Extensions under 130 feet can use Auto EQ (which is on by default).• Extensions over 130 feet will require you to manually EQ your signal (see

page 5).

Each cable run must be one continuous run from one end to the other. No• splices or use of punch down blocks.

High quality CAT-6 cabling should be used for maximum performance.•

Do not use stranded or low/no skew cabling. Solid core cabling should be• used for maximum performance.

HDCP Compliant.•

OPERATION NOTES

Features

Easily distribute four DVI sources to four remote DVI displays•

Extends video signals up to 300 feet over CAT-5, CAT-5e or CAT-6 network• cable

Maintains 1920 x 1200, 1080p, and 2k resolution video•

Package Includes

(1) 4X DVI CAT5 Sender

(4) DVI CAT5 MS Receivers

(4) 6 foot DVI cable (M-M)

(4) 5V DC power supply

(1) 24V DC power supply

FEATURES

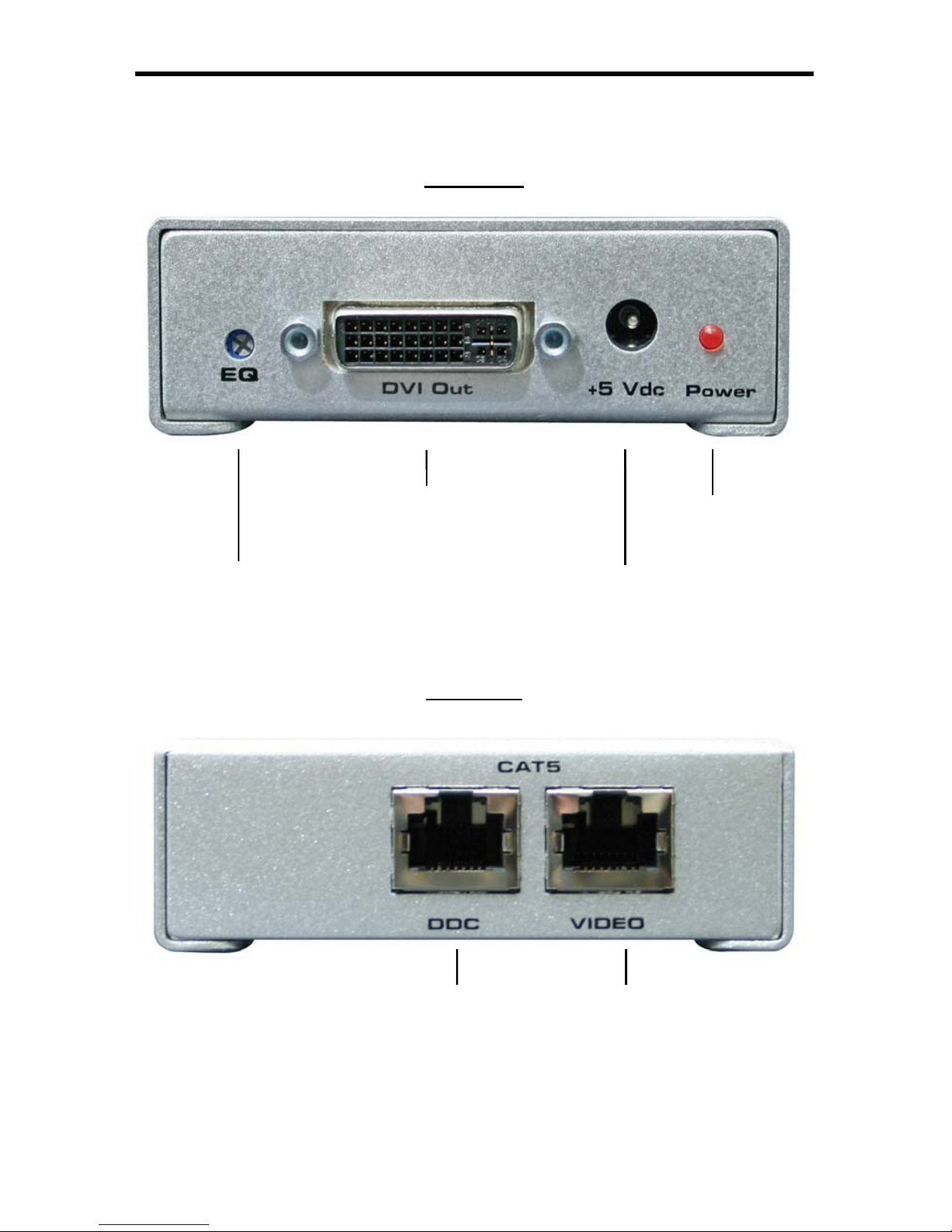

Front Panel

Back Panel

Front

Panel

Video 4

RJ45 Outputs

Video 4

DVI Input

Power LED

Video 3

DVI Input

Video 2

DVI Input

Video 1

DVI Input

24V DC Power Input

Video 3

RJ45 Outputs

Video 2

RJ45 Outputs

Video 1

RJ45 Outputs

SENDER PANEL DESCRIPTIONS

Front Panel

Back Panel

DVI Output

VIDEO

RJ-45 Input

DDC

RJ-45 Input

5V DC

Power Input

Power LED

Indicator

EQ trim pot

RECEIVER PANEL DESCRIPTIONS

How to Connect the DVI CAT5 4X Extender

Connect your sources (up to four) to the DVI CAT5 4X Extender unit’s DVI1. inputs using the supplied DVI cables.

Connect your displays (up to four) to the DVI CAT5 MSR receiver unit’s2. DVI outputs using user supplied DVI cables.

Connect both CAT-5, CAT-5e or CAT-6 cables (DDC and Video) between3. the DVI CAT5 4X Extender and each DVI CAT5 MSR receiver.

NOTE: If ﬁeld terminating network cable, please adhere to the TIA/EIA-568-B

standard. Please see page 9 for more information.

Plug the 24V power supply into the DVI CAT5 4X Extender sender.4.

NOTE: In most scenarios, the 5V DC external power supply for the receiving

units will not be required. Operational power is supplied by the sending unit via

the connected DDC CAT-5, CAT-5e or CAT6 cable. If the power LED indicator on

the receiving units are not on, please check to make sure that the RJ-45 cables

are not crossed (DDC to video and video to DDC).

Power on the displays.5.

Power on the sources.6.

NOTE: If an image is not being shown on the display, please check all cabling for

proper connections and follow the steps outlined below and in the next section.

DVI CAT5 4X EXTENDER CONFIGURATION

The DVI CAT5 4X Extender and DVI CAT5 MSR receivers have built-in auto

equalization that will automatically tune out any unwanted video noise. This

feature is reliable with premium cable runs up to a maximum of 130 feet. It may

be necessary to disable this feature if there is either no video being displayed on

initial start-up, there is video noise in the image, or the cable run exceeds 130

feet. First, verify that all the proper connections have been made and that all

devices are powered on before attempting to disable auto equalization. Please

follow the section on the next page to manually equalize the video signal.

CONNECTING AND OPERATING THE DVI CAT5 4X EXTENDER

MANUAL EQUALIZATION PROCEDURE

The DVI CAT5 4X Extender and DVI CAT5 MSR receiver units both have sets of

dip switches located on the underside of their casings. There is a piece of silver

metallic tape that must be removed to expose these dip switches. The DVI CAT5

4X Extender unit carries 4 banks of 4 dip switches. Each DVI CAT5 MSR receiver

carries one bank of 4 dip switches. Dip switches 1 and 2 on both the sending and

receiving units are used in this procedure. Dip switches 3 and 4 are not used. By

default, dip switch 2 on each bank of the DVI CAT5 4X Extender should be in the

ON position, and all dip switches on each DVI CAT5 MSR receiving unit should

be in the OFF position (Auto EQ On). To turn off auto equalization, turn dip switch

1 on the receiving units to the ON position (Auto EQ off). With these settings,

please follow the steps below to equalize the picture.

Insert a small ﬂat head tool into the trim pot on the receiver unit.1.

Turn the trim pot in a clockwise fashion until it comes to a stop. Do not force2. the trim pot beyond this point. Doing so may render the trim pot useless.

Slowly turn the trim pot counter-clockwise in millimeter increments until the3. image stabilizes and all video noise disappears.

Carefully remove the adjustment tool.4.

NOTE: If your cable run is beyond 130 feet, or the steps above do not produce

any video, it may be necessary to increase the boost from the sending unit. Use

the chart below to increase the senders to medium boost by changing the DVI

CAT5 4X Extender’s dip switches. Once a new boost setting is set, repeat steps

1 through 4 from above. If this still does not produce and image, increase the

boost to high and repeat the EQ process.

Sender Dip Switch Settings

Setting Switch 1 Switch 2

Medium Boost OFF OFF

No Boost (Default) OFF ON

High Boost ON OFF

NOT USED ON ON

Receiver Dip Switch Settings

Setting Switch 1 Switch 2

Manual EQ ON OFF

Auto EQ (Default) OFF OFF
