Front Runner TOYOTA 4RUNNER Manual de usuario

front runner

LATF002

ENG

Thank you for purchasing a Front Runner Toyota 4Runner Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOYOTA 4RUNNER LADDER

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

IN THE BOX

1 1 X Ladder Top Step Bracket

2 2 X Ladder Side Proﬁle

3 1 X Bottom Mount Bracket

4 1 X Bottom Clamp Bracket

5 1 X Bottom Inner Mount PLT

6 3 X Ladder Step

7 6 X Thread Forming Screw M6 x 25

8 6 X M6 x 16 Flange Button Head Bolt

9 3 X M6 x 25 Button Head Bolt

10 4 X M8 x 30 Button Head Bolt

11 4 X Aluminium Spacer 10mm

12 3 X M6 Cage Nut

13 4 X M8 Nyloc Nut

14 6 X M6 Nyloc Nut

15 6 X M6 Nut Cap

IN THE BOX

16 4 X M8 Nut Cap

17 1 X U-Channel Rubber (200mm Long)

18 1 X M8 x 45 Button Head Bolt

19 1 X M8 Hex Nut

Torx

T30 Anti-

Rust

Anti-

Seize

4mm

5mm

4mm

7mm

Marker

10mm

13mm

Masking

Tape

Denatured

Alcohol

3 10

16 19

Torque Wrench

100mm

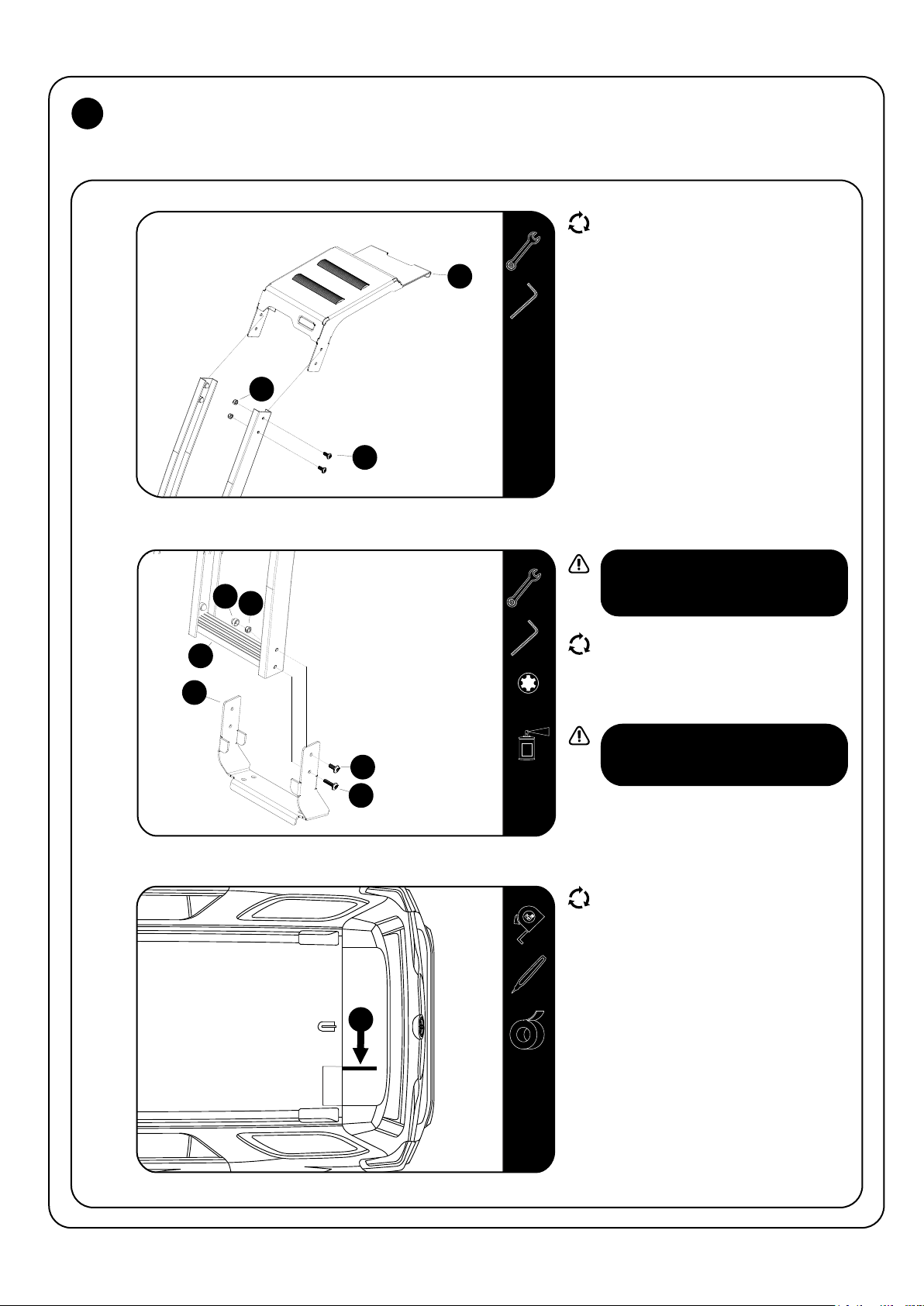

FIT AND SECURE

2.1

2.2

2.3

Loosly assemble both Ladder Side Proﬁles

(Item 2) to the Ladder Top Step Bracket

(Item 1) using the Top Mount Brackets, M6

x 16 Flange Button Head Bolts and M6 Nyloc

Nuts (Items 8 & 14).

Secure the Bottom Mount Bracket and

Ladder Rungs (Item 3 & 6) to the Ladder

Side Proﬁles (Item 2) using M6 x 25 Thread

Forming Screws, M6 x 16 Flange Button

Head Bolts and M6 Nyloc Nuts (Items 7, 8 &

14). Fully Tighten all Fasteners.

Place M6 Nut Caps (Item 15) over all Nyloc

Nuts.

Measuree 100mm from the inside edge of

the spoiler trim, along the hatch edge and

mark with masking tape (A) as shown.

Apply a little Anti Seize / oil on Thread

Forming Screws before inserting. Note

these are thread forming screws.

Tightening Torque 8-10Nm /

5.9 ft lb - 7.38 ft lb. Take care when

using a cordless driver.

10mm

4mm

10mm

4mm

Torx

T30

Anti-

Seize

FIT AND SECURE

2.4

2.5

2.6

Clean the surface where the Top Mount

Bracket (Item 5) will be secured with

de-natured alchohol.

Hook the Ladder assembly from 2.1 and 2.2

over the Top Mount Bracket.

Position the Ladder assembly next to the

masking tape.

Making sure it is level, mark the Bottom

position of the ladder with masking tape as

shown (A).

Remove the Ladder assembly.

Open the Rear hatch and remove the left

hand side handle as shown.

Denatured

Alcohol

FIT AND SECURE

2.7

2.8

2.9

Place the U-Channel Rubber (Item 17) over

the Door Edge where the Bottom Clamp

Bracket (Item 4) will be secured.

Align the left hand side (A) of the the

Bottom Clamp Bracket with the masking

tape applied in 2.5 and press the bracket

up against the door so the the door hatch

sits in the slot (B).

Mark the hole centers (C) as shown. Drill a

4mm Pilot hole and open up to 7mm.

Apply Anti-Rust on drilled holes.

Assemble the M6 Cage Nuts (Item 14) to the

Bottom Inner Plate (Item 7) as shown.

Slide the Bottom Inner Plate into the Door

hatch as shown.

A C

4mm

7mm

Anti-

Rust

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

FIT AND SECURE

2.10

2.11

Secure the Bottom Clamp Plate (Item 4) to

the Bottom Inner Plate (Item 5) using M6 x

25 Button Head Bolts.

Remove the backing tape of the self-adhe-

sive tape on the Ladder Top Bracket (Item

1) and hook the Ladder Assembly over the

the top hatch edge, and align the ladder

on the mark made eariler, take care not to

let the adhesive tape touch the roof. Once

aligned angle ladder down and ﬁrmly press

the top down onto the tailgate top

4mm

Secure the Ladder assembly to the Bottom

Mount Bracket (Item 4) as shown.

Use the M8 x 45 Button Head Bolt and

Standard Nut (Items 18 & 19) in one of the

back holes and start the clamping process,

then use the M8 x 30 Button Head Bolts,

M8 Nyloc Nuts and Aluminium Spacers

(Items 10, 11 & 13) in the other three holes.

Remove te M8 x 45 Button Head Bolt and

standard Nut and replace them with the M8

x 30 Button Head Bolt.

Place M8 Nut Caps (Item 19) over M8 Nyloc

Nuts (Item 19).

TIP: Start with the forward LH and RH

fasteners, alternating between fasteners

to pull the Ladder evenly.

Tightening Torque:

M8 : 15-20Nm / 11.06 ft lb - 14.75 ft lb

13mm

5mm

16 13
