Thank you for purchasing a Front Runner Mercedes Sprinter H2 Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

Mercedes Sprinter H1 Ladder

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

5mm

1 1 X Ladder Top Assembly

2 10 X M6 x 16 Button Head Bolt

3 2 X Ladder Side Top

4 2 X Ladder Side Bottom

5 2 X Outer Joiner Channel

6 2 X Inner Joiner Channel

7 1 X Ladder Base Bracket

8 7 X Rung

9 1 X Ladder Base Mount Assembly

10 14 X M6 x 25 Thread Forming Screw

11 10 X M6 Nut Cap

12 13 X M6 Nyloc Nut

13 3 X M6 x 20 Button Head Bolt

14 3 X M6 x 20 x 2 Flat Washer

IN THE BOX

15 2 X M8 x 19 x 2 Flat Washer

16 4 X M8 Nyloc Nut

17 2 X M8 Nut Cap

18 1 X Top Stopper Rubber

19 2 X M8 x 16 Button Head Bolt

10mm 6.5mm

Torx

T30

Anti-

Rust

Anti-

Seize Marker

Loremipsum

14 13

C(1:1)

FIT AND SECURE2

2.1

2.2

2.3

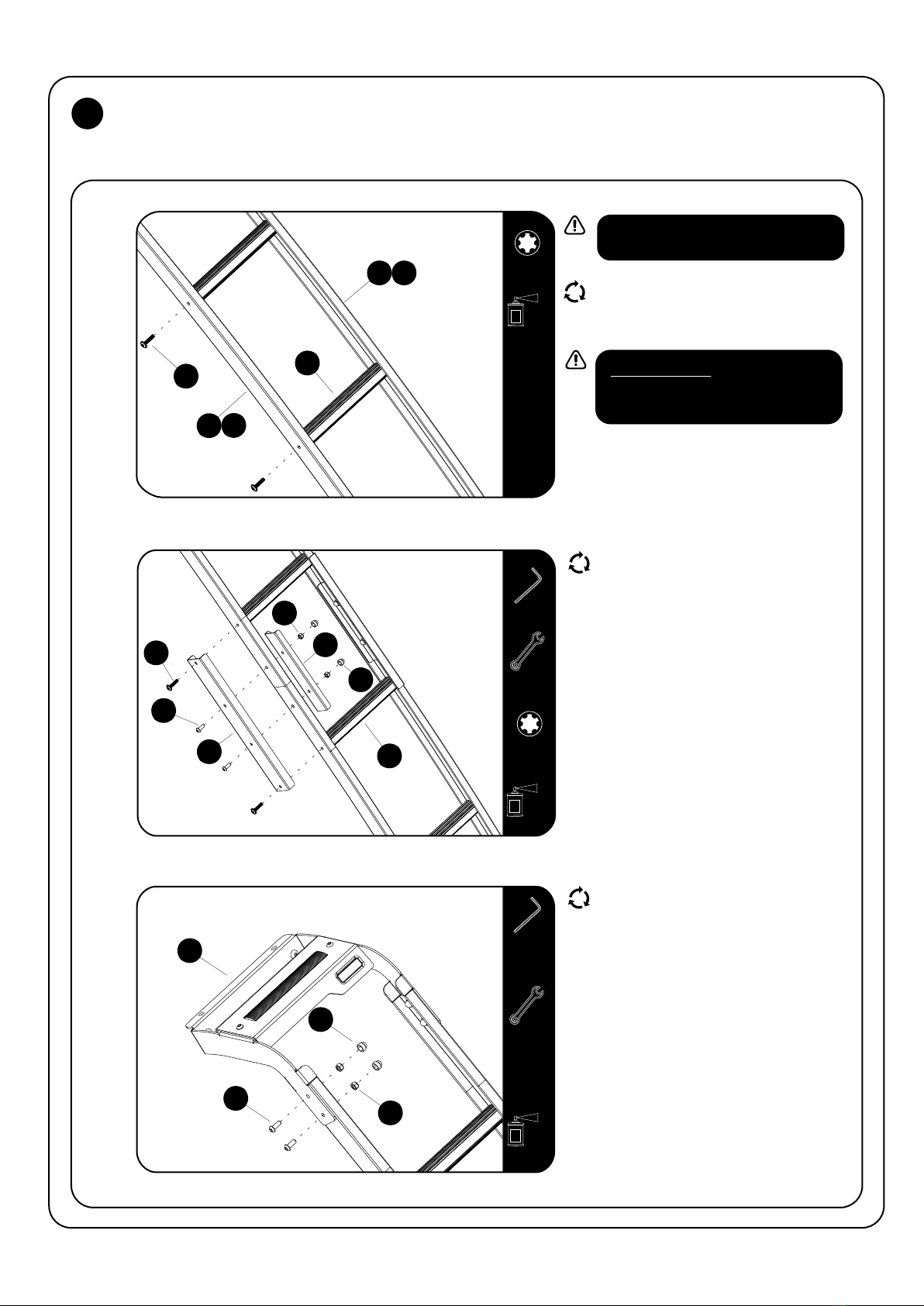

Secure the Ladder Rungs (Item 8) to the Top

and Bottom Ladder Sides (Item 3 & 4) using

M6 x 25 Thread Forming Screws (Item 10).

Fully tighten all fasteners.

Join the Ladder Top and Bottom using the

Outer and Inner Joiner Channels,

Add Text

3 4

Torx

T30

Anti-

Seize

Torx

T30

Anti-

Seize

5mm

10mm

Anti-

Seize

5mm

10mm

Apply a little Anti seize/oil on screw

threads before inserting.

Tightening Torque:

M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb

FIT AND SECURE2

2.4

2.5

2.6

Add Text

Anti-

Rust

6.5mm

5mm

Torx

T30

Anti-

Seize

5mm

10mm

13mm

5mm

10mm

13mm

LAMS004

..............000000_REV

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
