Front Runner RRAC203 Manual de usuario

front runner

RRAC203

ENG

Thank you for purchasing a Front Runner Telescopic Camp Light Rack Bracket.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TELESCOPIC CAMP LIGHT RACK BRACKET

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

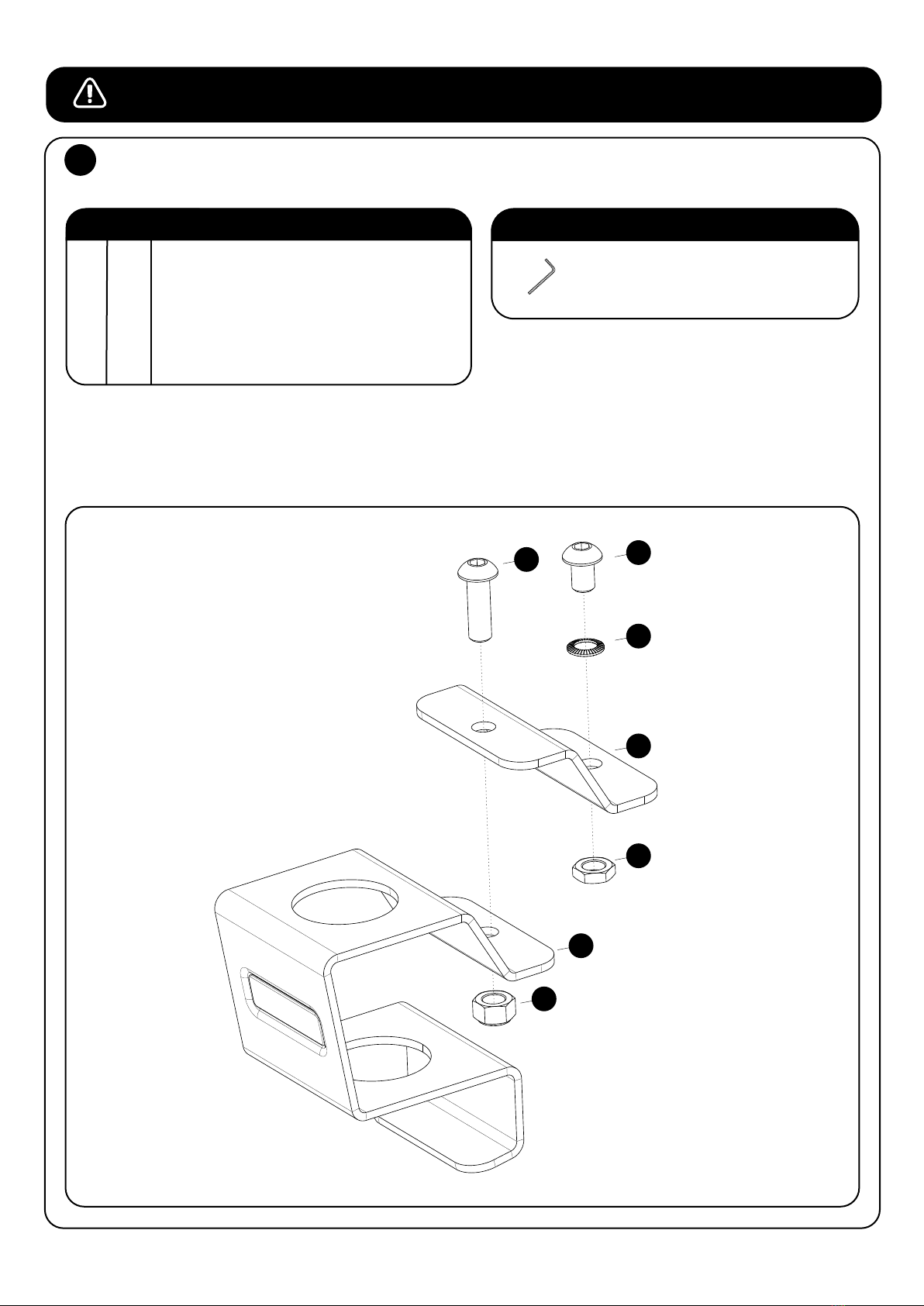

IN THE BOX

1 1 X Light Bracket

2 1 X Rack Support Bracket

3 1 X M8 x 25 Button Head Bolt

4 1 X M8 Nyloc Nut

5 1 X M8 Schnorr Washer

6 1 X M8 x 12 Button Head Bolt

7 1 X M8 Thin Nut

3mm

5mm

FIT AND SECURE2

2.1

2.2

2.3

Choose where you would like to mount your

Light bracket. Remove the Corner from the

Rack and Slide the M8 Nyloc Nut (Item 4)

into the Side Proﬁles T-Slot.

Secure the Light Bracket and the Rack

Support Bracket (Item 1 & 2) to the Rack

using M8 x 25 Button Head Bolt, M8 Nyloc

Nut, M8 Schnorr Washer, M8 x 12 Button

Head Bolt and a M8 Thin Nut, inserted

via the slat pocket as indicated by (A)

(Items 3, 4, 5, 6 & 7).

Insert the handle of the Adjustable Rod

(Sold Seperately - LIGH218) into the Light

Bracket as shown.

3mm

5mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
