Freescale Semiconductor MCS08QG8 Manual de usuario

Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the

Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service

names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

8-bit Low Pin Count MCU

Hands On Seminar

CodeWarrior Hands On Lab

October 25, 2005

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 1

Agenda

•MC9S08QG8 Demo Kit

•CodeWarrior Installation

•Lab 1 CodeWarrior Project

•Lab 2 Application Software

•Lab 3 ICS Lab

•Lab 4 MTIM Lab

•Lab 5 Analog Comparator Lab

•Lab 6 ADC Lab

•Questions

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 2

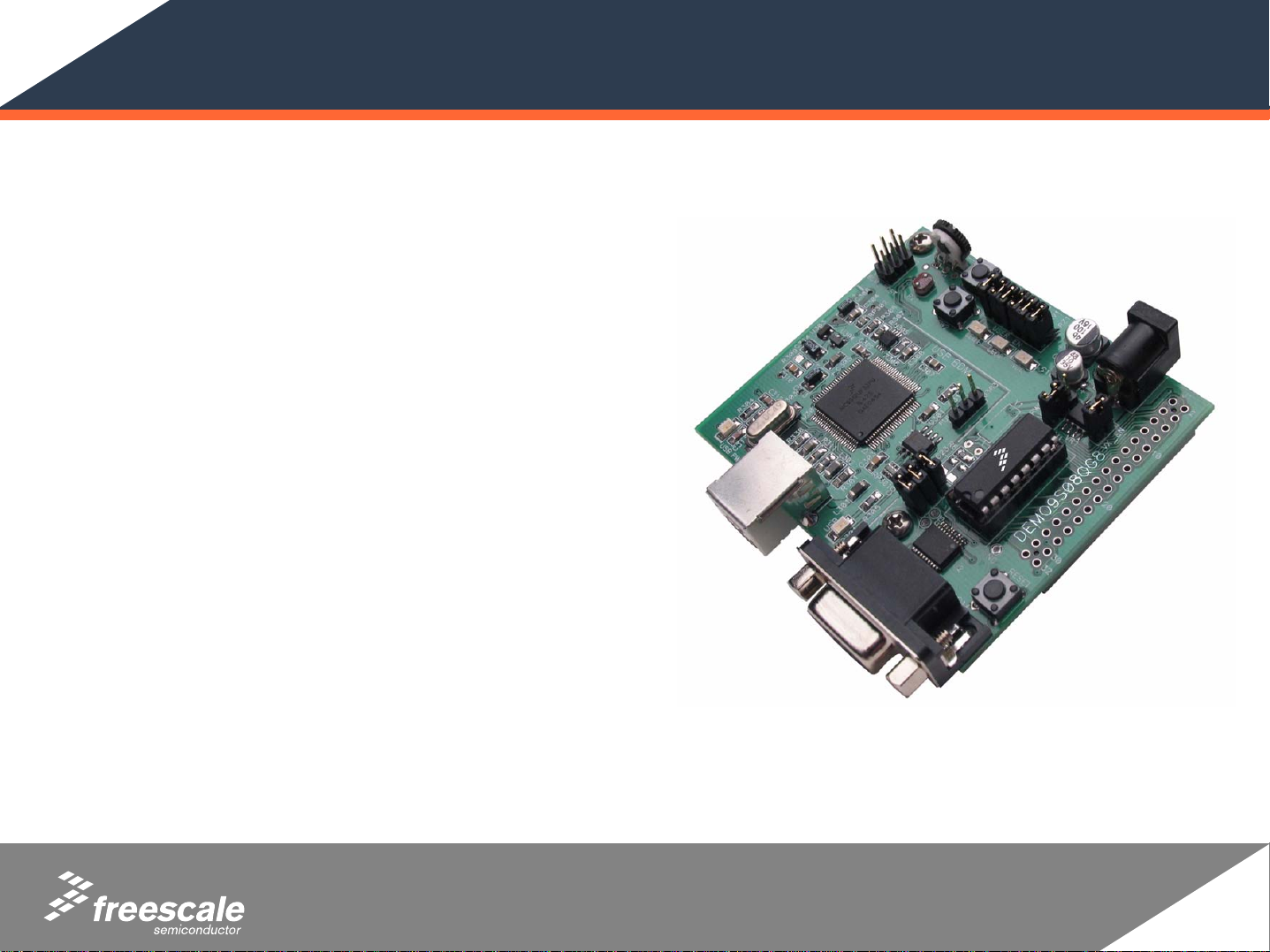

MCS08QG8 Demo Kit

•DEMO9S08QG8

• DEMO9S08QG8 Demo Board

• DEMO9S08QG8 User Guide

• DEMO9S08QG8 Quick Start Guide

• 68HC(S)08 Development Board CD

• CodeWarrior CD’s

• USB Cable

• RS-232 Serial Cable (not included)

Complete List of HCS08 Tools is Available in the Development Tool Sector Guide.

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 3

MCS08QG8 Demo Kit

Features

• Integrated USB-BDM

• RS-232 Serial Port w/ DB9 Connector

• SPI, IIC ports available on Connector J1

• External 32.768 kHz Clock Oscillator (not

installed)

• Power Input Selection Jumper

• Power input from USB-BDM

• Power input from on-board regulator

• Power input from Connector J1

• Power output through Connector J1

• User Components Provided

• 3 Push Switches; 2 User, 1 Reset

• 3 LED Indicators; 2 User, 1 VDD

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 4

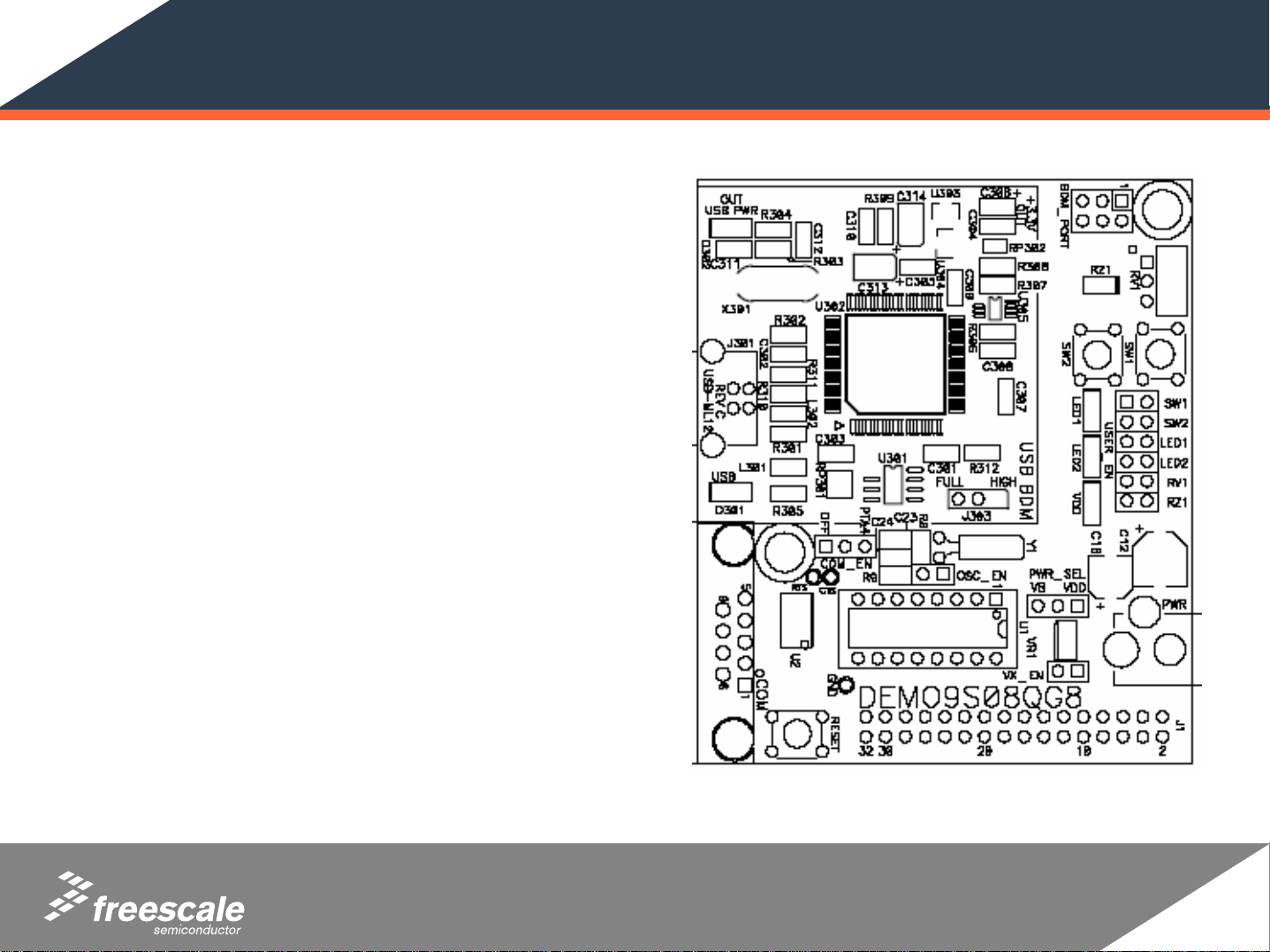

MCS08QG8 Demo Kit

Jumpers

• USER_EN

• PWR_SEL

• COM_SEL

• VX_EN

• OSC_EN (not installed)

Connectors

• 32-pin MCU I/O Connector

• 2.0mm Barrel Connector

• BDM_PORT Pin Header (not installed)

• DB9 Serial Connector

Specifications:

• Board Size 2.9” x 2.5”

• Power Input:

• USB Cable – 500mA max

• PWR Connector - 9VDC typical, +7VDC

to +18VDC

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 5

MCS08QG8 Demo Kit

•Run Mode

Run mode allows the user application to execute when

power is applied to the board or the RESET button is

pressed. Use the following settings to configure the

DEMO908QG8 board for RUN Mode using the USB bus to

power the board.

•Debug Mode

Debug Mode supports application development and debug

using the HCS08/HC(S)12 background debug mode (BDM).

Background mode is accessible using either the integrated

USBBDM or an external HCS08/HC(S)12 BDM cable. Use

of the integrated BDM requires only a host PC with an

available USB port and an A/B USB cable.

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 6

MCS08QG8 Demo Kit

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 7

MCS08QG8 Demo Kit

BDM Port Header

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 8

MCS08QG8 Demo Kit

Power Select

TM Freescale Semiconductor Confidential and Proprietary Information. Freescale™ and the Freescale logo are trademarks of Freescale

Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2005.

Slide 9

MCS08QG8 Demo Kit

Voltage External Enable
