EverFocus Indoor Pendent Dome Camera EPD200 Manual de usuario

EVERFOCUS

Indoor Pendent Dome Camera

Operation Instructions

Model No. EPD200

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within 0℃~ 50℃/32℉~122℉and humidity between 20%~

80%. The input power source is 12VDC/24VAC.

PREFACE

EPD200 is compact, full functioned CCD Color Cameras for indoor pendent mount. The

dome camera is designed with advanced digital processing circuitry for high resolution 1/3"

CCD sensor, it has DIP switch for FL ON/OFF, BLC ON/OFF, AGC ON/OFF. The dome

camera uses a vari-focal auto iris lens for discreet surveillance or close-up viewing and it

features with iris level volume control for the best viewing quality.

FEATURES

z1/3” SONY CCD pick up device for more than 380 TV lines of horizontal resolution

zThe high sensitivity of 1.0 Lux/F=1.2 is achieved by using 1/3” SONY CCD

zThe Electronic Shutter and AGC functions allow the camera to be used in environment

with varying light levels

zBuilt-in Vari-Focal lens(optional)

zWith manual PAN mechanism up to 90 degree

zFL, BLC, AGC On/Off switchable

zCompact size

zSystem available for NTSC or PAL

CONTENT LIST

1. Camera Unit

2. Operation Instructions (this document)

3. Hex Wrench

4. Power Extension Cable

5. Video Cable for testing Video Connector

OPTIONALACCESSORY

•EN220 5.6-inch LCD Test Monitor

SPECIFICATION

Pickup Device 1/3" SONY Super HAD CCD

Video Format

TSC or PAL

Scanning System

TSC: 525 TV lines, 60 fields/sec.

PAL: 625 TV lines, 50 fields/sec.

Picture Elements 510 x 492 (NTSC); 500 x 582 (PAL)

Horizontal Resolution 380 TVL

Sensitivity 0.3 Lux /F=1.2

S/N Ratio Over 48dB(AGC Off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Vari-Focal or Fixed Lens

Video Output BNC 1.0Vp-p 75ohm

Back Light Comp.. On/Off switch

Auto Gain Control On/Off switch

Flickerless On/Off switch

Auto White Balance Auto

Auto IRIS DC-Drive

Gamma Correction 0.45

Sync. Mode Internal Sync.

Power Source Two types:

12VDC/24VAC

12VDC only

Power Consumption 3W max.

Video Output Connector BNC output x 1

2.5mm Lock x 1

AC 24V Power Connector + Video 2.5mm x 2-pin(for DC jack)

2.0mm x 2-pin(for BNC)

DC 12V Power Connector + Video 1.25mm x 4-pin, (1BNC, DC jack)

Weight 0.3 kg ; 0.66 lbs

Dimension 110mm(W)x 125(H)/ 4.33”(W) x4.92”(H)

Pendent Tube Diameter: 26mm/1.06”

Operating Temperature 0~50 ; 32°F~122°F (20%~80% Humidity)

Certifications CE, FCC

DIMENSION DIAGRAM

a. Conduit Size

HARDWARE OVERVIEW

26mm/1.06”

125mm/4.92”

110mm/4.33”

90mm/3.54”

80mm/3.15””

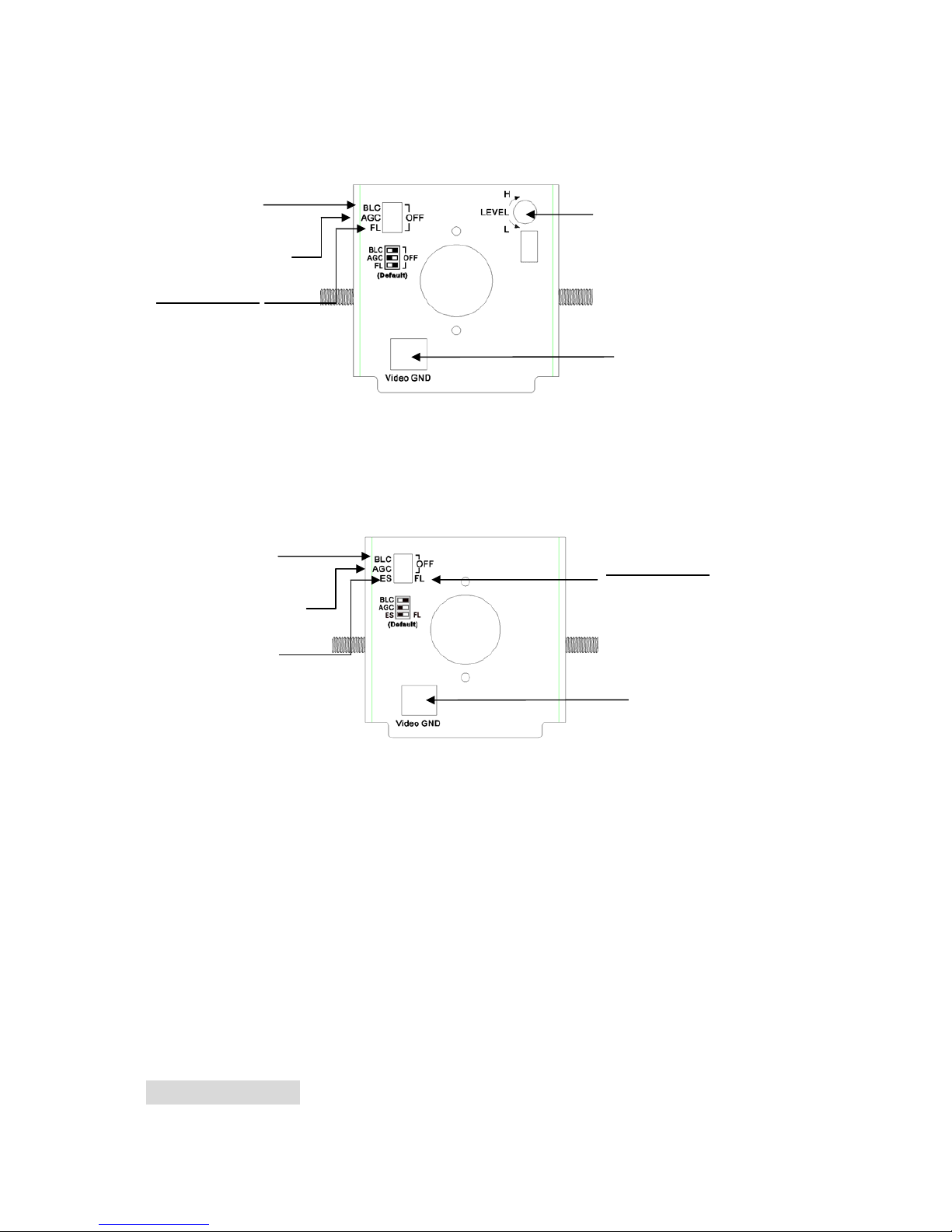

a. Front panel design (For Vari-Focal Lens Model)

b. Front panel design (For Fixed Lens Model)

INSTALLATION

IRIS LEVEL

CONTROL

BNC Pigtail Slot for

Focusing and

Testing Module

BLC – Back Light

Compensation

AGC (Automatic

Gain Control)

FL(Flickerless)

BNC Pigtail Slot for

Focusing and

Testing Module

BLC – Back Light

Compensation

AGC (Automatic

Gain Control)

ES(Electronic

Shutter)

FL(Flickerless)

This section covers simple steps and detail installation. Please follow instruction for preventing

any unnecessary damage.

Simple Steps:

1. Connect to 26mm/1.06” EMT Conduit Pipe and lock it with Hex Wrench

2. Open camera bubble cover

3. Connect to testing monitor(optional accessories)

4. Adjust lens, camera position

5. Optional adjust camera setting on Dip Switch

1. Mount Camera

a. Pre-install 26mm/1.06” EMT conduit pipe and wire video and power cables though conduit

pipe. Connect power and video to the camera.

b. Locking pipe with camera by tightening set screws with supplied Hex wrench.

Note!! When connect to 12VDC with Power Extension cable . Please make sure you

connect powr +,- correctly. Wrong connection may damage the camera.

Camera

26mm EMT

Conduit Pipe

2.5mm Hex

Wrench

Set Screws

2. Open Camera Bubble Cover

Turn the camera bubble until you see the arrow face to here.

3. Connecting to testing monitor EN220

Connect the BNC Pigtail accessory to the front of the module for help with focusing or video

testing.

White (+)

Black (-)

4. Adjust Camera Position and Lens

a.Adjust camera position (Tilt angle up to 90 degree): Adjust camera to the position you

like. The turning angel is up to 90 degree. Use ‘tool-less’ screws on the side of the module

to secure position.

b. Zoom and focus adjustments (For Vari-focal Lens Model)

After the camera was installed, the zoom and focus of the lens must be adjusted.

(1) Loosen the zoom ring knob, and then turn the ring towards <W> or <T> as necessary to

obtain the desired view range.

W side (Zoom out)

The viewing range will be wider and the subject is smaller.

T side (Zoom in)

The viewing range will be smaller and the subject is larger.

(2) Loosen the focus ring knob, then turn the ring towards <∞> or <N> as necessary to

obtain the clear video image.

(3) Repeat steps 1 and 2 until the best image is obtained.

Once the lens setting finished, tighten the zoom ring and the focus ring knobs.

CAMERA SETTING

¾BLC (Back Light Compensation)

When BLC is turned on, the AGC, FL and IRIS operating point is determined by averaging over

the center area instead of entire field-of-view, so that a dimly-lit foreground object at center area

can be clearly distinguished from brightly-lit backgrounds. BLC should not be used unless it is

needed to compensate for back-light.

The default setting is OFF. For Auto-Iris lens model, the brightness can also be adjusted via the

Iris level control VR.

¾AGC (Automatic Gain Control)

AGC ON: The sensitivity increases automatically when light is low.

AGC OFF: A-low-noise picture is obtained under a low light condition.

The default setting is ON.

90 Degree

Tool-less Screws

¾FL (Flickerless)

When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic

shutter at 1/100(S)(NTSC) or 1/120(S)(PAL) automatically, and reduce the flicker immediately.

The default setting is OFF.

¾IRIS Level Control (For Vari-Focal Lens Model)

Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens.

•Turn counterclockwise to L to get darker picture.

•Turn clockwise to H to get brighter picture.¾Electronic Shutter (For Fixed Lens Model)

ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50 (PAL) second

to 1/100,000 second according to the luminance conditions of the scene.

ES OFF: The shutter speed is fixed at 1/60 (NTSC),1/50 (PAL) second.

Set ES OFF, when auto iris lens is used or flicker is observed under a very bright fluorescent lamp.

Otherwise, turn ES on for optimum performance.

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: +886-2-26982334

FAX: +886-2-26982380

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: +1-626-844-8888

FAX: +1-626-844-8838

www.everfocus.com

USA N.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: 631-436-5070

FAX: 631-436-5027

www.everfocus.com

Europe Office:

Albert-Einstein-Strasse 1

D-46446 Emmerich, Germany

TEL: 49-2822-9394-0

www.everfocus.de

China Office:

Room B-05D-1, KESHI PLAZA , Shangdi

Information Industry Base,

Haidian District, Beijing China 100085

TEL: +86-10-62973336/37/38/39

FAX: +86-10-62971423

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: +81-43-212-8188

FAX: +81-43-297-0081

www.everfocus.com

our EverFocus product is desi

ned and

manufactured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from your

household waste.

Please, dispose of this equipment at your

local community waste collection/recycling

centre.

In the European Union there are separate

collection systems for used electrical and

electronic product.

Please, help us to conserve the environment

we live in!

Ihr EverFocus Produkt wurde entwickelt und

hergestellt mit qualitativ hochwertigen

Materialien und Komponenten, die recycelt

und wieder verwendet werden können.

Dieses Symbol bedeutet, dass elektrische und

elektronische Geräte am Ende ihrer

Nutzungsdauer vom Hausmüll getrennt

entsorgt werden sollen.

Bitte entsorgen Sie dieses Gerät bei Ihrer

örtlichen kommunalen Sammelstelle oder im

Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu erhalten, in

der wir leben!

P/N: MEFDG00400
